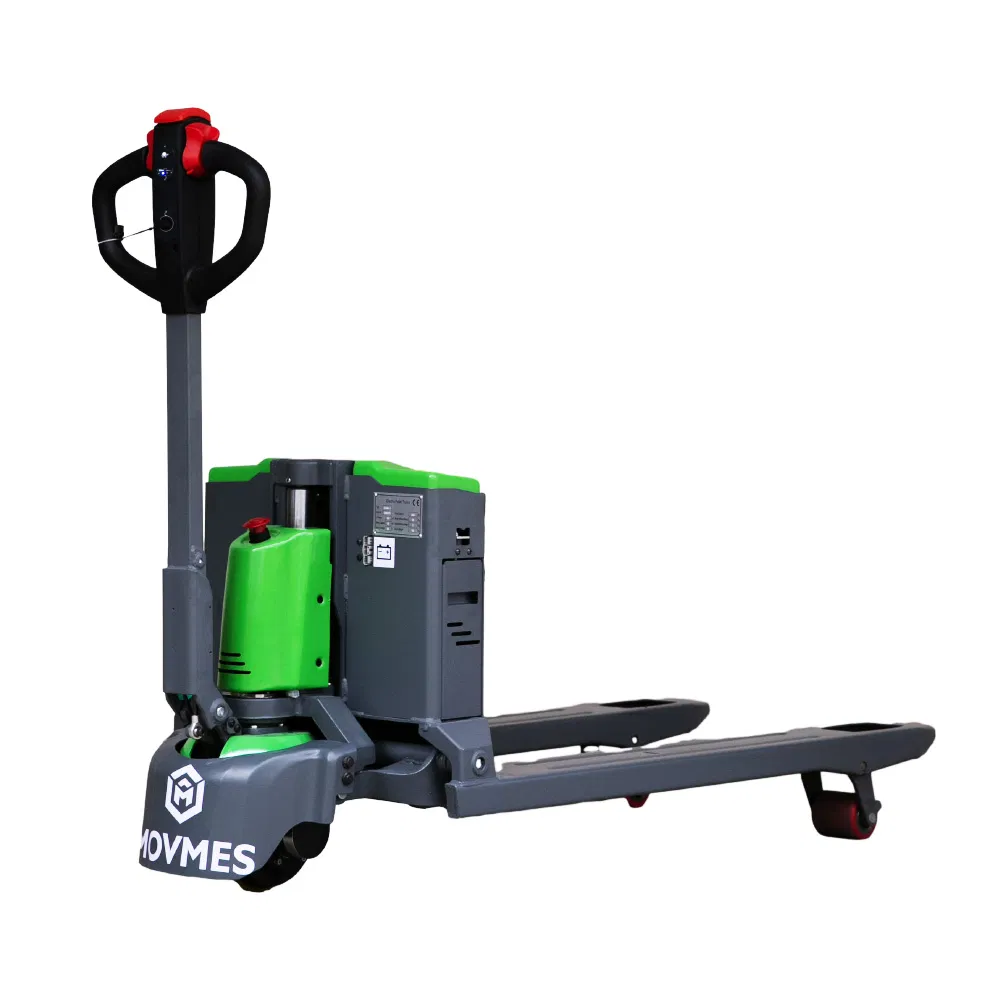

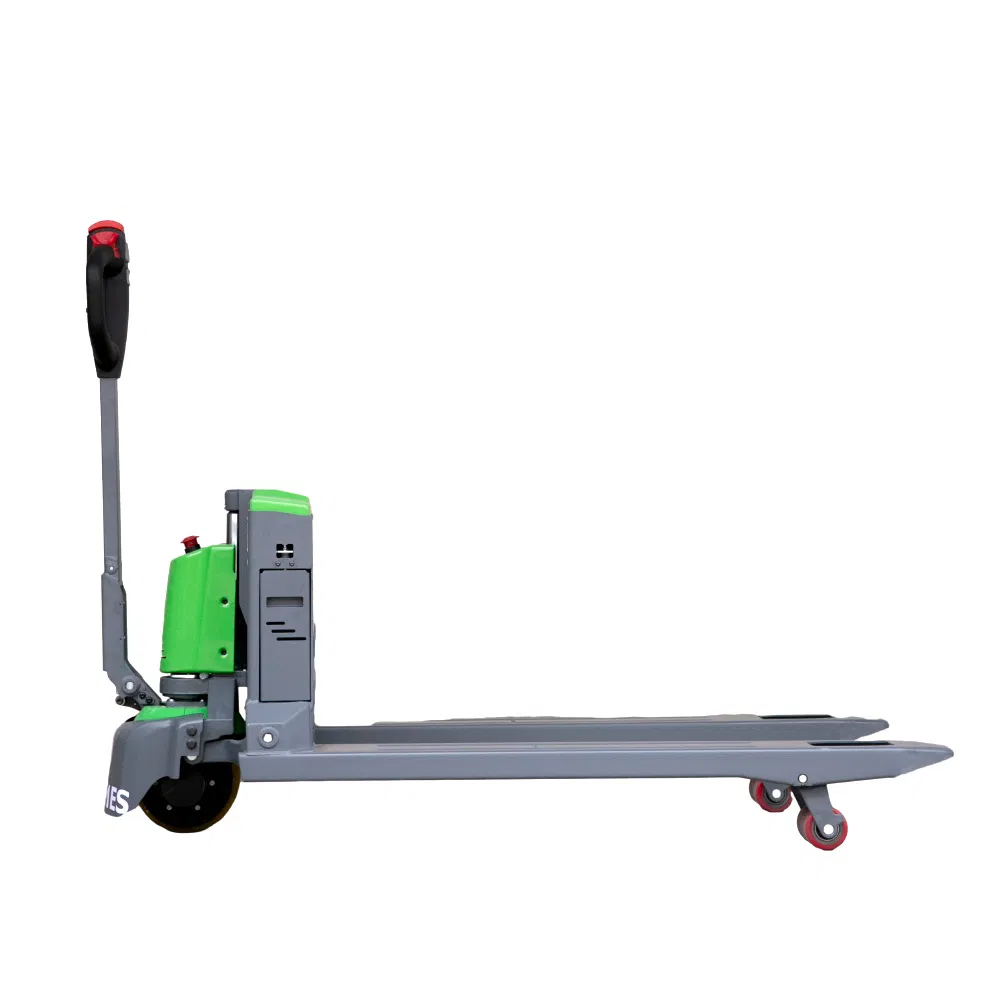

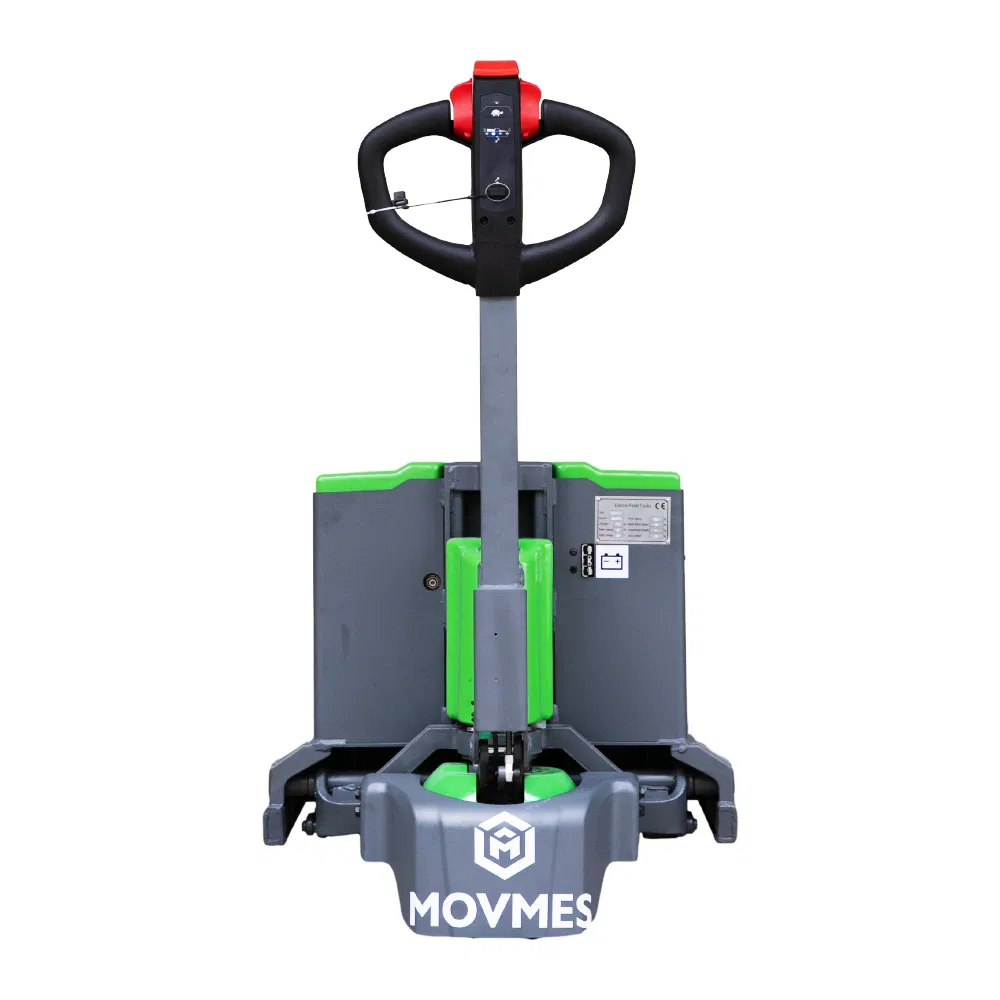

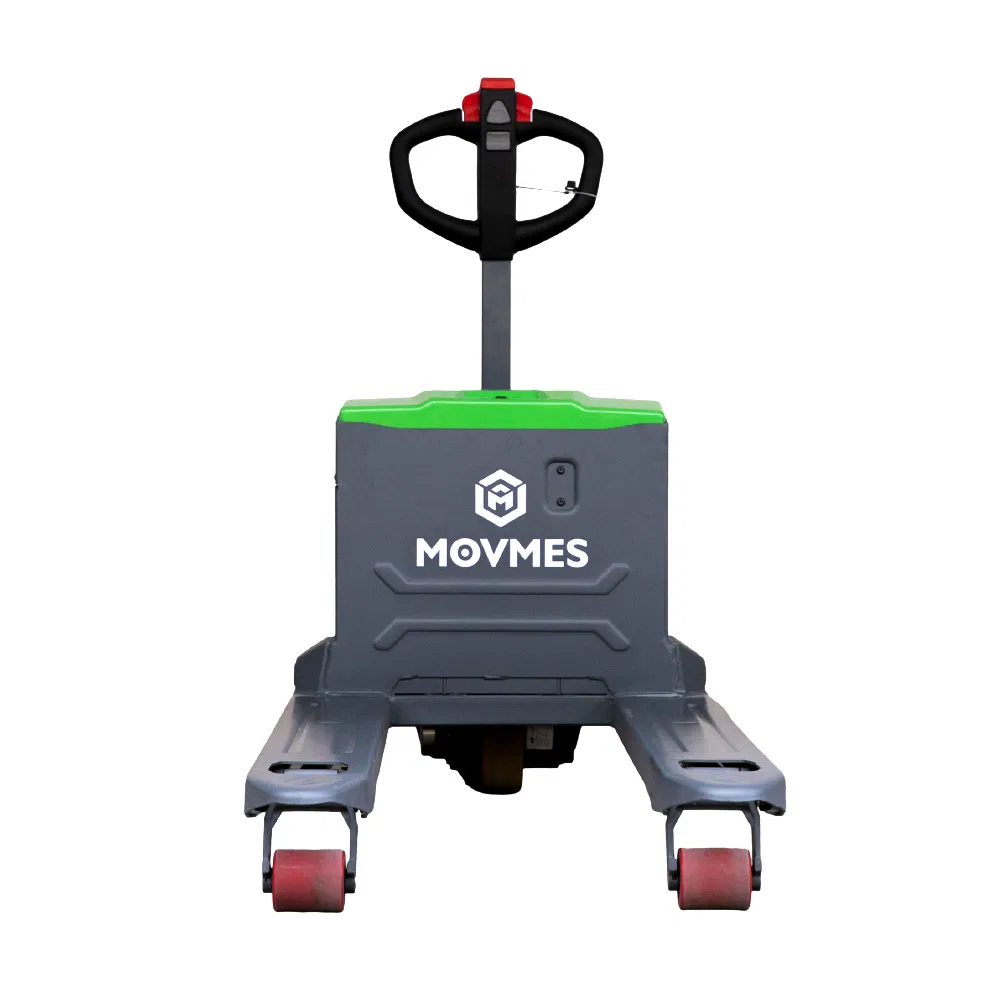

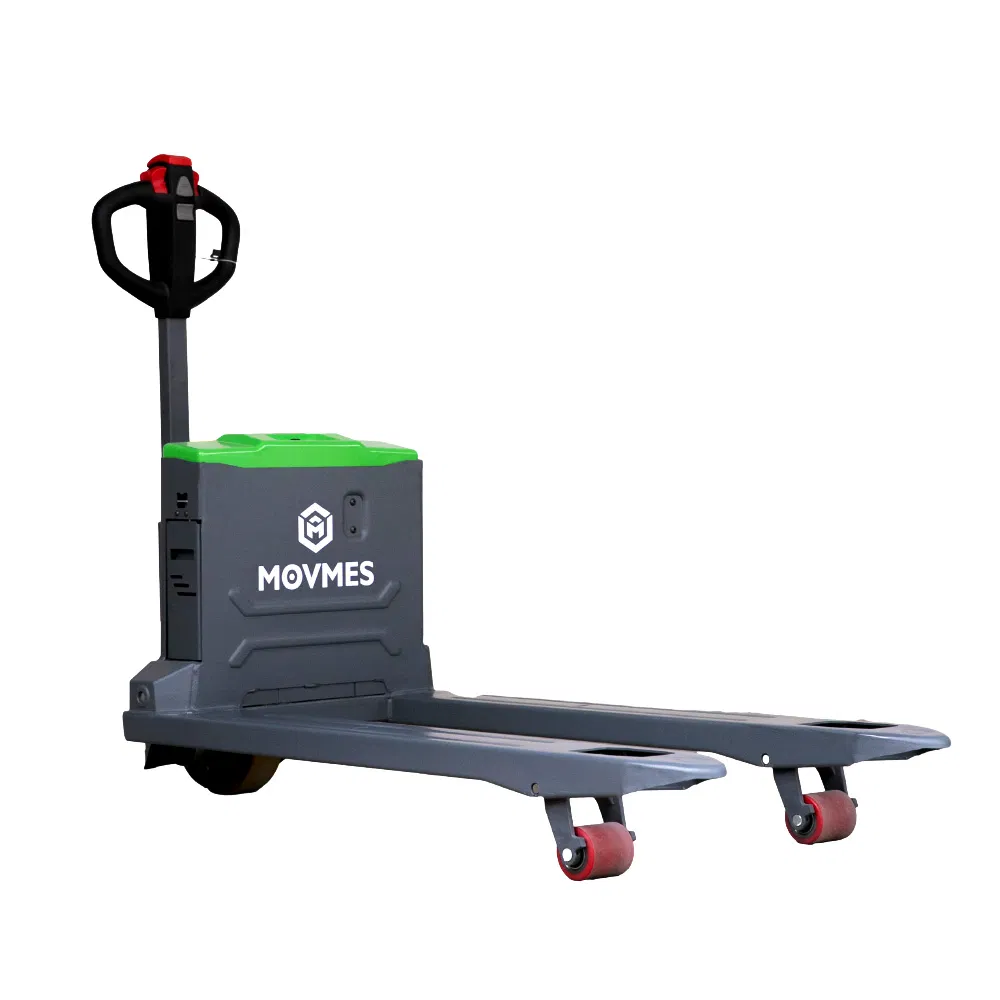

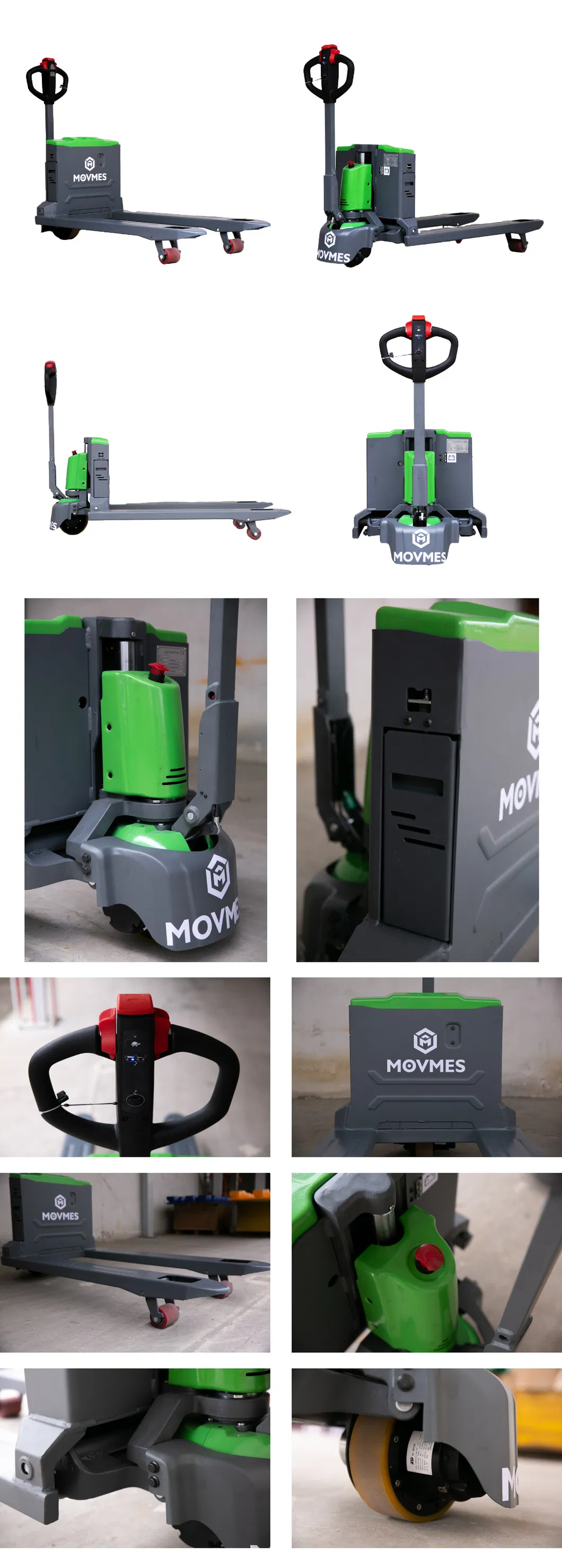

3 Ton 5 Ton Mini Manual and Electric Fork Lift Hydraulic Wholeasle Hand Pallet Jack

Basic Specifications

Type:

Powered Pallet Truck

Power:

DC Motor

Load Capacity:

1.5 Ton

Fuel:

Electric

Lift Height:

115 mm

Fork Dimensions:

50X150X1150 mm

Turning Radius:

1475mm

Battery:

2X12/65V/Ah

Main Configuration

✔Maintenance-free battery 24V/65AH

✔Built-in charger 24V10A

✔Durable PU wheels

✔Reliable Mechanic steering

✔DC drive motor 0.75kw / DC pump motor 0.8kw

✔High-precision DC CURTIS controller

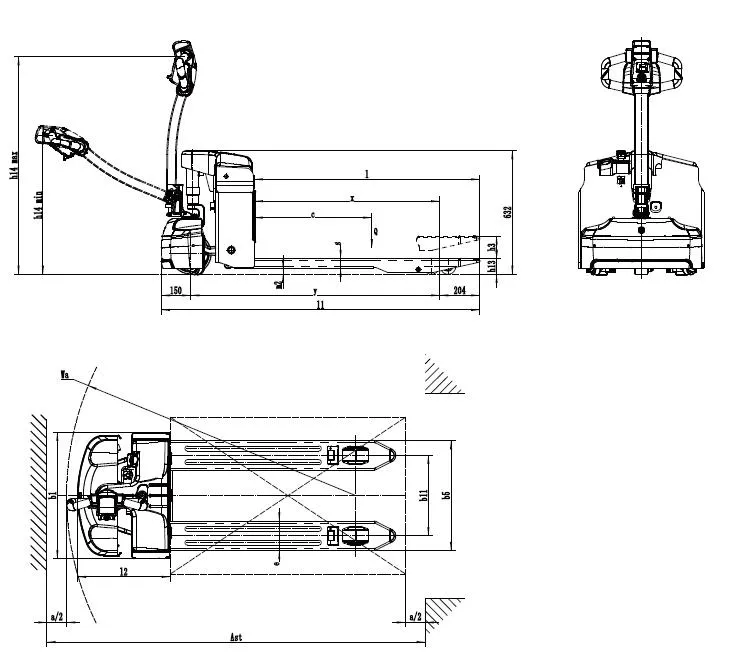

Technical Parameters

Description	Unit	Specification
Load capacity	kg	1500
Load center distance	mm	600
Fork height, lowered	mm	80
Max. lift height	mm	115
Overall length	mm	1623
Overall width	mm	645 / 685
Travel speed, laden/unladen	km/h	4.5 / 5
Gradeability, laden/unladen	%	5 / 16
Service brake	-	Electromagnetic

Key Advantages

⭐

High Stability: Equipped with improved castor wheels for superior balance during operation.

⭐

Zero Maintenance: AGM batteries come standard, eliminating the need for watering or equalization charges.

⭐

Efficiency: Available in 65Ah and 85Ah options, supporting speeds up to 5.0km/h for high productivity.

⭐

Foot Protection: Brake backing shields protect operators from potential pinch injuries.

Related Hot Models

Quality Assurance & Capacity

36 YearsExperience

150,000m²Factory Area

157Countries Exported

500+Equipment Types

Strict Testing System: Every unit undergoes 5 critical tests before delivery:

1. Strengthening test | 2. Stability detection | 3. Climbing performance | 4. Braking performance | 5. Technical parameter verification

Frequently Asked Questions

Q1: What is the continuous working time and charging duration? The continuous working time is approximately 3-6 hours depending on battery volume. Charging usually requires 3-6 hours to reach full capacity.

Q2: What are the specifications for the battery chargers? Chargers are available in 24V or 48V. Power plugs can be customized to USA, UK, Australian, or European standards for global compatibility.

Q3: Do you offer customized OEM or ODM products? Yes, we have over 30 years of experience in developing warehouse logistics equipment and provide professional OEM services for major global brands.

Q4: What is the standard warranty period? We provide a one-year warranty. During this period, we supply replacement parts for free for any damage not caused by human error.

Q5: Are the batteries maintenance-free? Yes, models like the EPT20-15ET3 are equipped with AGM batteries as standard, which do not require watering or manual maintenance.

Q6: What certifications do the products carry? Our equipment is certified under ISO9001, ISO14001, and OHSAS18001. Over 90% of our products also carry the TUV/GS/CE certificate.
