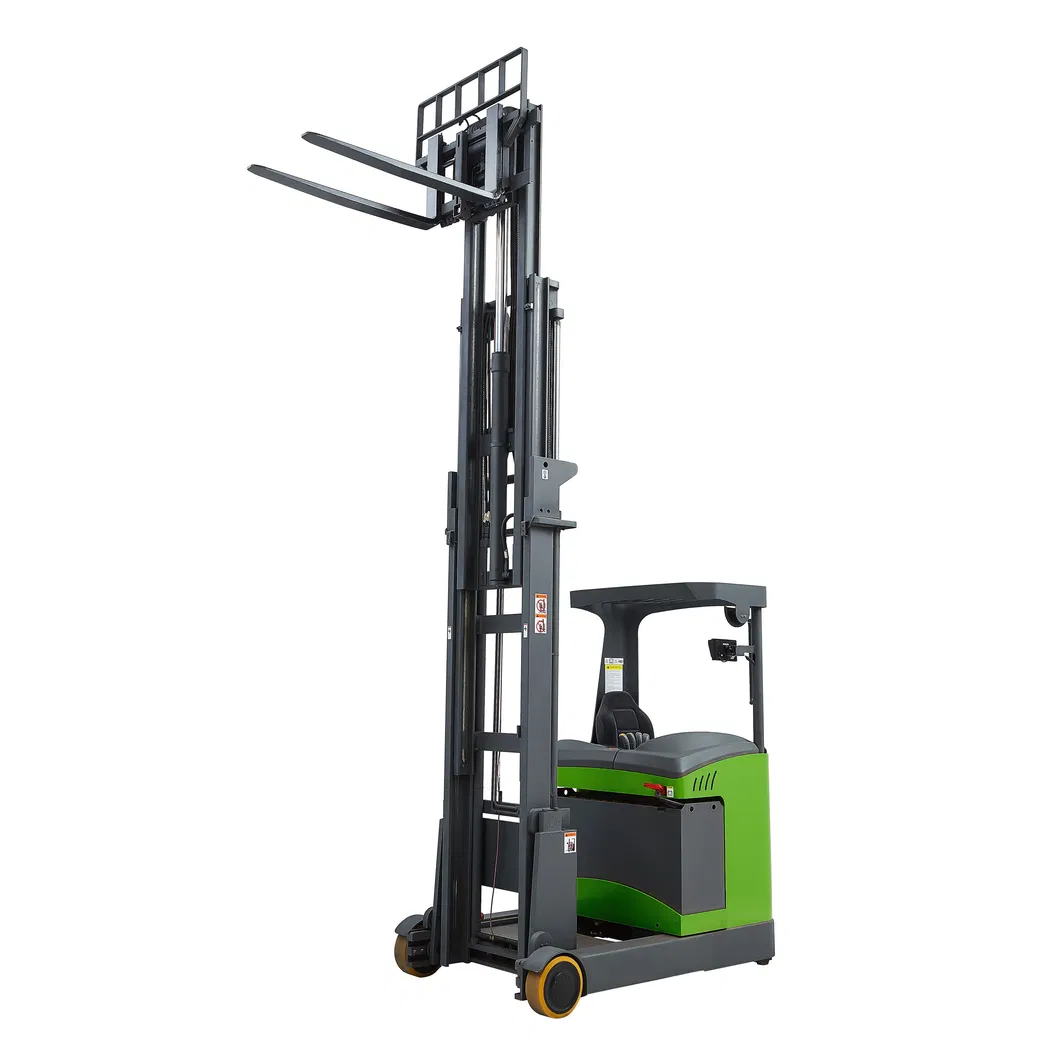

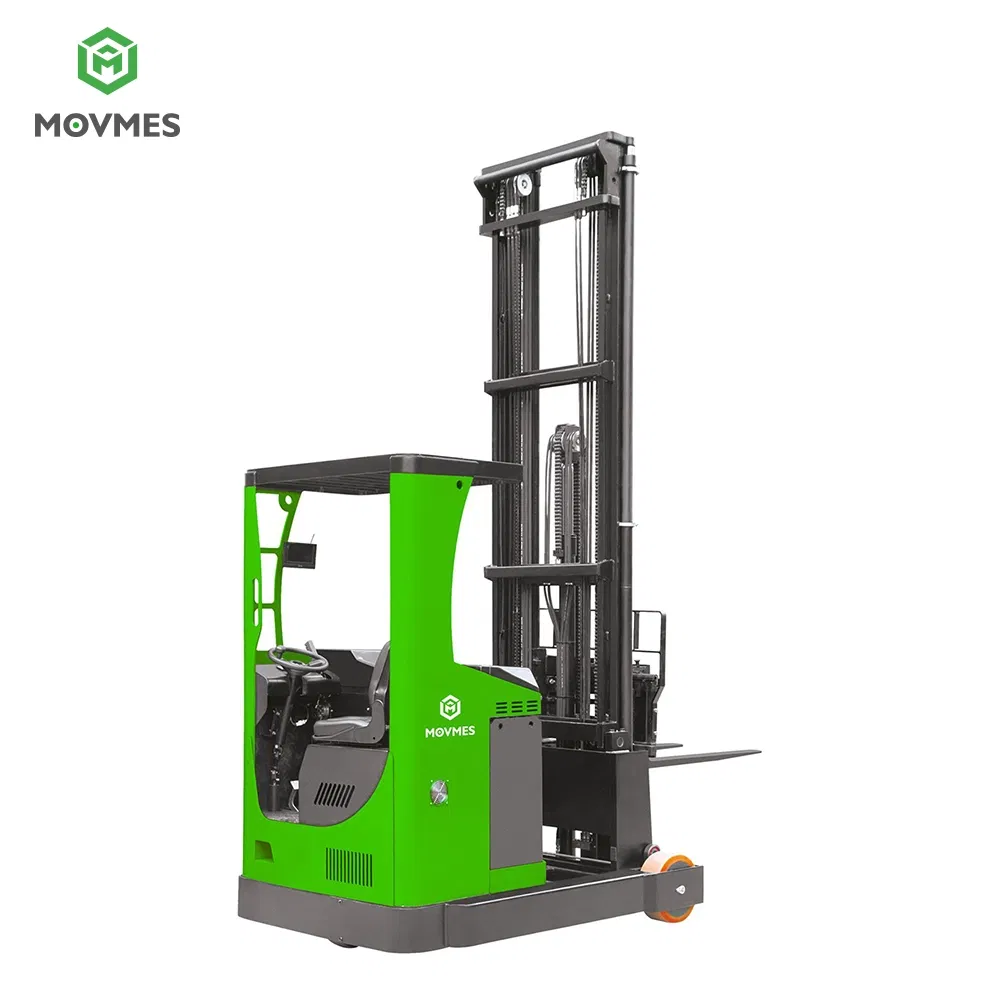

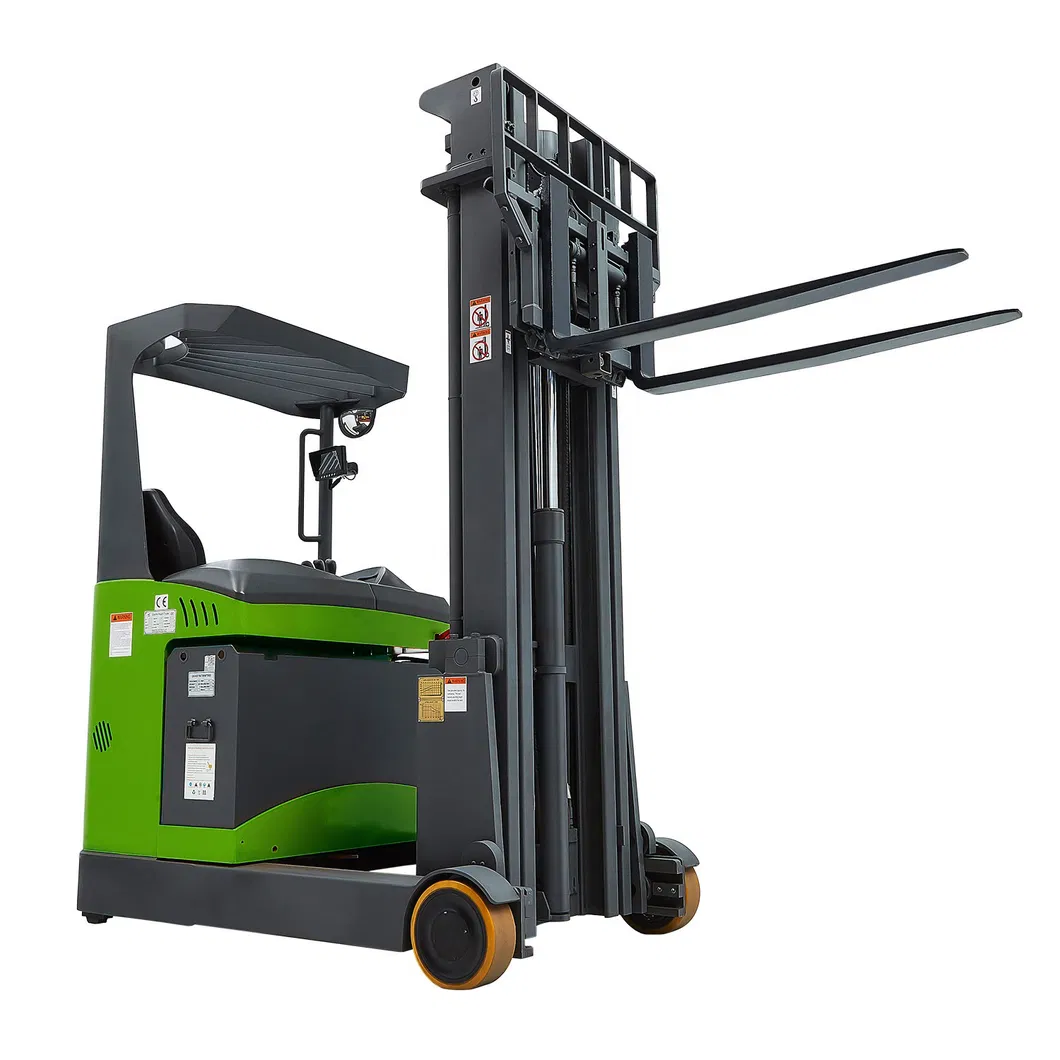

Titan Forklift
1 / 5

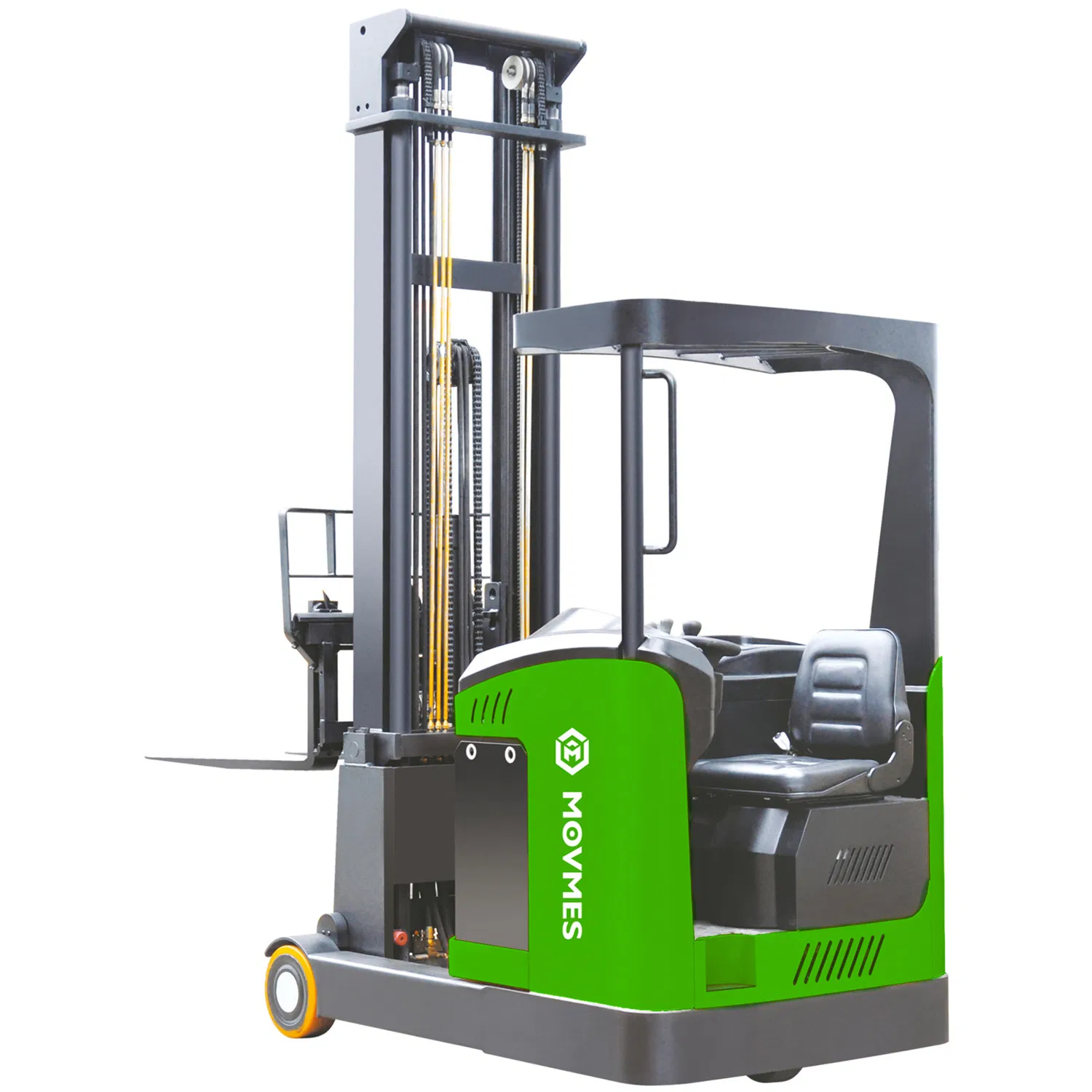

High-performance material handling solution with a maximum lifting height of 14000mm, designed for warehouse efficiency and narrow aisle operations.

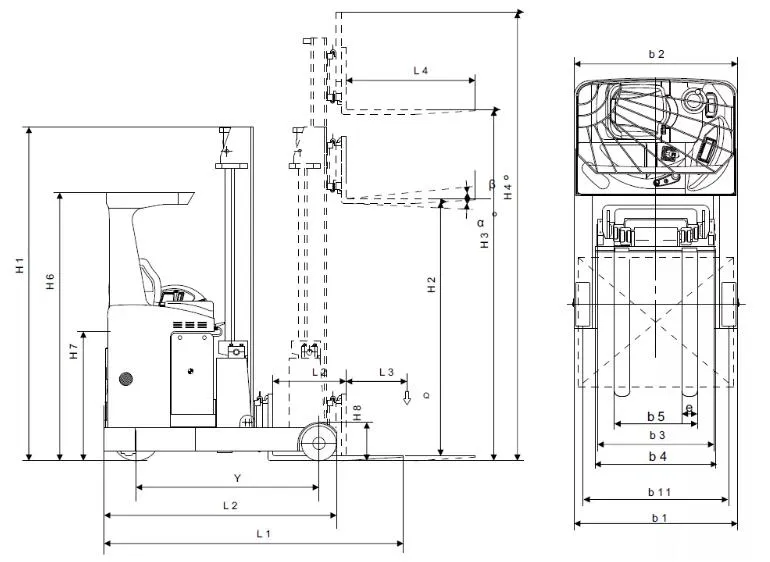

| Description | Unit/Sign | Specifications |
|---|---|---|

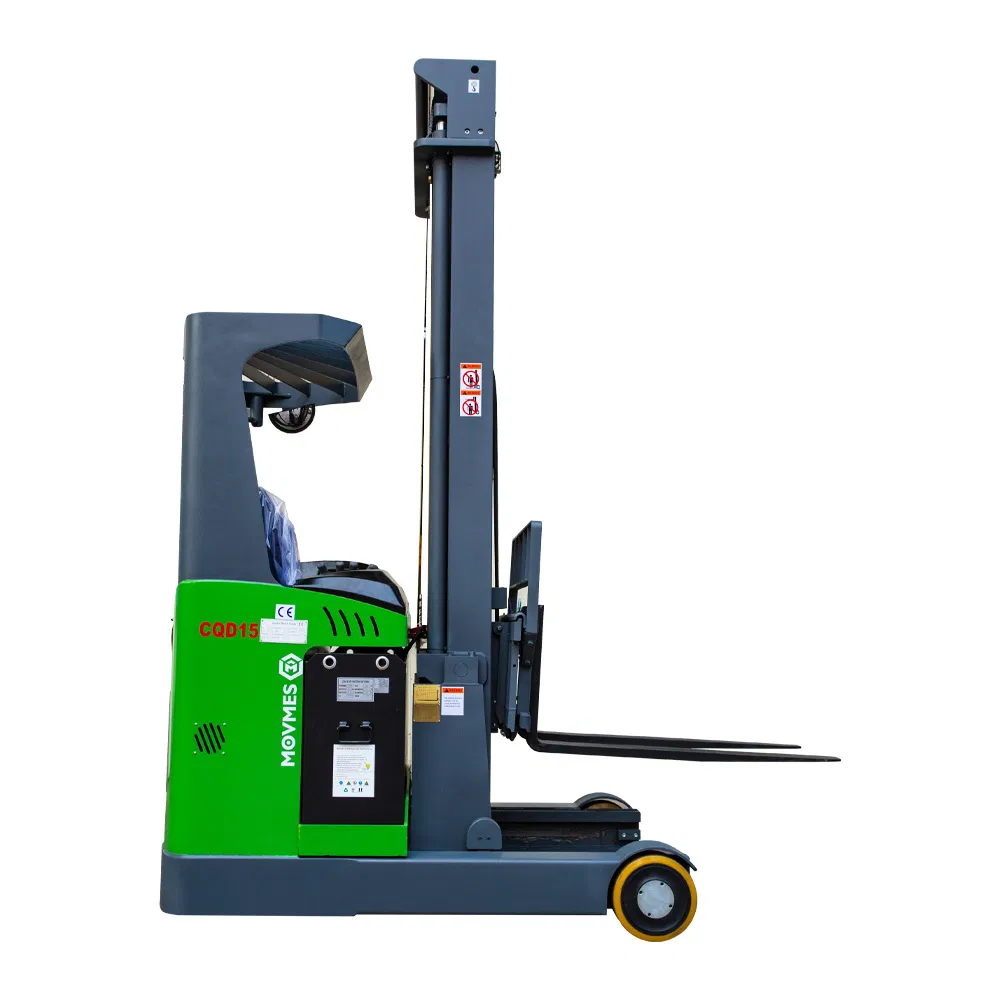

| Model | - | CQD15 |
| Capacity/Rated Load | Q(kg) | 1500 |
| Max. Lift Height | h3(mm) | 3000/5000/6200/7400/8000 |
| Load Centre Distance | C(mm) | 600 |
| Drive Wheel Size | mm | Dia 310x125 |
| Fork Wheel Size | mm | Dia 285x110 |
| Height, Mast Lowered | h1(mm) | 2086/2240/2740/3190/3390 |
| Free Lift | h2(mm) | 0/1700/2100/2500/2700 |
| Overall Length | l1(mm) | 2370 |
| Travel Speed (Laden/Unladen) | km/h | 8 / 8.3 |
| Lift Speed (Laden/Unladen) | m/s | 0.45 / 0.36 |
| Service Weight | kg | 2900 - 3300 |

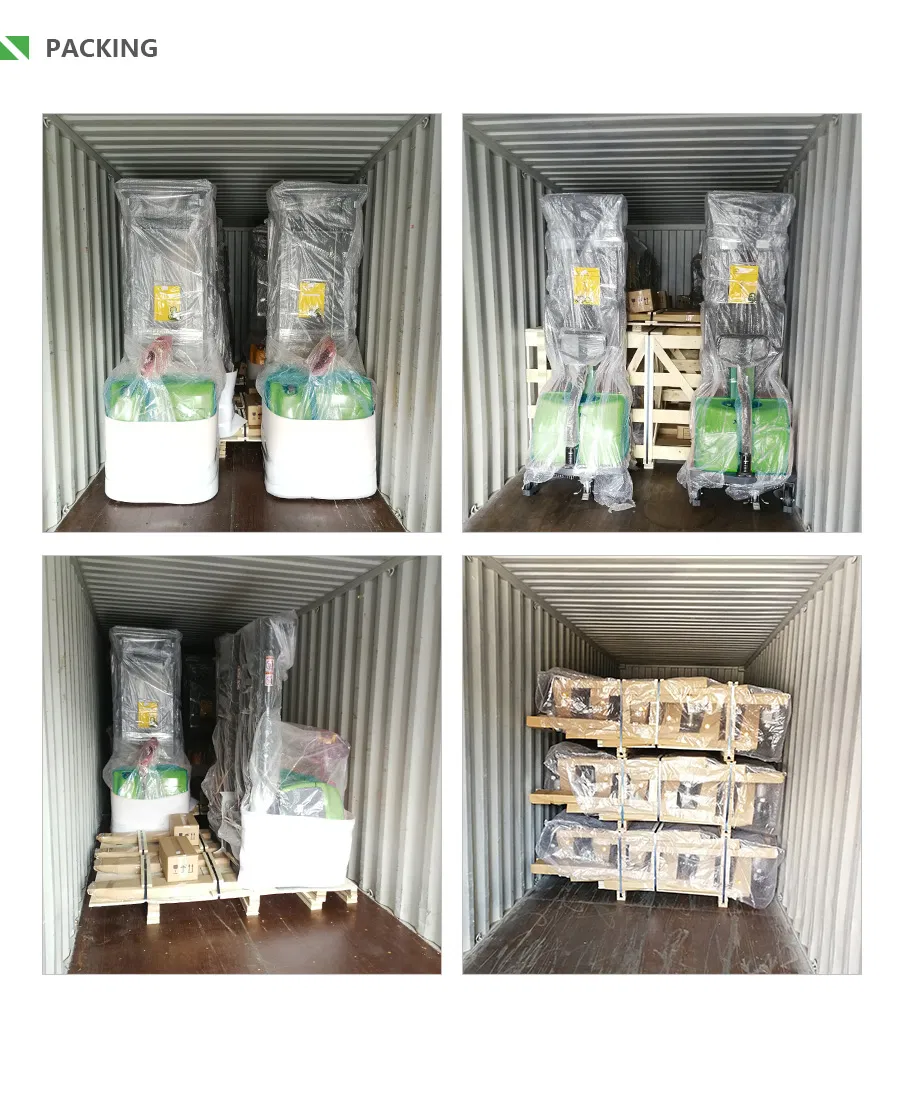

Every truck is carefully packaged according to delivery requirements. Comprehensive photos and videos are provided prior to shipment to ensure quality approval. The typical production lead time is 30-45 days following the initial payment.
Our products adhere to international quality standards including ISO9001, ISO14001, and OHSAS18001. Over 90% of our material handling equipment is TUV/GS/CE certified, meeting ISO3691-1 and EN1175-1 standards.
