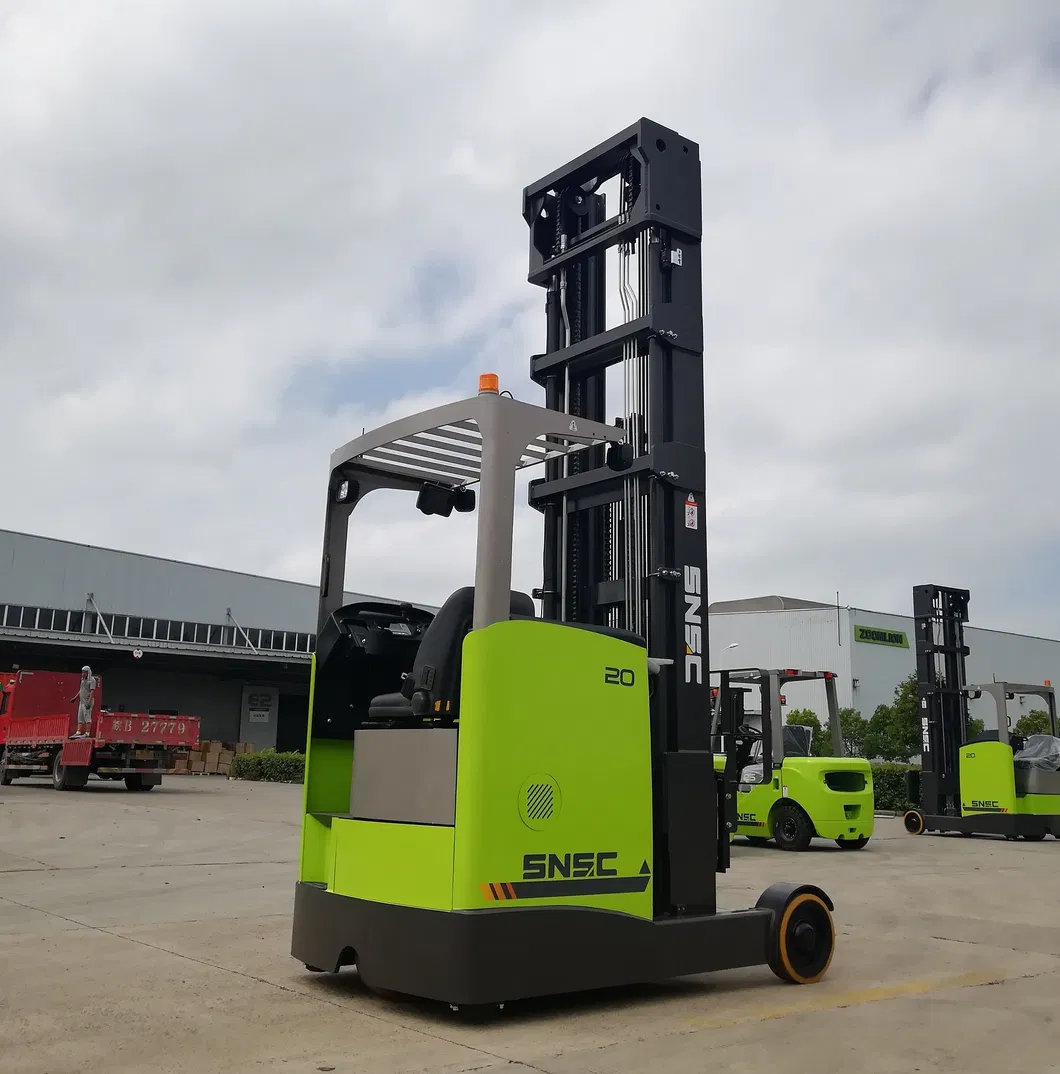

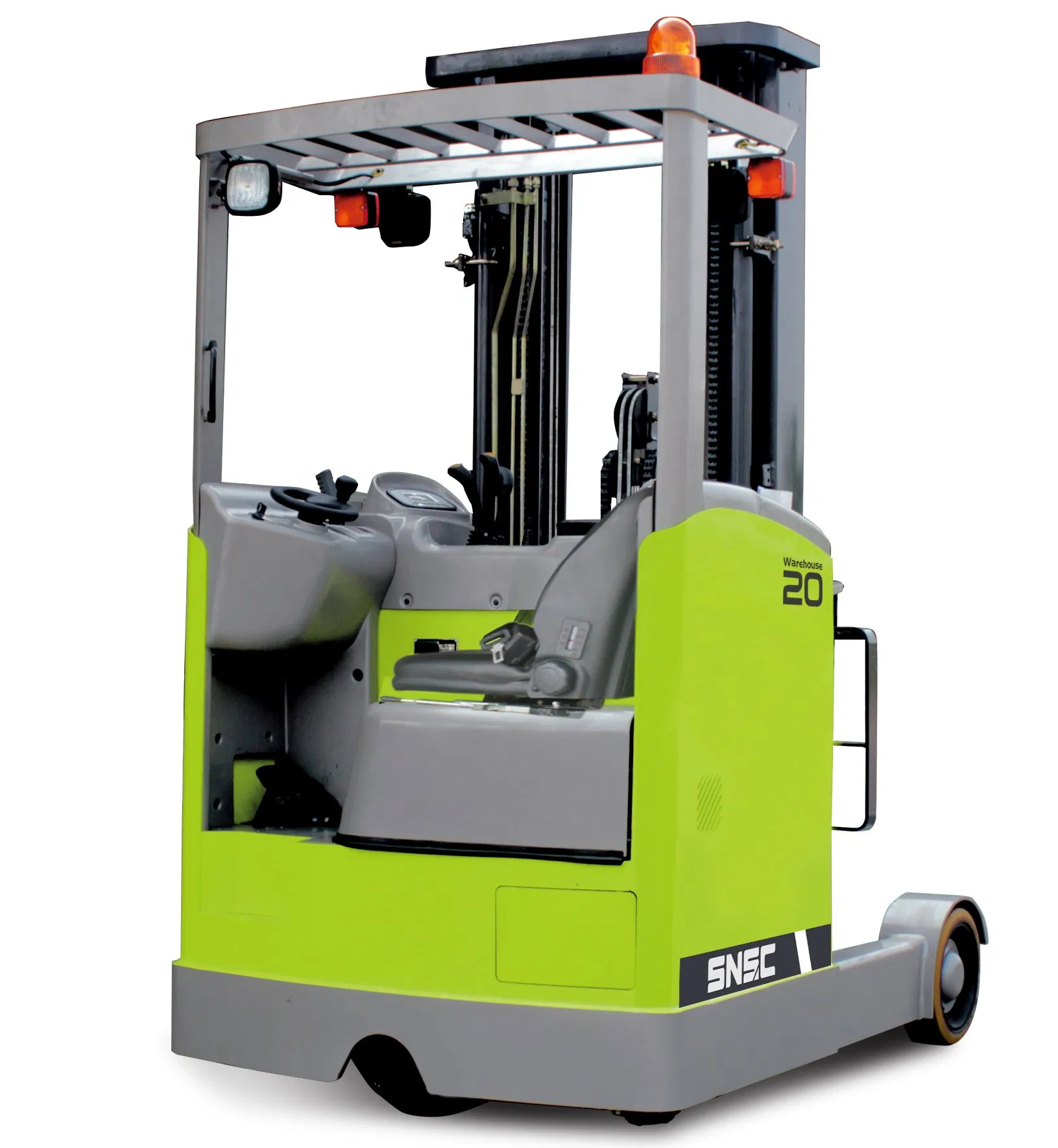

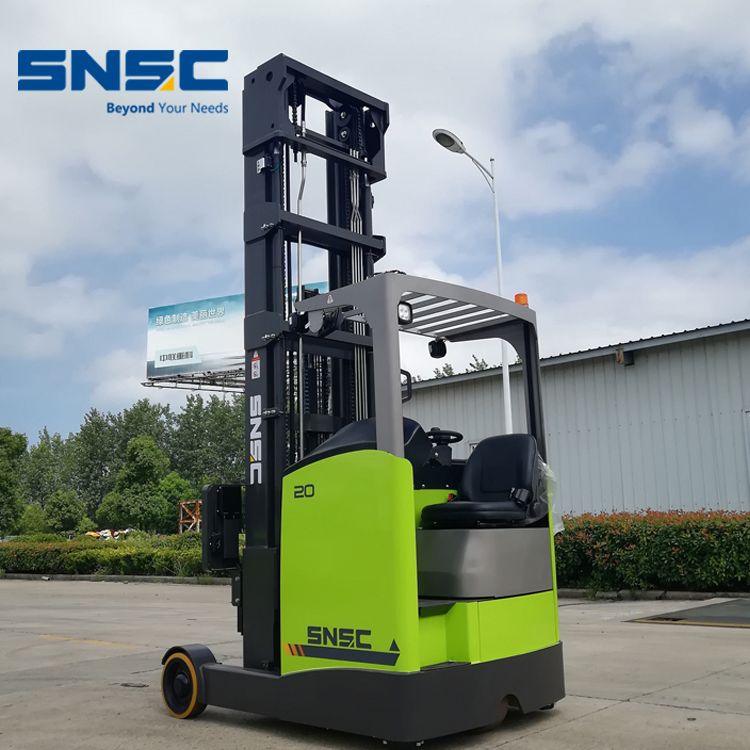

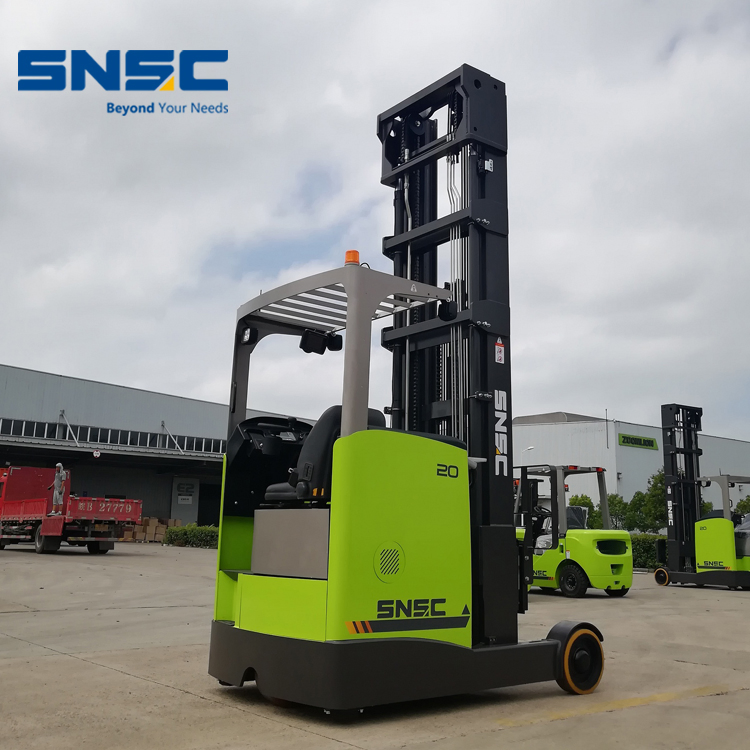

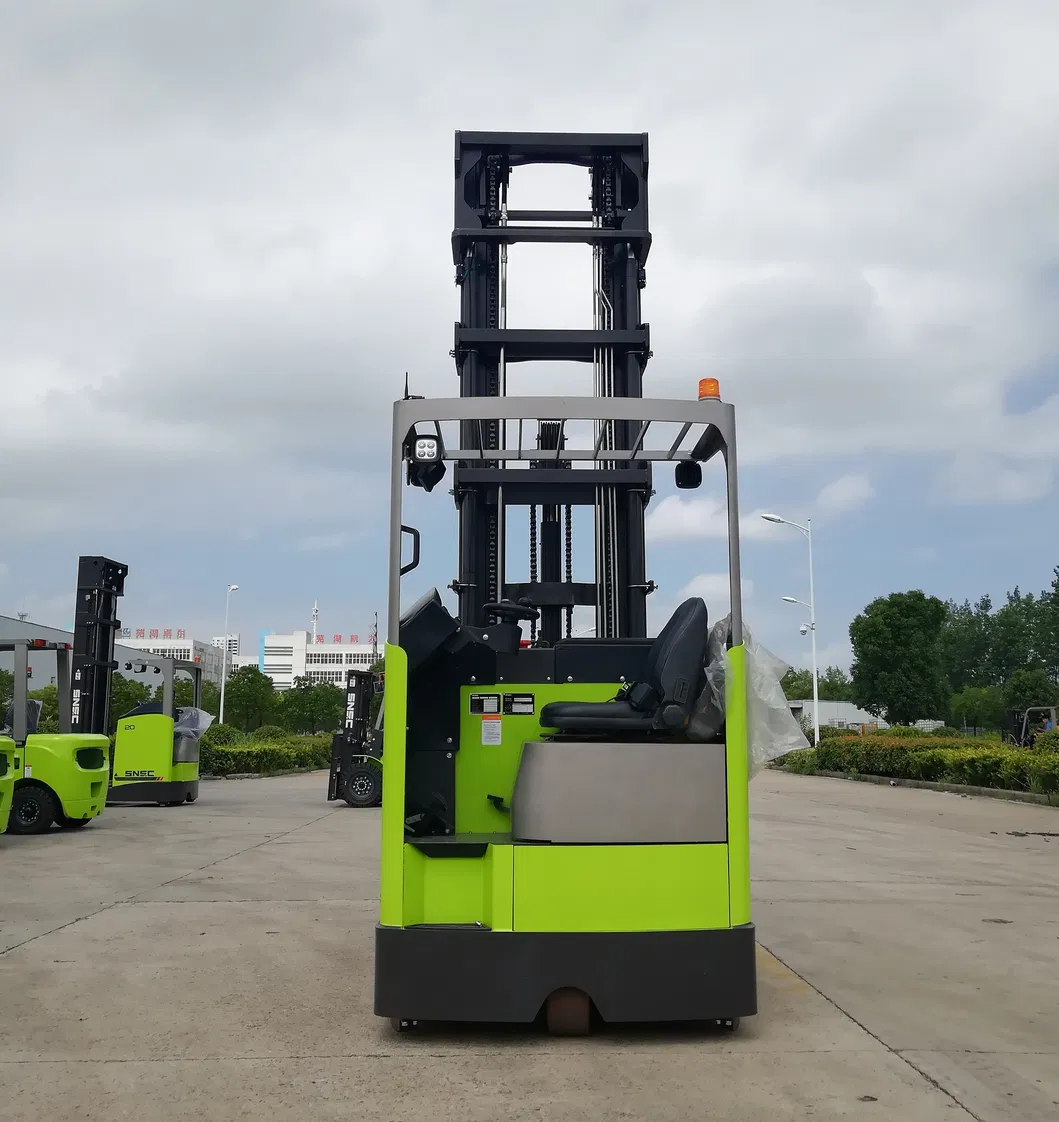

1.6-2Ton Electric Reach Truck For Sale
🌟 1.6-2Ton Electric Reach Truck lift from 3-12m, with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in racks. Widely used in super markets, food factories and logistic shops etc.
| No. | Description | YB20-S2 Details |
|---|---|---|
| 1 | Power | Battery |
| 2 | Operator type | Seated |
| 3 | Rated capacity | 2000 kg |
| 4 | Centre of load | 600 mm |
| 5 | Wheelbase | 1570 mm |
| 6 | Curb weight (battery included) | 3332 kg |
| 7 | Tire driving/bearing | PU/PU |
| 8 | Lifting height | 4500 mm |
| 9 | Overall length | 2642 mm |
| 10 | Overall width | 1270/1294 mm |
| 11 | Travel speed, laden/unladen | 9/9.5 km/h |
| 12 | Lifting speed, laden/unladen | 260/360 mm/s |
| 13 | Drive motor | 6.4 kW |
| 14 | Lift motor | 11 kW |
| 15 | Steering angle | 180° |

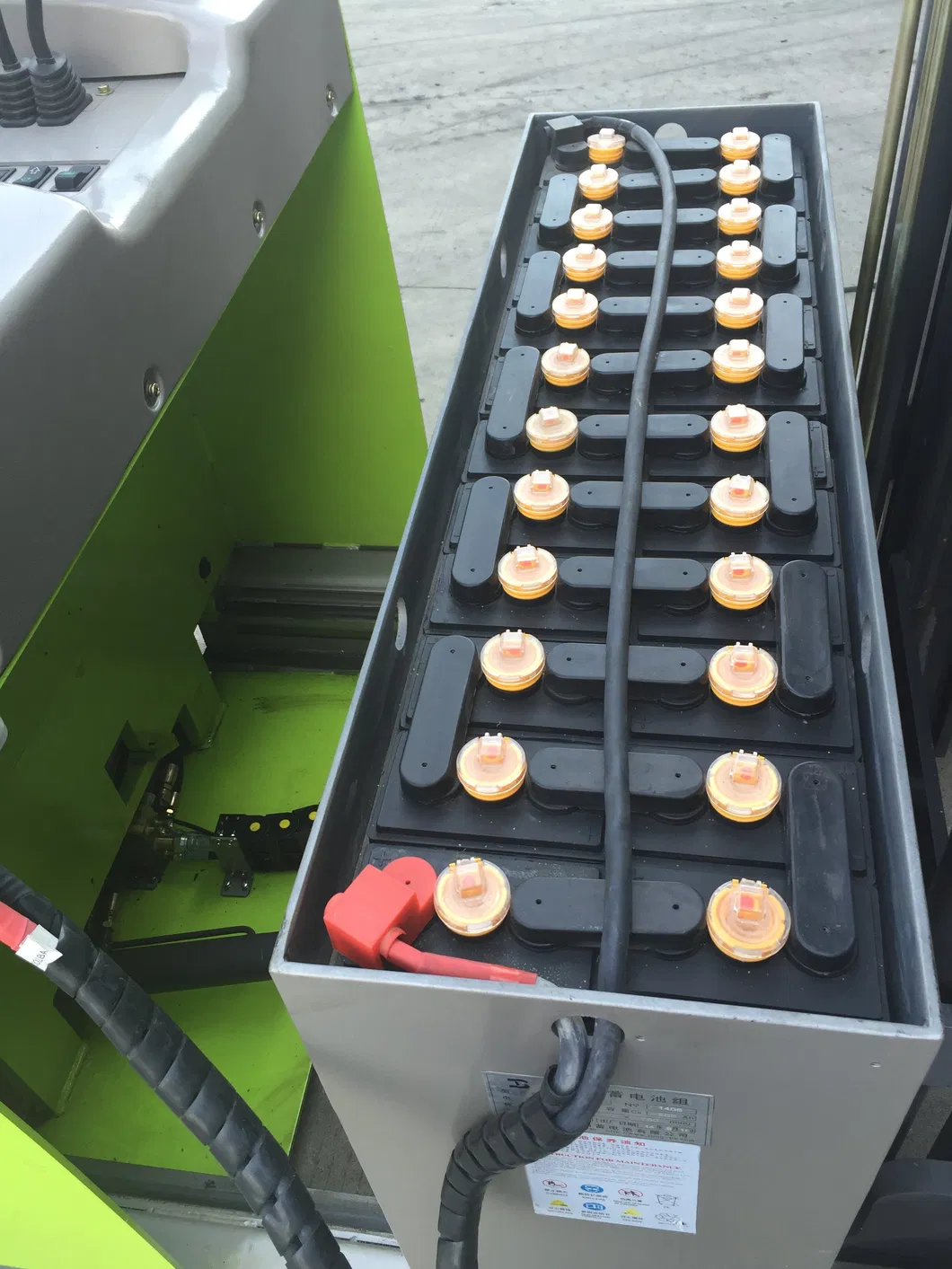

✅ Advanced Battery Maintenance: For daily maintenance, you don't need to hang up the battery box. Simply using a box handle controller, you can automatically remove and replace the battery box.

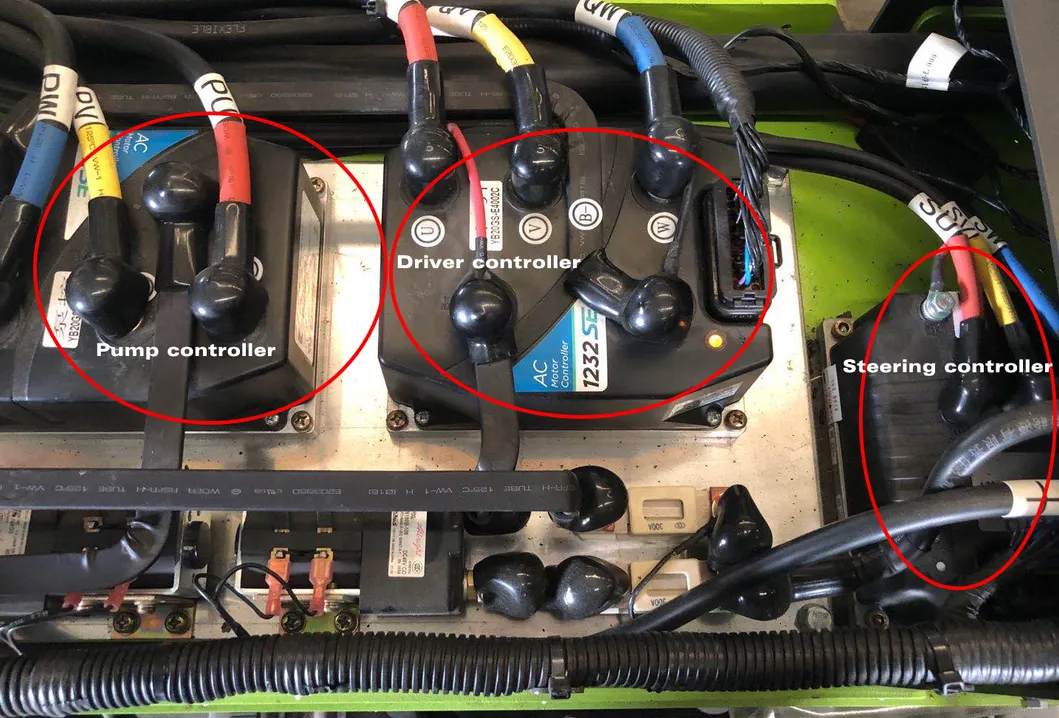

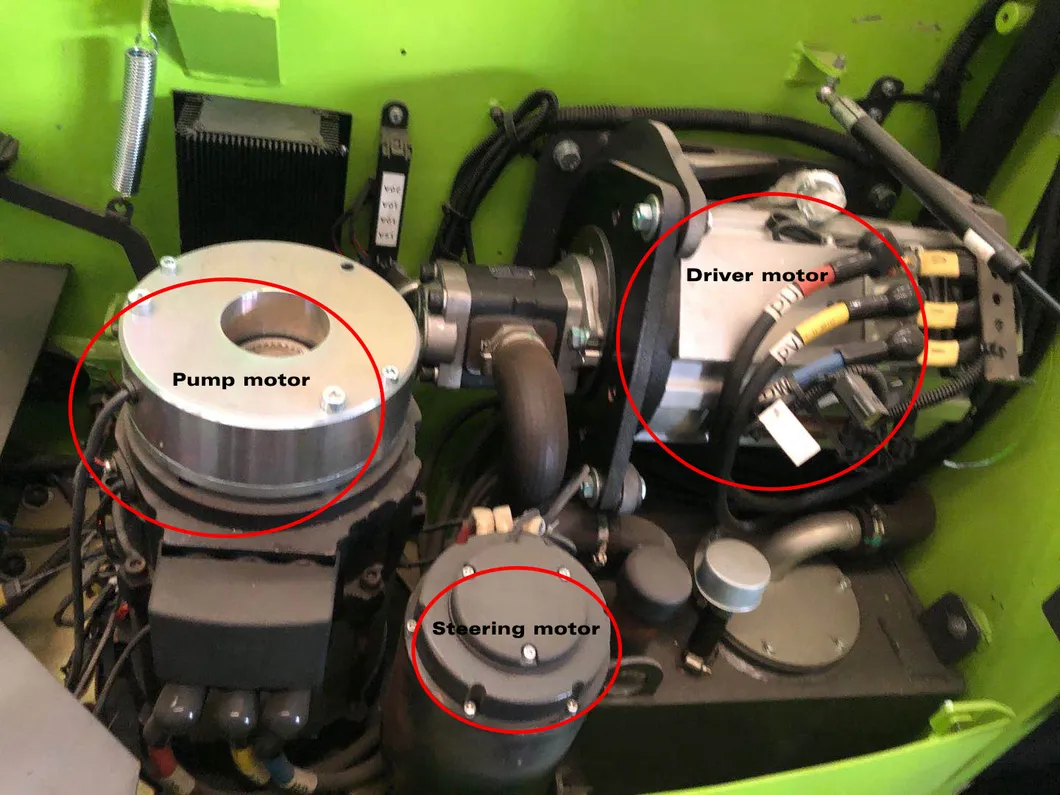

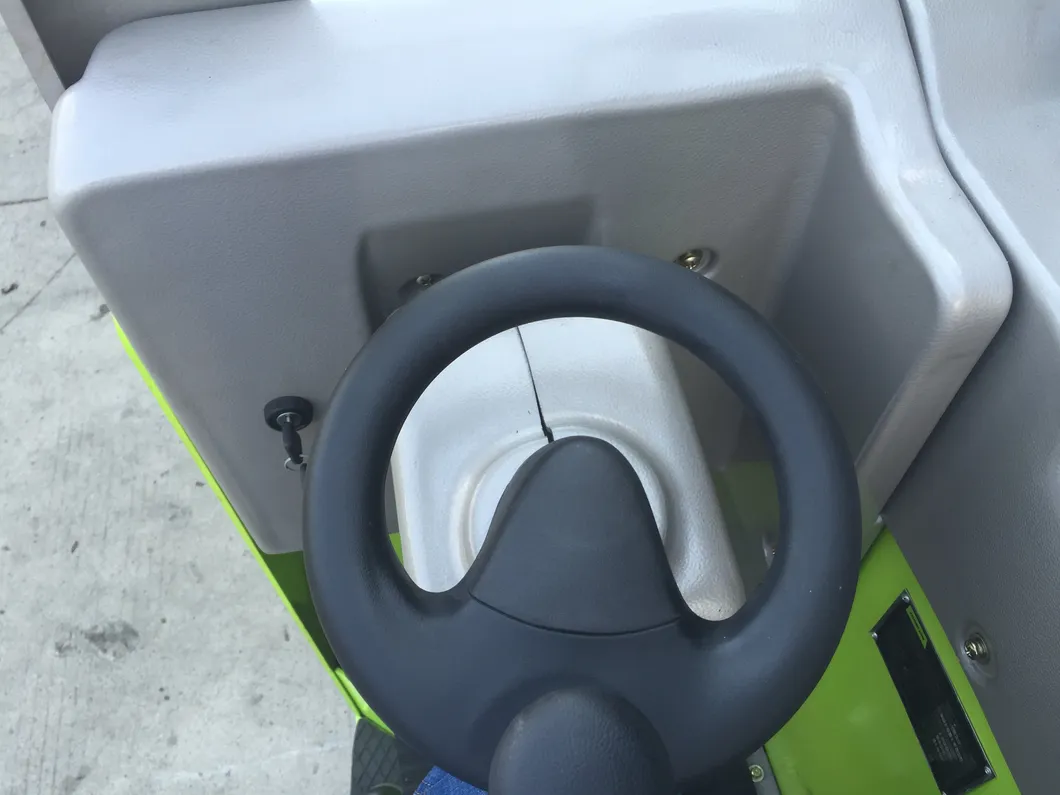

✅ Drive & Steering: Drive motor for forward and backward; Pump motor for lifting and down; Steering motor for electric steer. Fully electric steering system (EPS) ensures flexible turning and free maintenance.

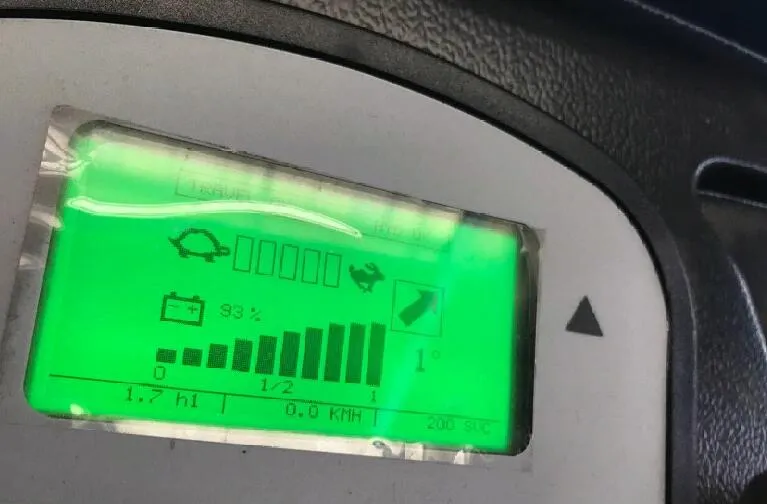

✅ Intelligent Display: Multifunction CURTIS LCD display showing use time, fault codes, battery status, and speed mode settings (E.S.H, economic, slow, high). The system keeps operators aware of problems to speed up repair and prevent damage.
