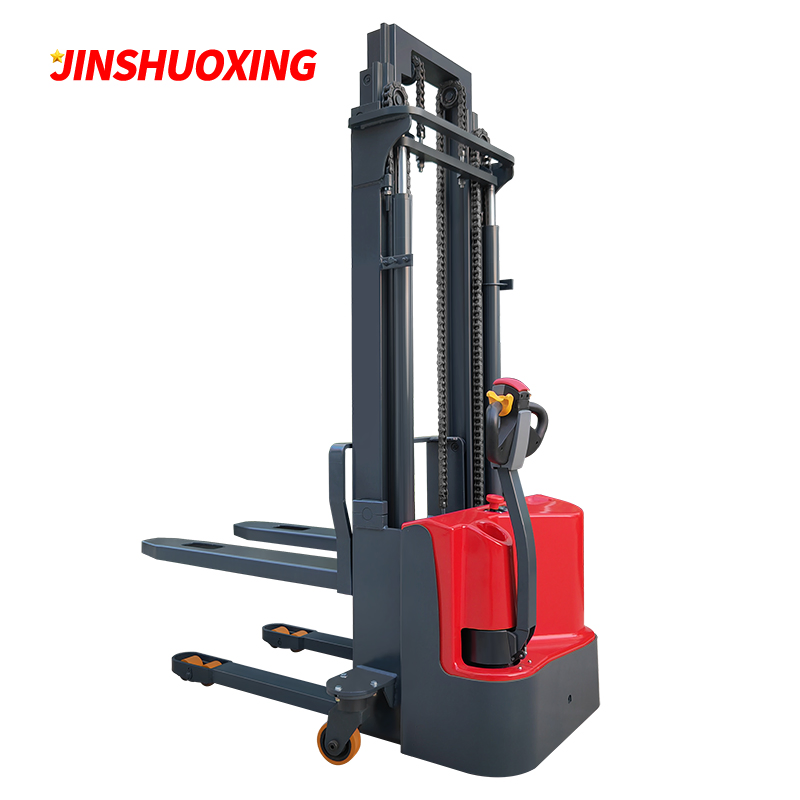

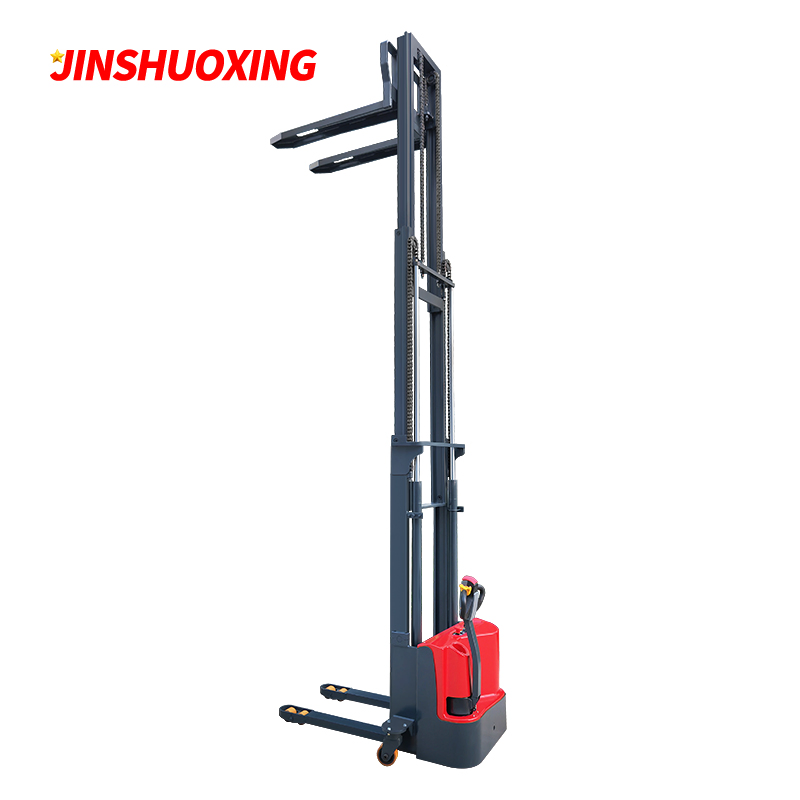

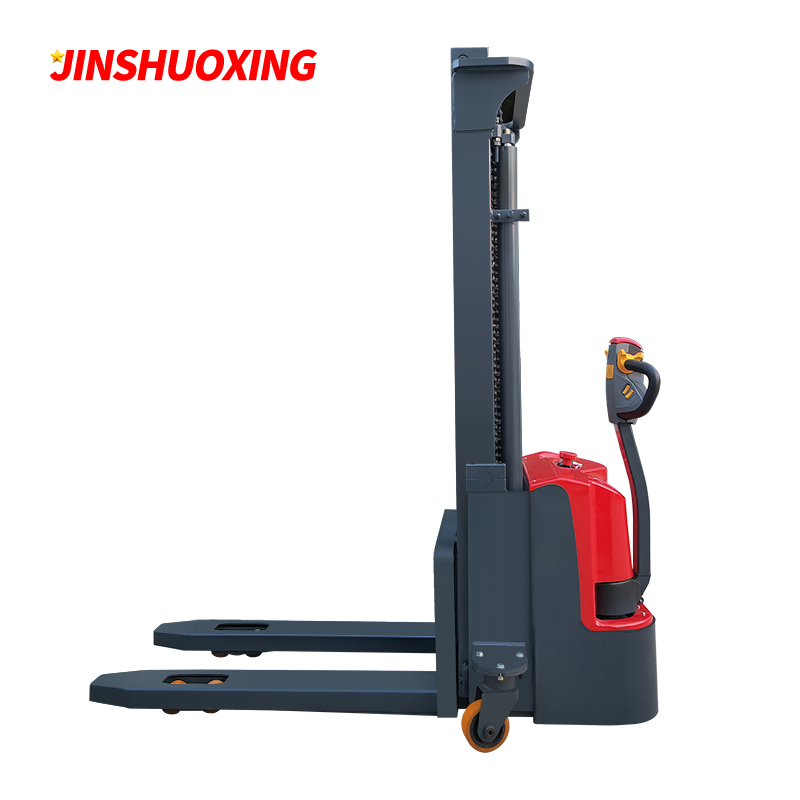

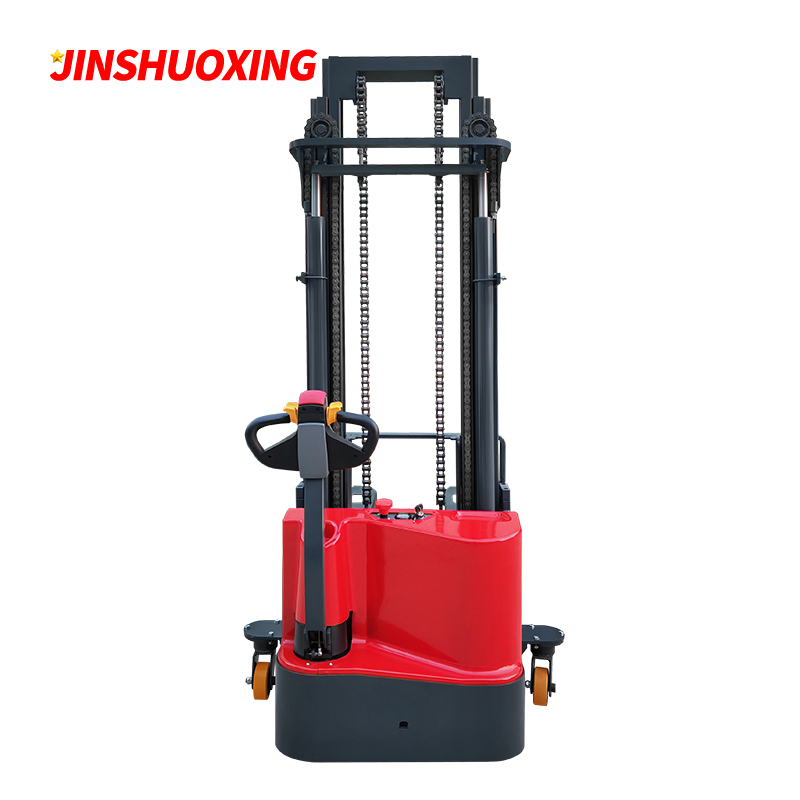

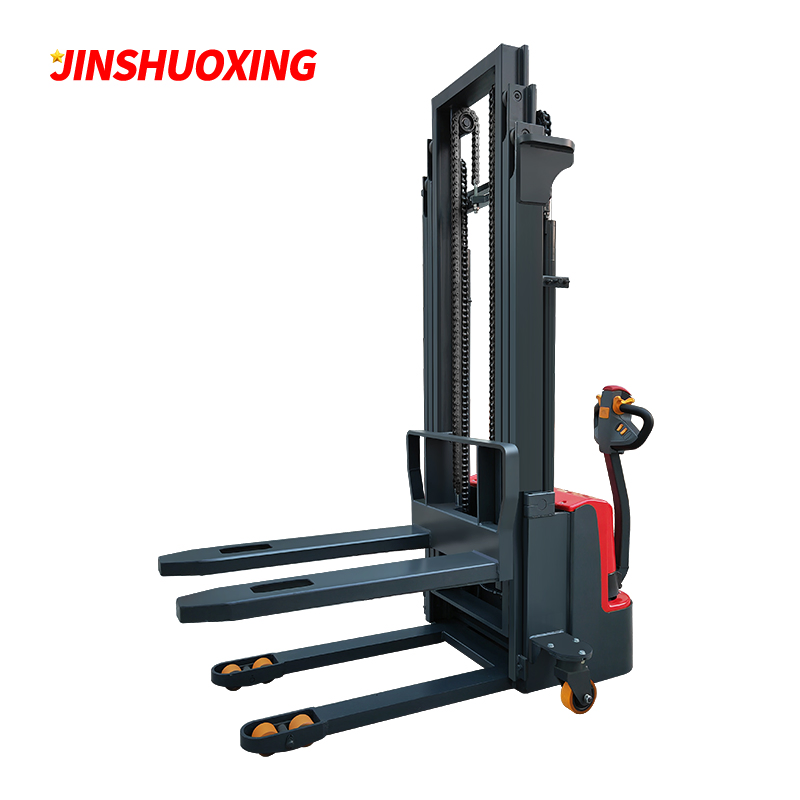

1.5 Ton Lift 5 Meter Walkie Type Electric Pallet Stacker with Two Externally Expanded Auxiliary Wheels

After-sales Service: on Line
Warranty: 1 Year
Cab Location: Standing on The Ground

Product Description

i
Basic Specifications
Model NO.
FB15
Type
Stacker
Power
DC Motor
Load Capacity
1.5t
Fuel
Electric
Load center
500mm
Lift height
4000-5000mm
Condition
New
Walking Power
Electric
Lifting Power
Electric
Battery Type
Maintenance Free Battery
Fork Type
Adjustable Sleeve Fork
Wheel Material
PU
Voltage
24V
Capacity
85ah
Origin
China
HS Code
8427109000
Key Product Features
Full Electric Operation: Electric lifting and electric walking for maximum efficiency.
🏗️

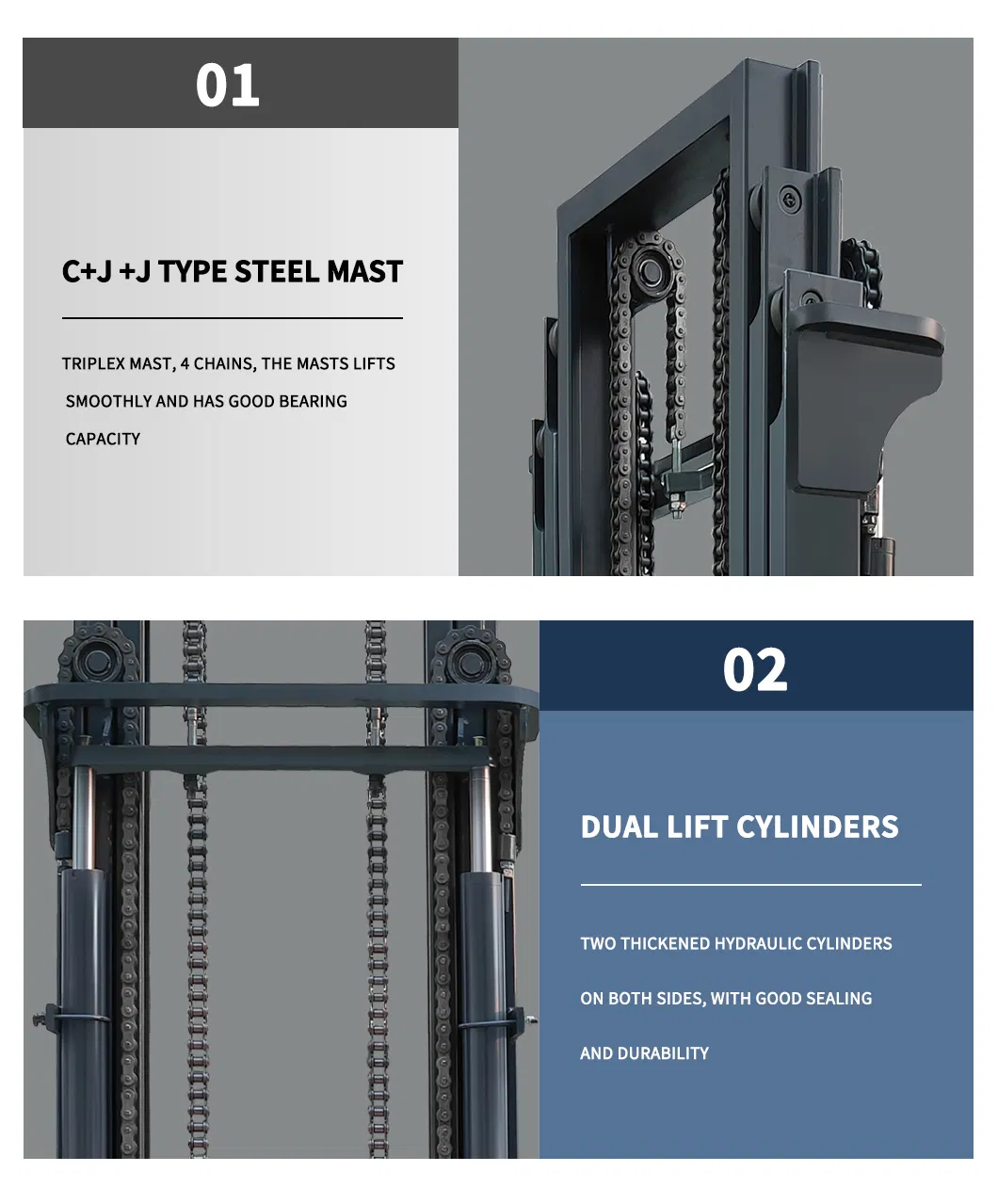

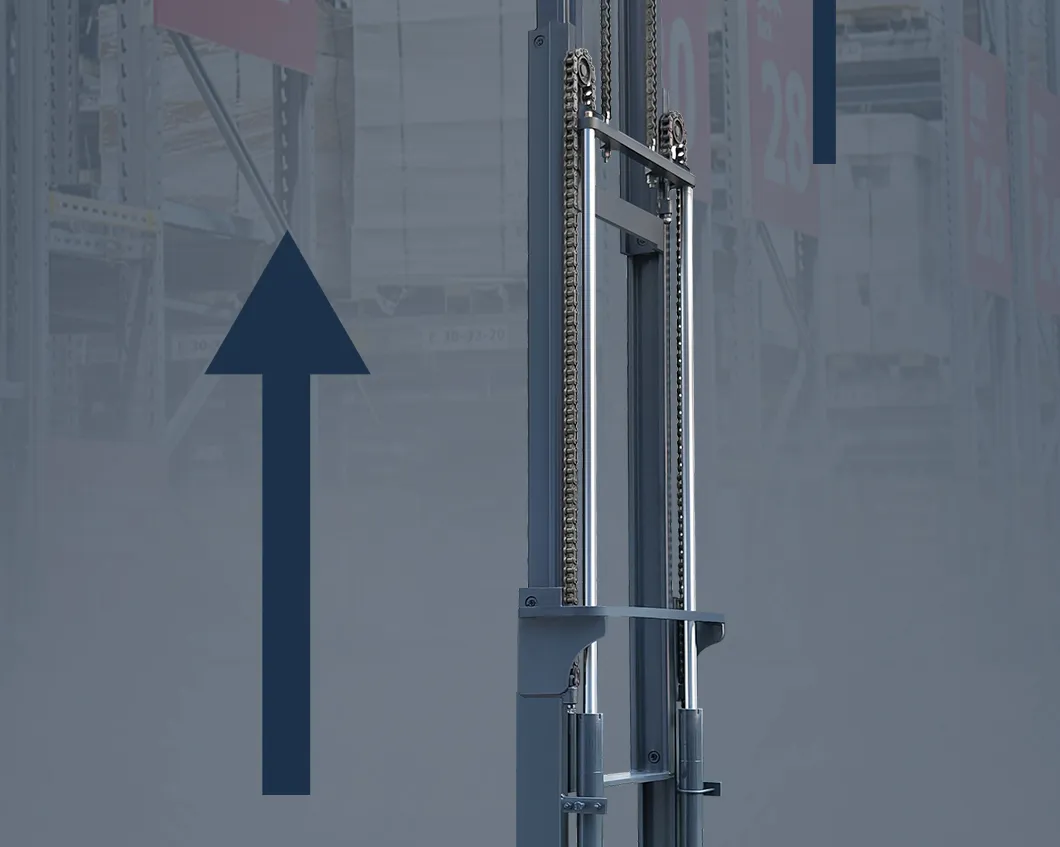

Superior Mast Design: Triplex mast with double lift cylinders and C+J+J mast structure for higher bearing strength.
⚙️

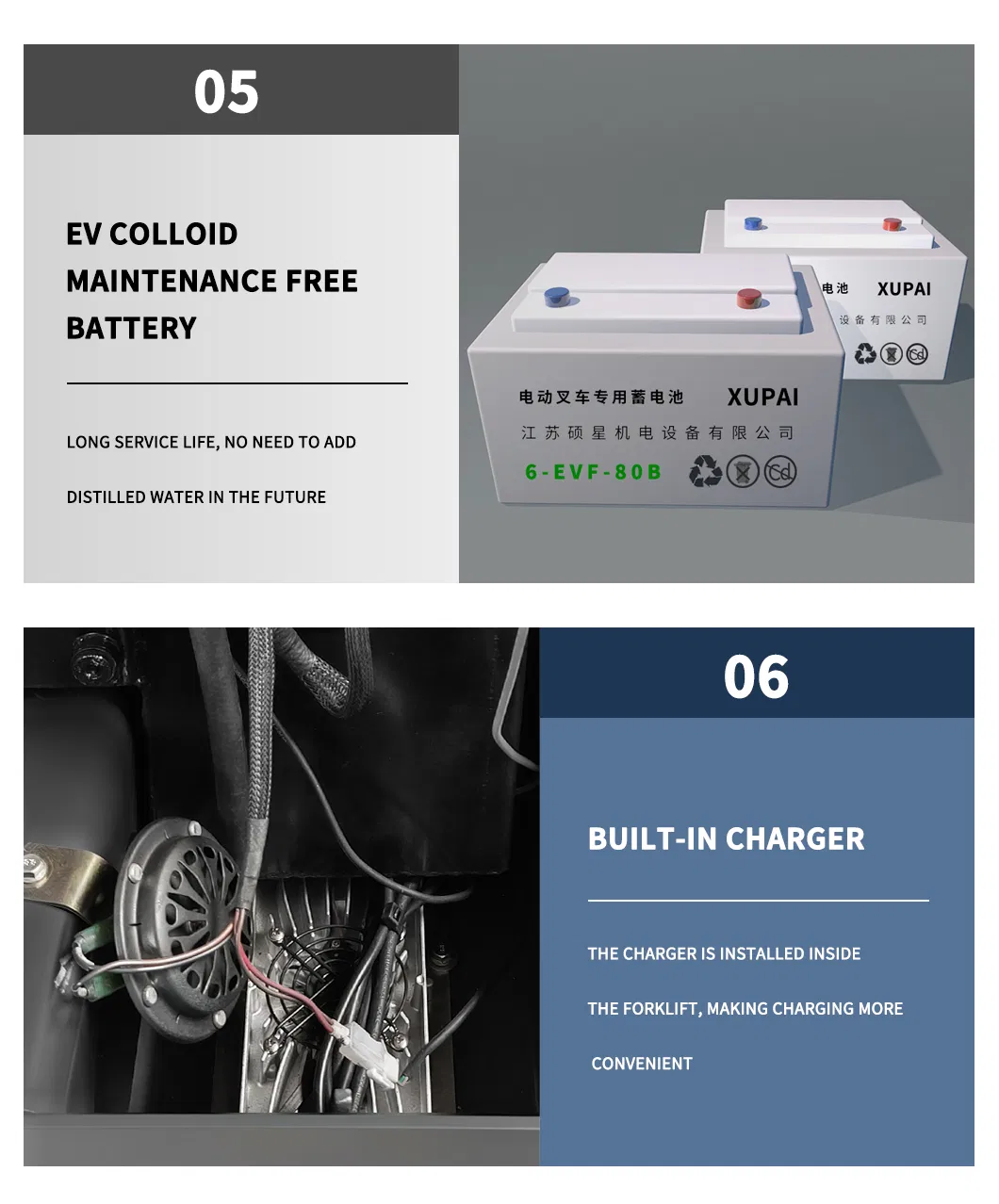

Smart Controls: Equipped with fast/slow gear switching and built-in intelligent charger with automatic power-off.
🛡️
Enhanced Safety: Multiple braking functions (power-off, regenerative, reverse connection, and anti-slip on slopes).
🎡

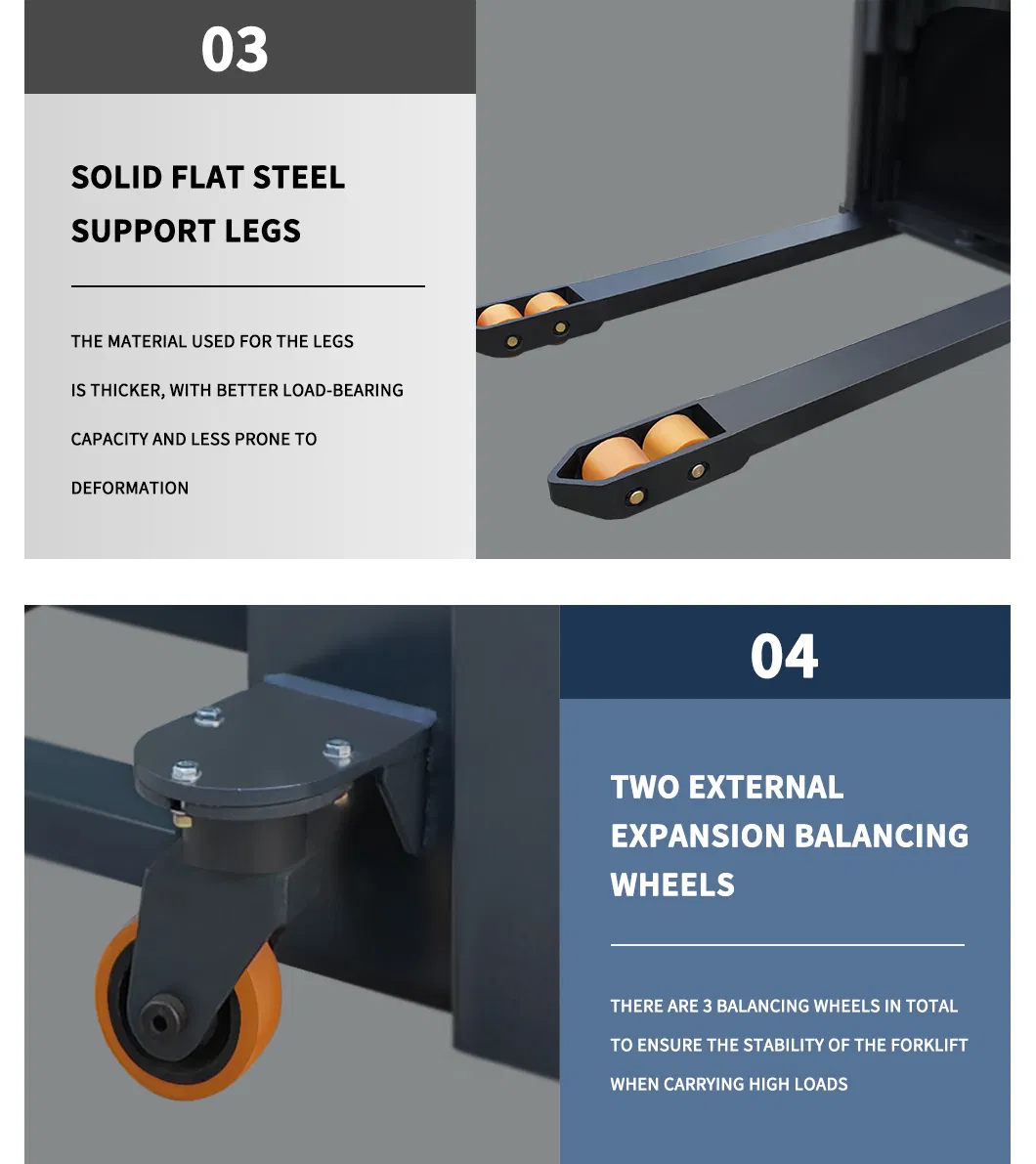

High Stability: Solid flat steel support legs and externally expanded auxiliary wheels for stability at high positions.

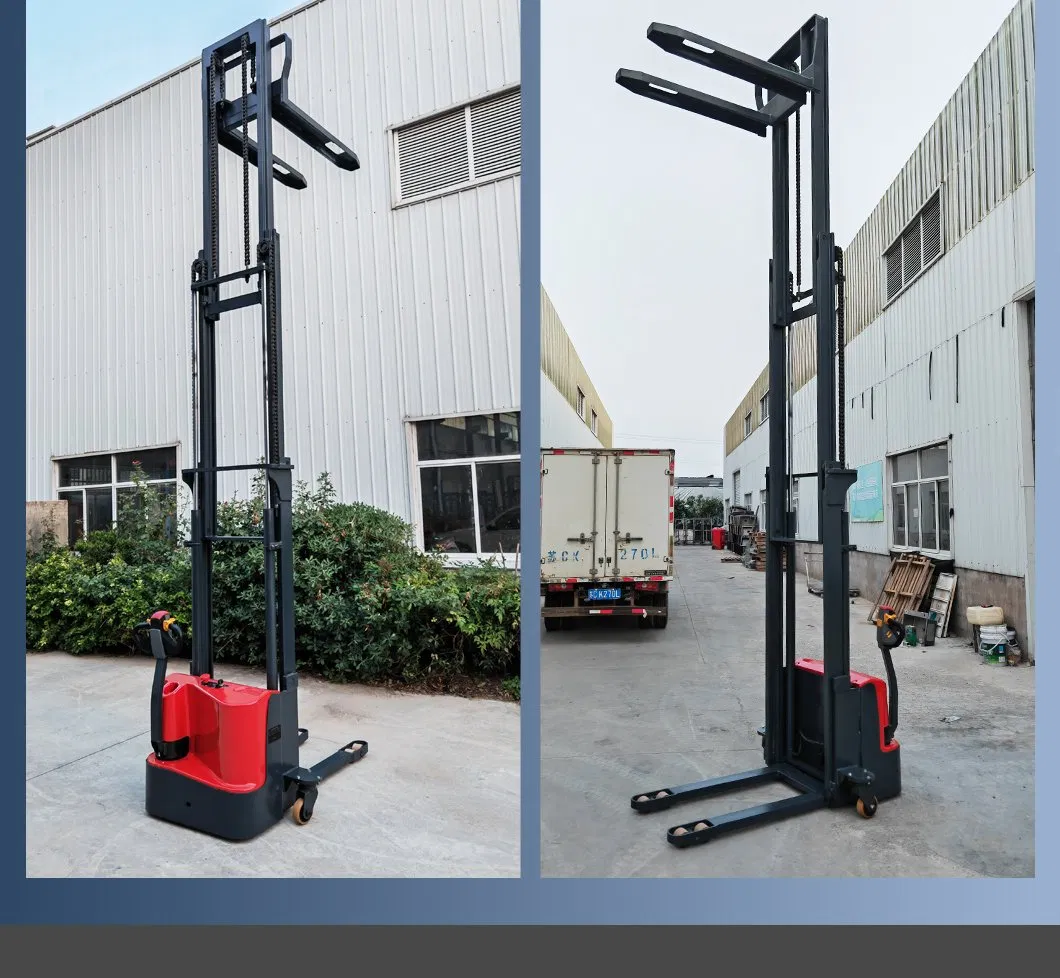

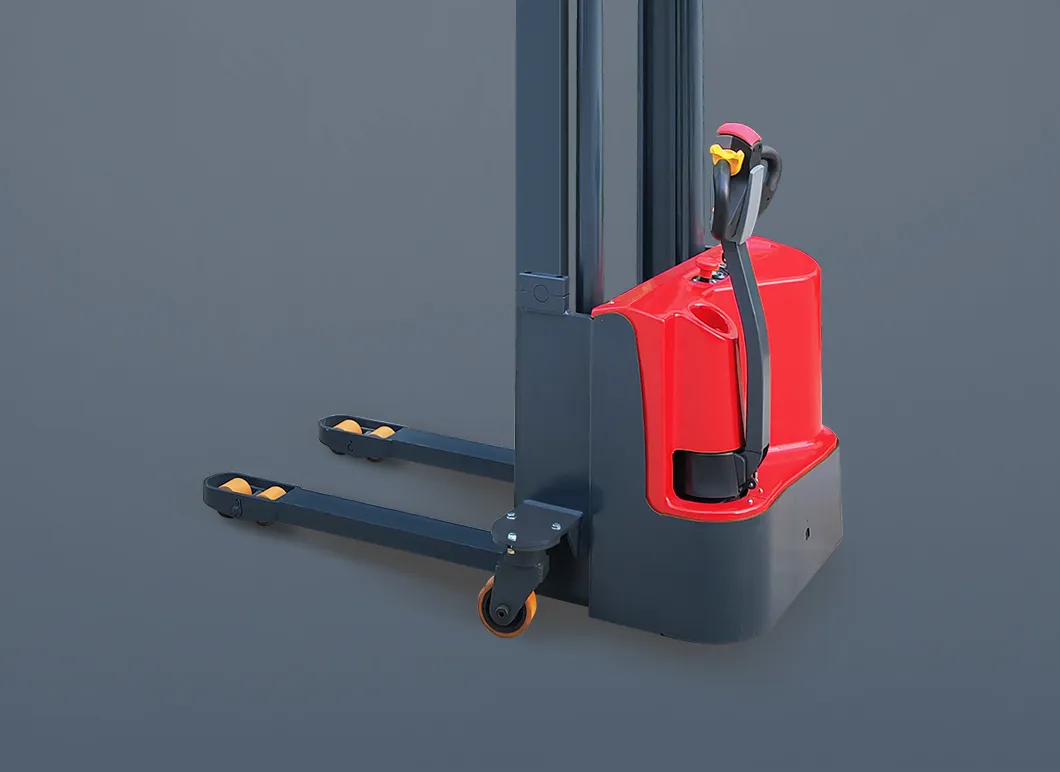

Electric Pallet Stacker

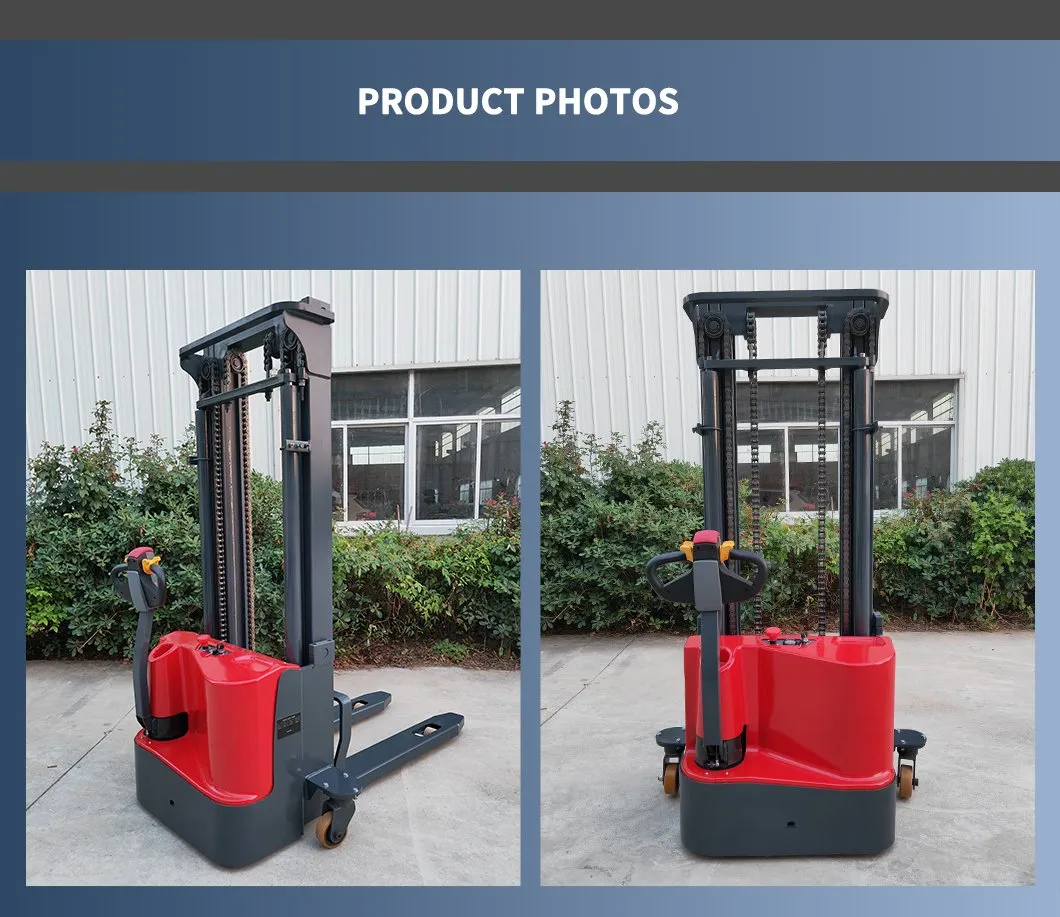

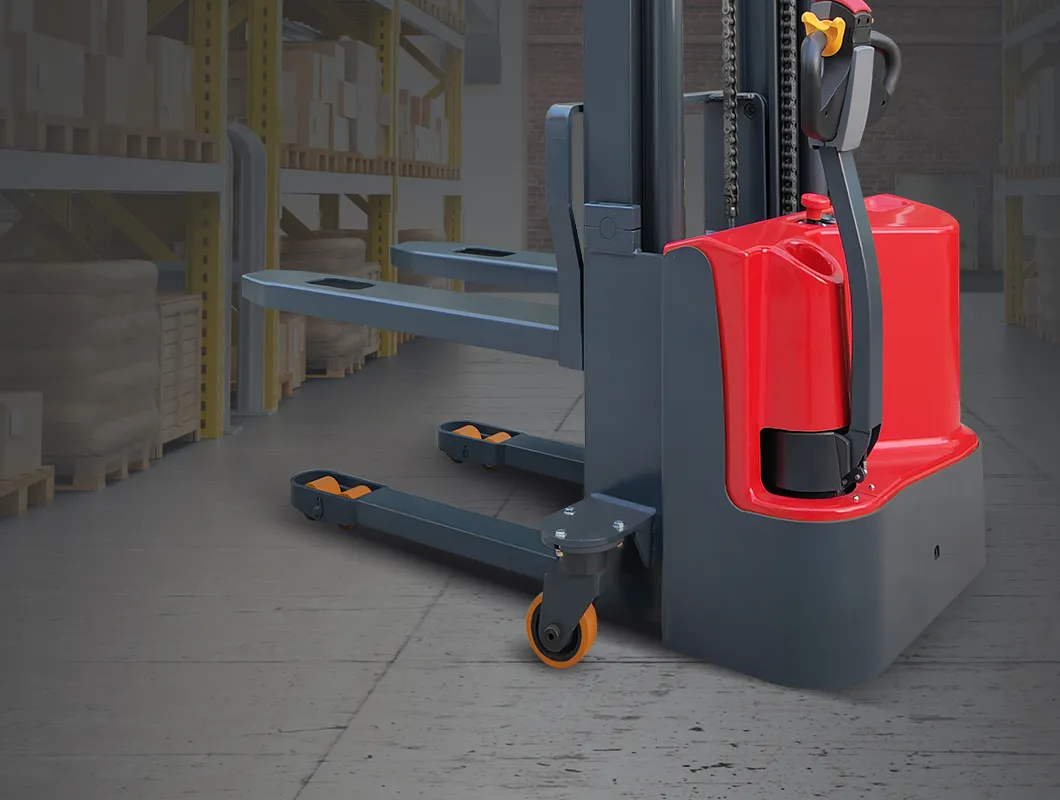

Electric Pallet Stacker Walkie Type
Electric Pallet Stacker Detail
📋
Technical Data Sheet
Performance Parameter Unit Value
Loading Maximum load capacity kg 1500
Load center mm 500
Driving speed (unload/load) km/h 5 / 4.5
Lifting speed (unload/load) mm/s 110 / 80
Dimensions Unit Value
Body Overall length (with fork) mm 1800
Overall width mm 800 / 1200
Turning radius mm 1500
Mast Type Max Lifting Height (mm) Height Closed (mm) Height Open (mm)
Triplex Mast 4000 1940 4600
4500 2080 5100
5000 2300 5600
📦
Packaging & Delivery
Package Size
180.00cm * 120.00cm * 250.00cm
Gross Weight
900.000kg
Packing Type
Standard Export Packing
?
Frequently Asked Questions
How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation, with a low failure rate.
Do you have an advantage in price?
We have a group of long-term cooperative raw material suppliers, and our production personnel are highly skilled, which allows us to offer products of the same quality at a more competitive price.
Can you provide customized services?
Yes, we provide various customization services, including color, logo, body size, and specific function customizations to meet your specific needs.
How long does it take for production?
Production time is approximately 10 to 30 days. Regular products in stock can be shipped immediately, while customized or complex orders take longer.
What shipping methods do you use?
Most products are transported by sea. Depending on the country, railway or other means are available. Smaller parts can be sent via international express.
How do you provide after-sales service?
We provide user manuals and assembly videos with every shipment. We also offer operation and maintenance videos to ensure ease of use.
