300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
1 / 5
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker

300kgs Warehouse Picking up Electric Aerial Order Picker

Customization: Available
After-sales Service: One Year Not Include The Quick-Wear Parts
Warranty: One Year Not Include The Quick-Wear Parts
Send Inquiry

Product Description

Basic Info.

Model NO.
GOPZ202
Application
Workshop, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
300kg
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Certification
CE, ISO 9001
Transport Package
Export Standard Package
Origin
China
HS Code
84281090

Product Description

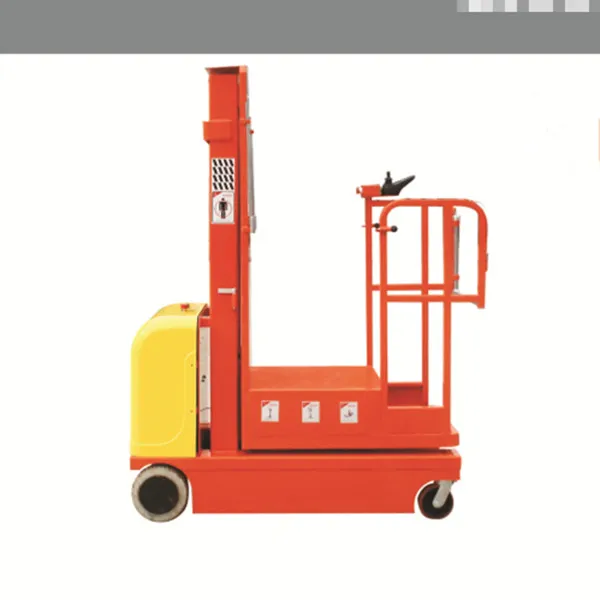

300KGS Electric Aerial Order Picker (Height: 3m - 4.5m)

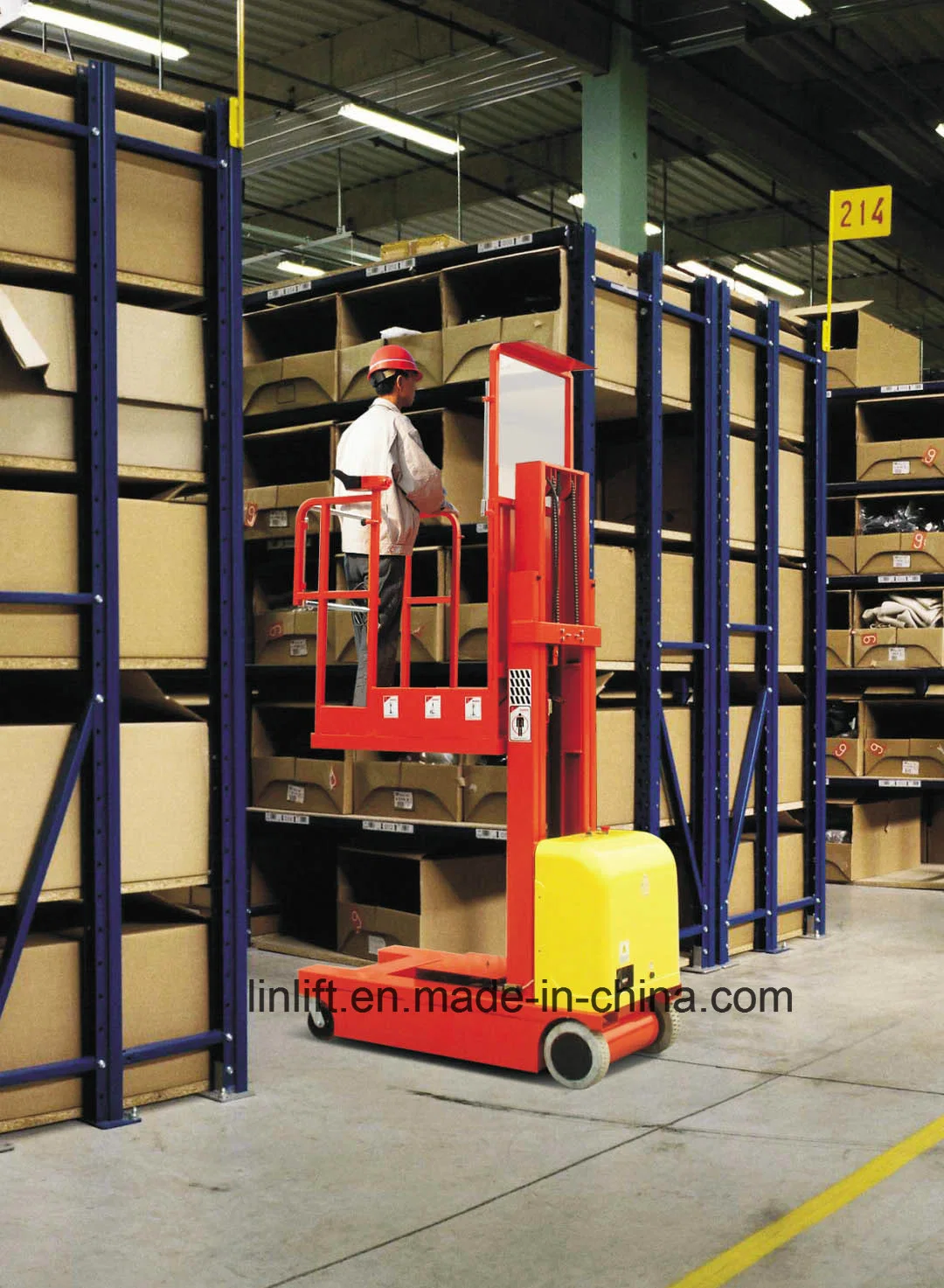

Electric order picker is mainly applied in warehouse, workshop, elevator portal, supermarket, station, and other narrow spaces.
Machine Specifications GOPZ202 GOPZ302 GOPZ3.502
Weight400KG574KG588KG
Overall height1.42m1.93m2.15m
Overall width0.7m
Overall height1.53m
Maximum slope1.5-3°
Gradeability30%
Max Drive Speeds-Stowed4Km/h
Max Drive Speeds-Raised1.1Km/h
Ground clearance0.04m
Wheelbase1.24m
Electrical Specifications GOPZ202 GOPZ302 GOPZ3.502
Batteries2-12V/120Ah
Integrated charger24V/15A
Drive motors2-24V/0.5KW
Lifting motor24VDC/1.5KW
Platform Data GOPZ202 GOPZ302 GOPZ3.502
S.W.L (Capacity)300KG
Platform size0.95*0.64m
Working height4m5m5.5m
Platform floor height2m3m3.5m
Up/Down speed12/14sec20/22sec24/26sec
300kgs Warehouse Picking up Electric Aerial Order Picker

Standard Equipment

◆ Proportional controls
◆ Low voltage alarm
◆ Can Bus Technology
◆ Battery charge indicator
◆ Emergency down button
◆ Charger protection
◆ Safety brackets
◆ Emergency stop button
◆ Controller temperature protection
◆ Overloading limited

Frequently Asked Questions

What is the maximum lifting capacity of the electric order picker?
The electric aerial order picker has a Safe Working Load (S.W.L) capacity of 300kgs.
Where can this machine be used?
It is ideal for warehouses, workshops, elevator portals, supermarkets, stations, and other narrow spaces requiring vertical access.
What type of power system does it use?
It is powered by a DC system with 2-12V/120Ah batteries and features an integrated 24V/15A charger.
Does the order picker include safety features?
Yes, standard safety equipment includes an emergency stop button, low voltage alarm, overloading limit, and charger protection.
What are the available working heights?
Depending on the model (GOPZ202 to GOPZ3.502), the working height ranges from 4m up to 5.5m.
Is it suitable for narrow aisles?
Absolutely. With an overall width of only 0.7m, it is specifically designed for high efficiency in narrow spaces.
