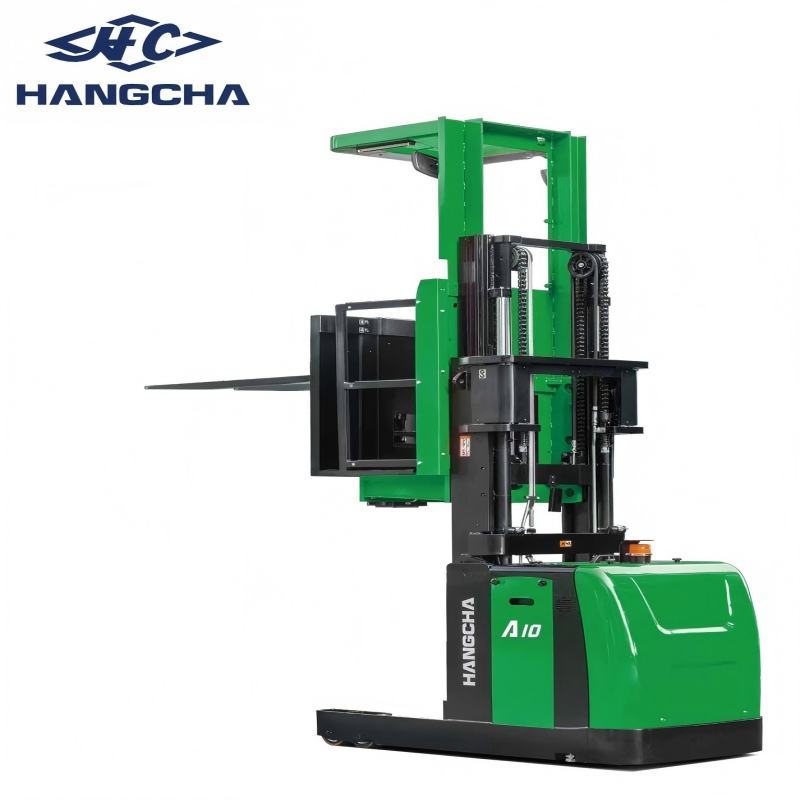

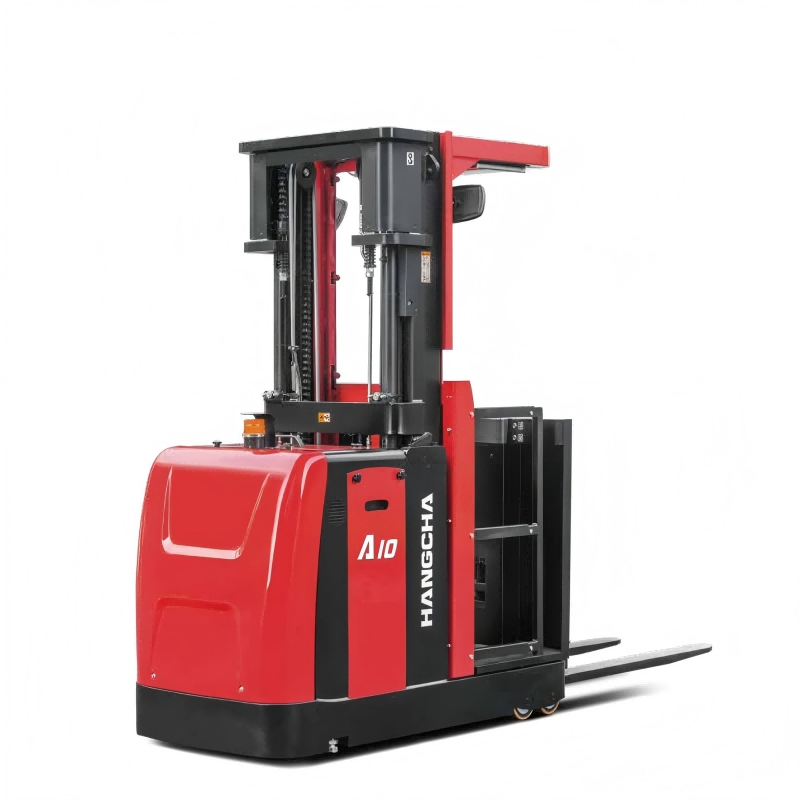

Hangcha Forklift a Series Lead Acid Battery Medium Level Warehouse Order Picker

1 / 5

Hangcha Forklift a Series Lead Acid Battery Medium Level Warehouse Order Picker

Customization:	Available
After-sales Service:	Spare Parts
Warranty:	2 Years

Send Inquiry

Product Description

Technical Specifications

Model NO.

CJD10-AC3-M1K

Type

Pallet Jack

Power

AC Motor

Load Capacity

Fuel

Electric

Load Center

500mm

Lift Height

3000m

Condition

New

Cab Location

Not Adjustable

Origin

China

HS Code

8427109000

Production Capacity

200000 Units/Year

Product Overview

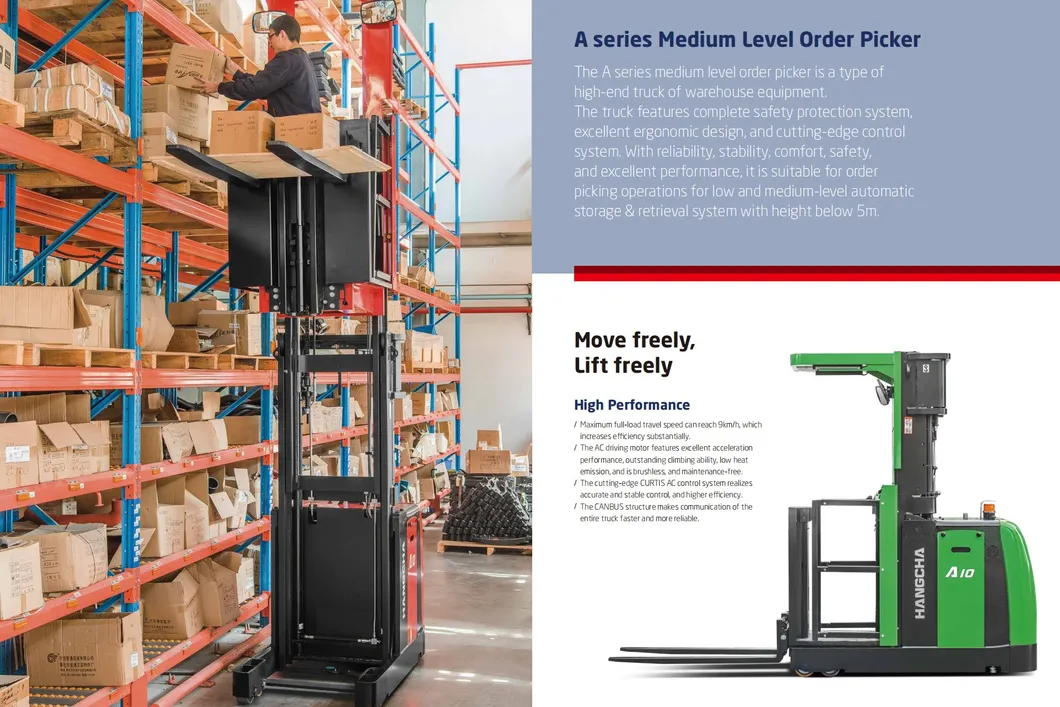

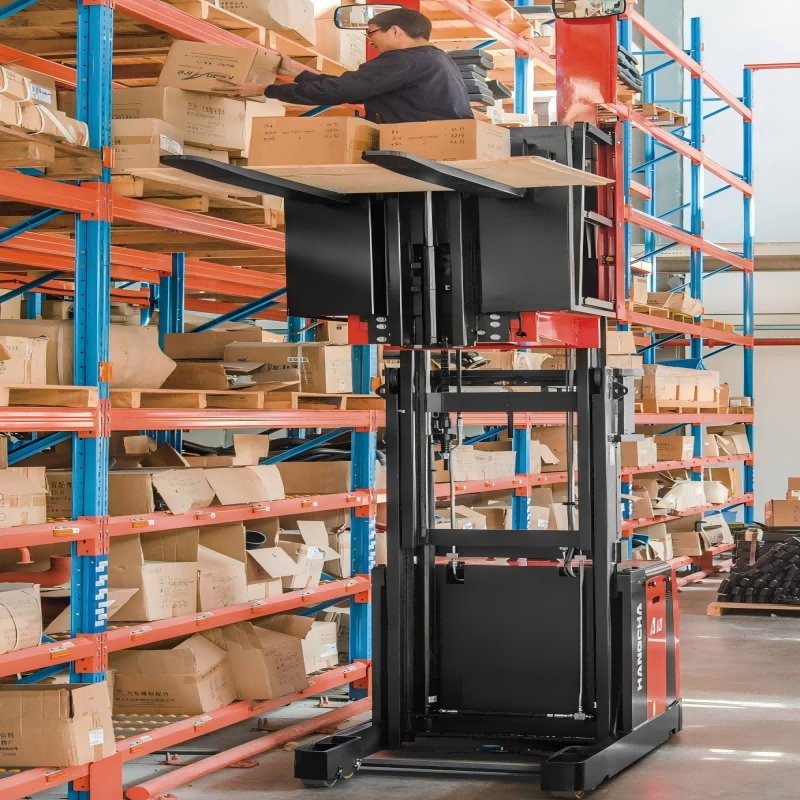

The A series medium level order picker is a high-end warehouse equipment solution. Featuring a complete safety protection system, excellent ergonomic design, and a cutting-edge control system, it offers reliability, stability, and comfort. It is ideally suited for order picking operations in low and medium-level automatic storage and retrieval systems with heights below 5m.

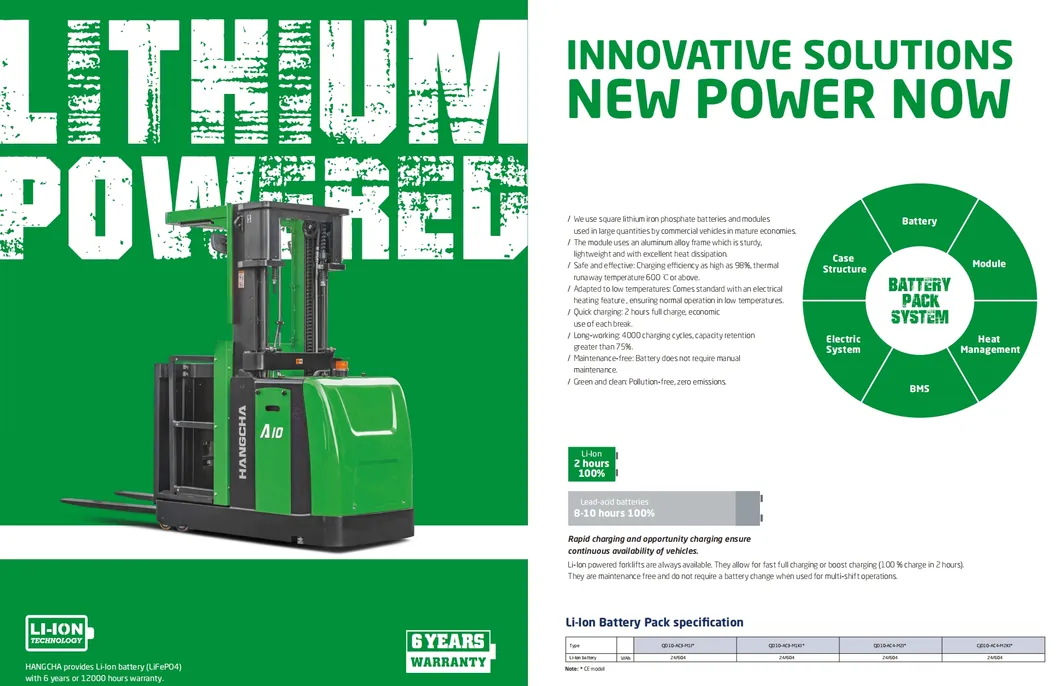

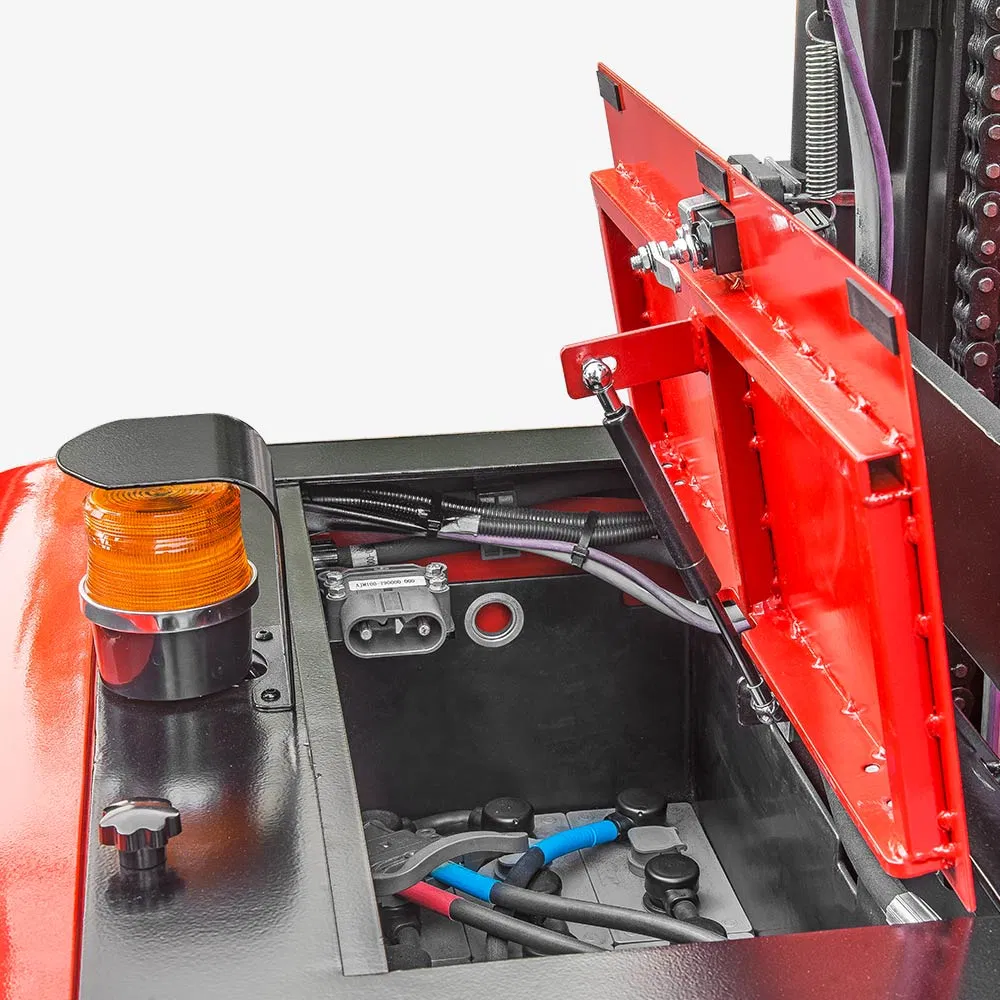

Li-Ion Battery 2 hours for 100% charge

Lead-Acid Battery 8-10 hours for 100% charge

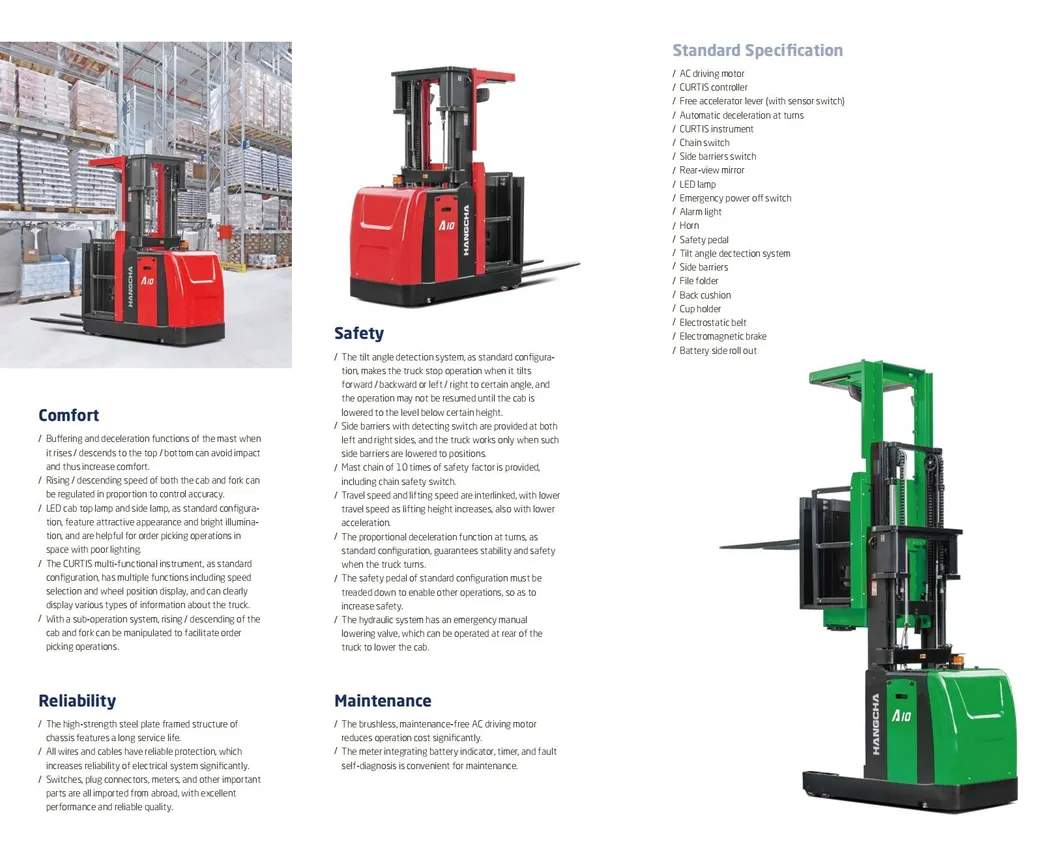

Key Features

High Performance

◆Maximum full-load travel speed reaches 9km/h.

◆AC driving motor offers excellent acceleration and is maintenance-free.

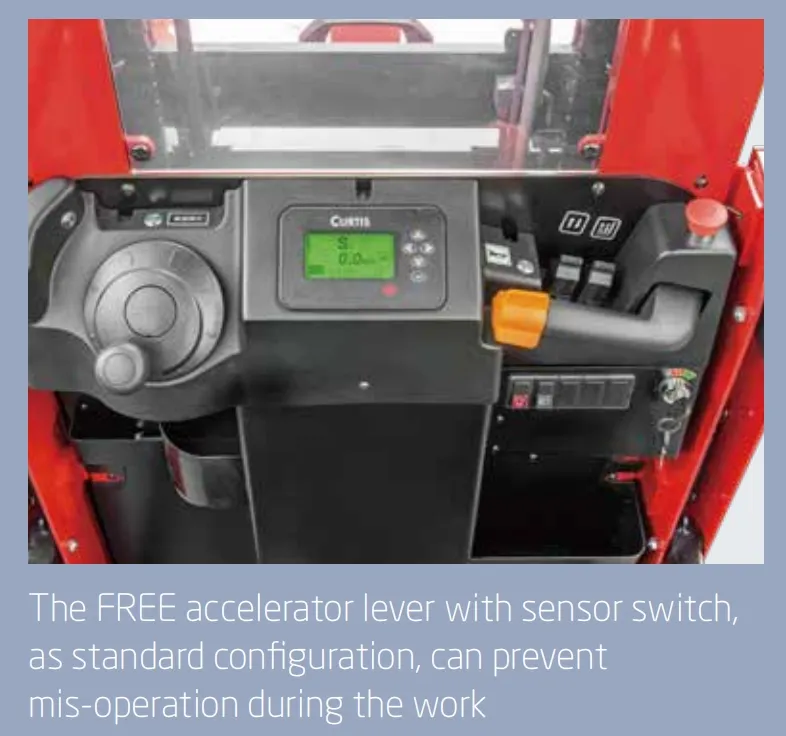

◆CURTIS AC control system for accurate and stable operation.

◆CANBUS structure for reliable internal communication.

Advanced Safety

◆Tilt angle detection system stops operation if safety angles are exceeded.

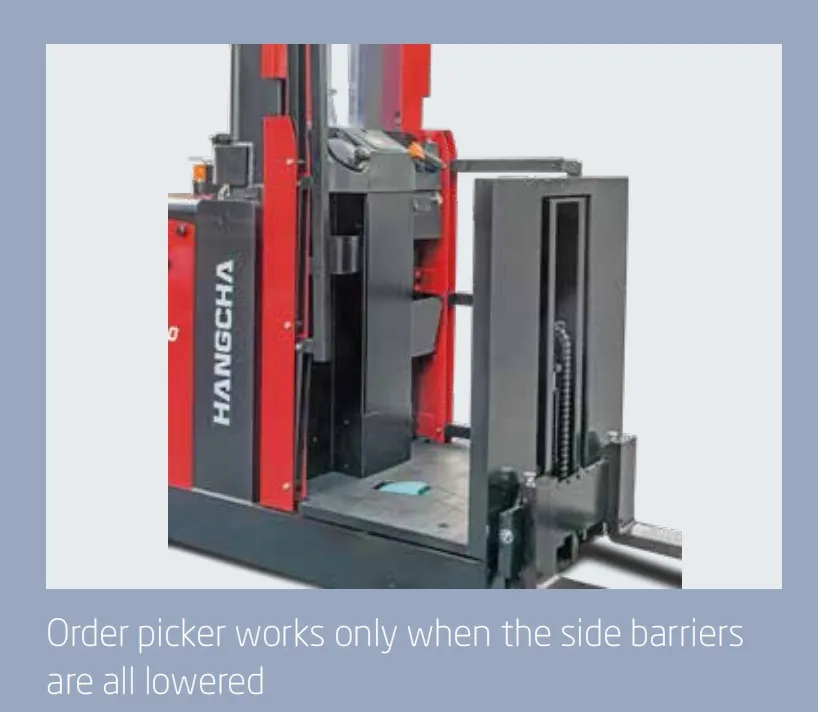

◆Side barriers with detecting switches at both sides.

◆Mast chain with 10 times safety factor and safety switch.

◆Interlinked travel and lifting speeds for enhanced stability.

◆Proportional deceleration during turns and safety pedal configuration.

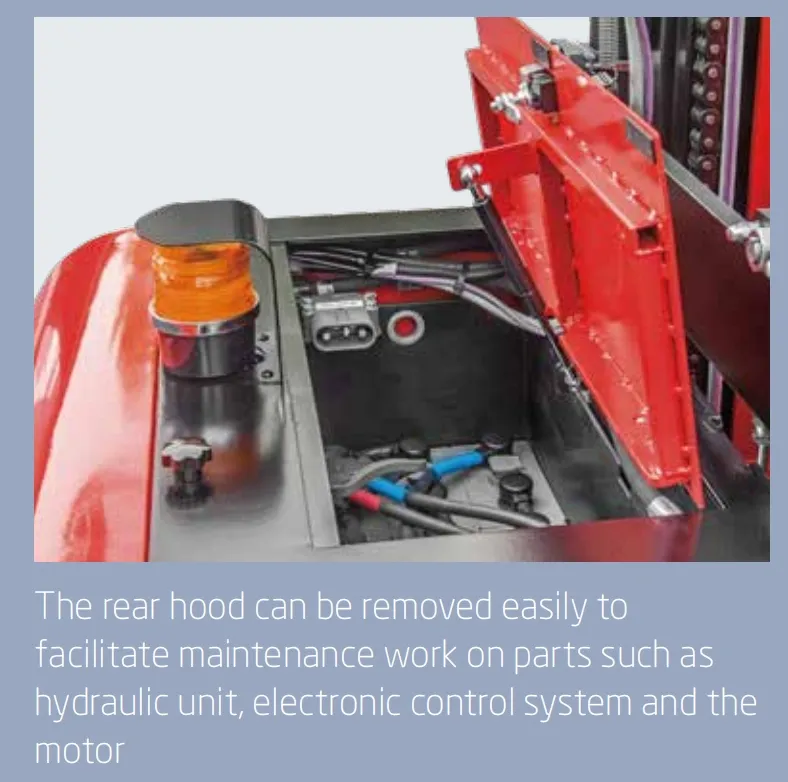

◆Emergency manual lowering valve accessible at the rear.

Frequently Asked Questions

What is the maximum travel speed of this order picker?

The maximum full-load travel speed can reach 9km/h, which significantly increases operational efficiency.

How long does it take to charge the batteries?

The Li-Ion battery option requires only 2 hours for a 100% charge, while the Lead-acid battery takes approximately 8-10 hours for a full charge.

Is this equipment suitable for high-level picking?

This model is designed for medium-level warehouse operations and is suitable for automatic storage and retrieval systems with a height below 5 meters.

What safety features are included for operator protection?

The picker includes tilt angle detection, side barriers with safety switches, a safety pedal, and proportional deceleration during turns.

How is the motor maintenance handled?

The AC driving motor is brushless and maintenance-free, offering low heat emission and outstanding climbing ability.

What happens if the truck tilts during operation?

The built-in tilt angle detection system will stop the truck operation if it tilts forward, backward, or sideways to a certain angle for maximum safety.
