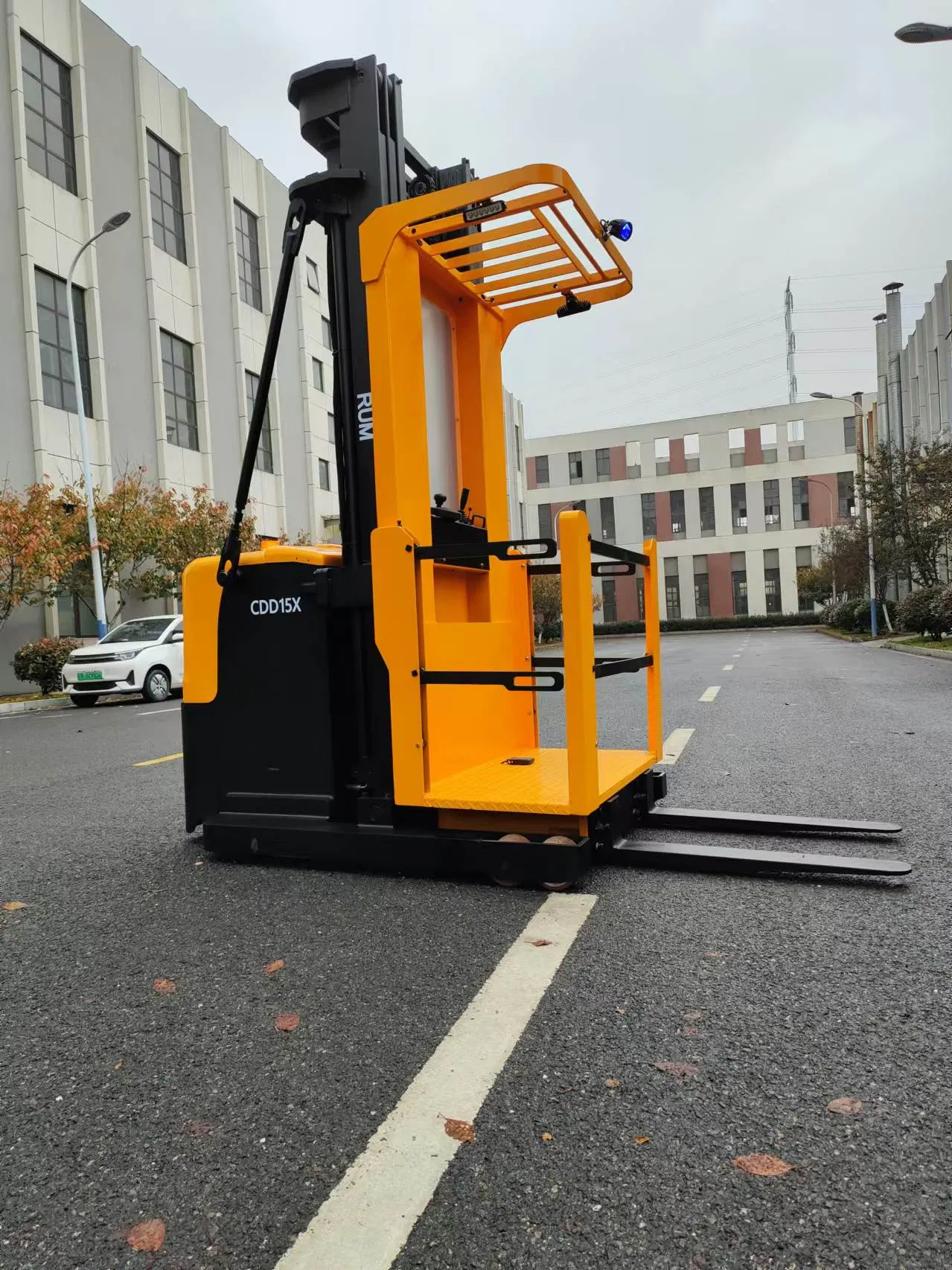

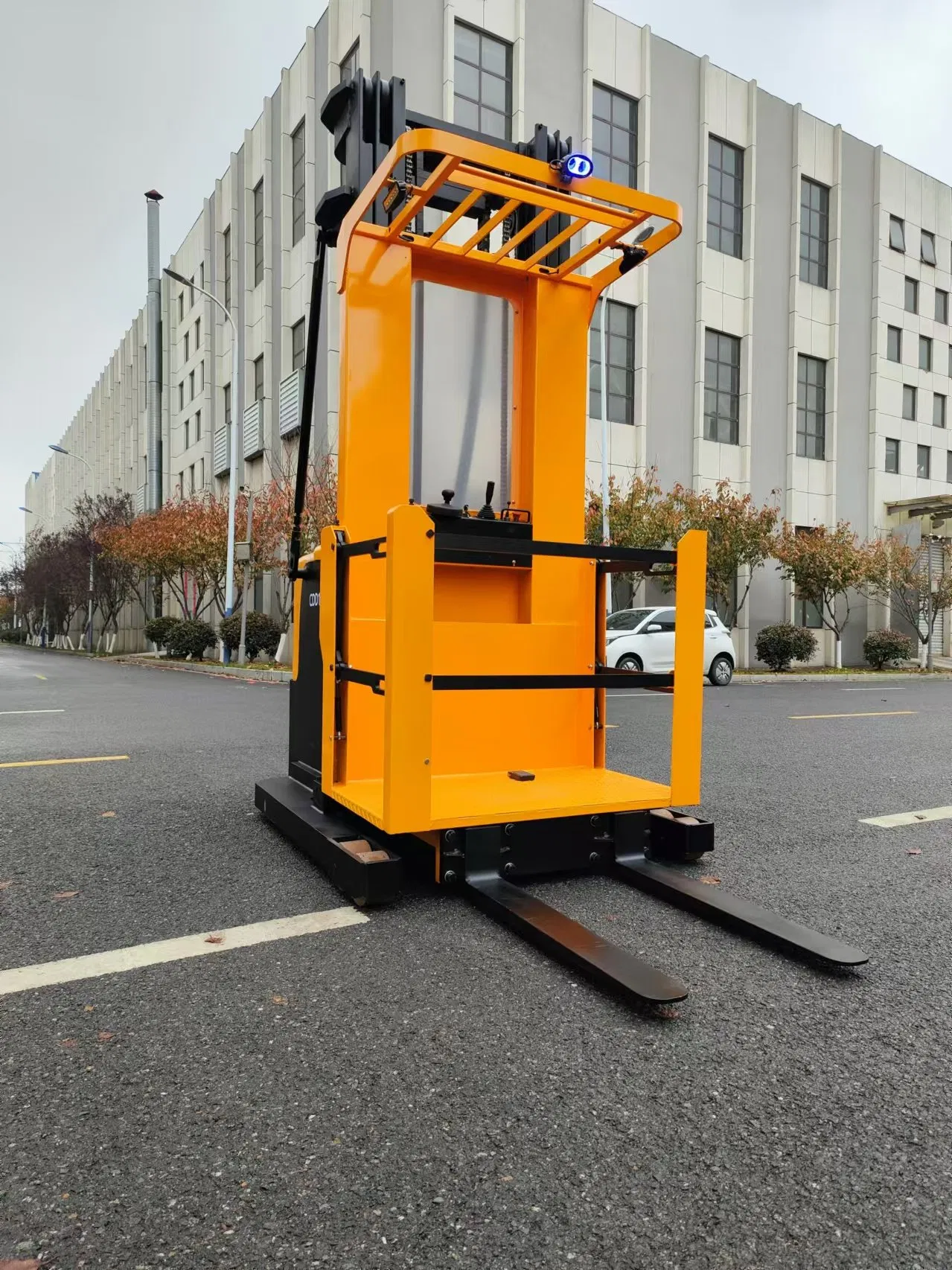

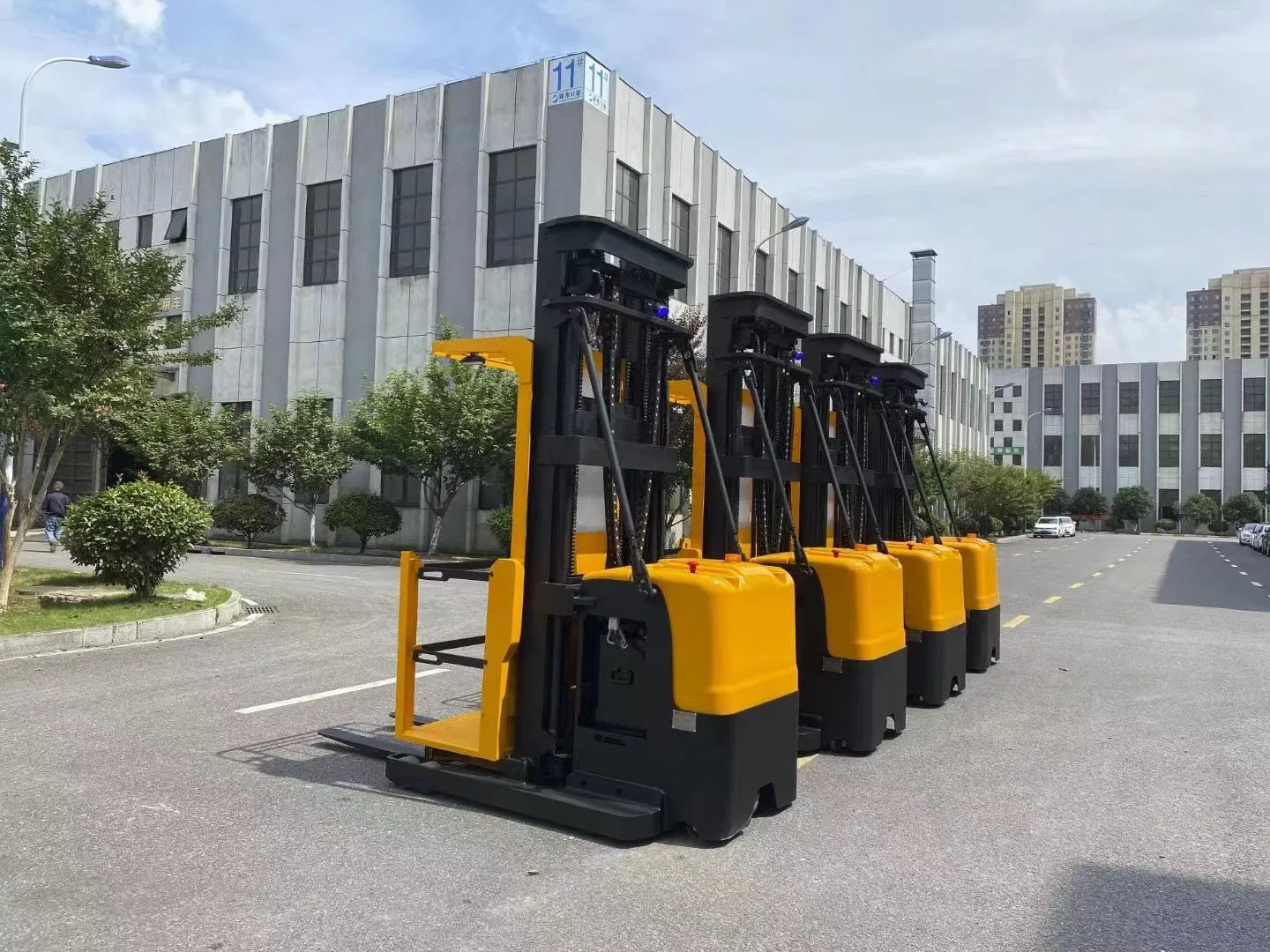

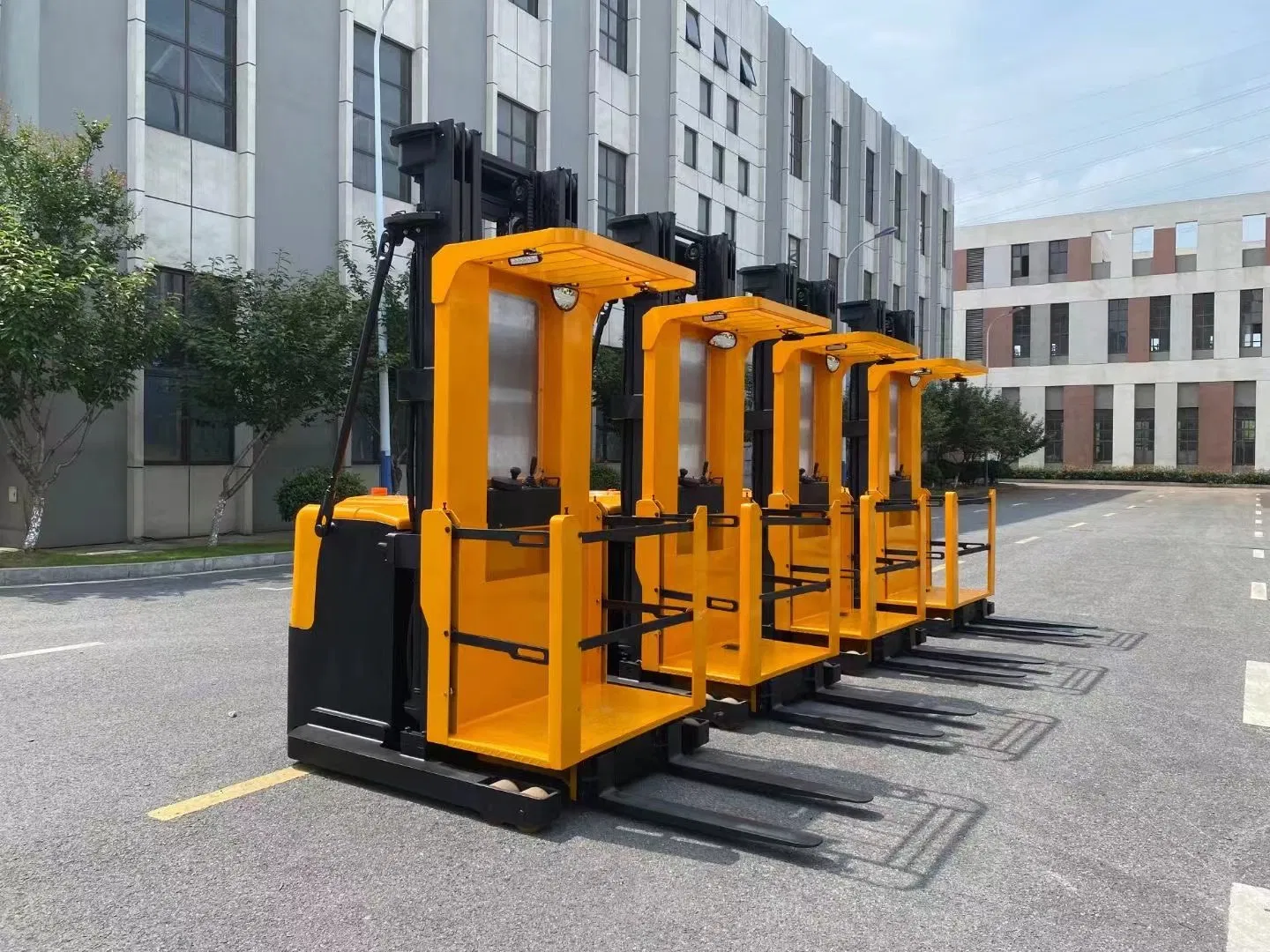

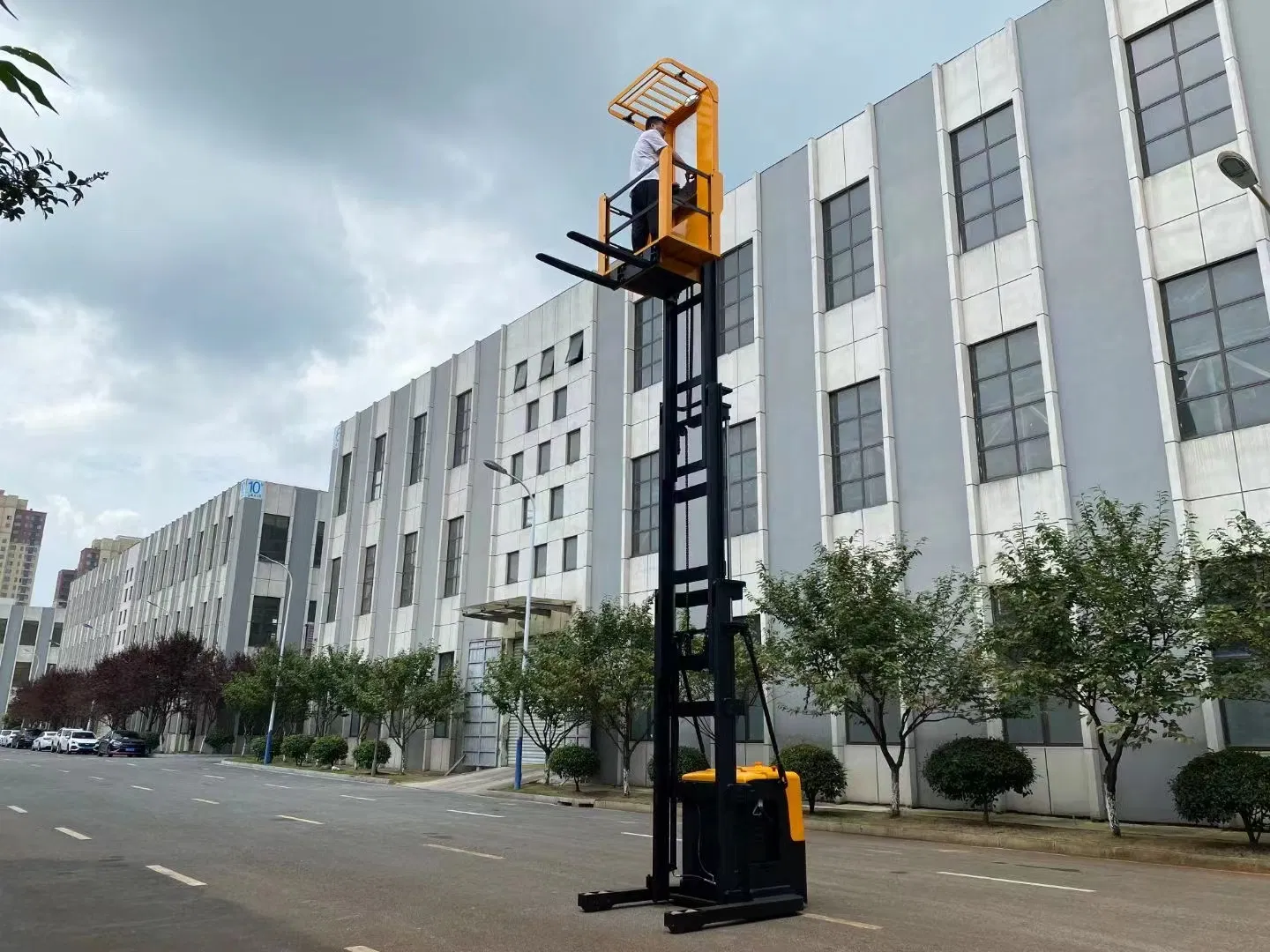

Battery Electric Level Order Picker Forklift 1000 Kg Warehouse

1 / 5

Battery Electric Level Order Picker Forklift 1000 Kg Warehouse

Customization:	Available
Warranty:	1 Year
Cab Location:	Not Adjustable

Send Inquiry

Product Description

Basic Information

Model NO.

CDD10X

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load Center

500mm

Lift Height

3000~5000mm

Condition

New

Production Capacity

5000 Unit / Year

HS Code

84271090

Product Description & Advantages

Advanced electric steering technology (EPS) with automatic reset, height display, and automatic deceleration at high lifting levels.
Finger tip control via joystick with stepless speed control for driving, lifting, and lowering.
Buffer oil cylinder: automatically decelerates when 500mm off the ground to prevent impact and lower noise.
The mast and the frame are dividable and exchangeable.
Low battery protection settings to prolong battery life.
AC motor eliminates carbon brush replacement and provides excellent ramp starting performance.
Sideway battery design for convenient exchanging and maintenance.
Mast material imported from Germany for high durability.
Automatic deceleration during quick turning for enhanced safety.
Multi-function LED instrument showing battery levels, fault indicators, and operation status.

Technical Specification	Unit	CDD10X-45S	CDD15X-45S
Operation Mode	-	Picking Type	Picking Type
Load Capacity	Q(kg)	1000	1500
Load Center	C(mm)	500	500
Wheelbase	Y(mm)	1425	1845
Self-weight (With Battery)	kg	2600	3000
Wheel Type	-	PU Solid Tire	PU Solid Tire
Lifting Height	h3(mm)	4500	4500
Vehicle body length	l2(mm)	1865	2500
Vehicle Body Width	b1(mm)	1130	1300
Min. turning radius	Wa(mm)	1657	2140
Drive Motor	kw	2.5	6.5
Lift Motor	kw	3	6.3

Frequently Asked Questions

How long is the warranty for the equipment?

The warranty covers 24 months or 2500 hours for the entire machine from the on-board time, whichever comes first.

What is the typical delivery time?

Standard production time is 15-20 days after receipt of the advanced payment. Some standard models may be in stock for immediate delivery.

What is the battery working and charging time?

Continuous working time is approximately 4-6 hours depending on operation. Charging takes about 5 hours. The intelligent charger stops automatically once the battery is full.

What is the expected lifespan of the battery?

Our batteries use high-standard technology and can typically operate for up to 6 years without significant issues.

Are customized OEM or ODM products available?

Yes, we provide customized products based on specific requests. Both OEM and ODM solutions are available for non-standard equipment requirements.

What color options are available for the products?

Standard colors include orange-red, white, green, and blue. Custom colors can be applied if you provide the specific RAL code.
