Compact Kl1200L Electric Tow Tractor for Efficient Hauling
Compact Kl1200L Electric Tow Tractor for Efficient Hauling
Compact Kl1200L Electric Tow Tractor for Efficient Hauling
Compact Kl1200L Electric Tow Tractor for Efficient Hauling
1 / 4
Compact Kl1200L Electric Tow Tractor for Efficient Hauling
Compact Kl1200L Electric Tow Tractor for Efficient Hauling
Compact Kl1200L Electric Tow Tractor for Efficient Hauling
Compact Kl1200L Electric Tow Tractor for Efficient Hauling

Compact Kl1200L Electric Tow Tractor for Efficient Hauling

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
KL1200L
Type
Electric Tow Tug
Load Capacity
12000kg
Power
AC Motor
Fuel
Electric
Battery
Lead-Acid Battery
Brake Type
Electromagnetic
Condition
New
Lead Time
15 days
⚙️ Technical Data Sheet
Characteristic Unit KL1000L KL1200L
1.1 Model - KL1000L KL1200L
1.2 Supply - Electric Electric
1.4 Max traction weight kg 10000 12000
1.5 Rated pulling force N 4000 5000
Weight
2.1 Truck weight (with battery) kg 780 820
2.2 Battery weight kg 206 400
Dimensions
4.4 Overall length mm 1705 1705
4.5 Overall width mm 870 870
4.7 Turning radius mm 1370 1370
Performance & Motor
5.1 Drive speed (load/unload) km/h 2~3 2~3
5.6 Brake type - Electromagnetic Electromagnetic
6.1 Drive motor rating S2 60min V/kw 48/3.0 48/3.5
6.3 Battery voltage/capacity V/Ah 48/157 48/210
📸 Product Gallery

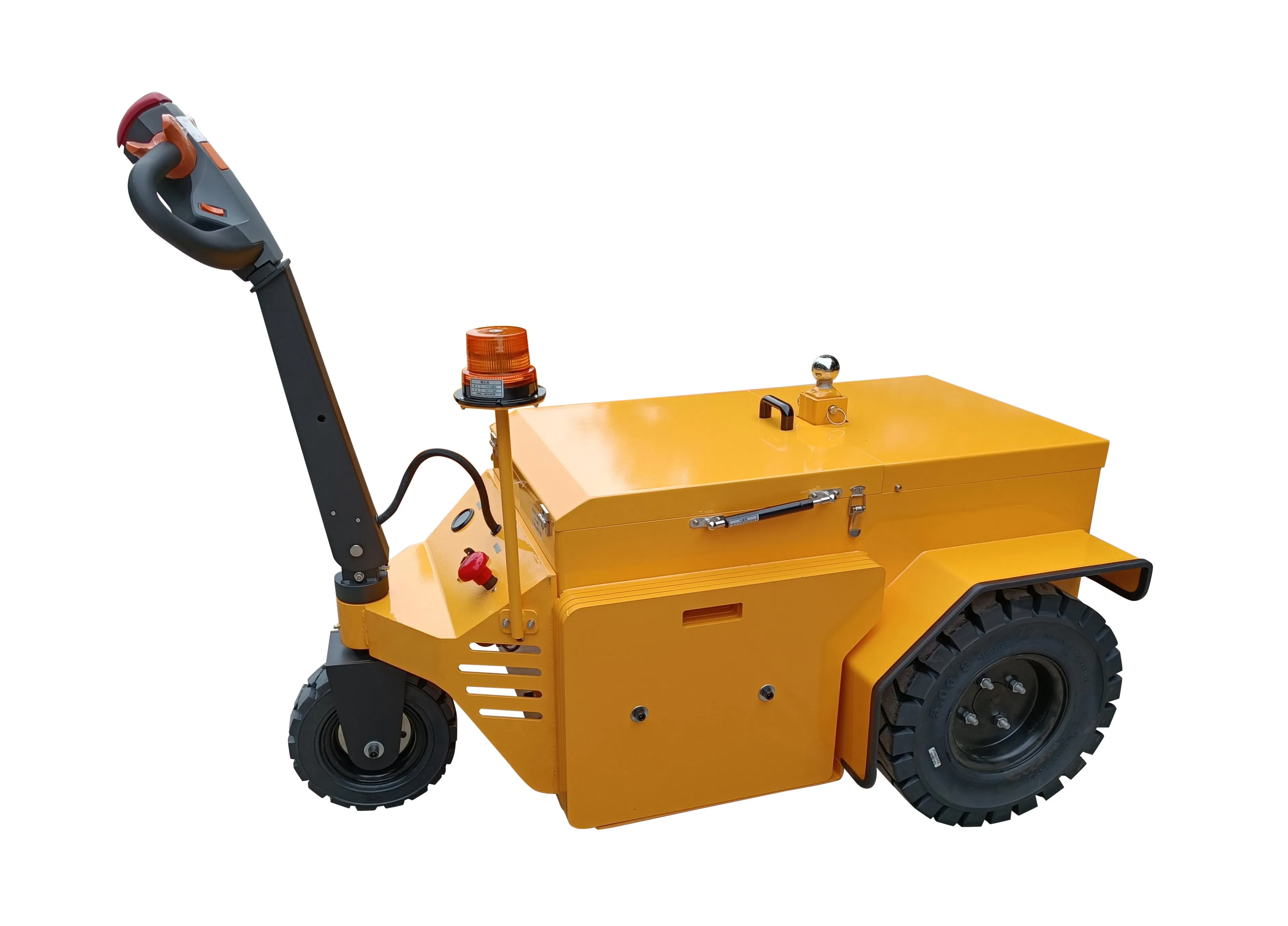

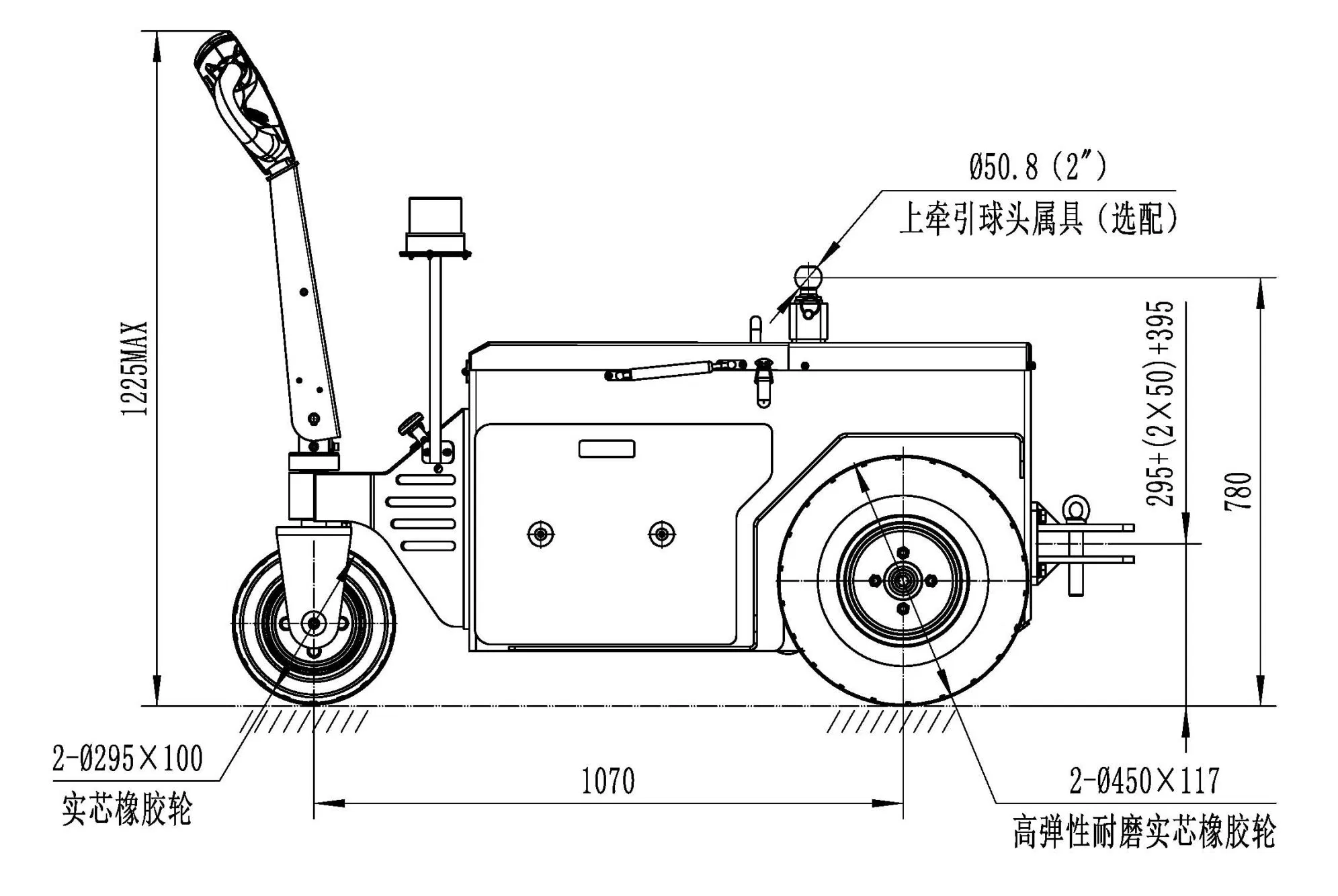

Electric Tow Tractor Side View
Electric Tow Tractor Operational View

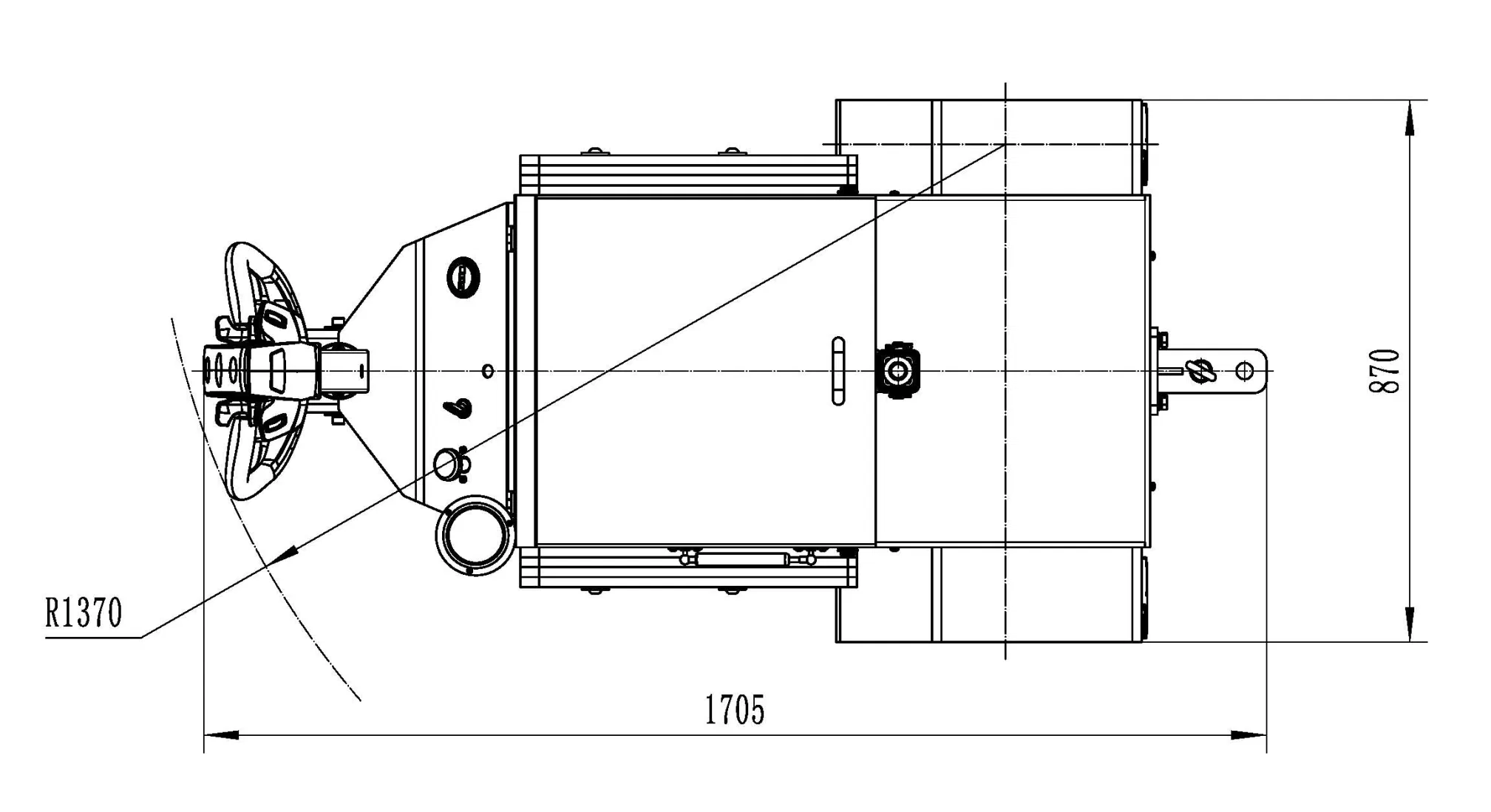

Electric Tow Tractor Top View
❓ Frequently Asked Questions
What is the maximum towing capacity of the KL1200L?
The KL1200L electric tow tractor has a maximum traction weight of 12,000kg (12 tons).
What type of motor and battery does this tug use?
It is equipped with a high-performance AC Motor and a durable Lead-Acid battery (48V/210Ah for KL1200L).
How long is the standard lead time for an order?
The typical lead time for production and delivery is approximately 15 days.
What kind of braking system is installed for safety?
The vehicle uses an electromagnetic braking system to ensure reliable stopping power even under heavy loads.
Can this tow tug be used in narrow aisles?
Yes, with a turning radius of only 1370mm and a width of 870mm, it is designed for efficient maneuvering in compact spaces.
Is the charger included with the machine?
Yes, it comes with an external charger (48V/30A for KL1200L) to facilitate easy battery maintenance.
