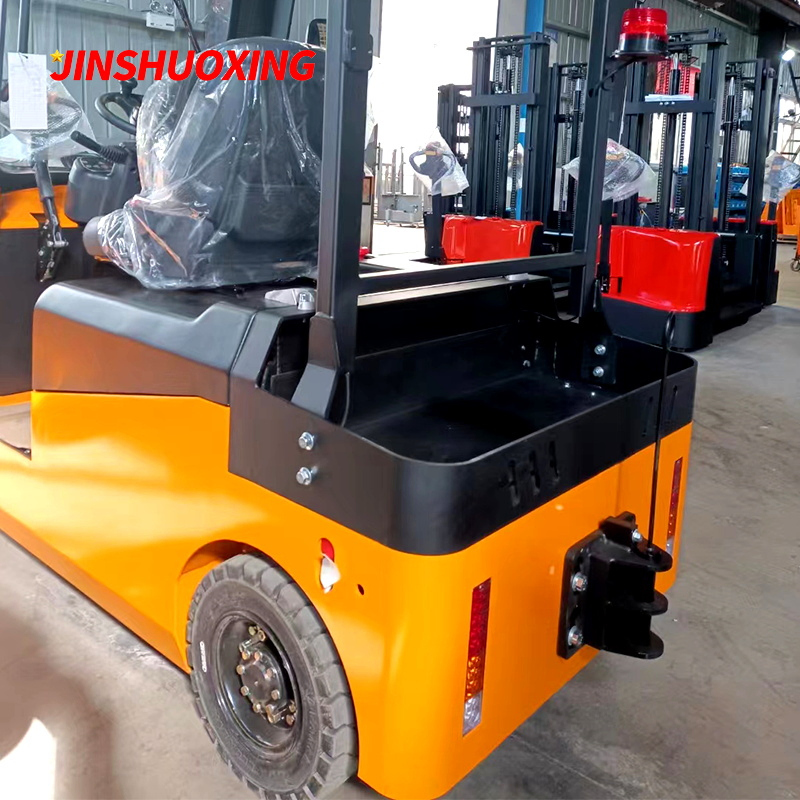

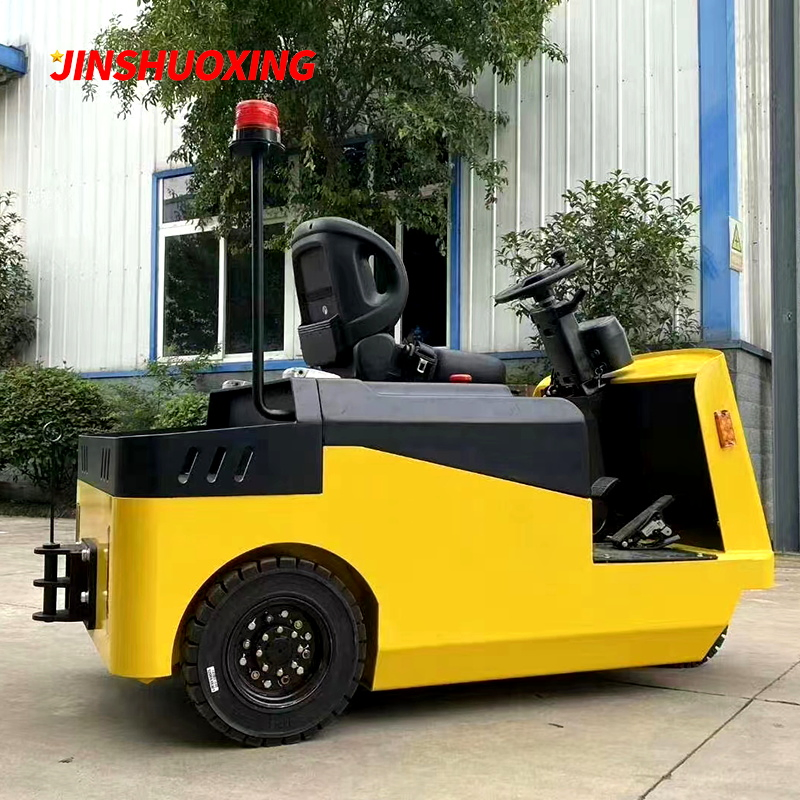

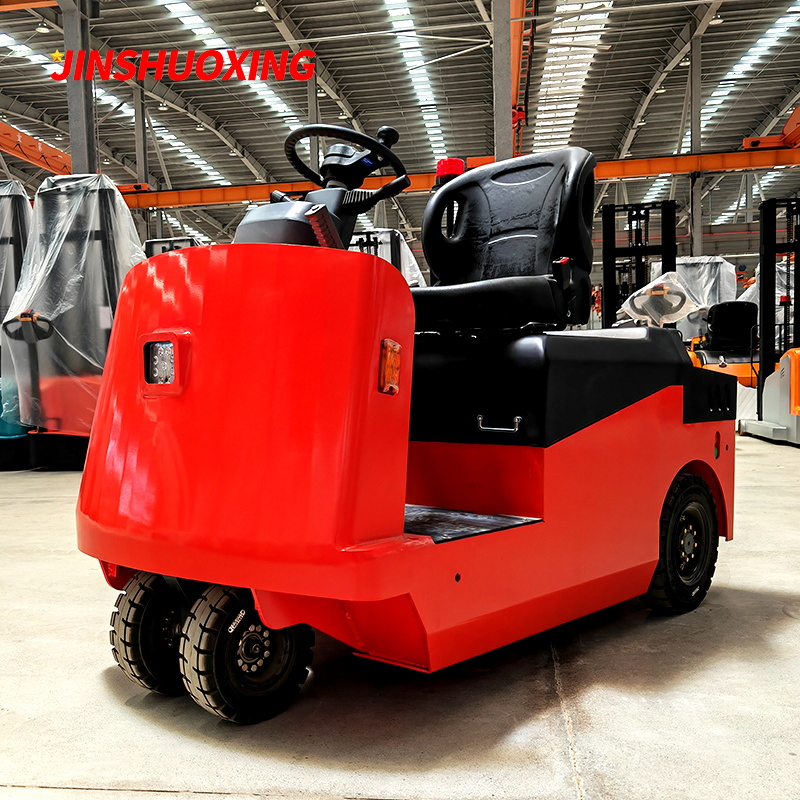

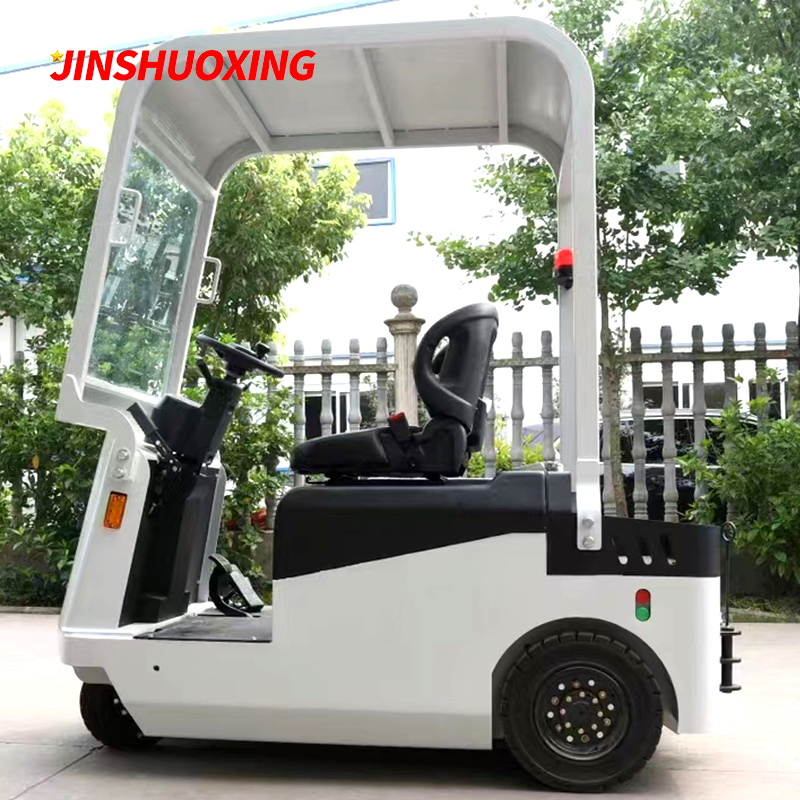

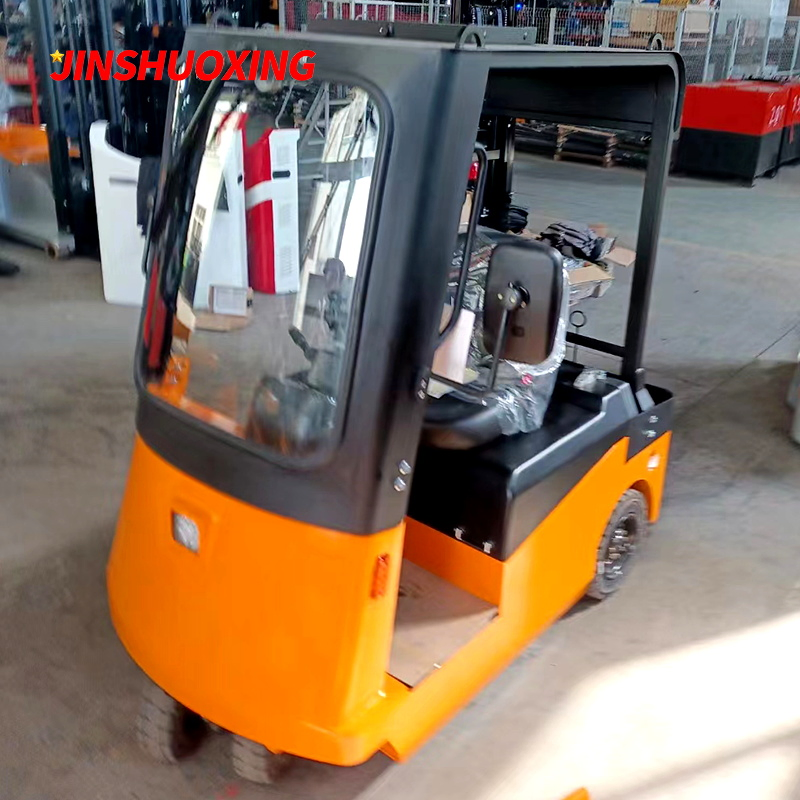

2 Ton 4 Ton 6 Ton 10 Ton Seated Electric Mini Towing Tow Tractor

After-sales Service: Long Term
Warranty: 1year
Cab Location: Adjustable

Product Description

Basic Specifications

Model NO.
EPQ-A/EPQ-B/EPQ
Type
Electric Forklift
Power
AC Motor
Load Capacity
18T - 42T
Battery Type
Lithium
Voltage/Capacity
80V / 600Ah
Turning Radius
2800mm
Max Climbing Slopes
30%
Electric Tow Tractor

Series Performance Data

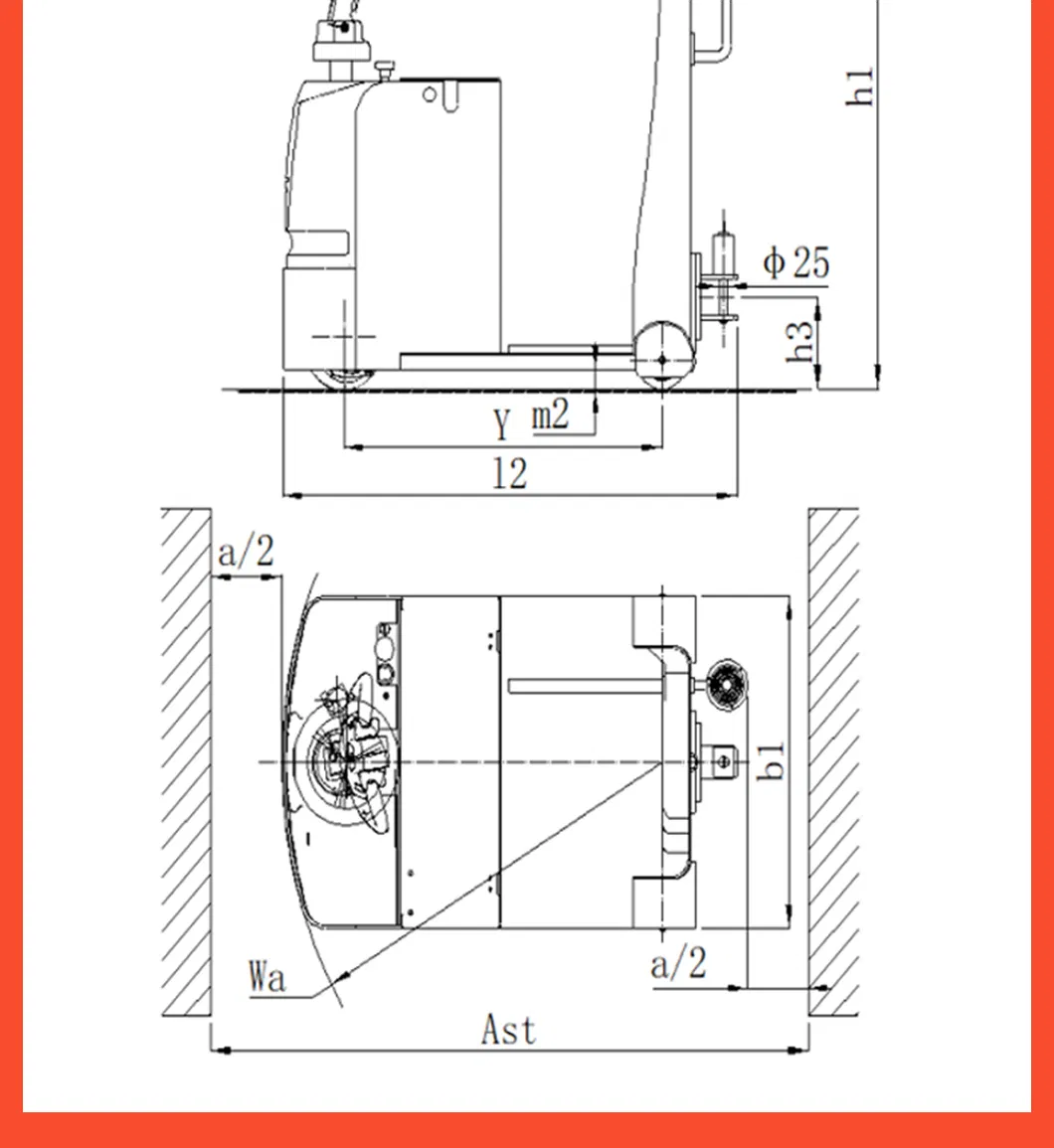

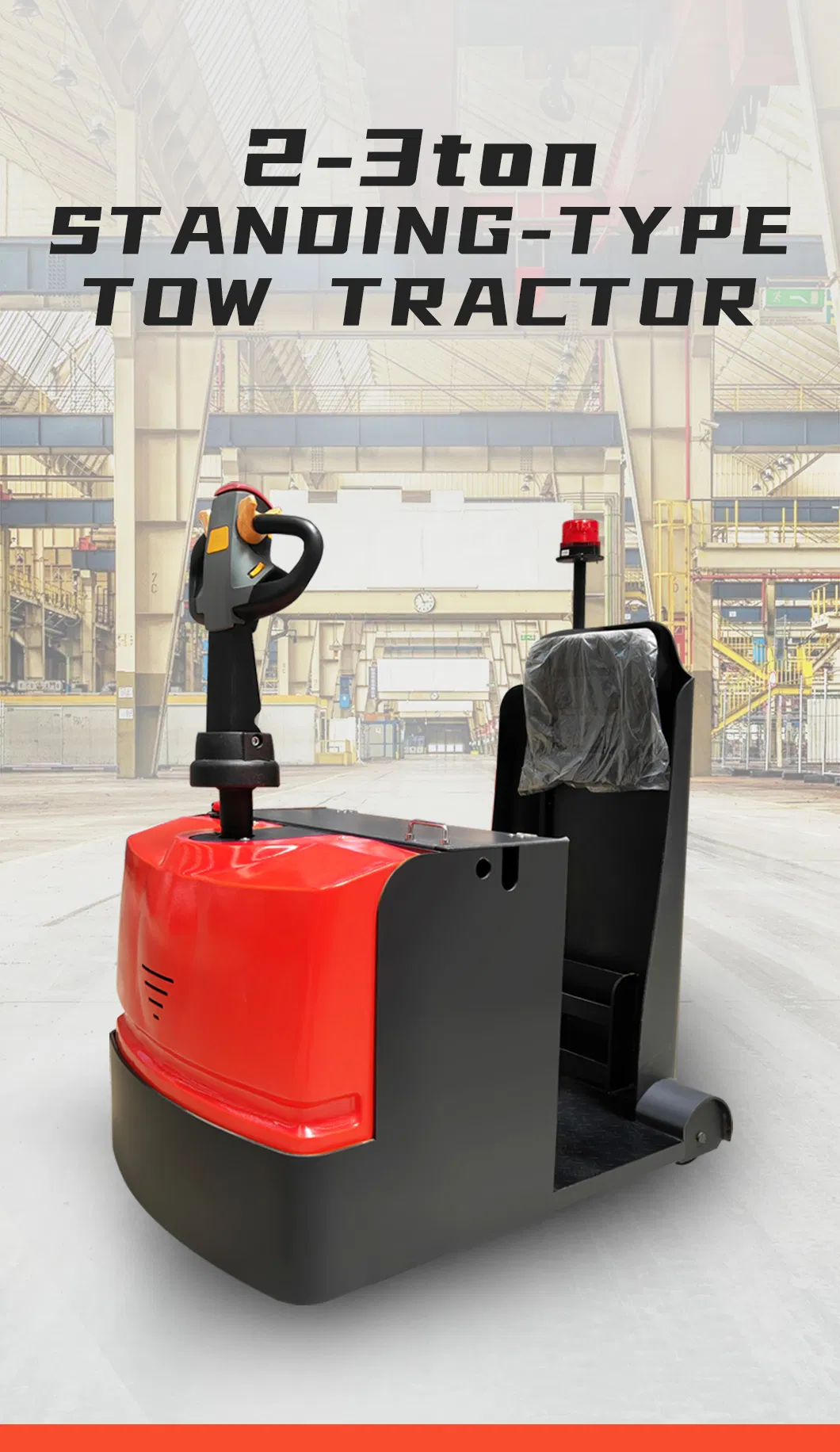

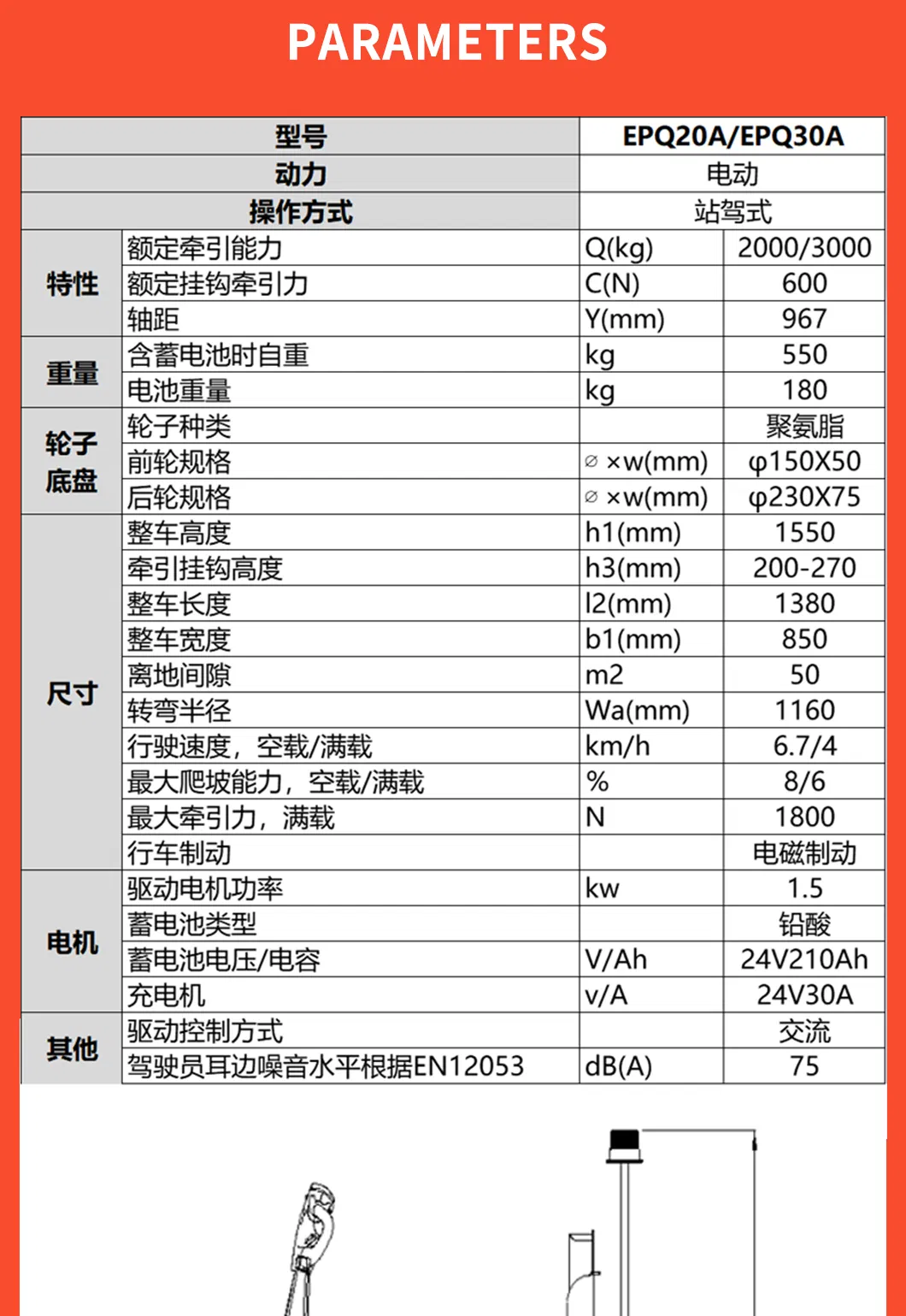

Standing Type Electric Tow Tractor (EPQ20A/EPQ30A)
Rated Tow Weight2000/3000 kgRated Drawbar Traction600 N
Weight (incl. Battery)550 kgBattery TypeLA
Driving Speed (unload/load)6.7/4 km/hTurning Radius1160 mm
Motor Power1.5 kwBattery Capacity24V 210Ah
Towing Tractor 1
Towing Tractor 2

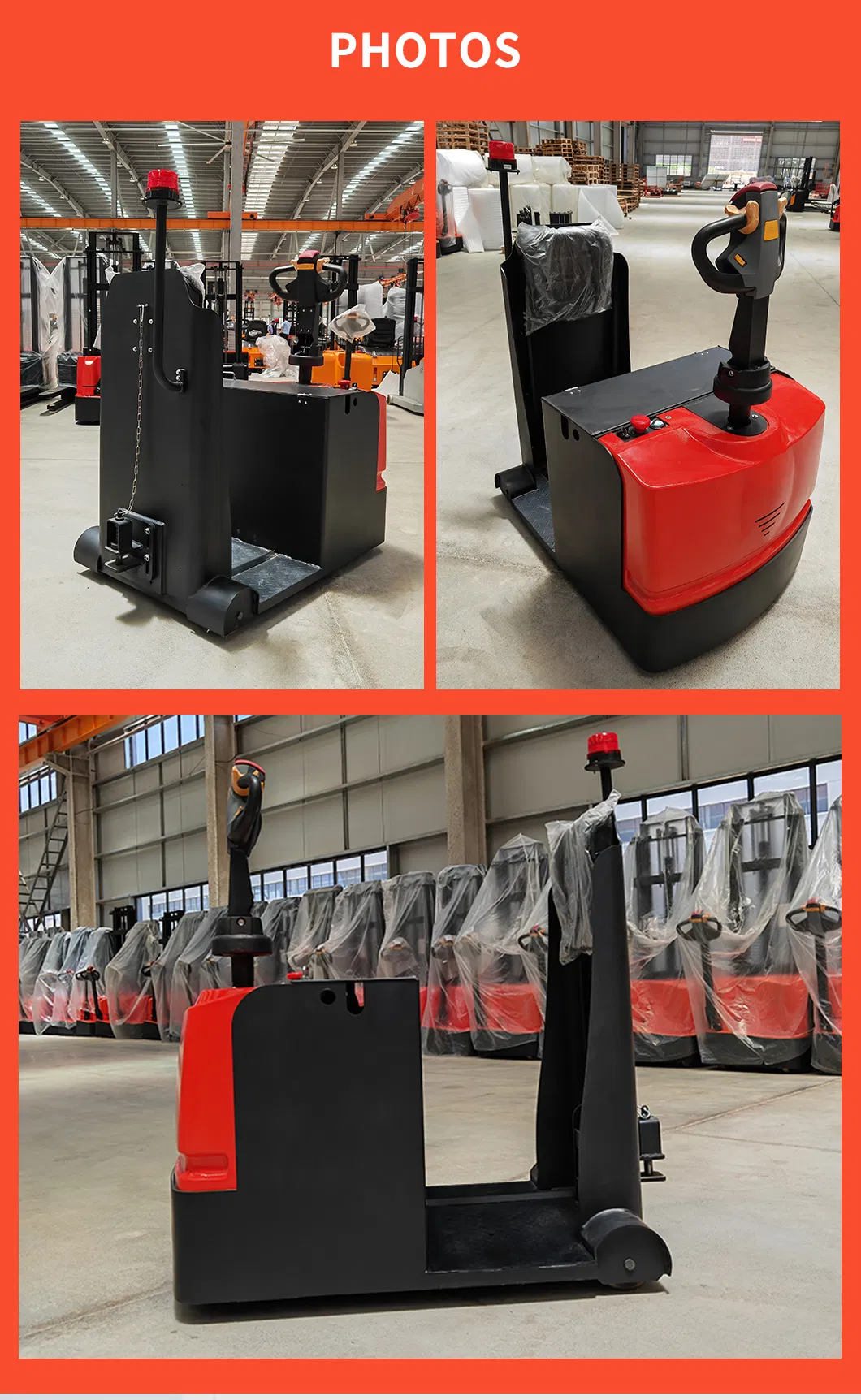

Towing Tractor 3
2-3 Ton Sitting Type Series (EPQ20B/EPQ30B)
ModelEPQ20BEPQ30BRated Tow Weight2000 kg3000 kg
Weight (incl. Battery)880 kg905 kgBattery Weight180 kg205 kg
Driving Speed7/5 km/hMax Climbing10/8 %8/6 %
Drive Motor Power2.5 kwVoltage/Capacity24V 210Ah24V 240Ah

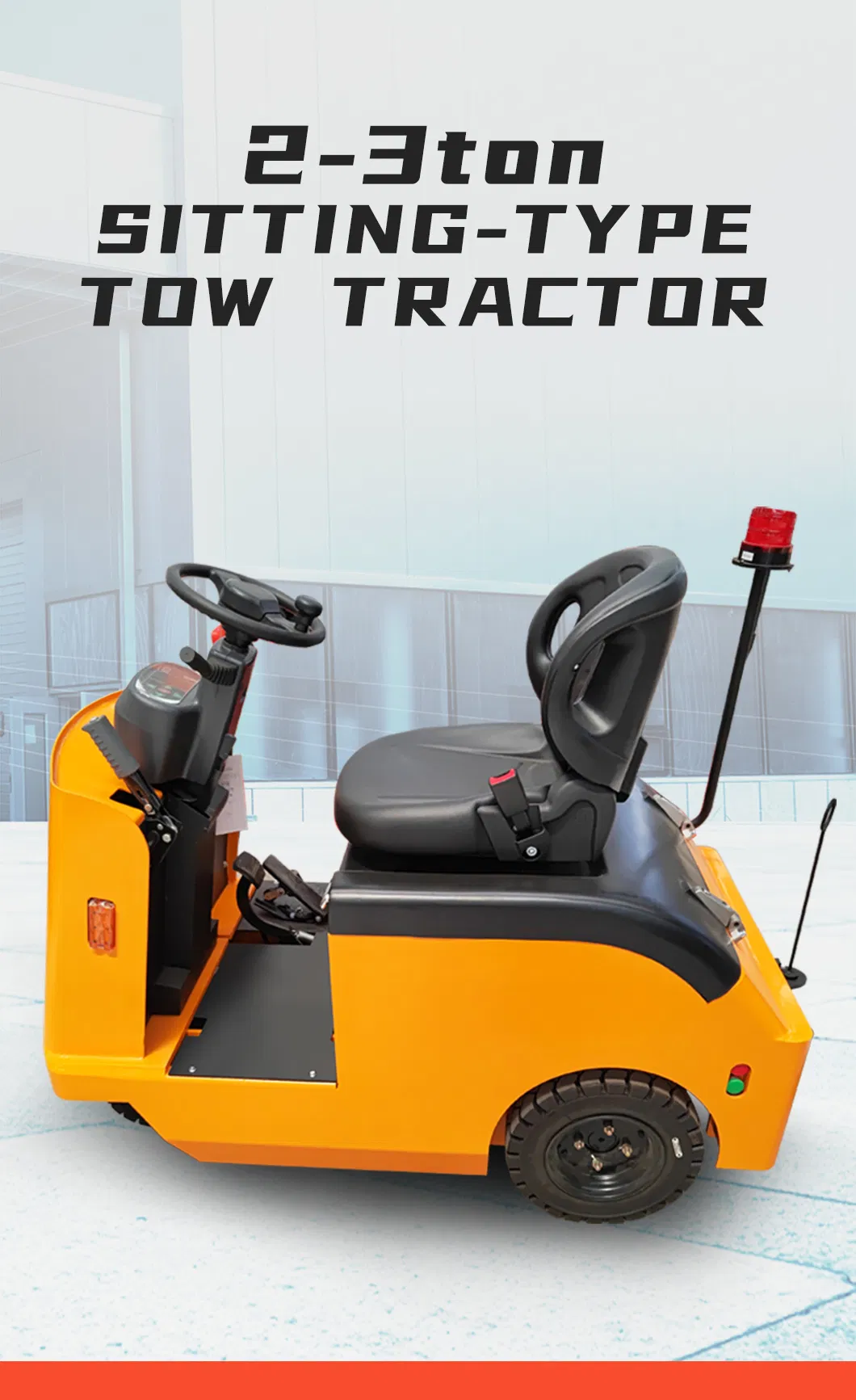

Mini Towing Tractor
Mini Towing Tractor Side

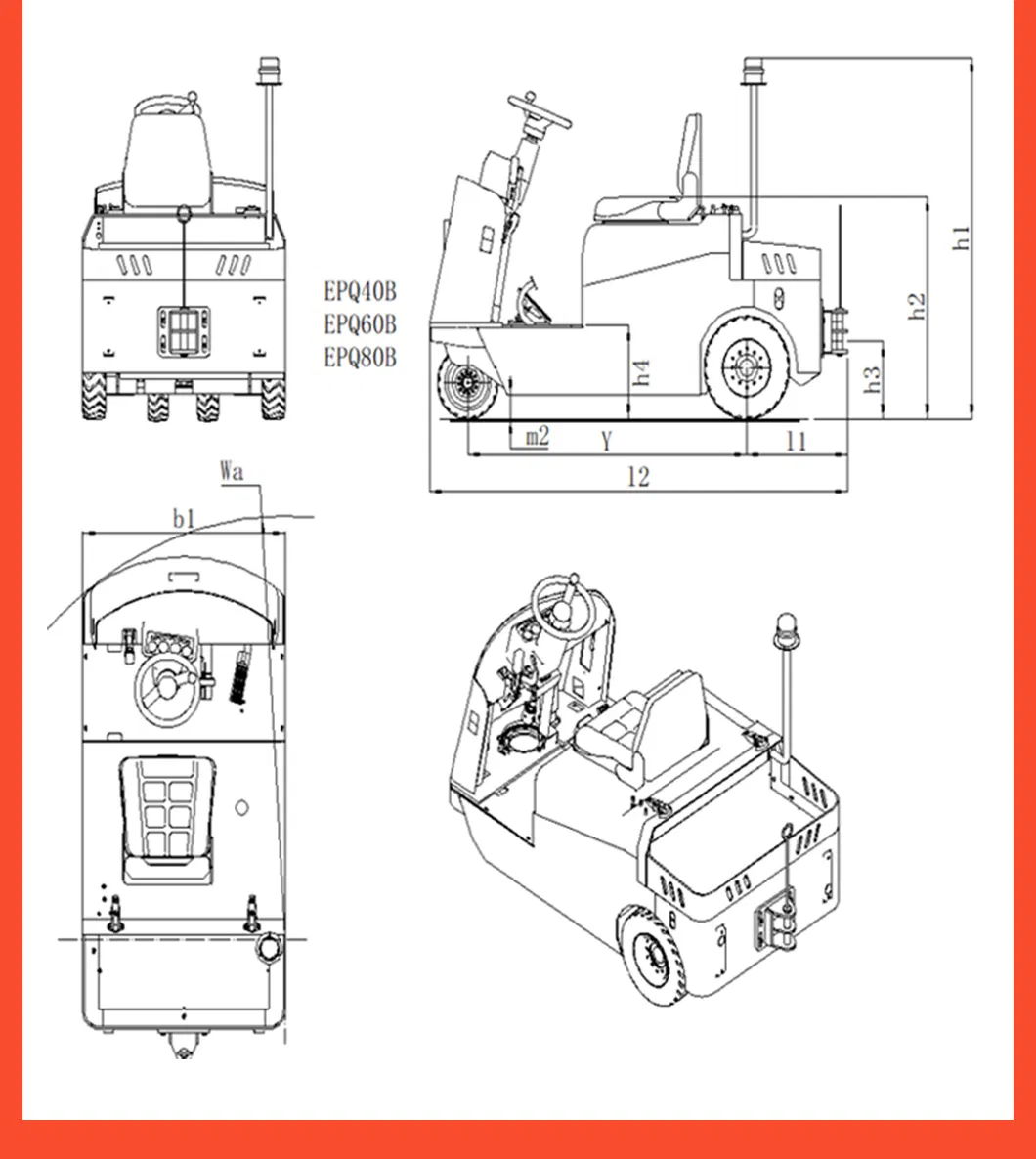

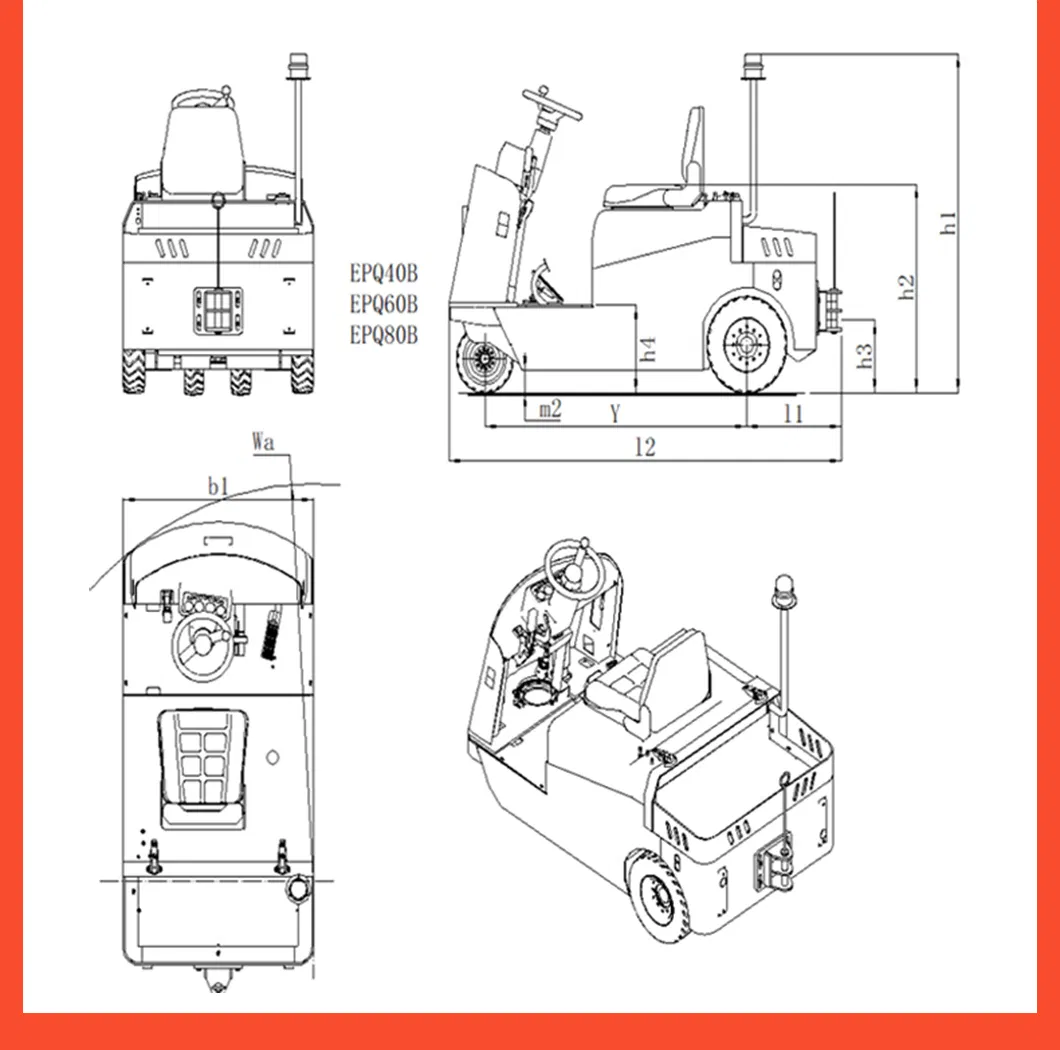

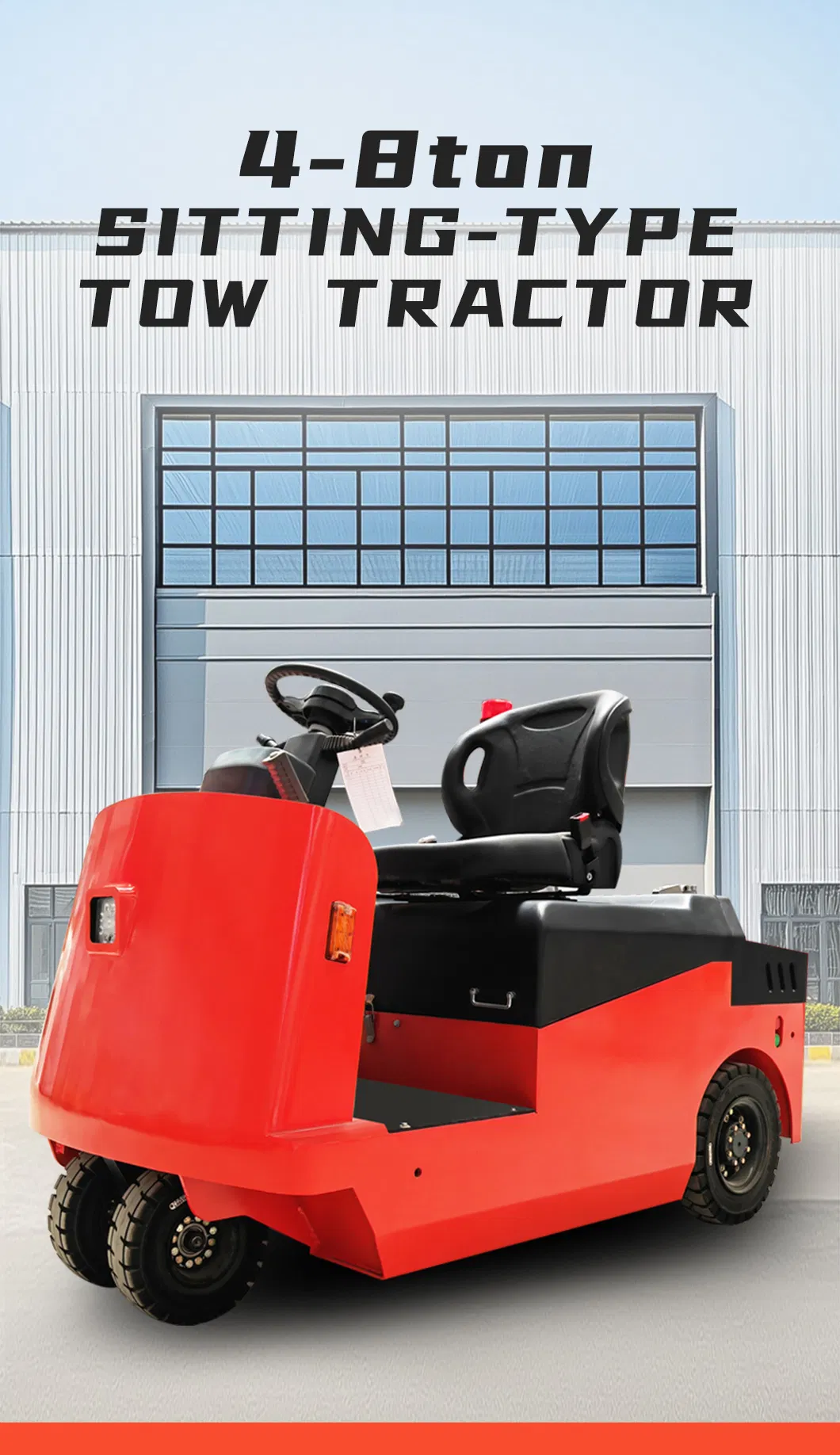

4-8 Ton Sitting Type Series (EPQ40B-EPQ80B)
ModelEPQ40BEPQ60BEPQ80B
Rated Tow Weight4000 kg6000 kg8000 kg
Max Drawbar Traction3000 N3200 N8000 N
Drive Motor Power3 kw4.5 kw7 kw
Battery Capacity24V 350Ah48V 280Ah48V 360Ah

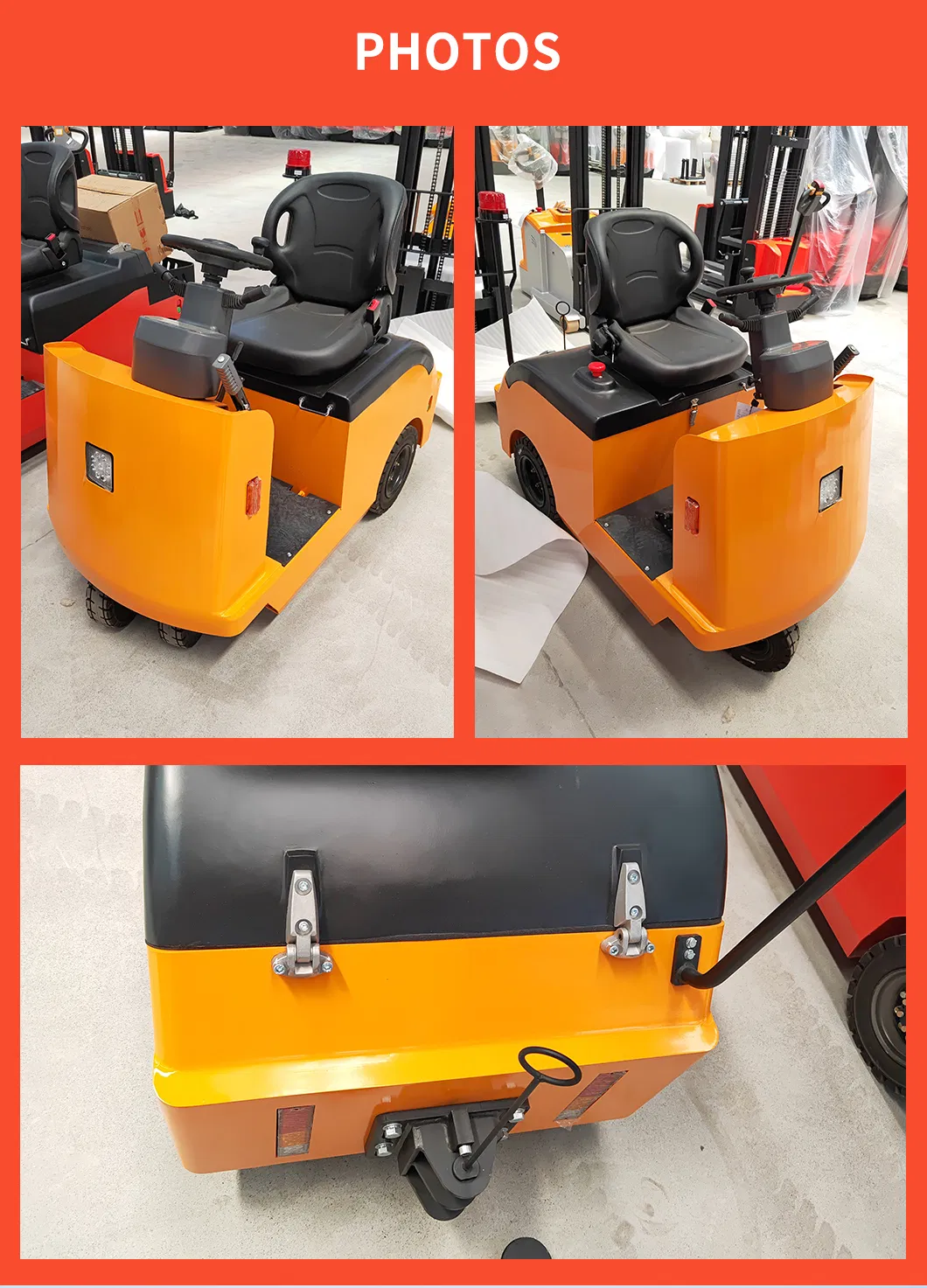

Heavy Duty Tractor 1
Heavy Duty Tractor 2
Heavy Duty Tractor 3

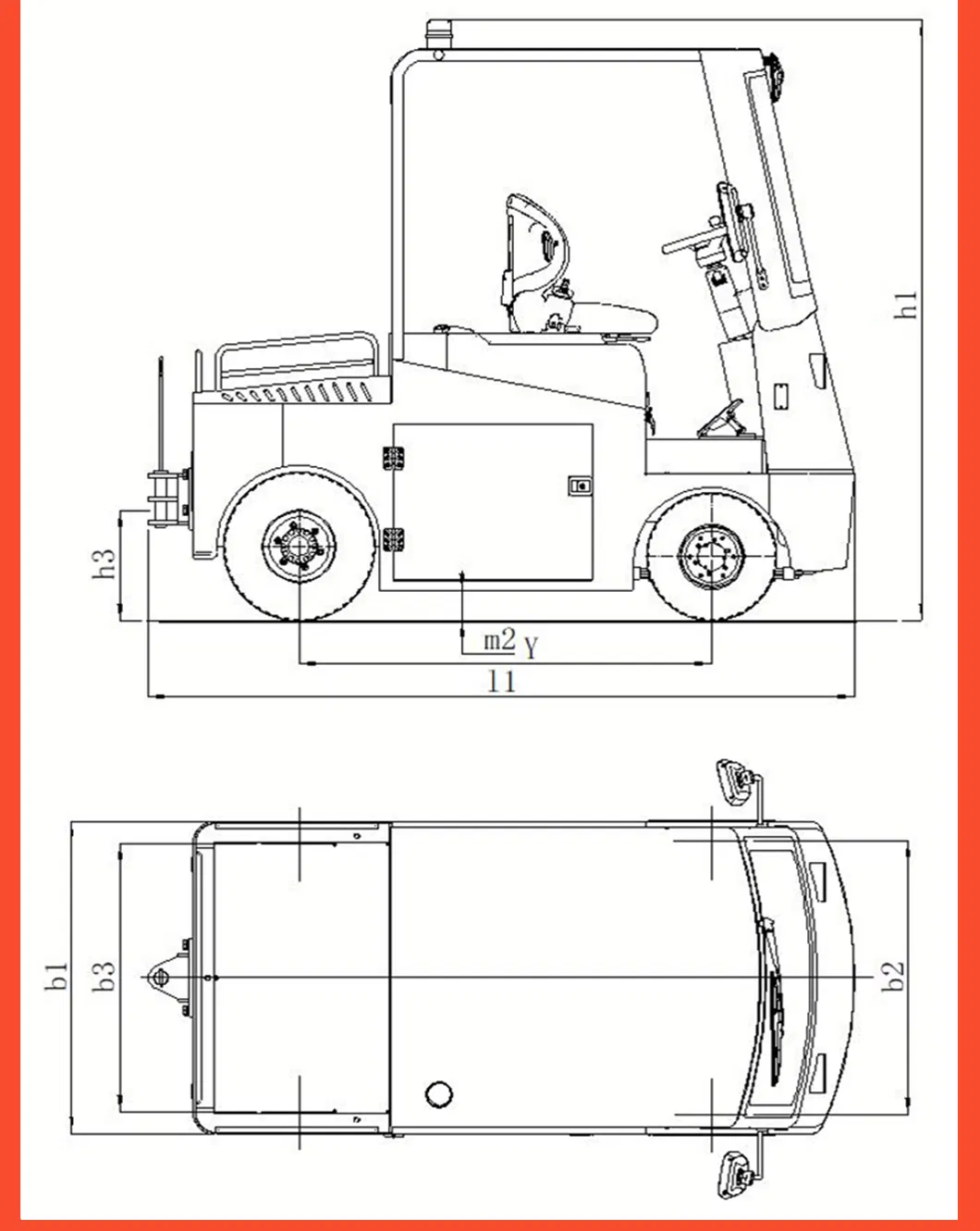

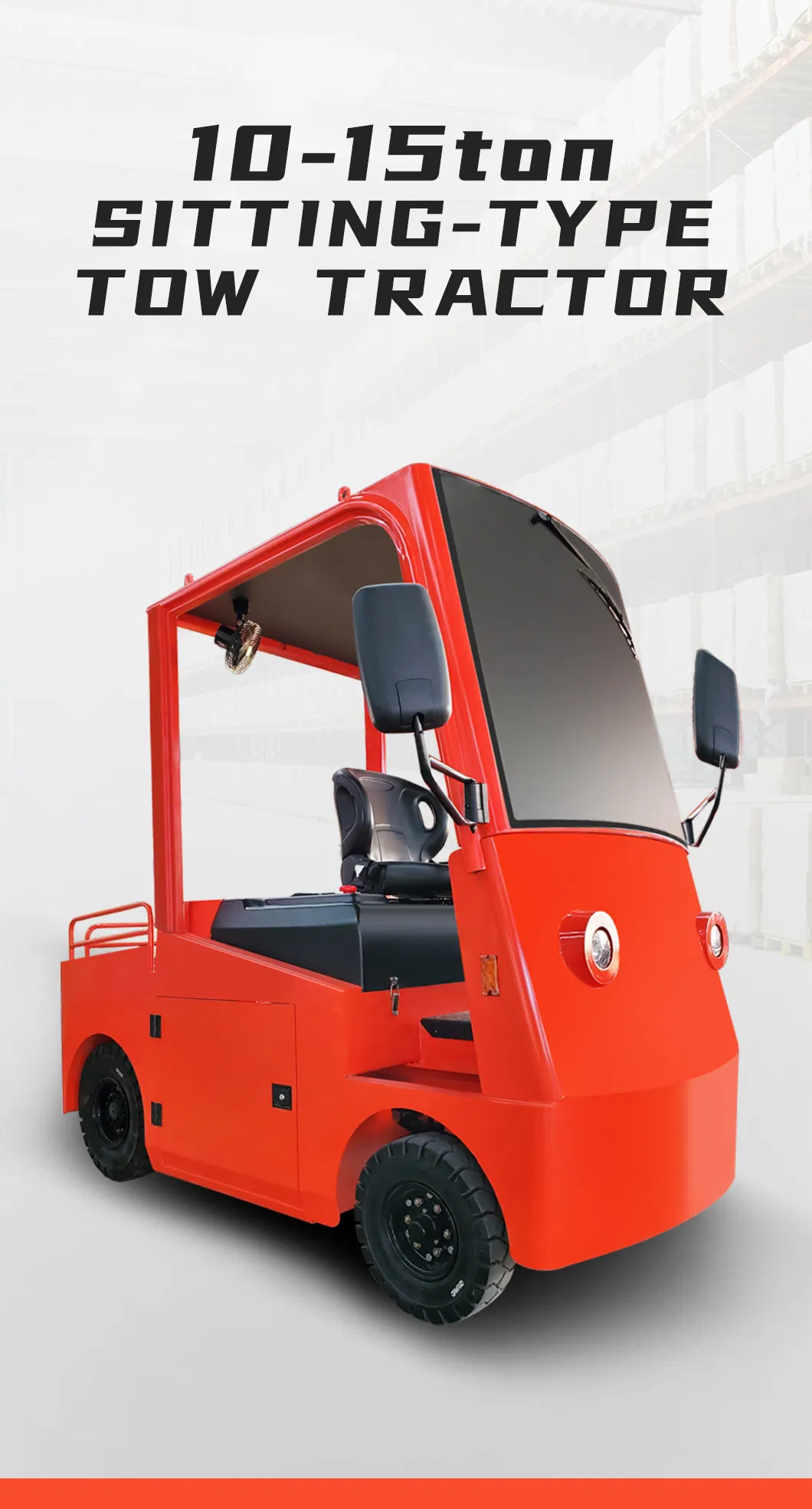

10-30 Ton High Capacity Series (EPQ100-EPQ300)
ModelEPQ100/150EPQ200/300Battery TypeLead Acid / Lithium
Max Tow Weight10000-15000 kg20000-30000 kgMax Speed16-25 km/h
Max Drawbar Traction8.5-12.3 KN18.5-28.8 KNMax Gradeability25-30 %
Overall Length2460-2540 mm3085 mmOverall Weight1950-4170 kg

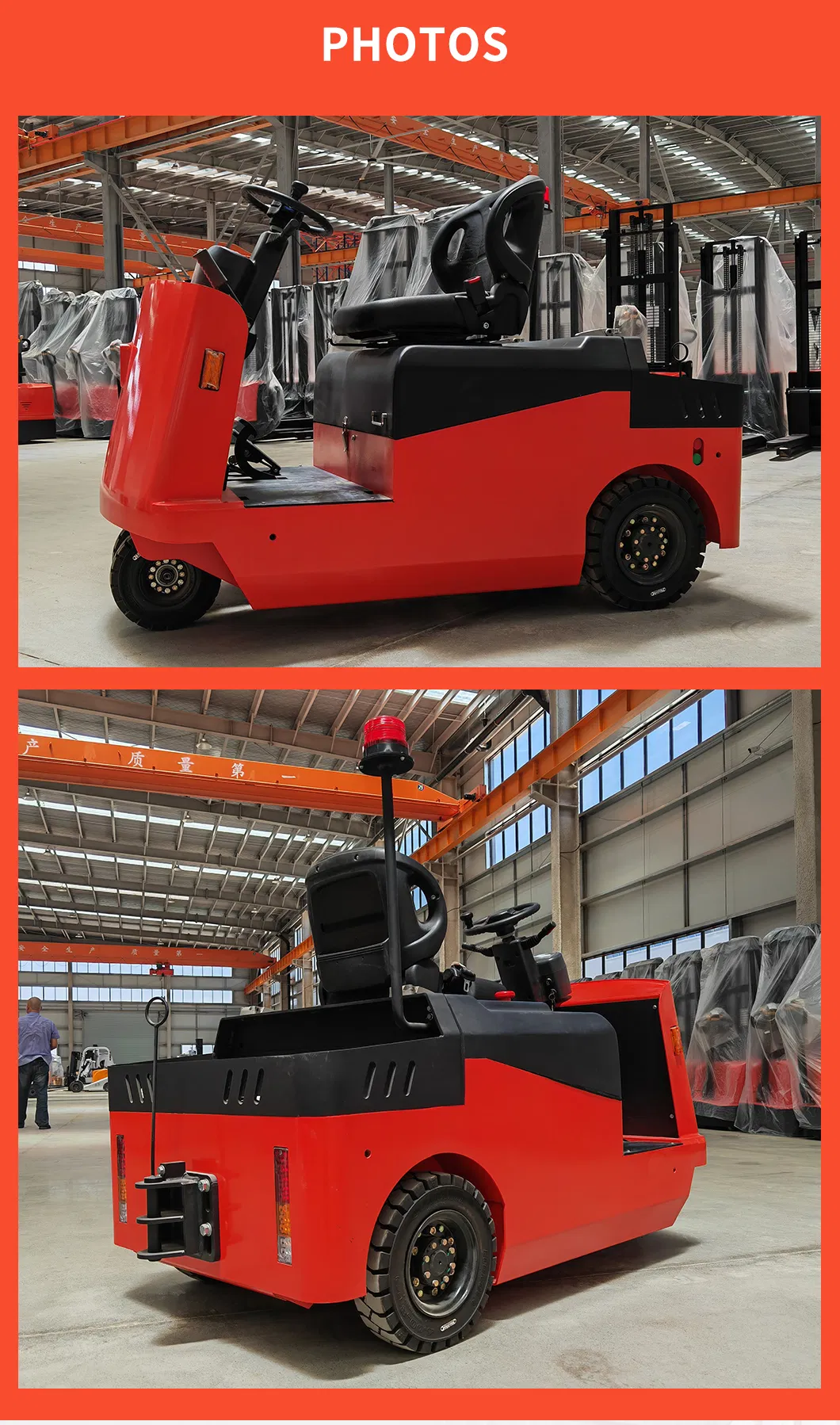

30 Ton Tractor
High Power Towing
Logistics Solution

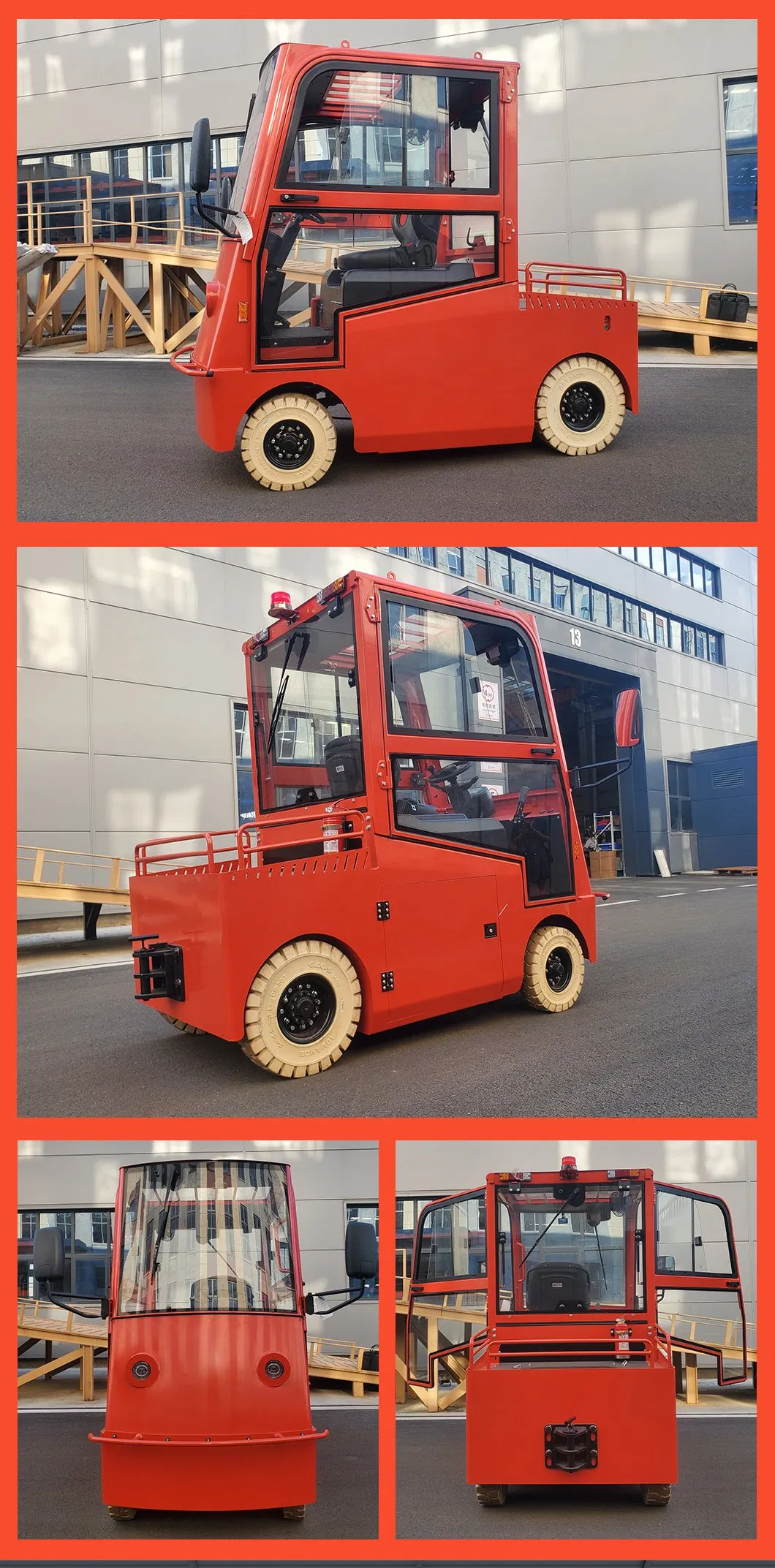

Details 1

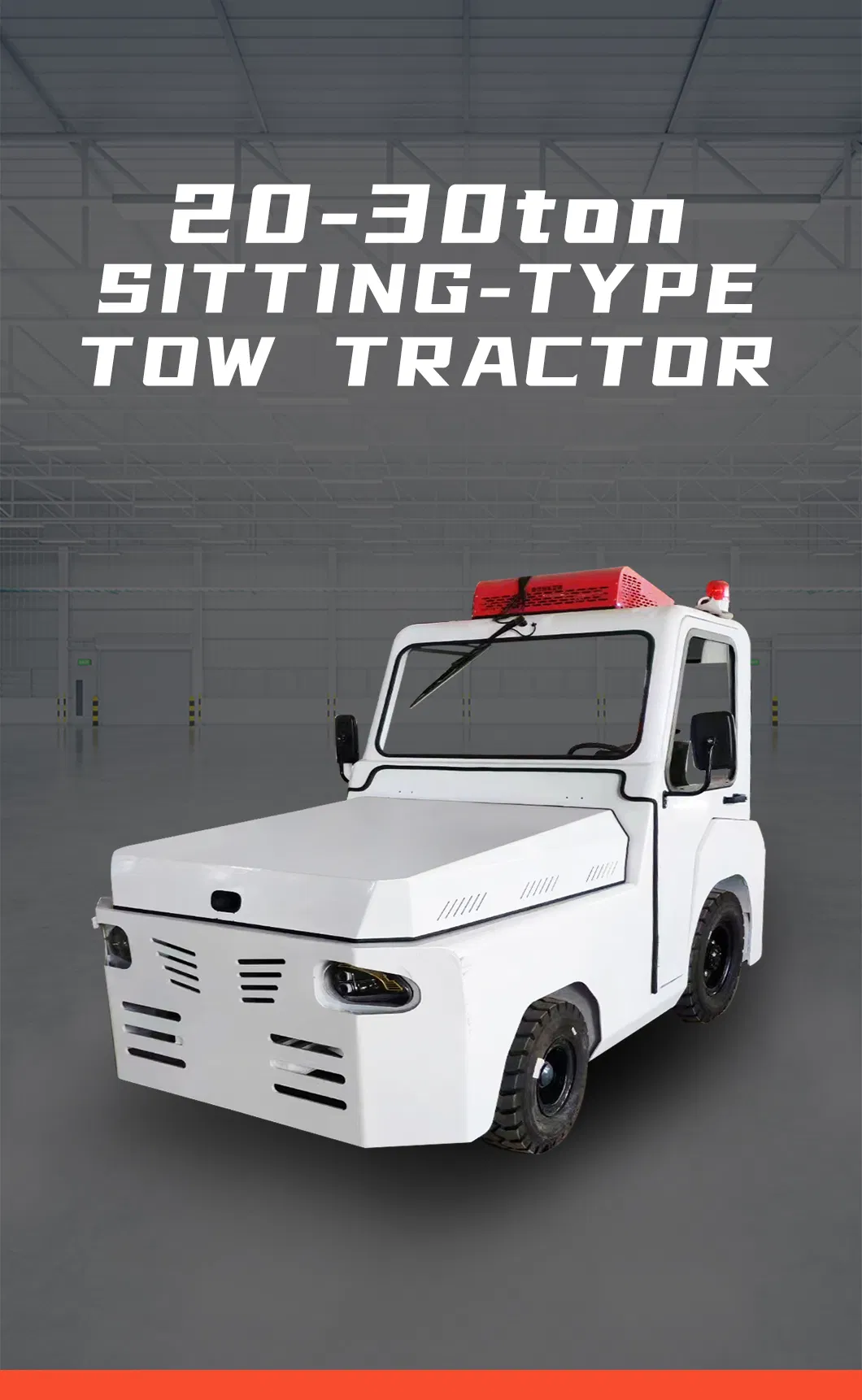

Details 2
Details 3
Details 4

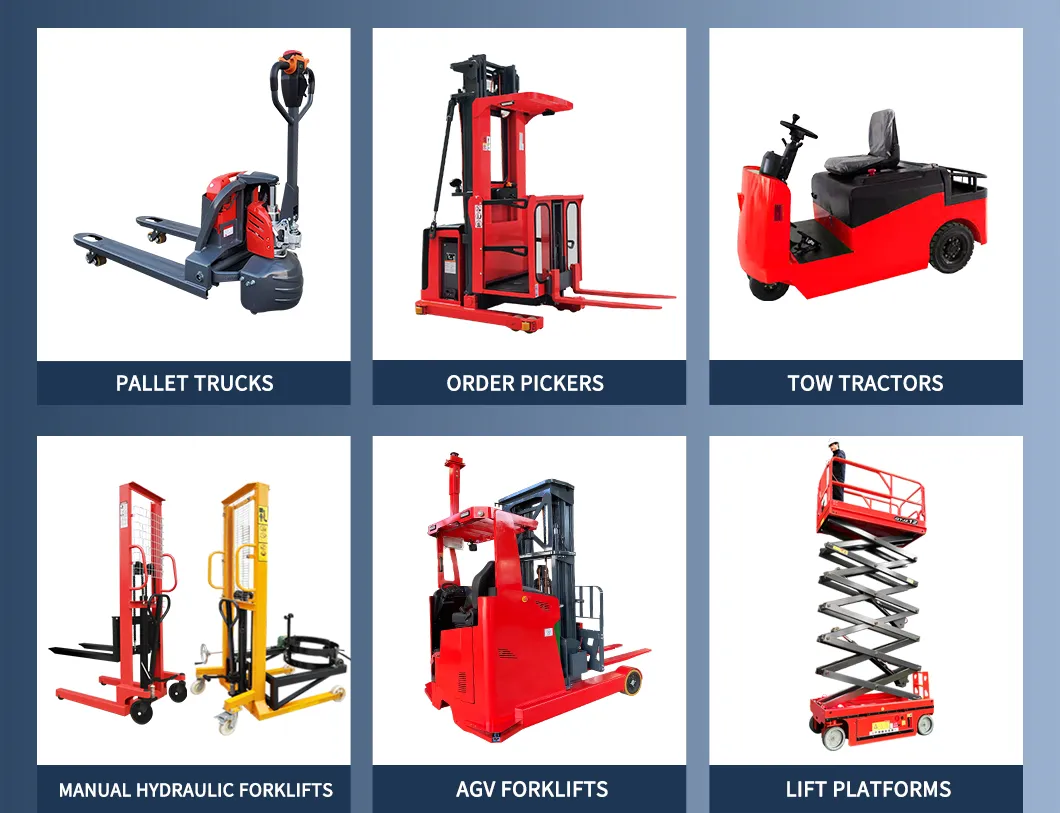

Details 5
Details 6
Details 7
Details 8
Details 9

Frequently Asked Questions

How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation, with a low failure rate.
Do you have an advantage in price?
We work with long-term cooperative raw material suppliers, providing cost advantages. Combined with our skilled production personnel, we offer products of higher quality at a competitive price point.
Can you provide customized services?
Yes, we provide various customization services, including color, logo, body size, and body function customization to meet your specific needs.
How long does it take for production?
Production time is approximately 10 to 30 days. Standard products may be shipped immediately if in stock, while customized or complex orders require more time.

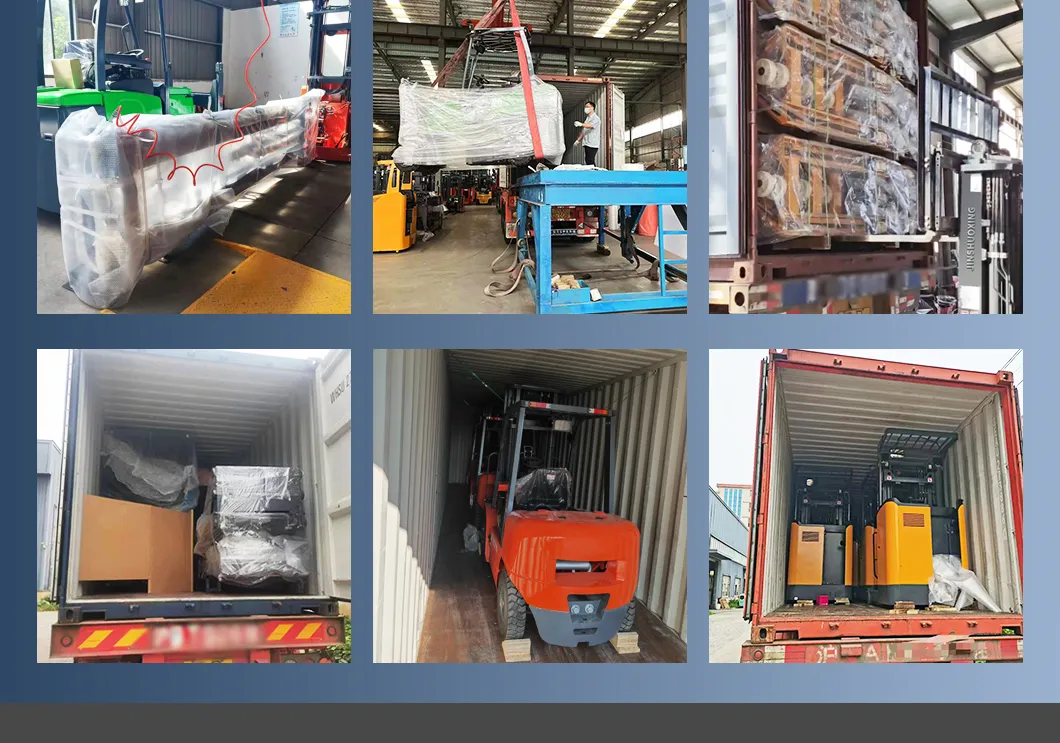

What shipping methods are available?
Most products are transported by sea. Some regions also support railway transport. Smaller components can be sent via international express delivery.
What after-sales service do you provide?
We provide detailed user manuals and assembly videos with each shipment. Additionally, we offer operation method and maintenance videos for your convenience.
