Electric Tow Tractor for Sale

Customization:	Available
Transmission Type:	Automatic
Power:	Electric Energy

Send Inquiry

Product Description

Basic Information

Model NO.

QDD60

Load Capacity

1-10t

Emission Standard

Euro 1

Drive Wheel

4×2

Seats

≤5

Horsepower

＜150hp

Engine Capacity

＜4L

Tire Certification

ISO

Tire Design

Tubeless

Condition

New

Name

Electric Tow Tractor for Sale

Drive Unit

Battery

Operator Type

Rider Seated

Rated Drawbar Pull

1200mm

Wheelbase

1130mm

Service Weight

1150mm

Transport Package

Seaworthy Packing

Specification

CE, SGS, ISO

HS Code

87091110

Production Capacity

3000units/Year

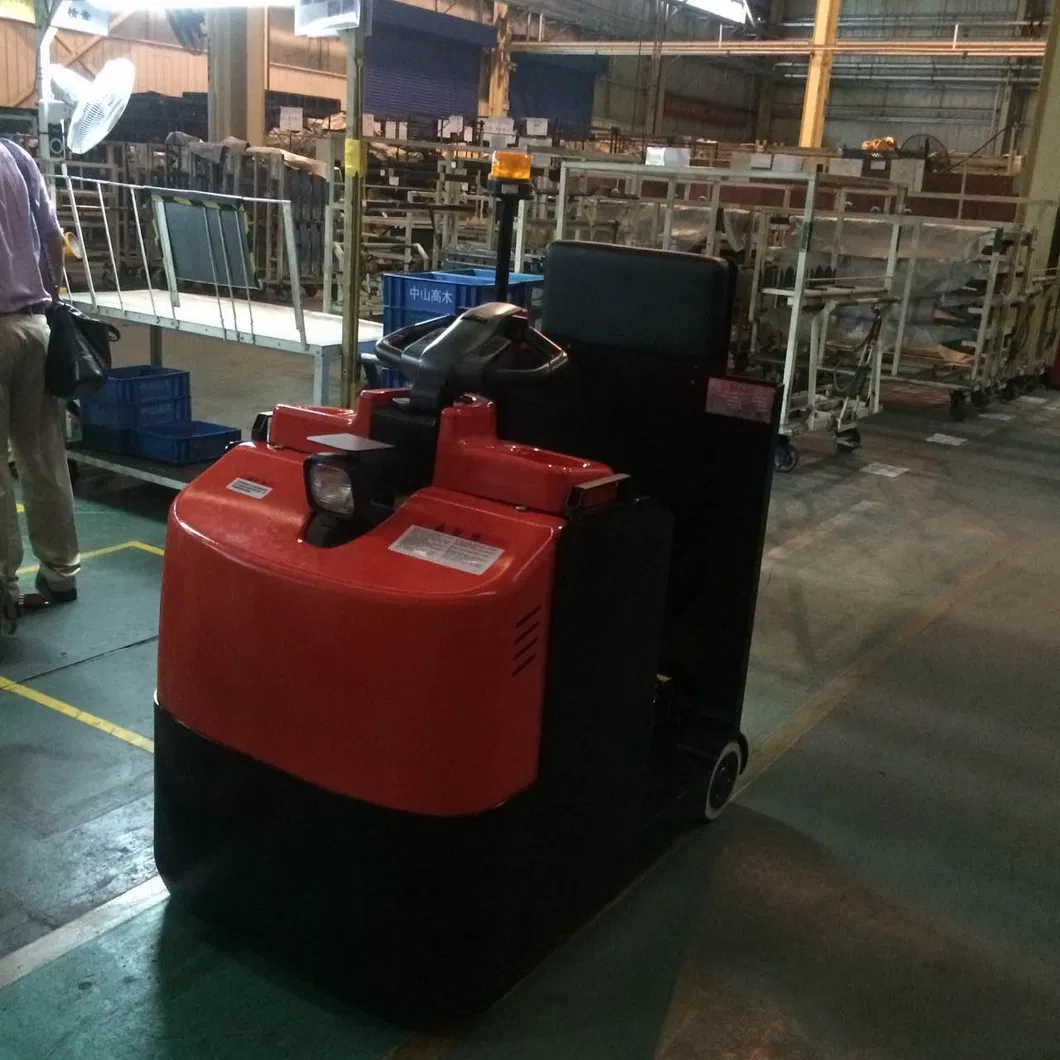

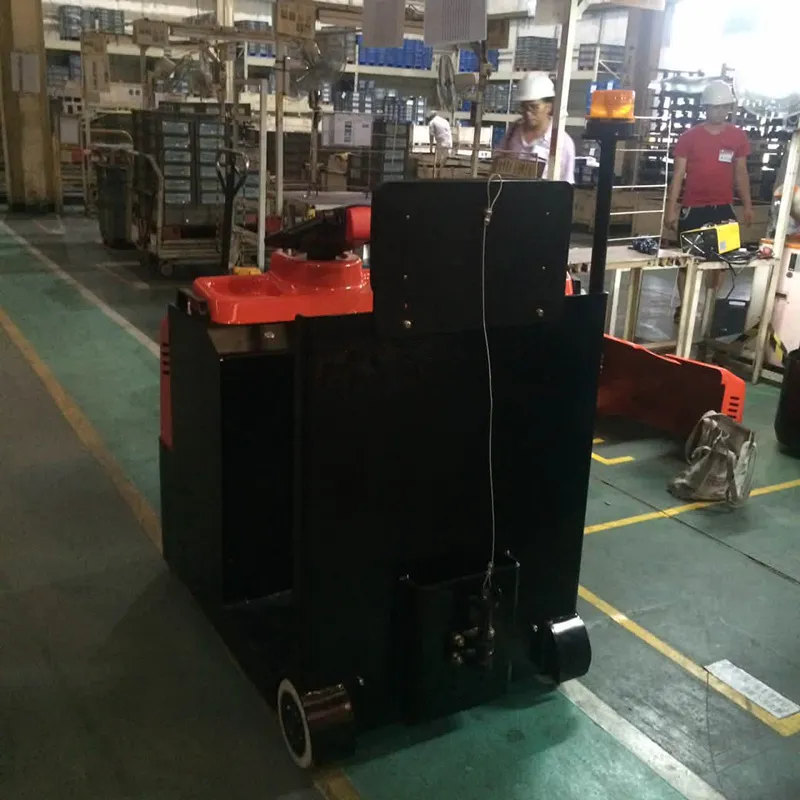

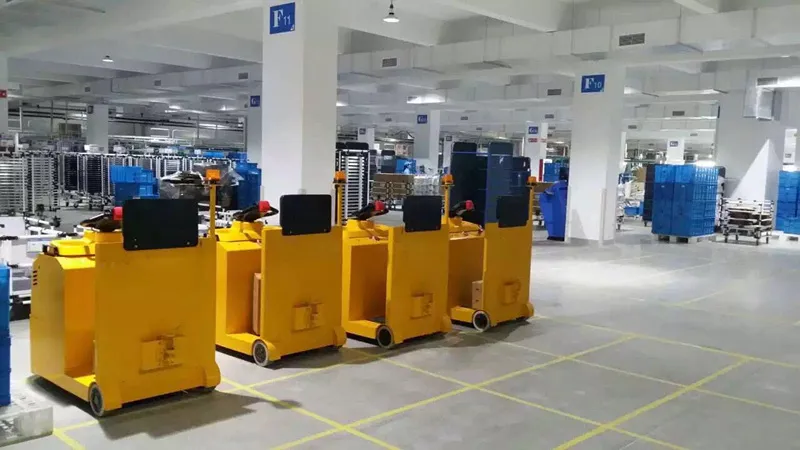

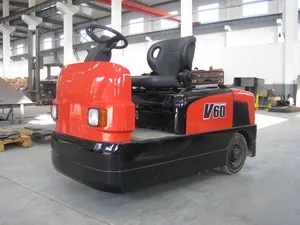

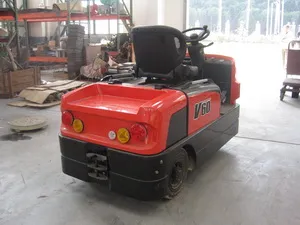

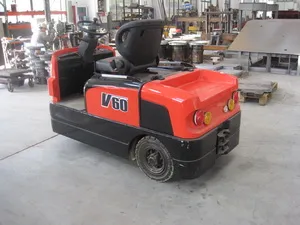

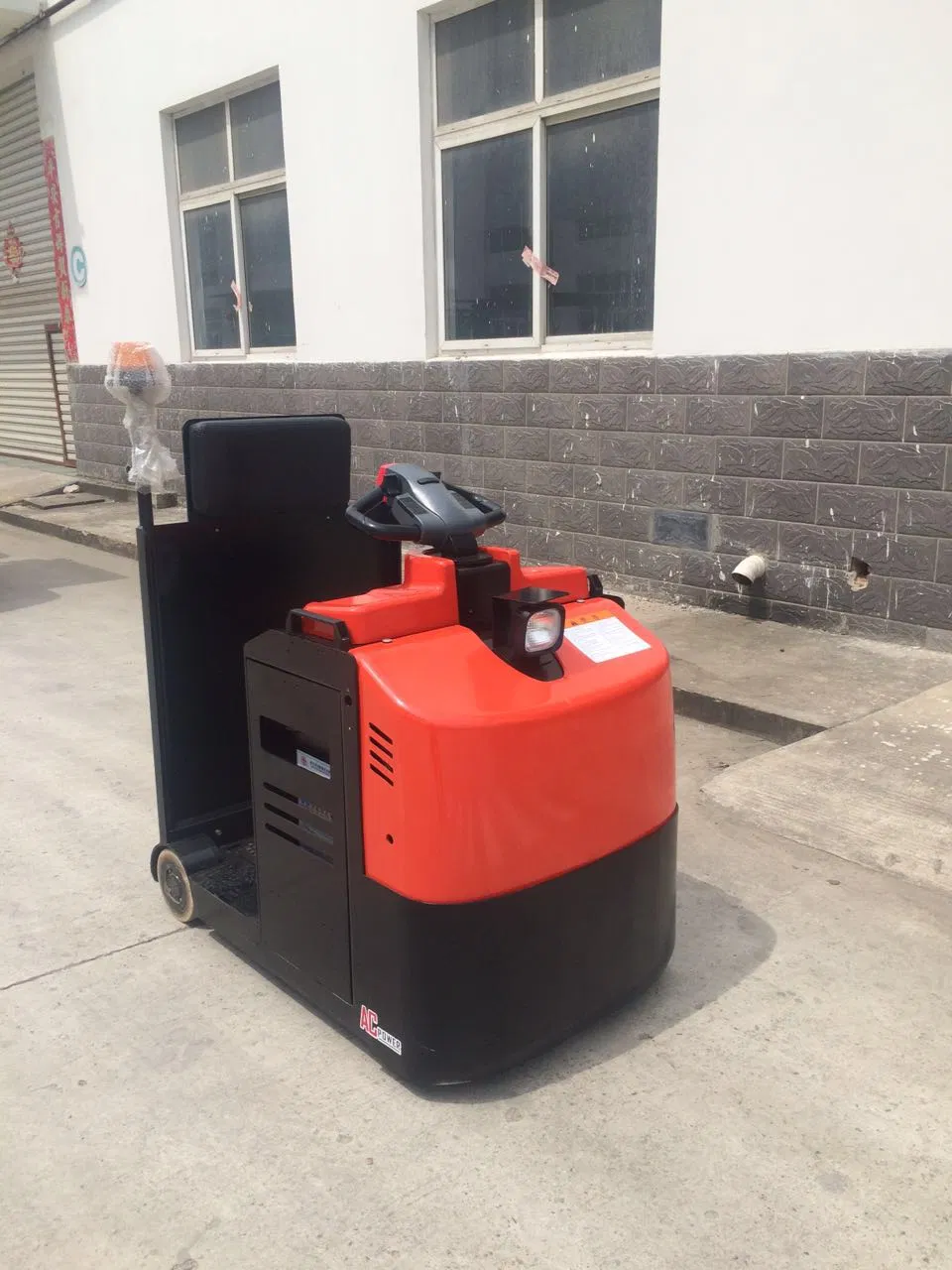

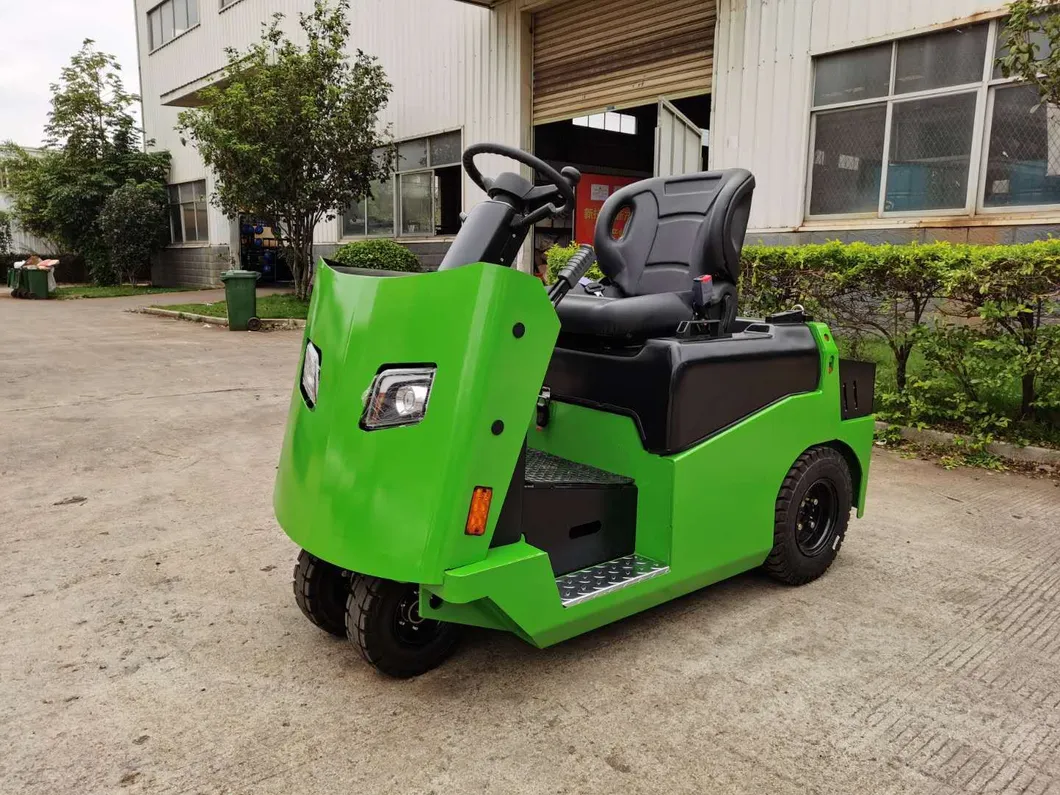

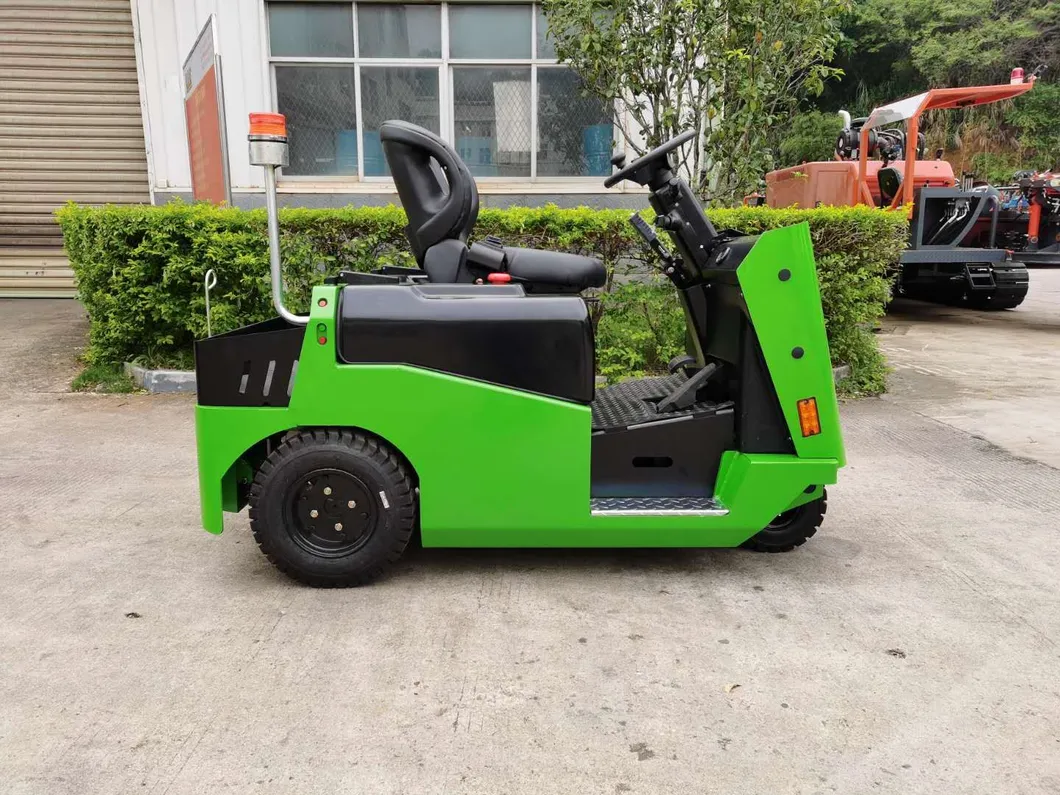

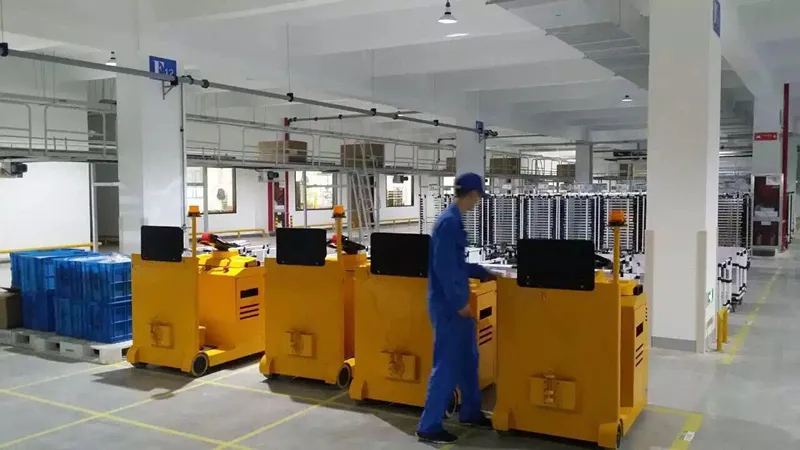

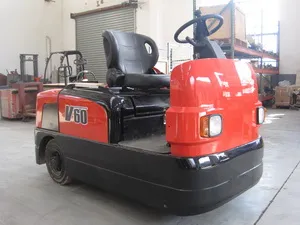

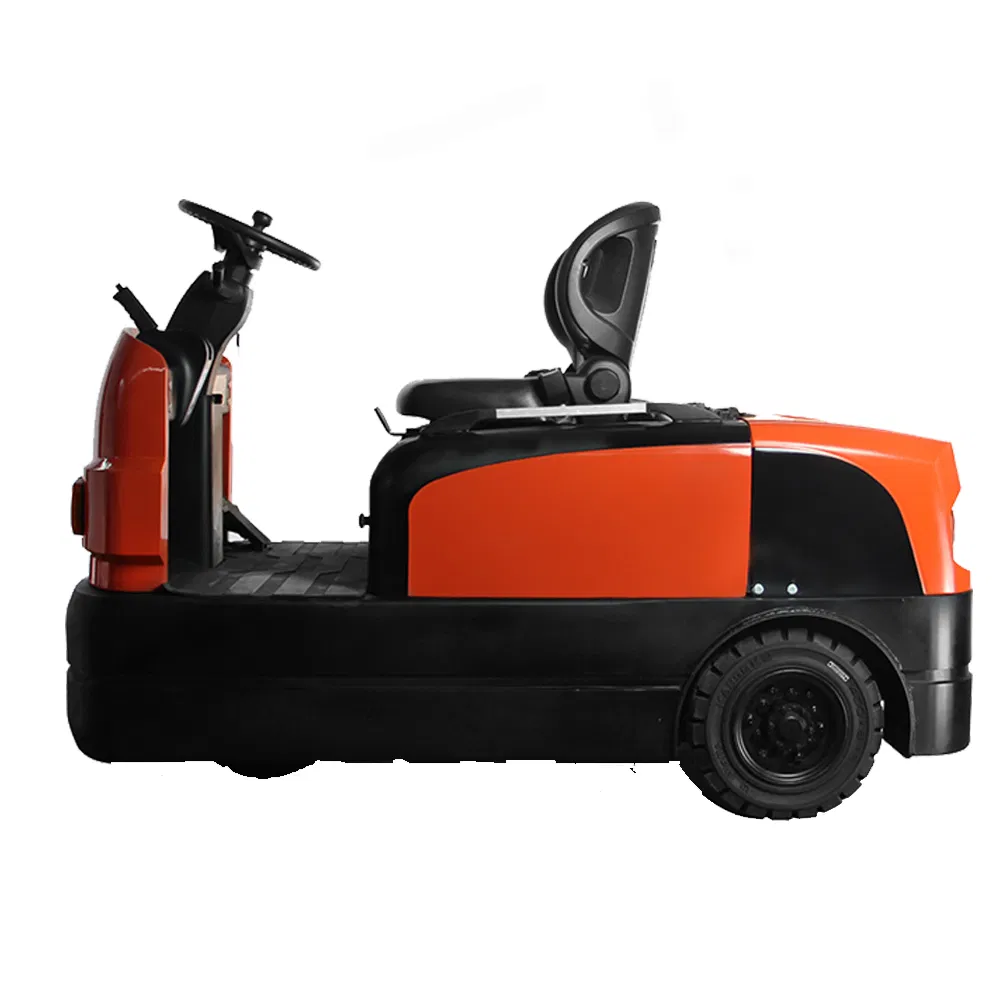

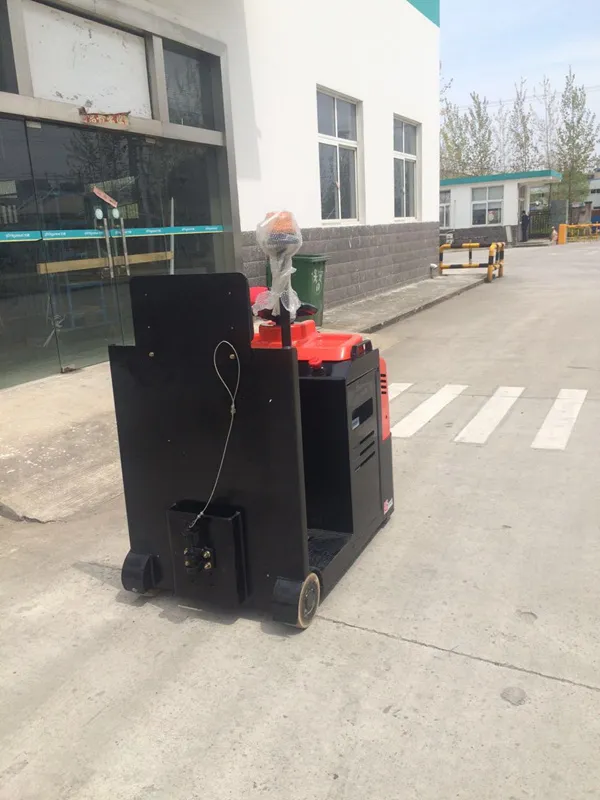

Product Gallery

Main Features

Safety and Stability

Multi-function display: Battery state, hour meter, fault indicator etc.
Application of hand brake and hydraulic brake for improved safety.
Stepless speed control for smooth operation.
Equipped with adjustable steering wheel to adapt to different operators.
Advance linking system with orienting and fixing bracket to the trailer.
Low noise emission for indoor environments.

Structural & Serviceability

"H" type axle design provides excellent stability.
Low-placed batteries ensure a low center of gravity.
Automatic reset makes operation easier for the driver.
CANbus technology reduces wiring complexity and increases reliability.
The back cover is easy to open for maintenance and part replacement.

Technical Specification

Characteristics
1.2	Model designation		QDD60
1.3	Drive unit		Battery
1.4	Operator type		Rider seated
1.5	Load capacity	Q (kg)	6000
1.7	Rated drawbar pull	F (N)	1200
1.9	Wheelbase	y (mm)	1130
Weights
2.1	Service weight	kg	1150
2.3	Axle loading, unladen front/ rear	kg	500/ 650
Wheels, Chassis
3.1	Tyre type		Pneumatic
3.2	Tyre size, front		4.00-8
3.3	Tyre size, rear		4.00-8
3.5	Wheels, number front/ rear (x=drive)		1/ 2x
Dimensions
4.7	Height of overhead guard (cabin)	h 6 (mm)	1300
4.8	Seat height	h 7 (mm)	920
4.19	Overall length	l 1 (mm)	1900
4.21	Overall width	b 1 / b 2 (mm)	990/990
4.35	Outer turning radius	Wa (mm)	1850
Performance
5.1	Travel speed, laden/ unladen	km/ h	7/17
5.6	Maximum drawbar pull, laden/ unladen	N	4500
5.8	Maximum gradeability, laden/ unladen	%	5/20
Drive
6.1	Drive motor rating S2 60 min.	kW	4
6.4	Battery voltage/ rated capacity	V/ Ah	48/ 325
8.1	Type of drive control		AC (ZAPI)

Frequently Asked Questions

What is the maximum load capacity of the QDD60?

The QDD60 electric tow tractor has a rated load capacity of 6000kg (6 tons), suitable for various industrial towing tasks.

What type of battery system does this tractor use?

It is equipped with a high-capacity 48V/325Ah battery and features an AC drive control system from ZAPI for high efficiency.

How does the braking system work for safety?

The vehicle utilizes both hand brakes and hydraulic mechanical brakes to ensure stable and safe stopping power under different load conditions.

Is the steering wheel adjustable?

Yes, it comes with an adjustable steering wheel that can be positioned to suit different operators, improving ergonomic comfort and control.

What is the turning radius of the tractor?

The QDD60 has an outer turning radius of 1850mm and an inner turning radius of 600mm, allowing for excellent maneuverability in confined spaces.

Is it easy to maintain the motor and parts?

Yes, the CANbus technology simplifies the wiring, and the back cover is specifically designed to be easily opened for routine maintenance and component replacement.
