Hot Sale 1t 1.6m Electric Walkie Stacker Powered Pallet Stacker for Warehouse

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
KX-CDD-B10 1.6m
Type
Stacker
Power
DC Motor
Load Capacity
1t
Fuel
Electric
Load Center
500mm
Lift Height
1600mm
Battery Type
Lead-Acid Battery
Battery Capacity
2*12V/80ah
Turning Radius
1450mm
N.W.
423kg
Origin
China
🚀 Product Description

KX-CDD-B electric walkie stackers are available in 1000kg (CDD-B10) and 1600kg (CDD-B16) load capacities, with optional lifting heights ranging from 1.6m to 3.5m. These units are matched with 1150mm-long and 695mm-wide forks, perfectly suitable for standard cargo sizes.

Lightweight, fully electric, and easy to operate, they are designed for stacking goods in narrow warehouses or workshops. Powered by high-performance lead-acid batteries, it features a 1450mm turning radius and a Curtis PCB board for stable operation, alongside crucial safety features like an emergency button and anti-collision system.

Multi-function controller handle with speed control, lifting/lowering switch, and alarm.
2 × 12V/80Ah lead-acid batteries ensuring long working hours.
Poly-carbonate safety board protects the user from lift chains.
Emergency button and anti-collision button ensure operator safety.
Small size and 1450mm turning radius for narrow space maneuverability.
Simplified design for easy operation and maintenance service.
📊 Product Parameters
Articles/Model Unit KX-CDD-B10 KX-CDD-B16
Drive mode-Electric
Driving mode-Walkie
Rated load capacitykg10001600
Load center distancemm500
Wheel material-PU
Lifting heightmm1600/2000/2500/3000/3500
Fork lengthmm1150
Fork widthmm550/685
Turning radiusmm1450
Driving speed (load/unload)km/h4.5 / 4
Lifting motorkw2.2
N.W. Rangekg423-500472-528
📷 Detailed Photos

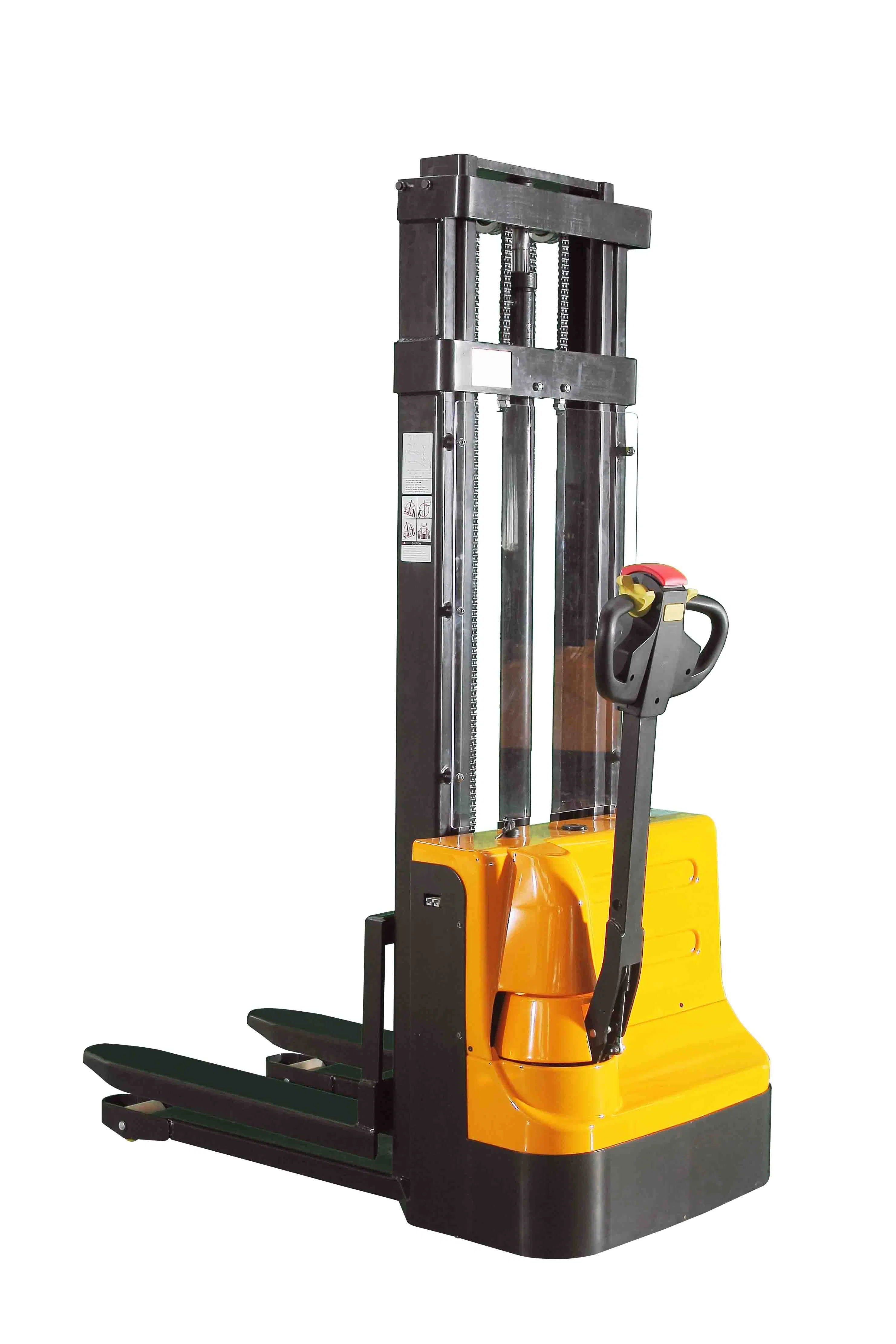

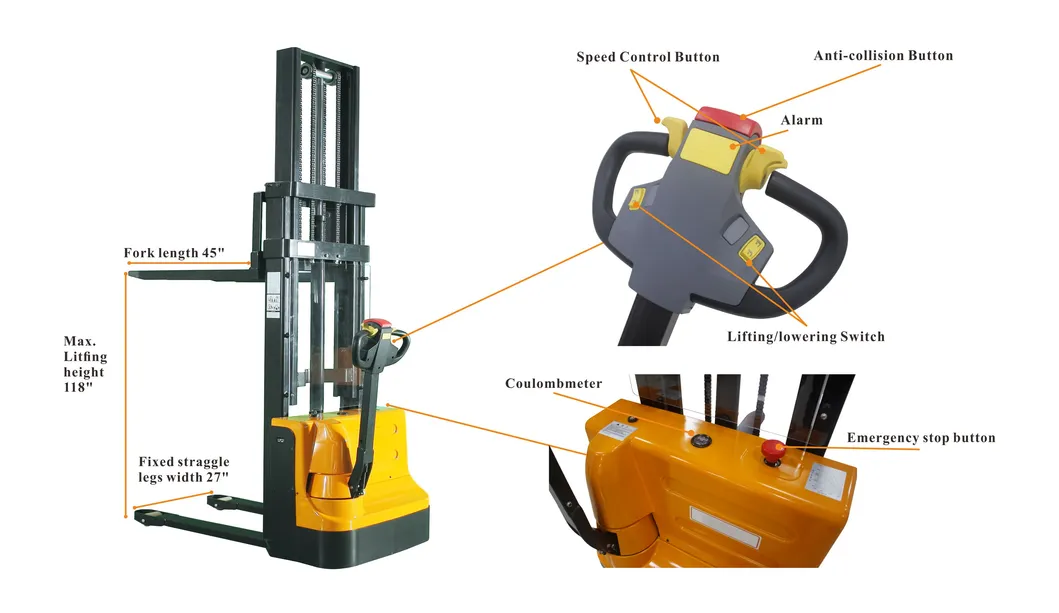

Electric Walkie Stacker Overview

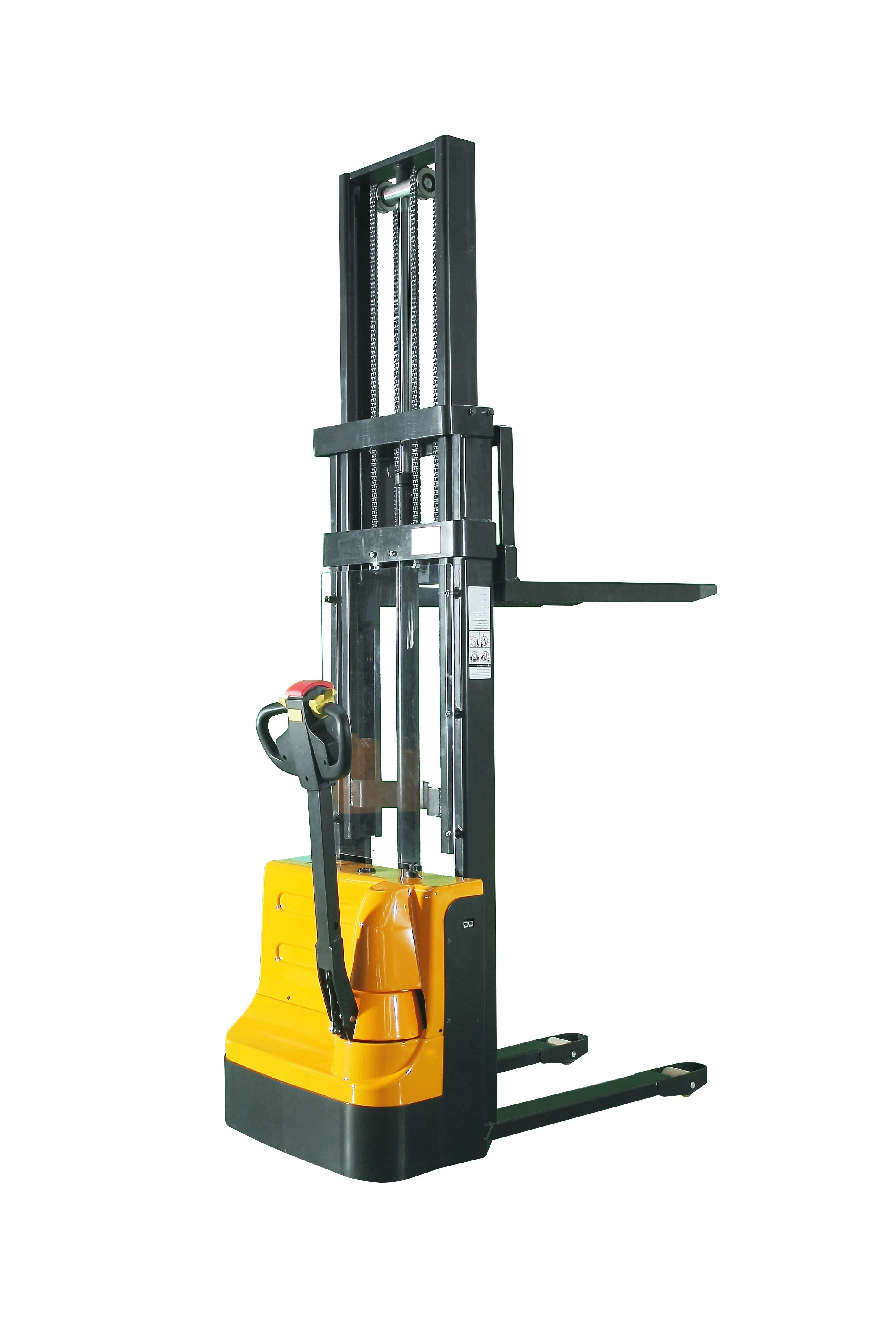

Walkie Stacker Side View

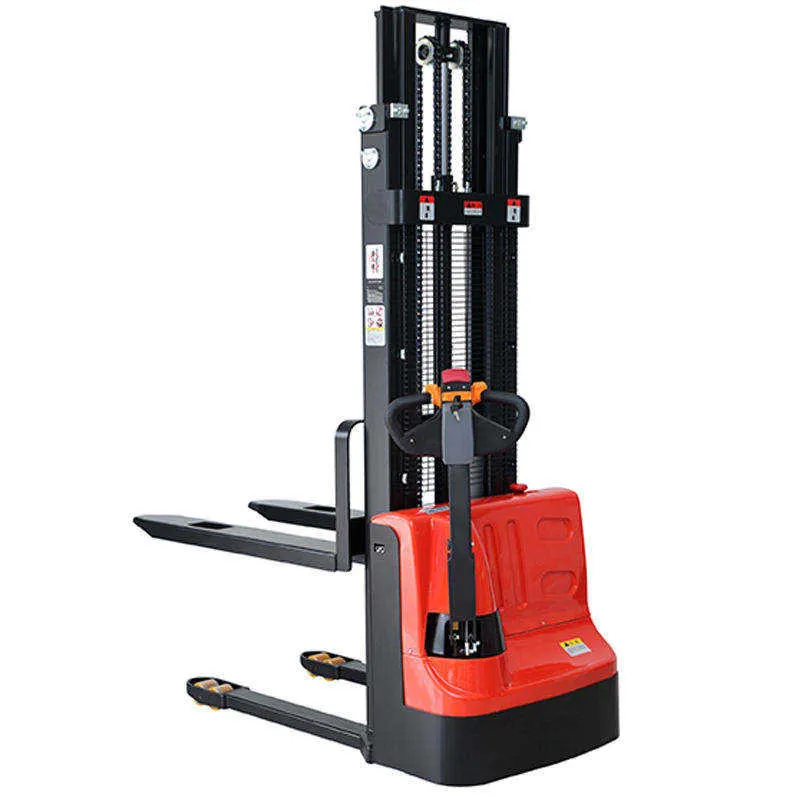

Stacker Detail
Control Handle
Wheel System

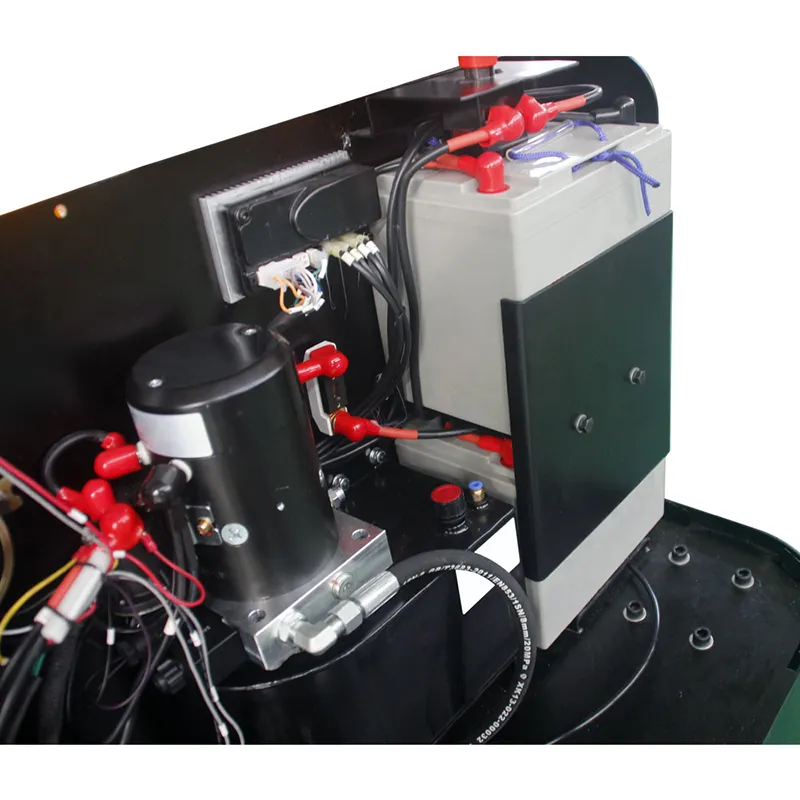

Internal Components

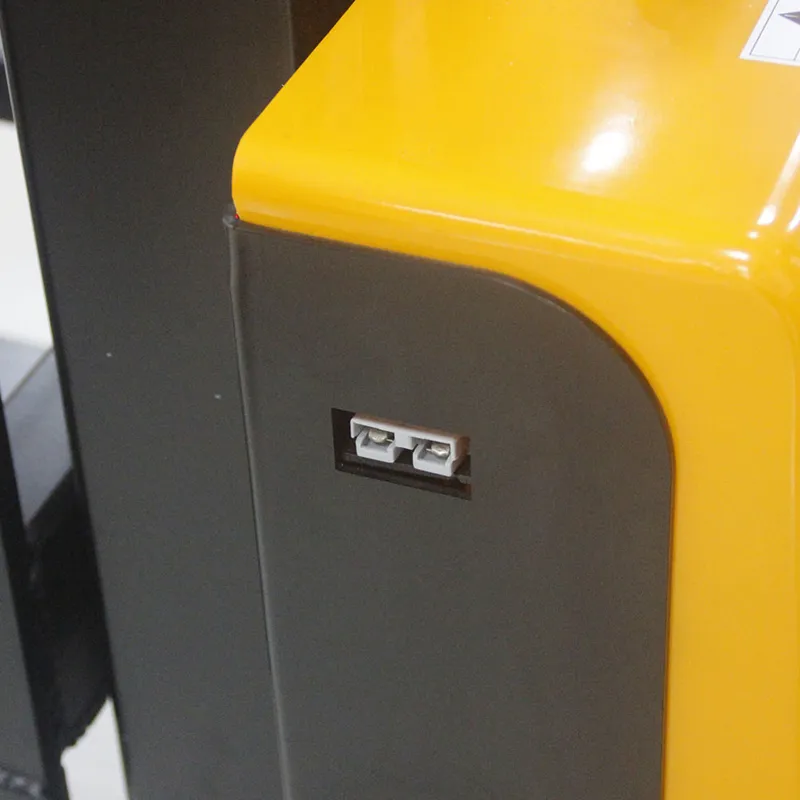

Battery System
Lifting Mechanism

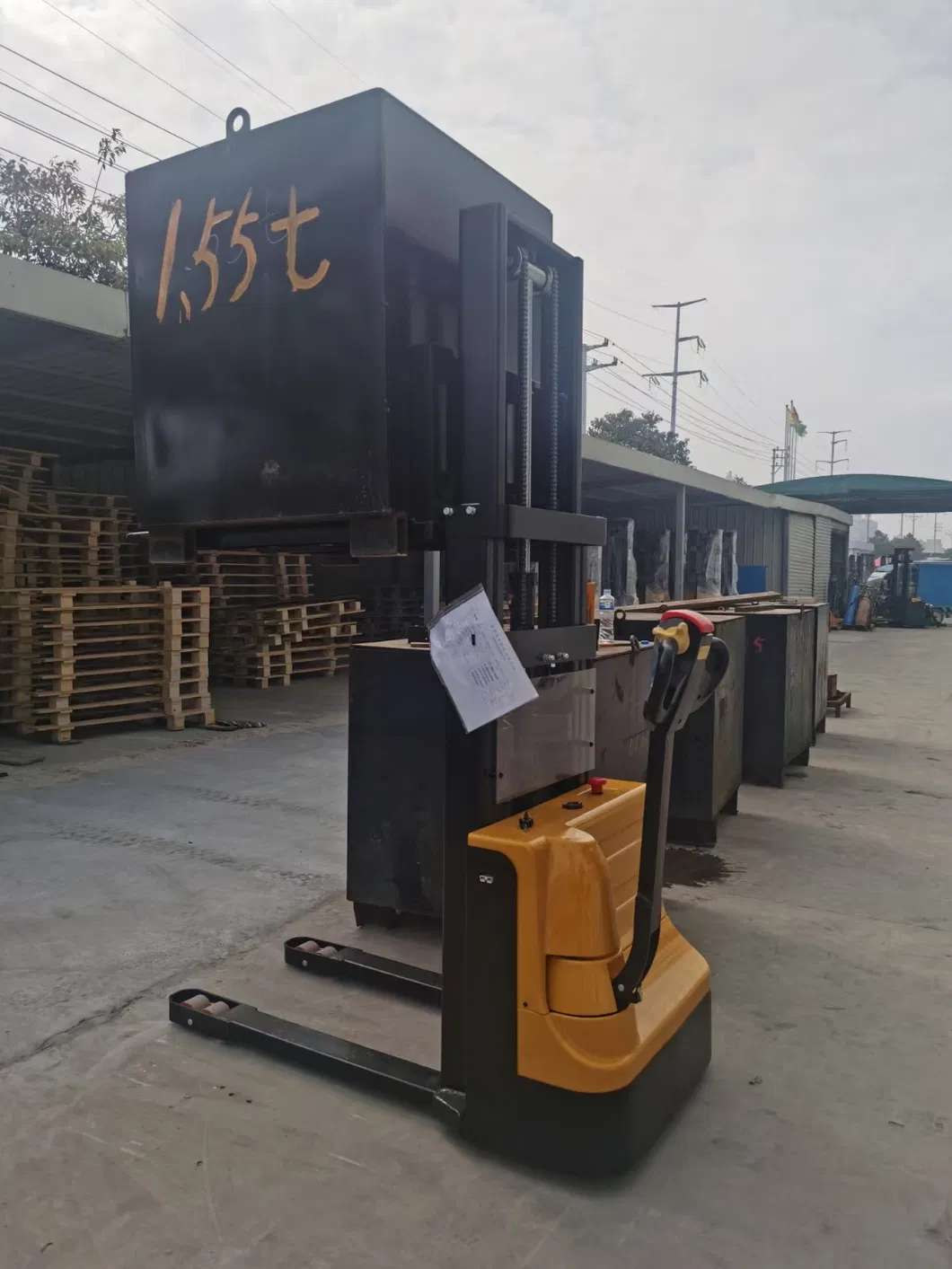

Fork Detail

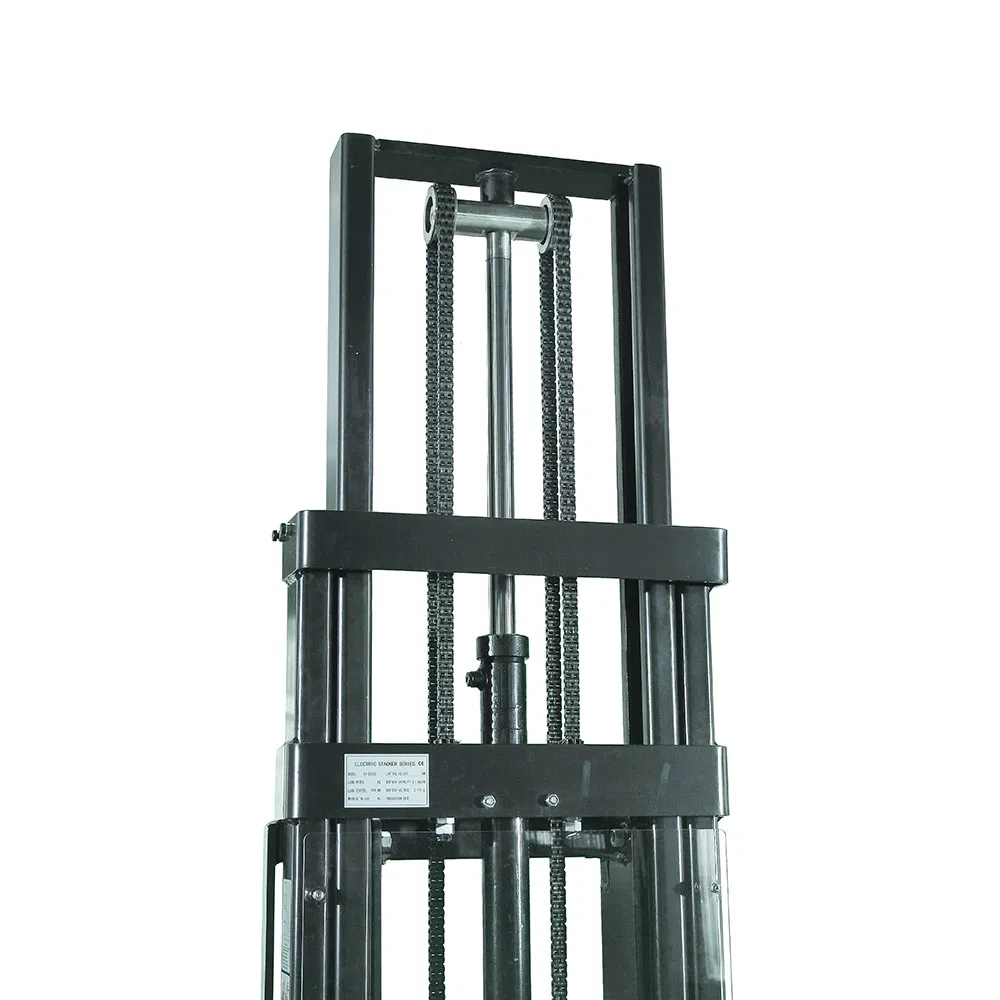

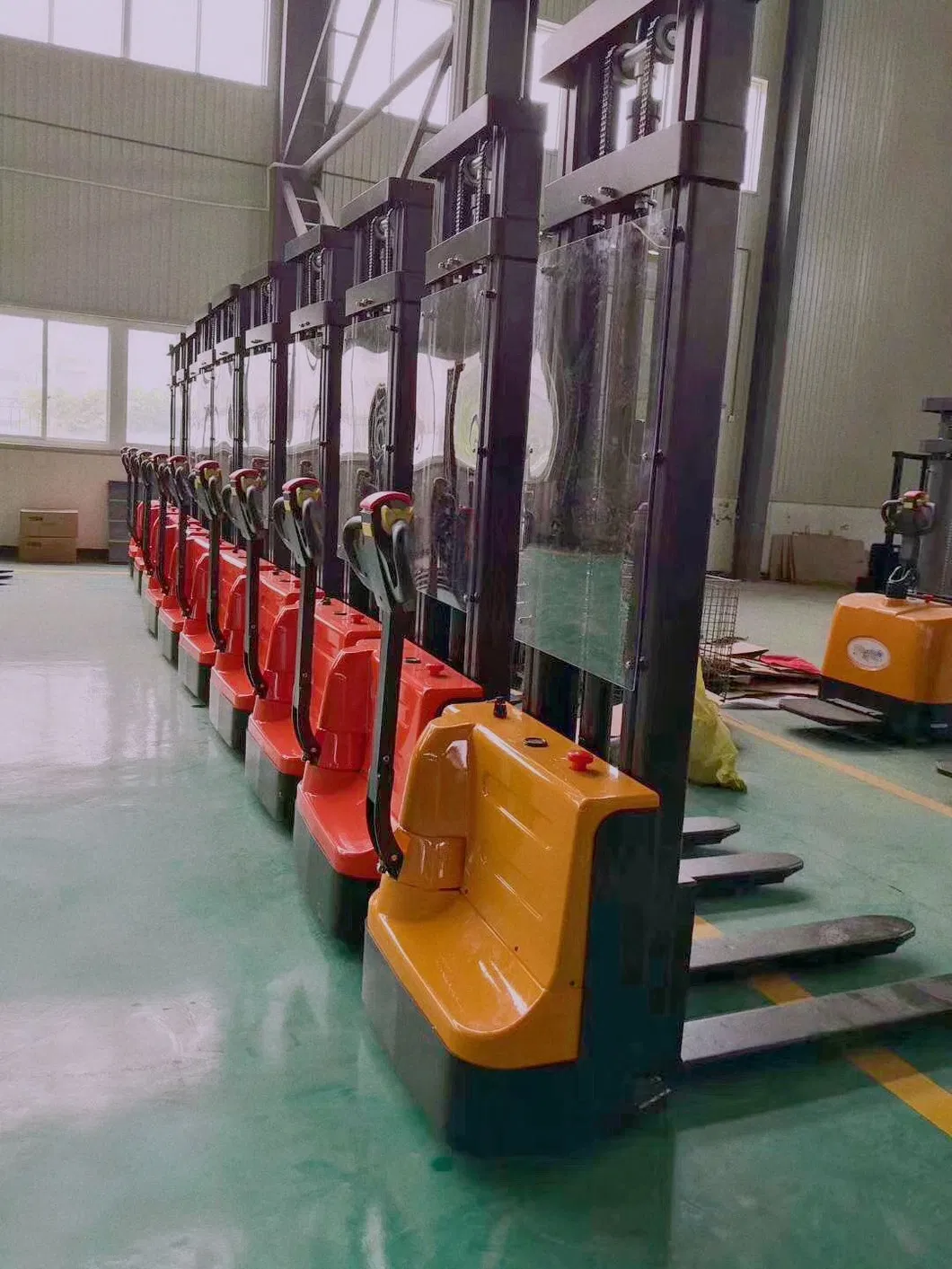

Mast Structure

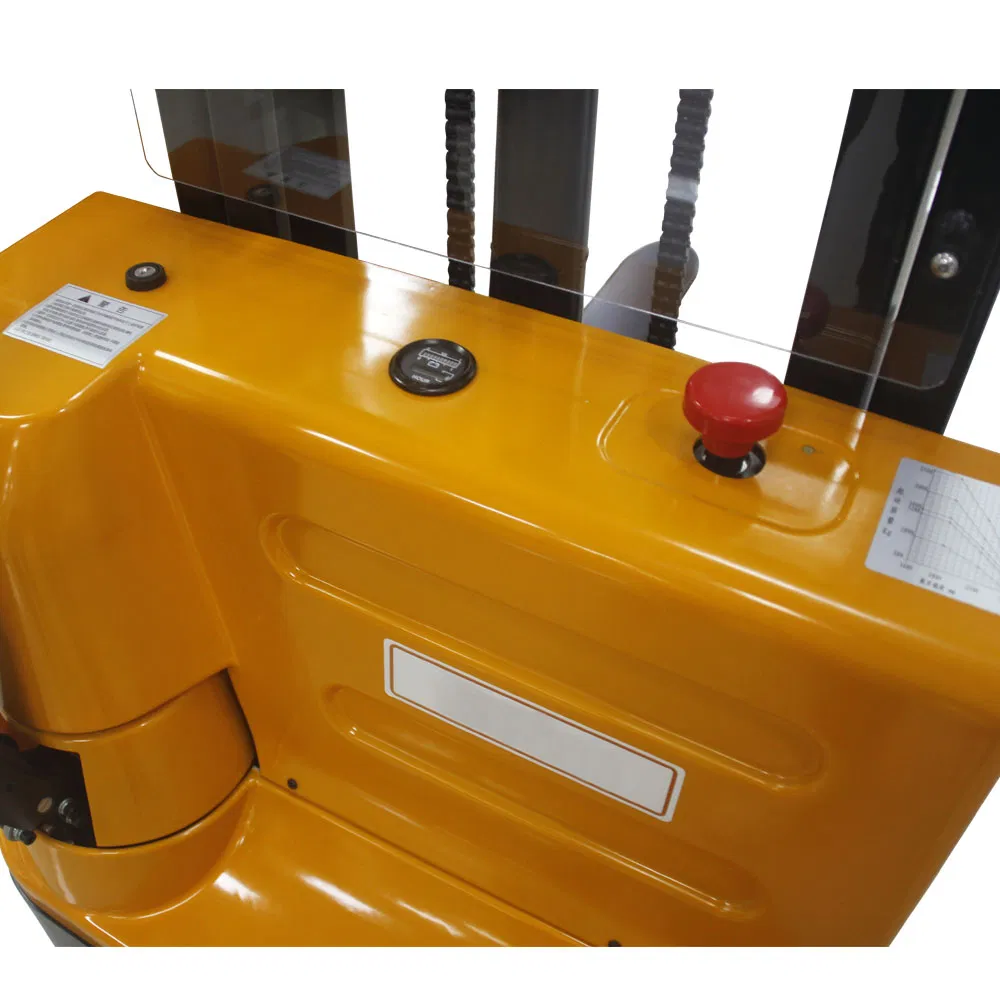

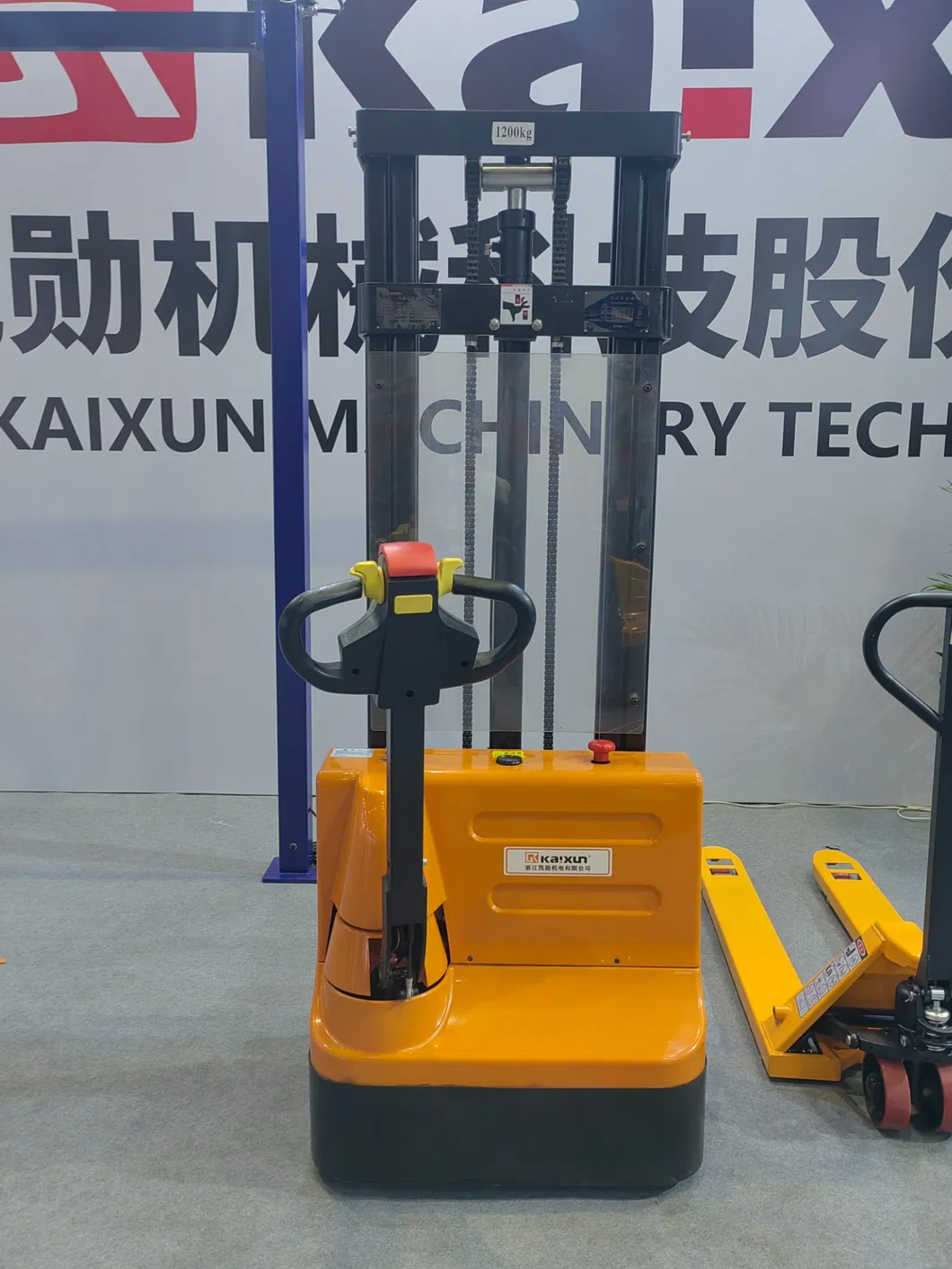

Safety Features
📦 Packaging & Shipping
Package Size
180.00cm * 81.00cm * 221.50cm
Gross Weight
438.000kg
Transport Package
Pallet

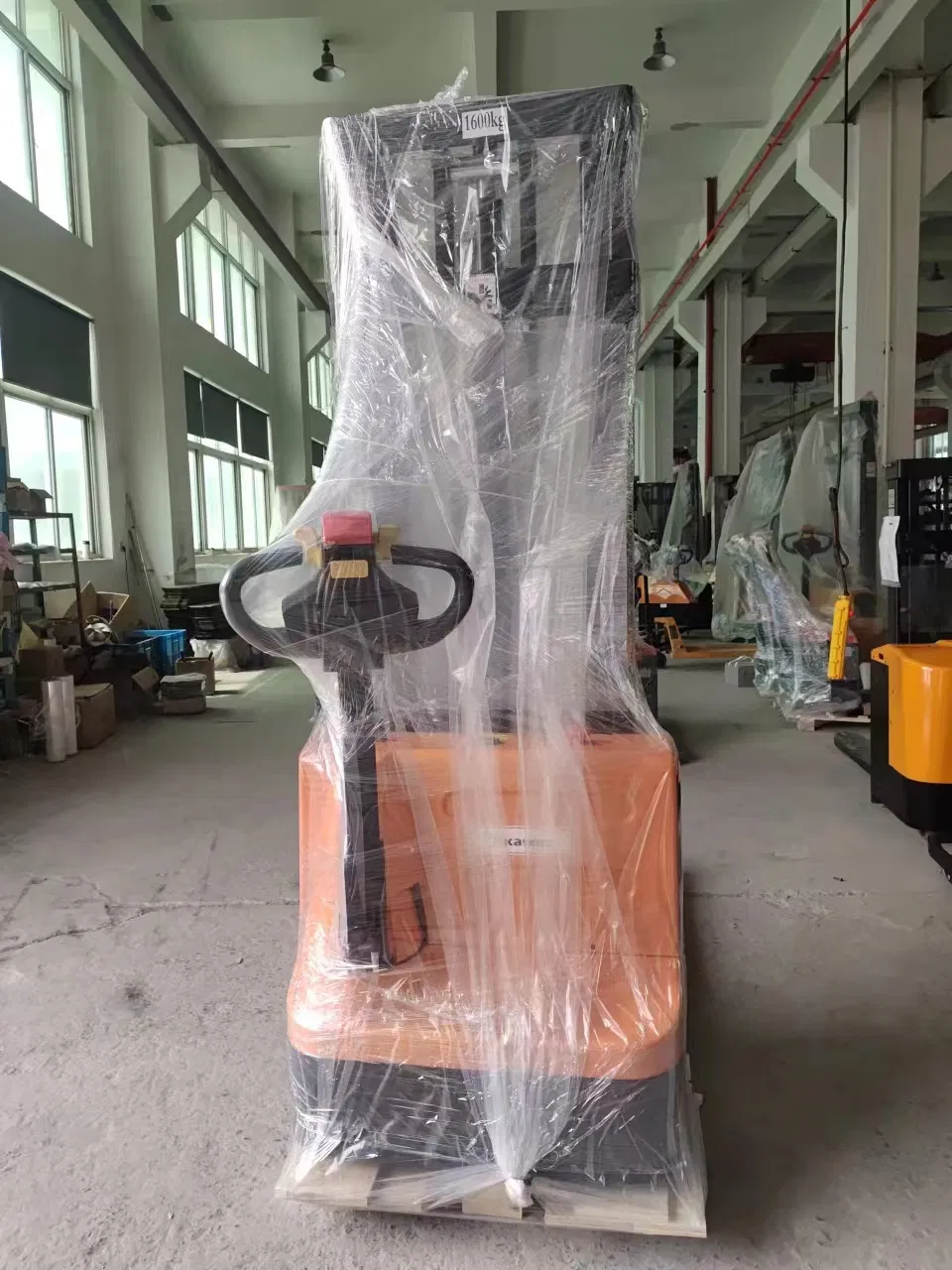

Packaging Detail

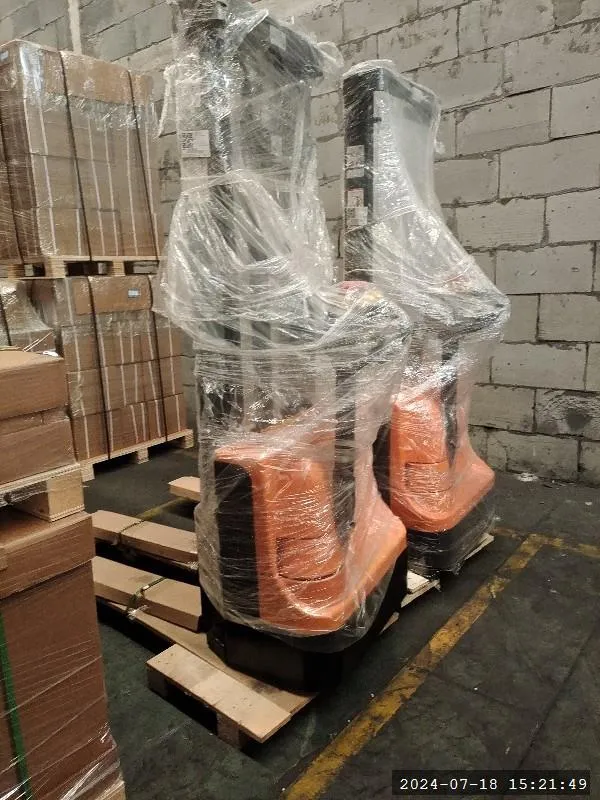

Ready for Shipping

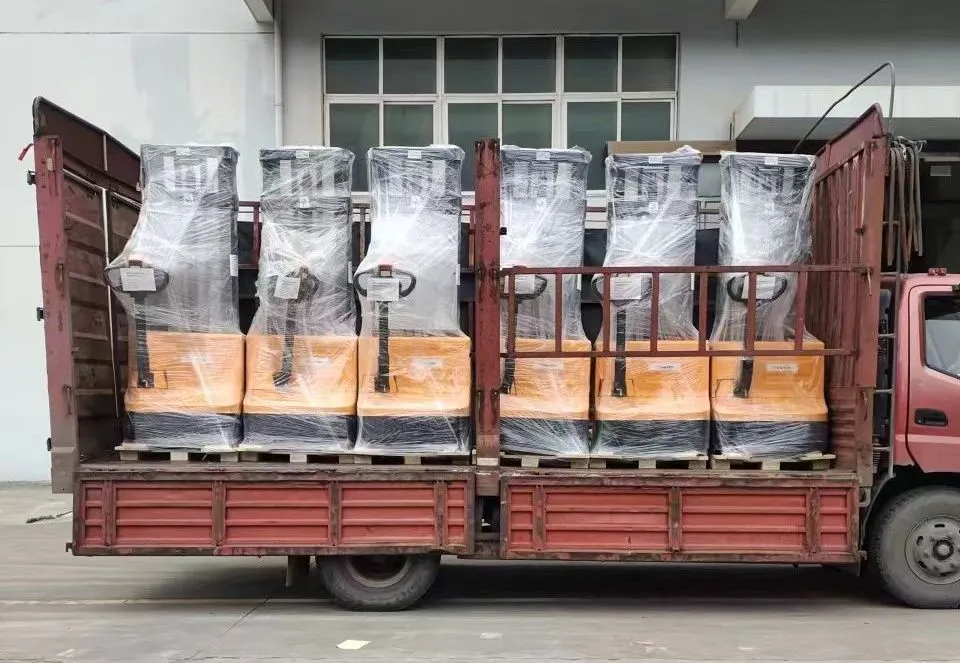

Logistics
🏢 Company Profile

Founded in 1998, our group is an export-oriented high-tech enterprise. We integrate R&D, production and sales, specializing in manufacturing various items including hoisting machinery, financial equipment, electric winches, electric trucks, electric forklifts, and hydraulic cars.

Our facilities cover an area of 59,000m² with a structure area of 87,000m². We own 880 sets of production equipment, including 260 sets of testing instruments, enabling a high annual production capacity. We aim to create top quality and ensure customer satisfaction through professional service.

We hold ISO9001:2008 quality system certification. Many of our products have obtained CE, GS, RoHS, CB, UL, CUL, and FCC approvals. Currently, 90% of our products are exported to over 120 countries and regions, including Europe, USA, Africa, Middle East, South Asia, Russia, and India.

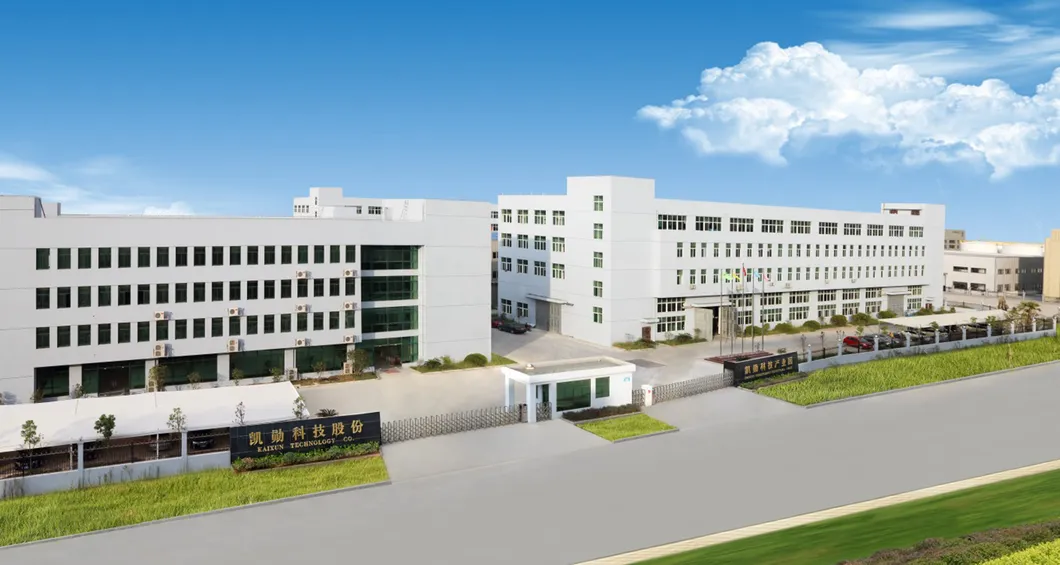

Factory Overview
Production Line
Frequently Asked Questions
What are the load capacities for the KX-CDD-B series?
The series is available in two main capacities: 1000kg (Model KX-CDD-B10) and 1600kg (Model KX-CDD-B16).
Is this stacker suitable for use in narrow aisles?
Yes, it features a compact design and a tight turning radius of 1450mm, making it ideal for narrow warehouses and workshops.
What safety features are integrated into the walkie stacker?
It includes an emergency stop button, an anti-collision safety button on the handle, and a poly-carbonate board to protect the operator from the lift chains.
What type of battery does the electric stacker use?
It is powered by 2×12V/80Ah lead-acid batteries, designed for stable performance and long working hours.
What is the maximum lifting height available?
The stackers offer optional lifting heights of 1.6m, 2m, 2.5m, 3m, and up to 3.5m.
What certifications do the products carry?
The products are manufactured under ISO9001:2008 standards and have received CE, GS, RoHS, and UL approvals among others.
