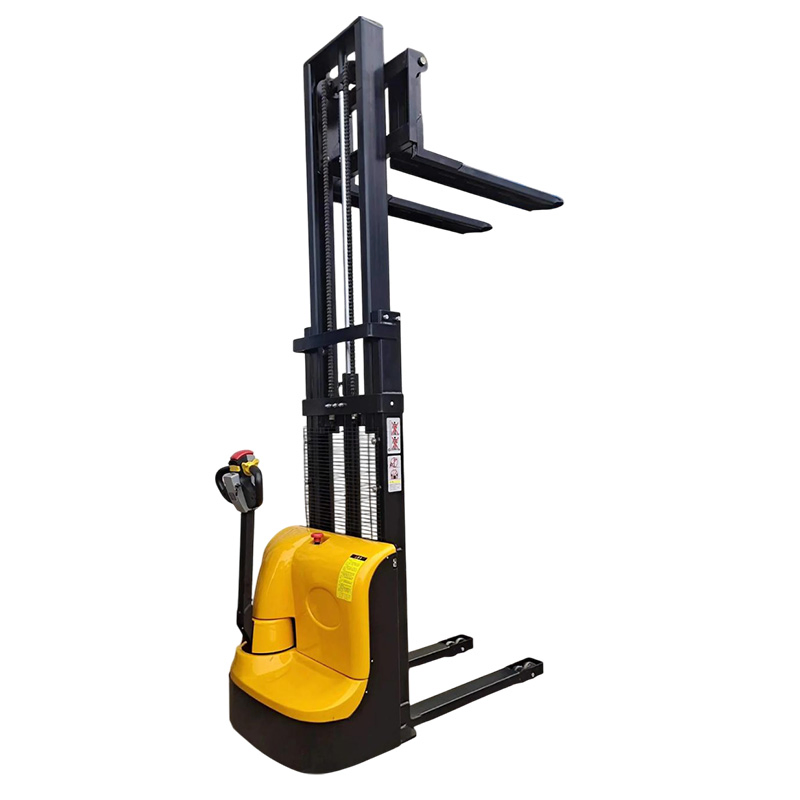

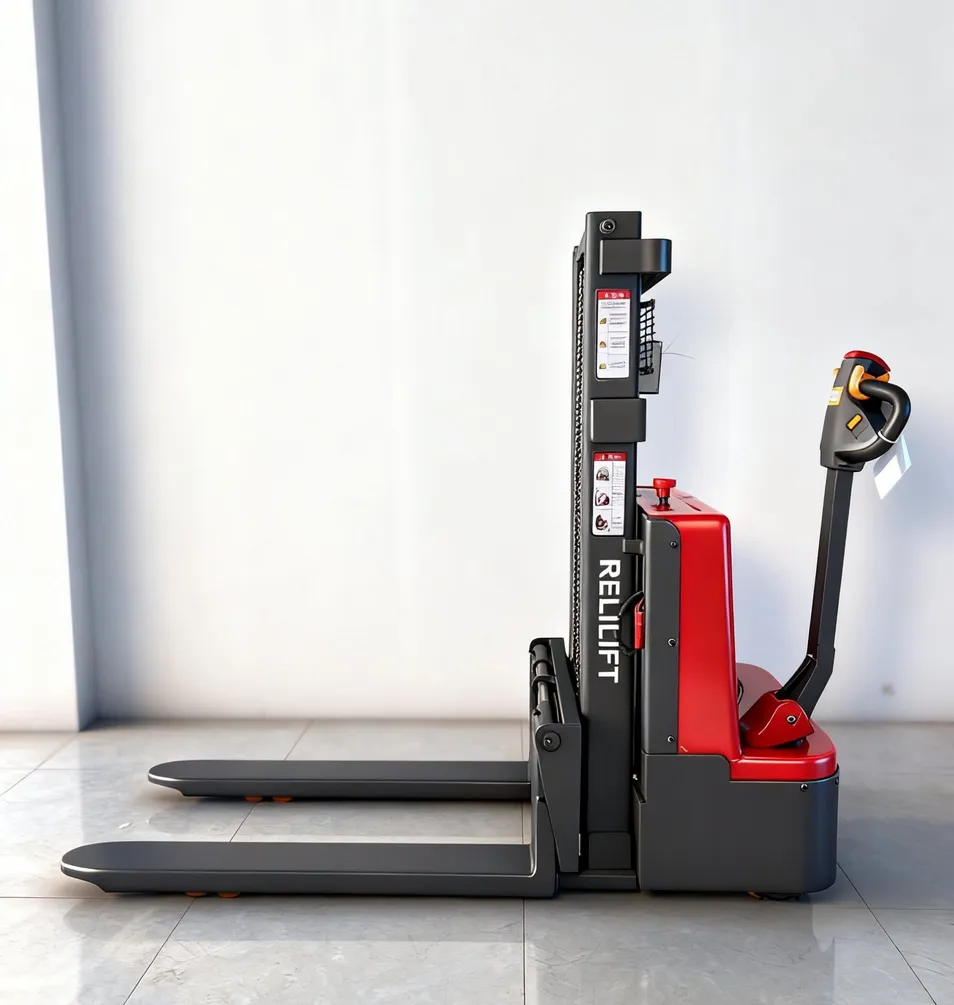

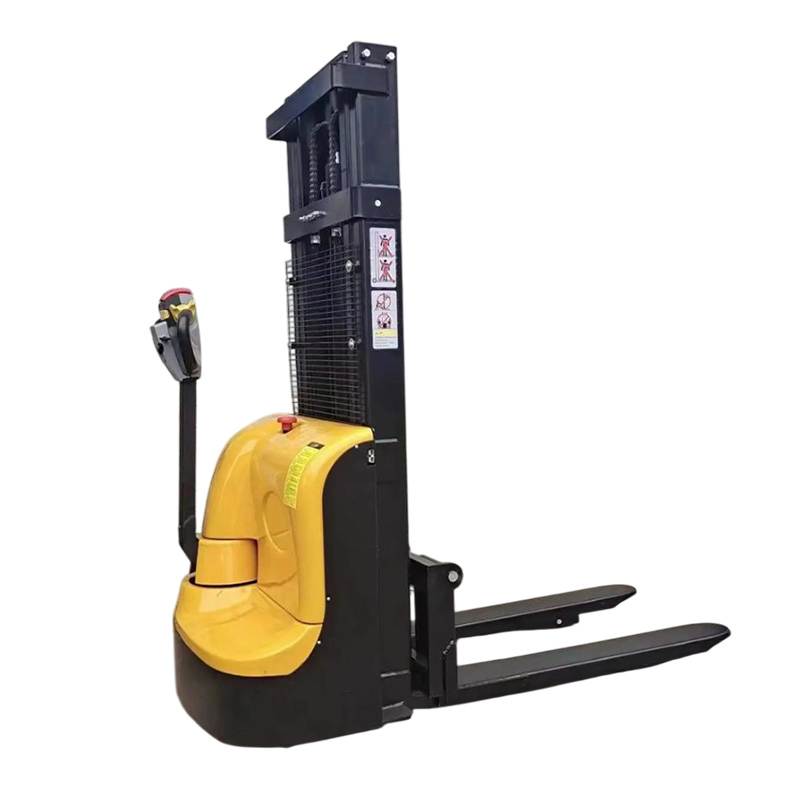

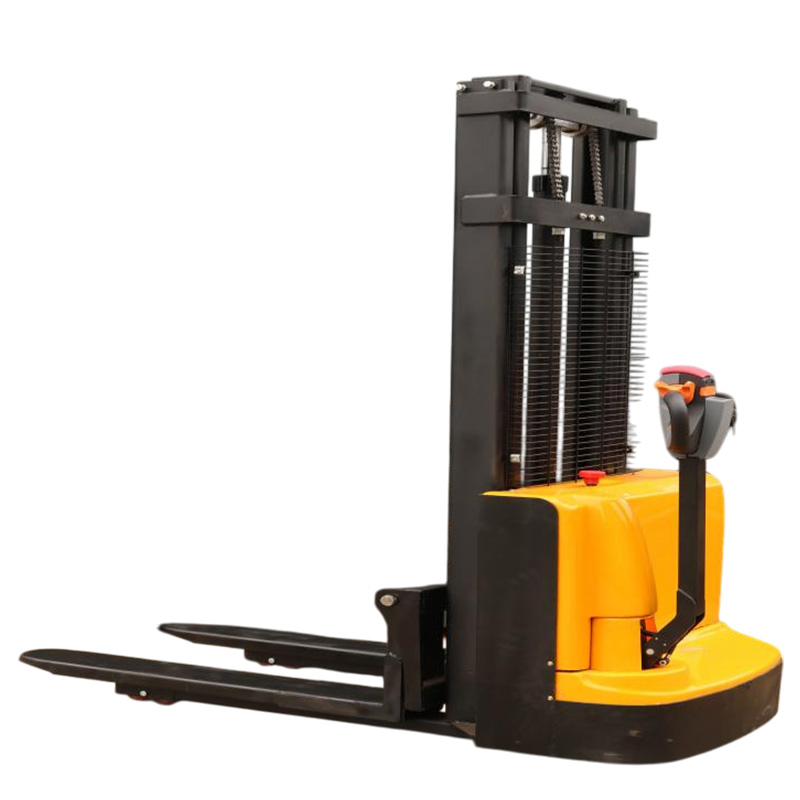

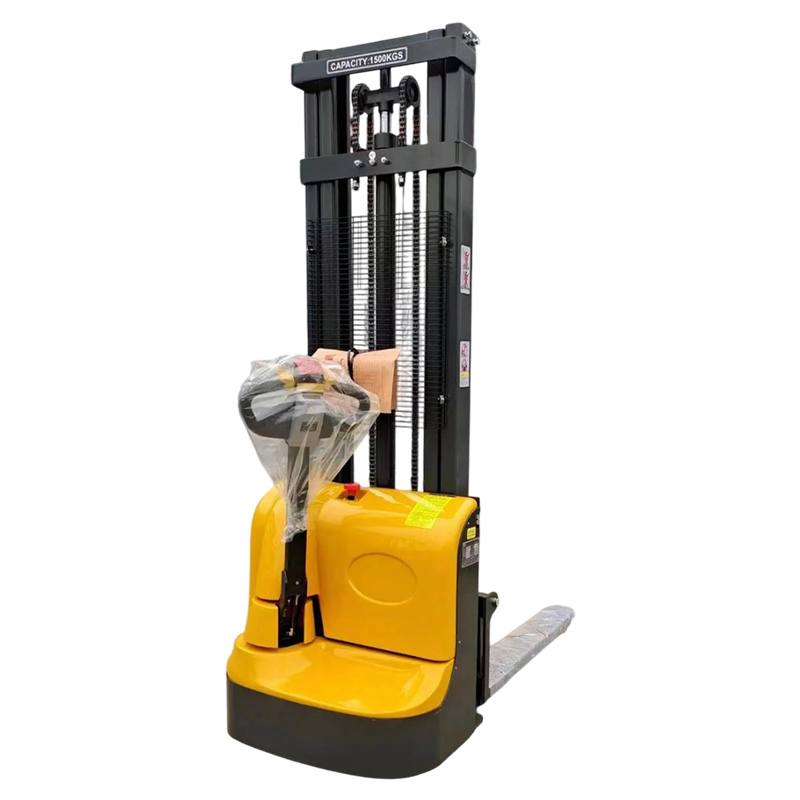

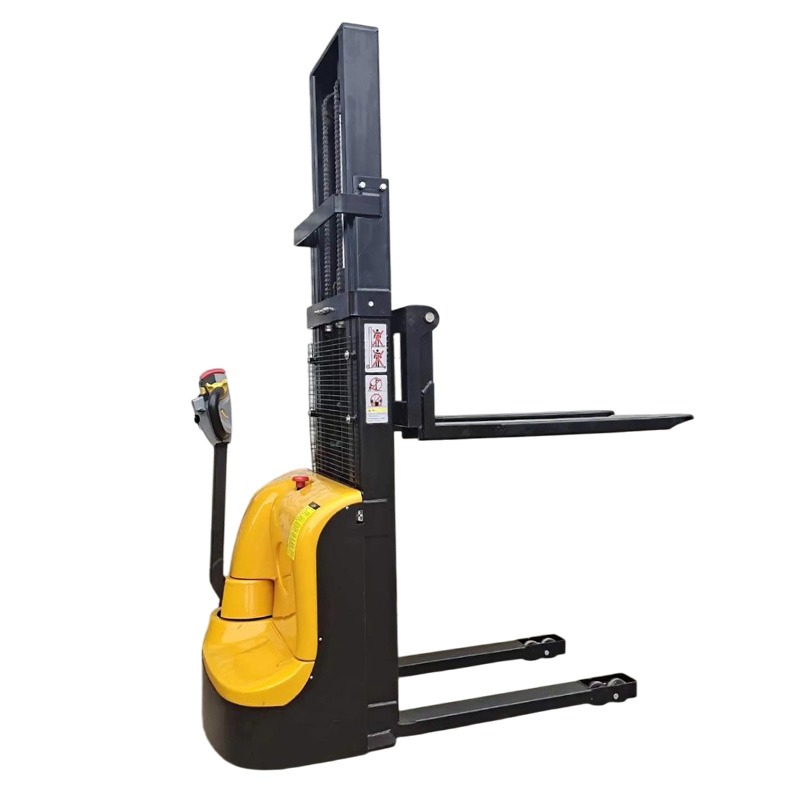

Meet the 1.5t electric stacker – the smart, compact, and zero-emission solution for your material handling needs. Designed for efficiency in confined spaces, this walk-behind electric stacker combines effortless operation with robust performance to streamline your loading, unloading, and stacking operations. It's the ideal partner for maximizing productivity in warehouses, retail environments, and production lines.
| Model Features | ||
| Model | CDD1520 / CDD1525 / CDD1530 / CDD1535 | |
| Power Type | Battery | |
| Operation Type | Stand-on Type | |
| Load Capacity | 1500 kg | |
| Load Center Distance | 500 mm | |
| Dimensions | ||
| Lifting Height | 200 - 350 cm | |
| Overall Length | 2020 mm | |
| Overall Width | 820 mm | |
| Aisle Width (1000x1200 pallet) | 2560 mm | |
| Min. Turning Radius | 1600 mm | |
| Performance & Motor | ||
| Travel Speed (Loaded/Unloaded) | 3.7 / 4.0 km/h | |
| Lifting Speed (Loaded/Unloaded) | 0.08 / 0.135 m/s | |
| Drive Motor Power | 0.8 kw | |
| Lifting Motor Power | 2.2 kw | |
| Battery Voltage | 48V / 32ah | |
Warehouses & Logistics Centers: Stacking pallets in high-rack storage areas and horizontal transport of heavy goods.
Manufacturing Plants: Moving raw materials or finished products between production lines and storage zones.
Food & Pharmaceutical: Compliance with hygiene requirements and zero emissions to protect product quality.
Semi-Outdoor Operations: Light-duty outdoor tasks in sheltered areas.
