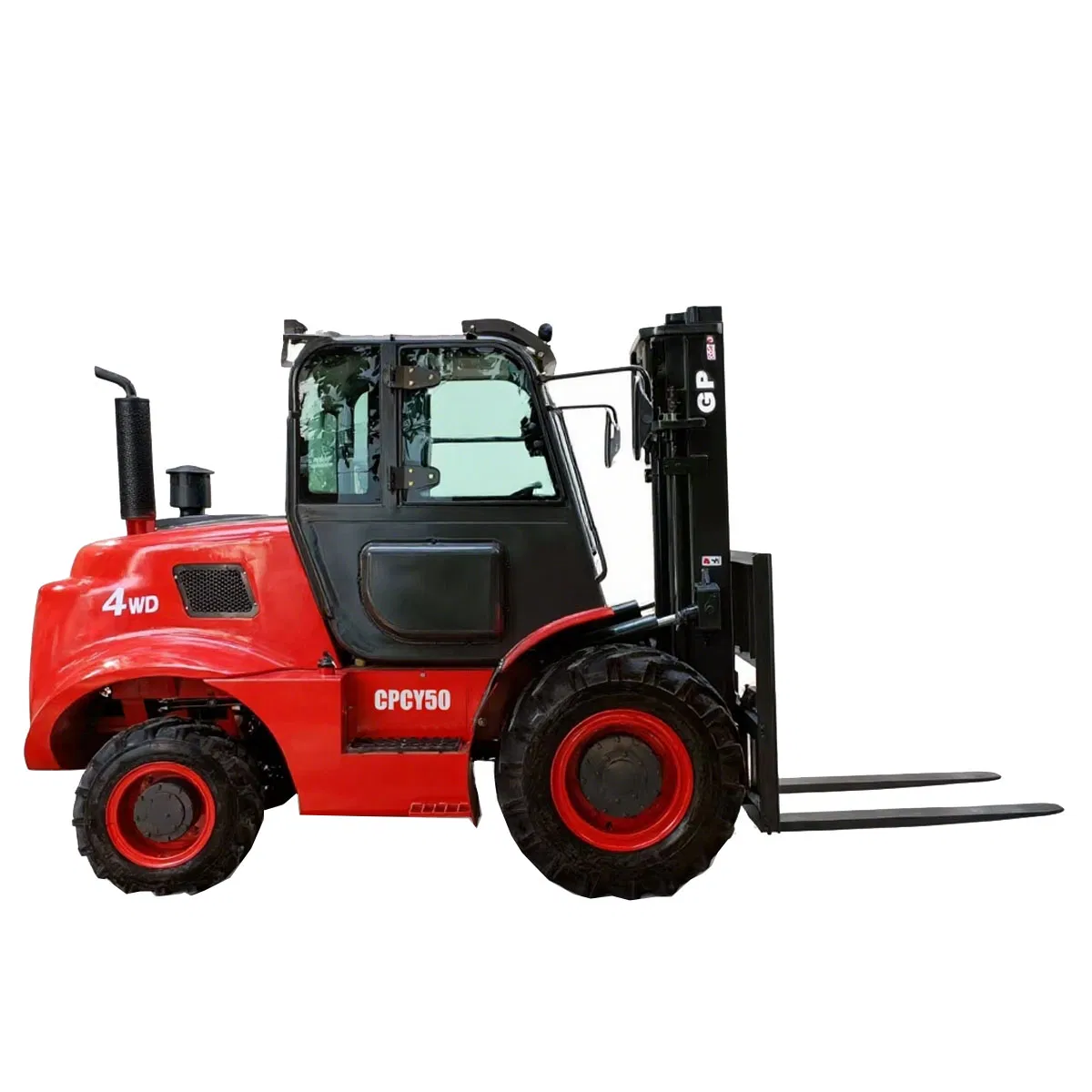

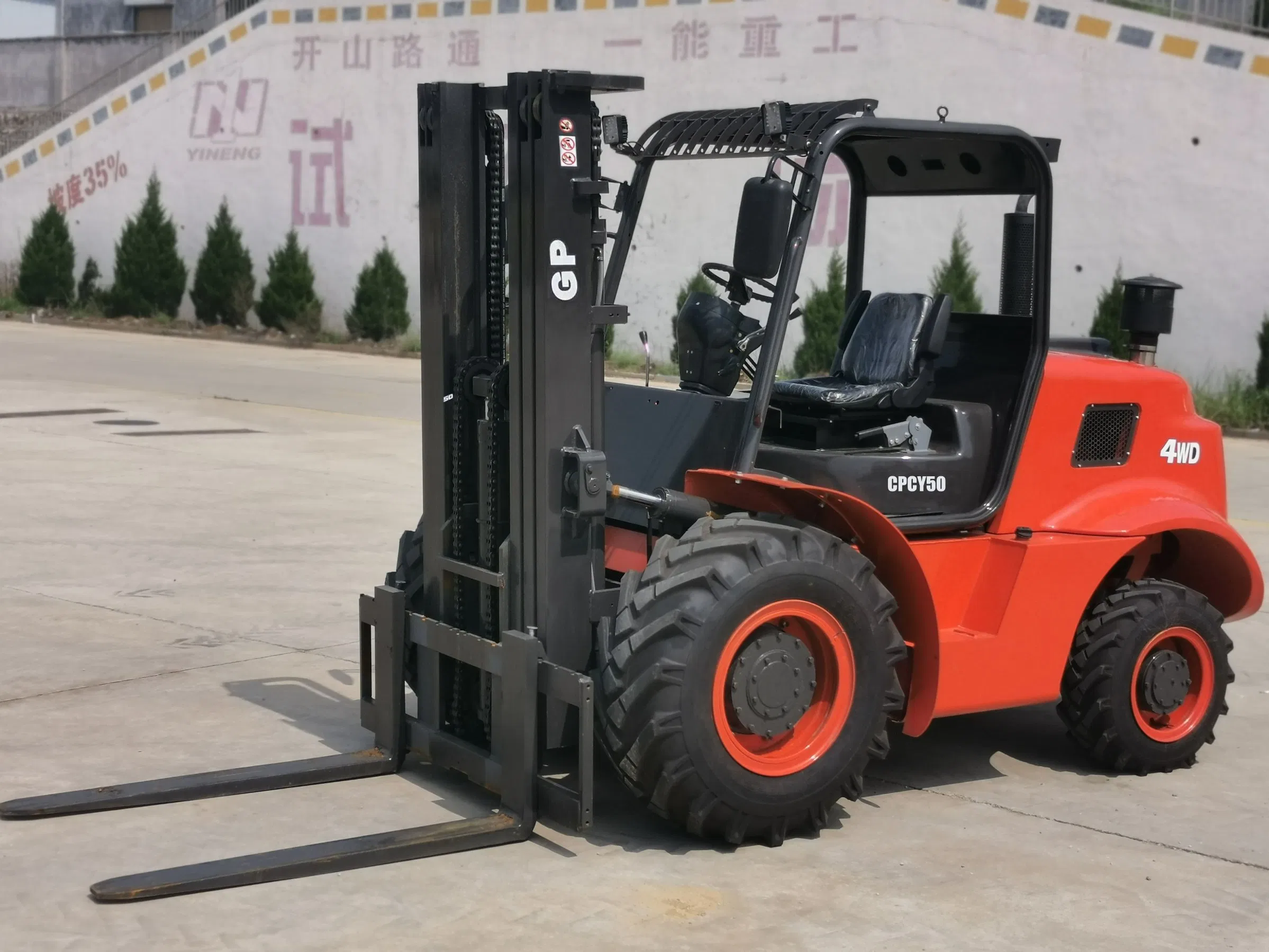

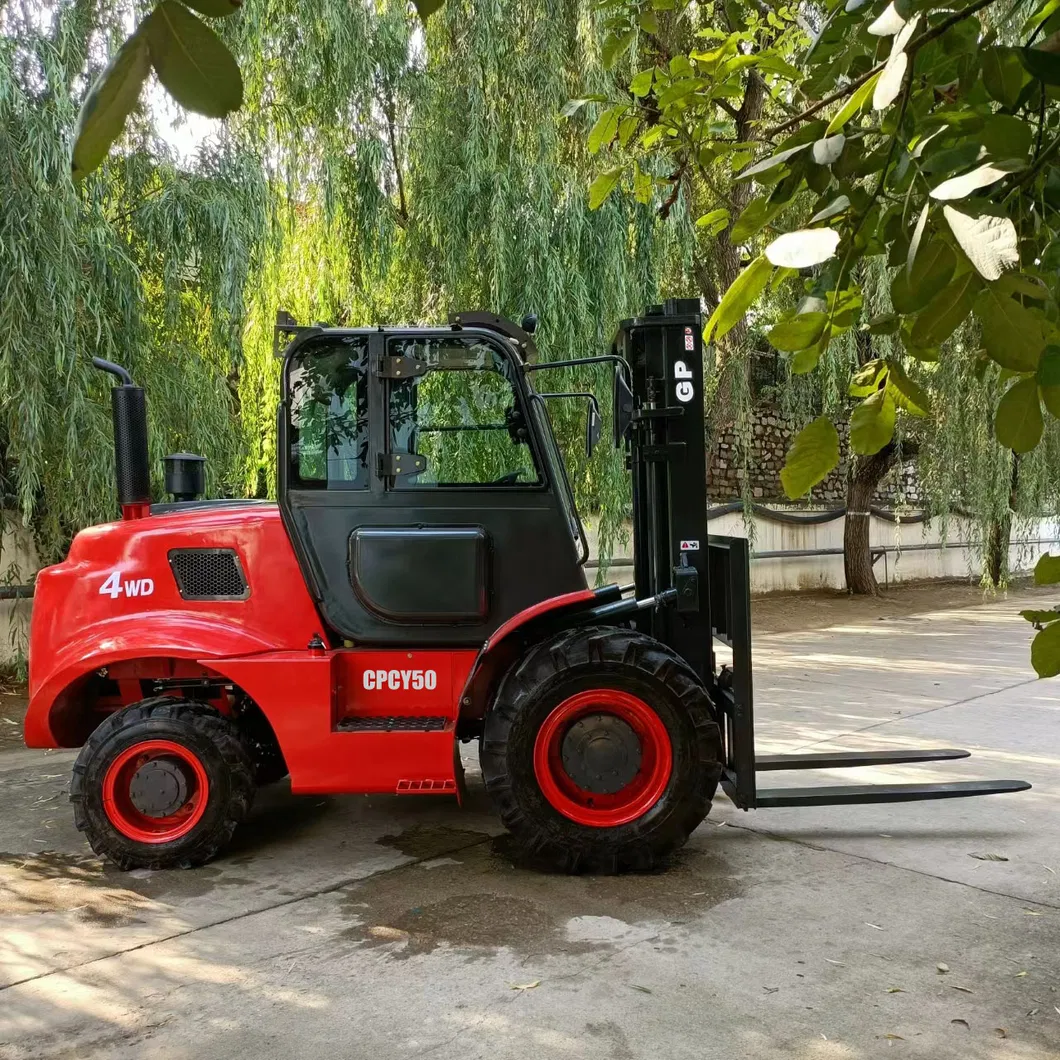

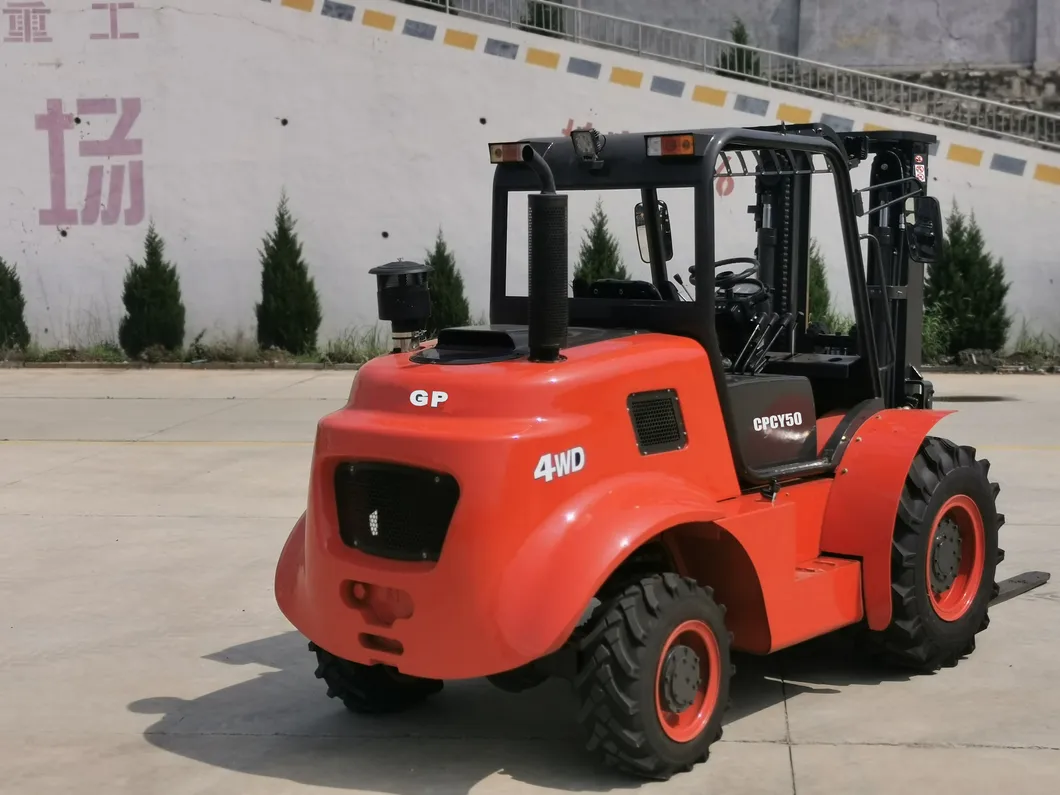

Titan Forklift
1 / 5

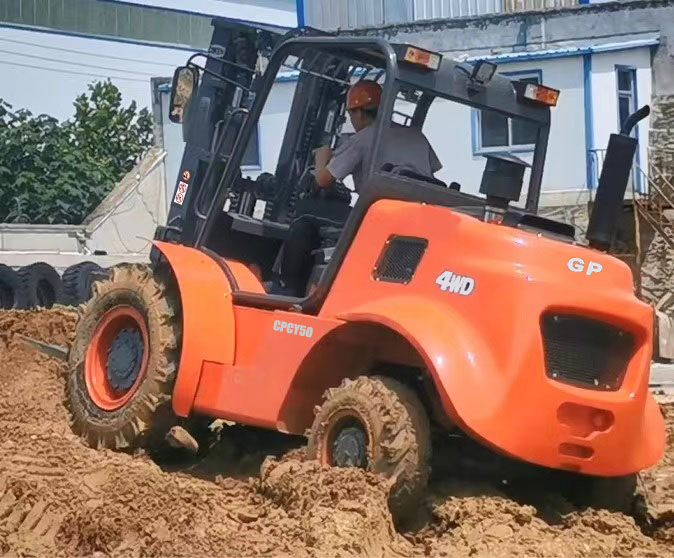

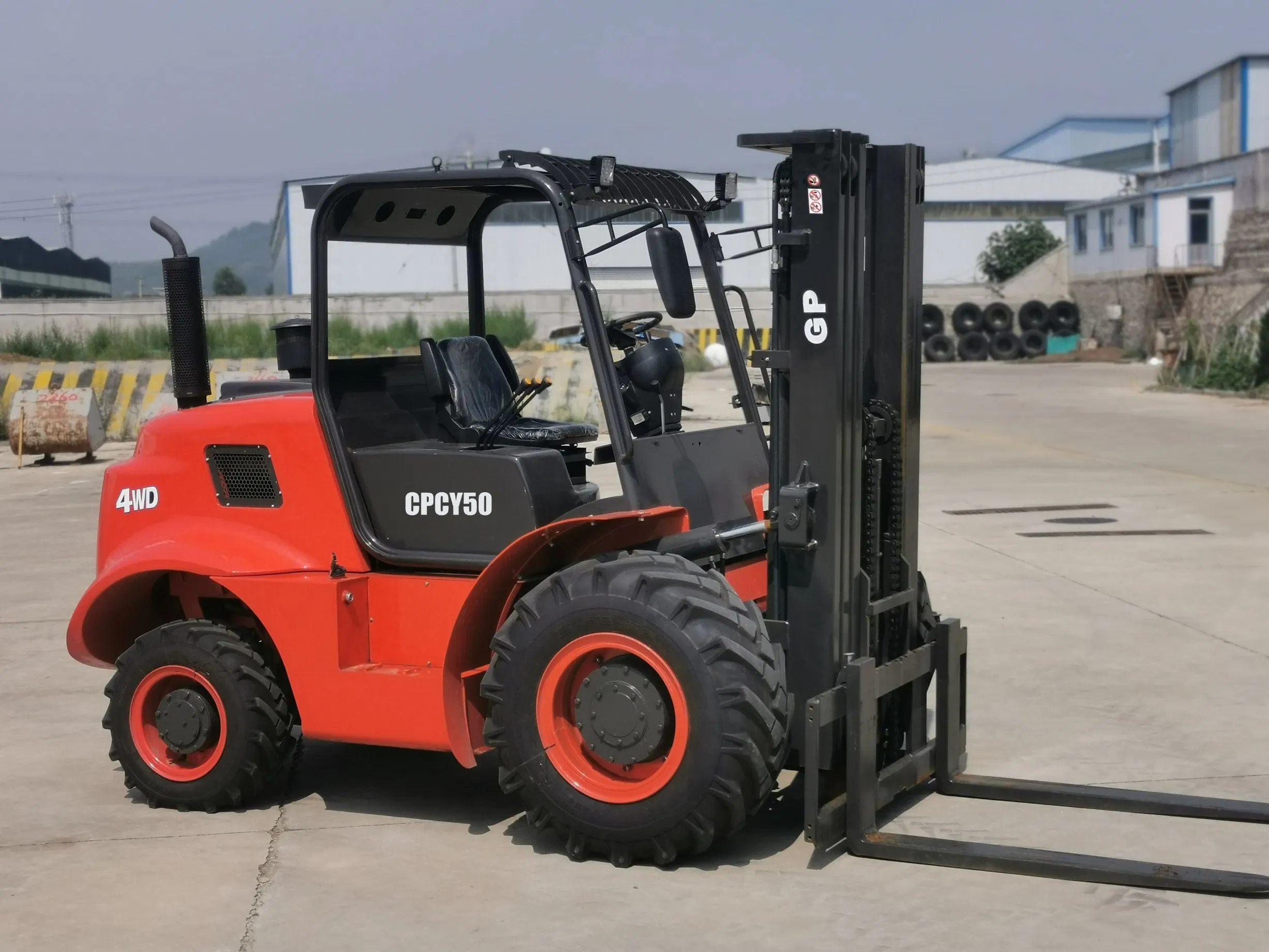

This heavy-duty off-road forklift is specifically designed for challenging environments. Equipped with a high-power engine, superior ground clearance, and specialized deep-tread tires, it ensures efficient cargo handling on non-level surfaces such as construction sites, mines, and farms.
Ground clearance ≥ 300mm with 4WD and differential lock for rough, muddy, or sandy terrains.
Equipped with a turbocharged diesel engine (up to 200 HP) and 800 Nm torque.
ROPS/FOPS certified cab, heavy-duty frame, and high-pressure dual pump hydraulic system.
| No. | Parameter Item | Unit | Specifications (CPCY50) |
|---|---|---|---|
| Dimension Parameters | |||
| 2.1 | Standard Lift Height | mm | 3000 |
| 2.2 | Fork Size (L*W*H) | mm | 1370×150×55 |
| 2.5 | Overall Width | mm | 1860 |
| 2.10 | Ground Clearance | mm | 320 |
| 2.11 | Minimum Turning Radius | mm | 3890 |
| 2.15 | Self Weight | kg | 7000/7200 |
| Performance Parameters | |||
| 3.1 | Maximum Travel Speed | Km/h | 36 |
| 3.2 | Lifting Speed | mm/s | 430 |
| 3.4 | Maximum Gradeability | % | 40 |
| Engine & Drivetrain | |||

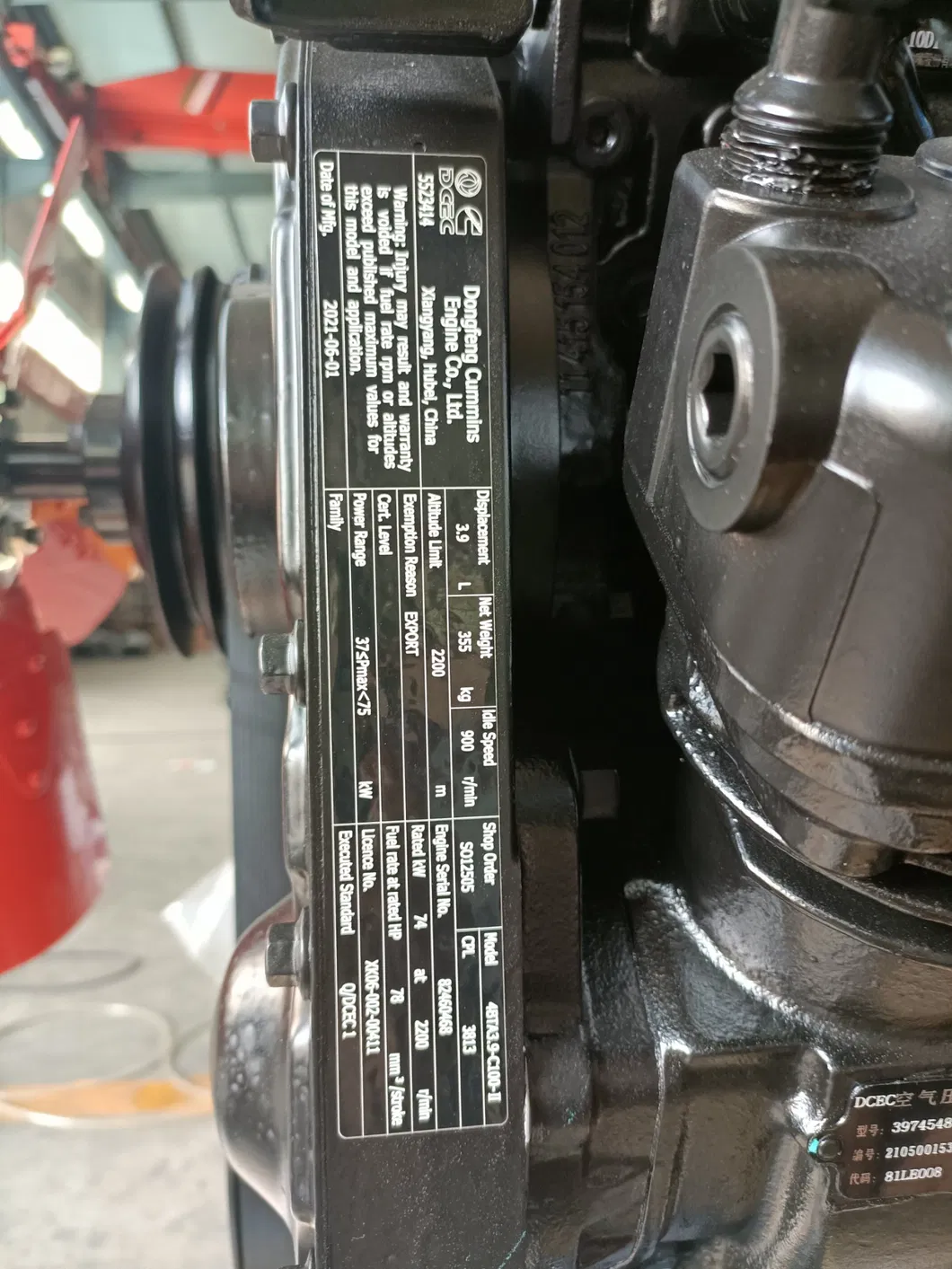

| 5.2 | Engine Manufacturer | - | Cummins |
| 5.3 | Engine Model | - | 4BTA3.9-C100 |
| 5.4 | Rated Power/RPM | kw | 74/2200 |
| 5.7 | Transmission Type | - | Hydraulic |
