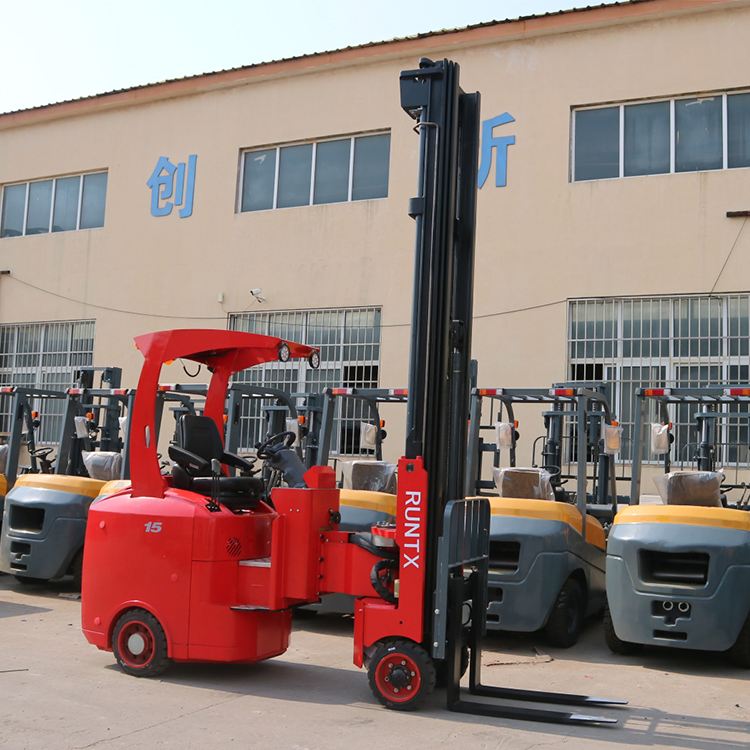

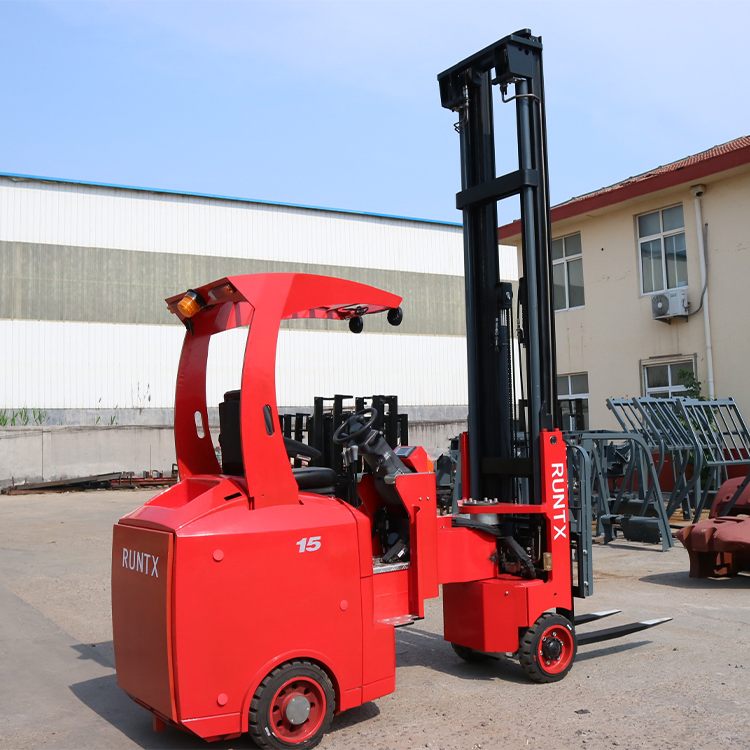

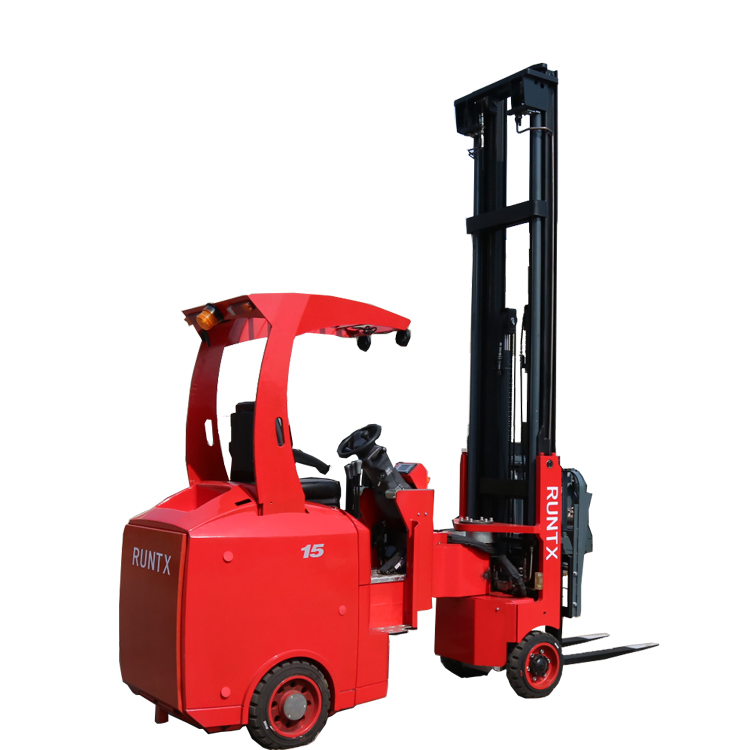

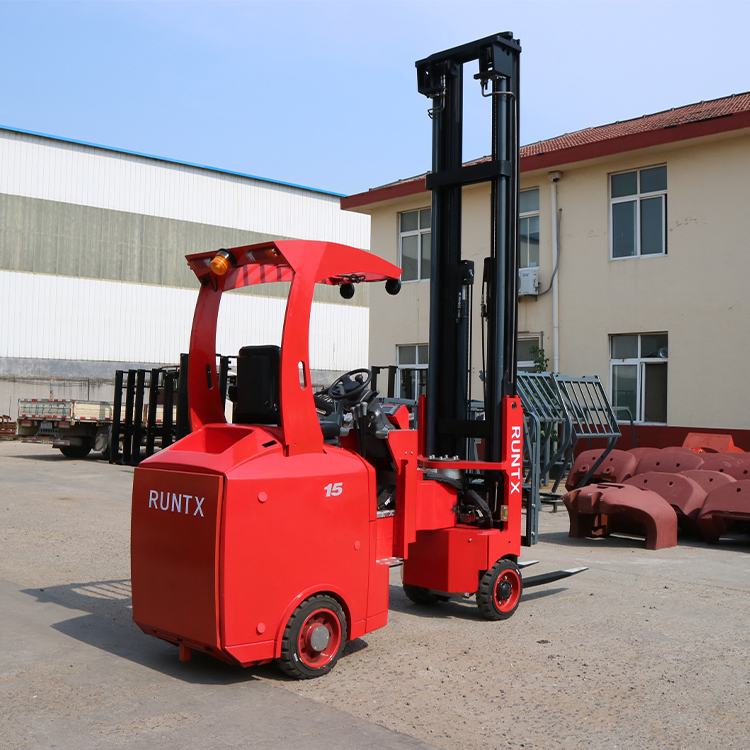

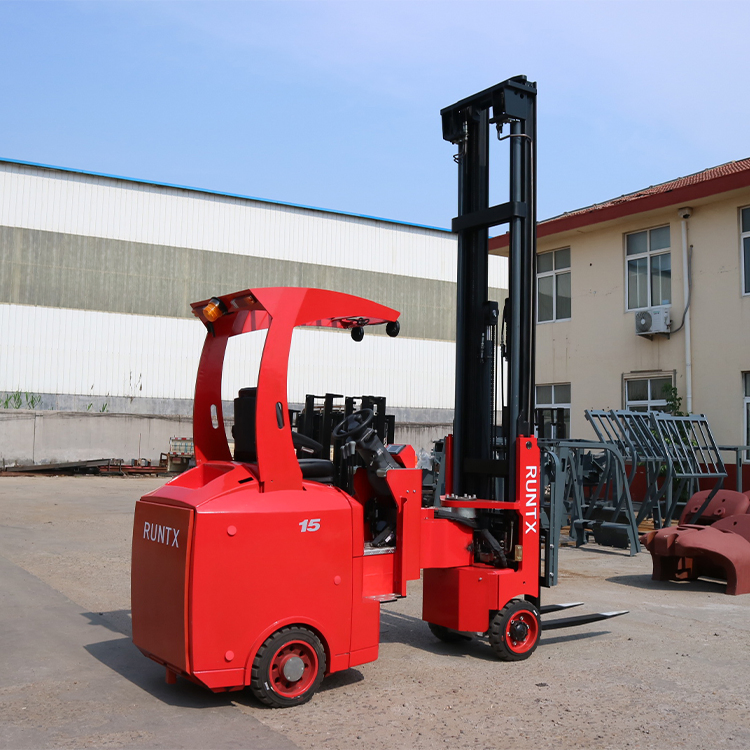

Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use

Customization: Available
After-sales Service: One Year
Warranty: One Year

Product Description

📋 Basic Specifications
Model
VNA15
Type
Stacker
Power
AC Motor / Electric
Load Capacity
1.5t - 3t
Lift Height
3000mm - 12400mm
Load Center
500mm
Condition
New
Production Capacity
5000 Units/Year
📦 Product Overview

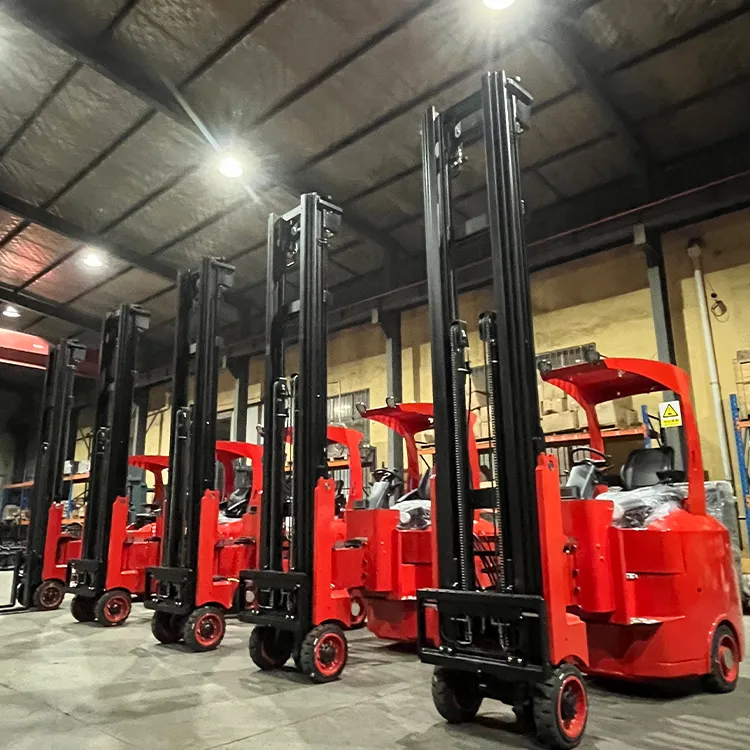

VNA Forklift View 1 VNA Forklift View 2
Item Unit VNA15 VNA20 VNA25 VNA30
Loading Capacitykg1500200025003000
Lifting Heightmm4500-800045000-100004500-124004500-12400
Min Stacking Widthmm1600/18001800/20002000/20002000/2000
Battery Type-Lead acid / Lithium battery
Weight (with battery)kg6500690072007800
🛡️ Key Features & Safety

Advanced Safety Functions: Features standard cornering speed limits, ramp stop, and controlled descent functions for maximum operational security. Standard travel speed limits during high-level lifting ensure operator safety during complex maneuvers.

Precision Monitoring: Includes the OPS safety monitoring system (Driver Presence Sensing). The braking system utilizes an automatic gap compensation mechanism to maintain performance as friction plates wear.

Indoor & Outdoor Versatility: Designed for both warehouse and yard work. Equipped with patterned solid tires, providing excellent traction and durability across various surfaces.

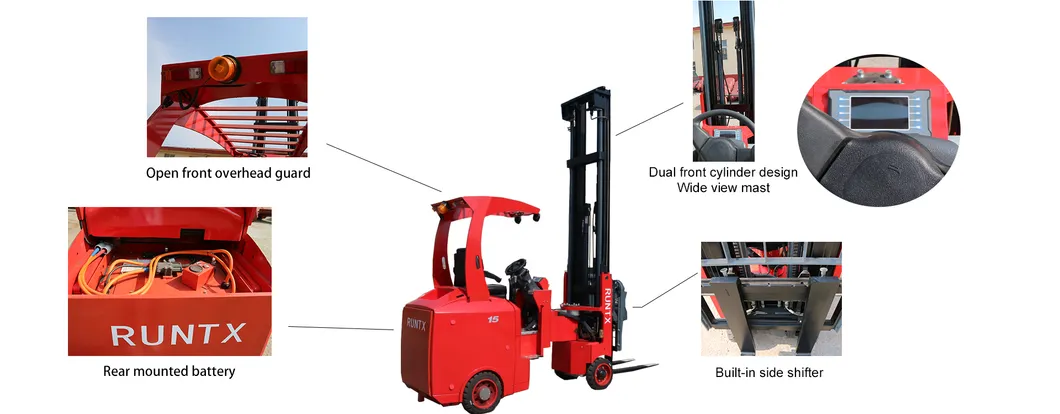

Forklift Safety Details

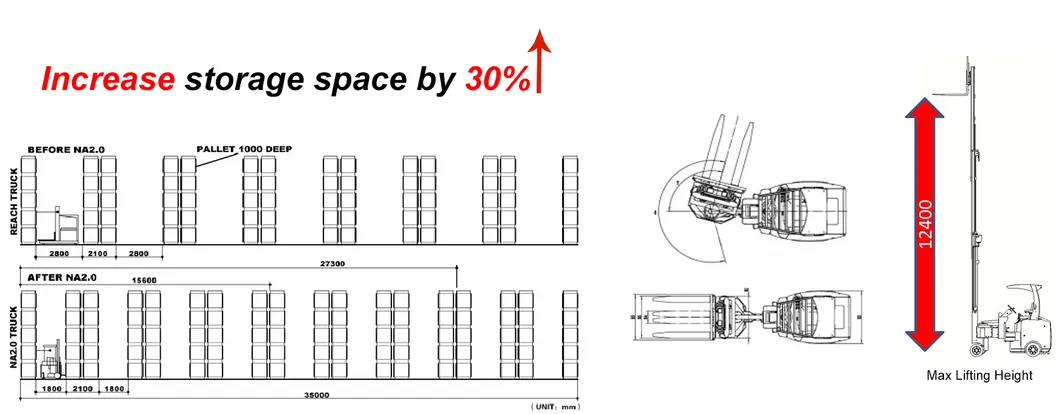

Chassis and Tire Details

🚀 Operates efficiently in narrow aisles of 1700-2200mm, increasing storage capacity by up to 30%.

🚢 Logistics & Shipping

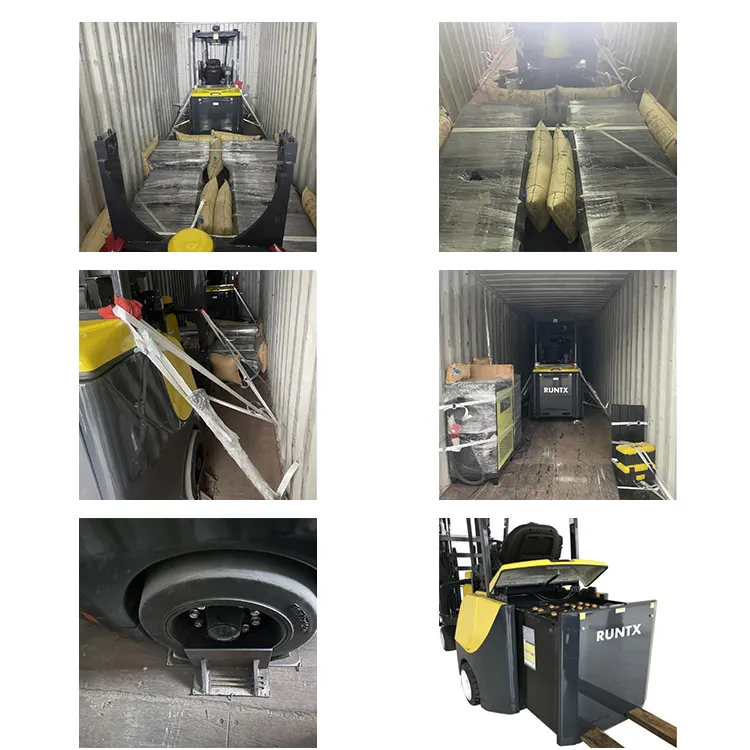

Forklift Shipping and Packing
🏭 Manufacturing Excellence

Our manufacturing facility spans over 37,000 square meters, equipped with high-precision CNC cutting machines, vertical machining centers, horizontal gantry milling, and advanced welding robots. We specialize in self-manufacturing key components to guarantee product integrity and performance. With an annual output of over 4,000 units, we provide a full range of internal combustion and electric material handling equipment.

Production Line View 1

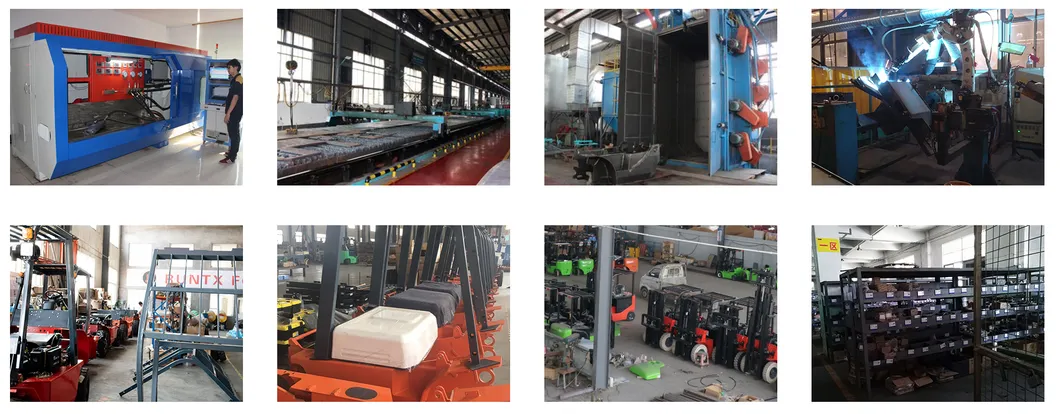

Production Line View 2
📜 Quality Certifications
Certification 1 Certification 2 Certification 3
🛠️ Support & Global Presence

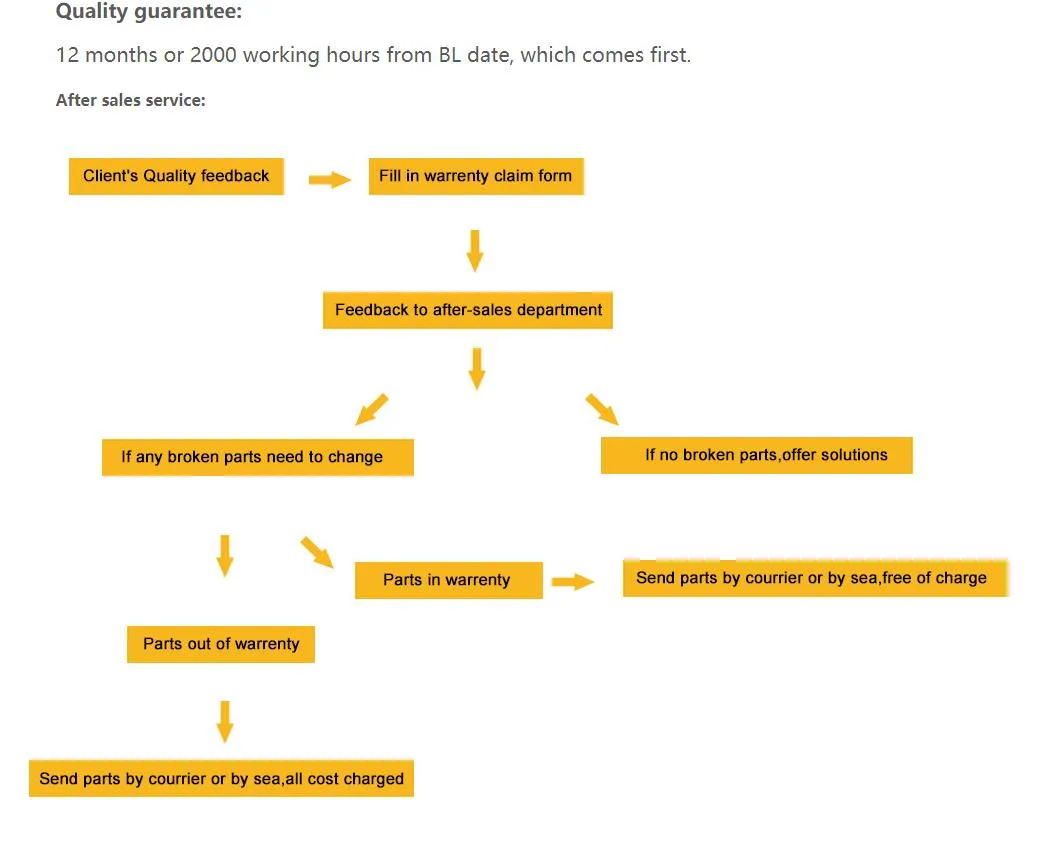

After Sales Service Network
Exhibition Presence
❓ Frequently Asked Questions
What is the minimum aisle width required for the VNA forklift?
The VNA series is designed to operate efficiently in narrow aisles ranging from 1700mm to 2200mm, allowing for significantly higher storage density.
Does the forklift come with a driver safety system?
Yes, it is standardly equipped with the OPS (Driver Presence) monitoring system and automatic speed limits during high-level lifting for enhanced safety.
What types of batteries are available for these models?
We offer both traditional Lead-Acid and high-efficiency Lithium battery options to suit different operational requirements.
Can this equipment be used in outdoor environments?
Absolutely. The forklift features patterned solid tires and a robust design suitable for both indoor warehouse use and outdoor yard operations.
What is the maximum lifting height available?
The VNA series offers a wide lifting range, with maximum mast heights reaching up to 12,400mm (12.4 meters).
How does the VNA forklift improve warehouse efficiency?
By operating in narrower aisles than traditional reach trucks, it can increase available storage space by approximately 30% without requiring complex guidance systems.
