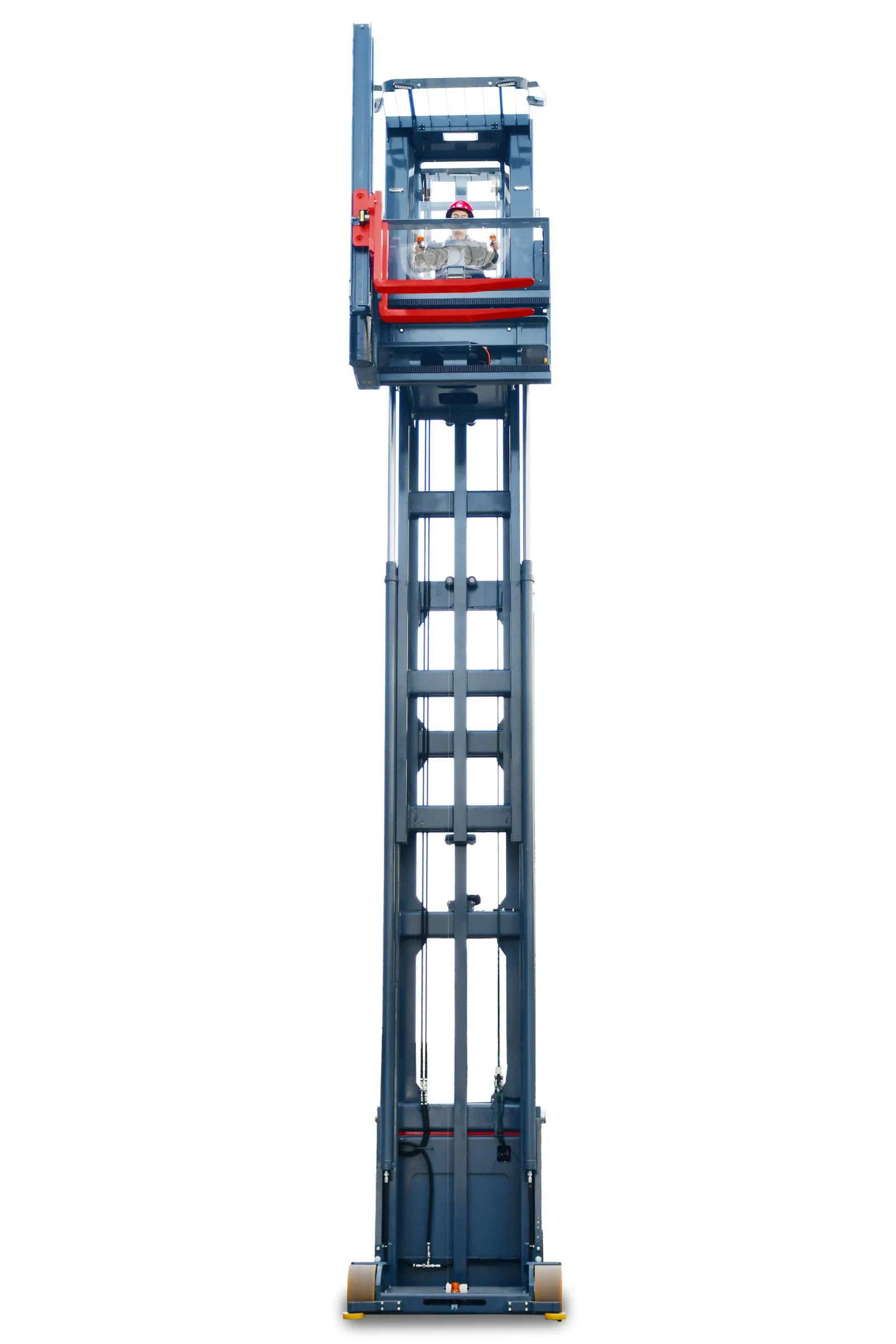

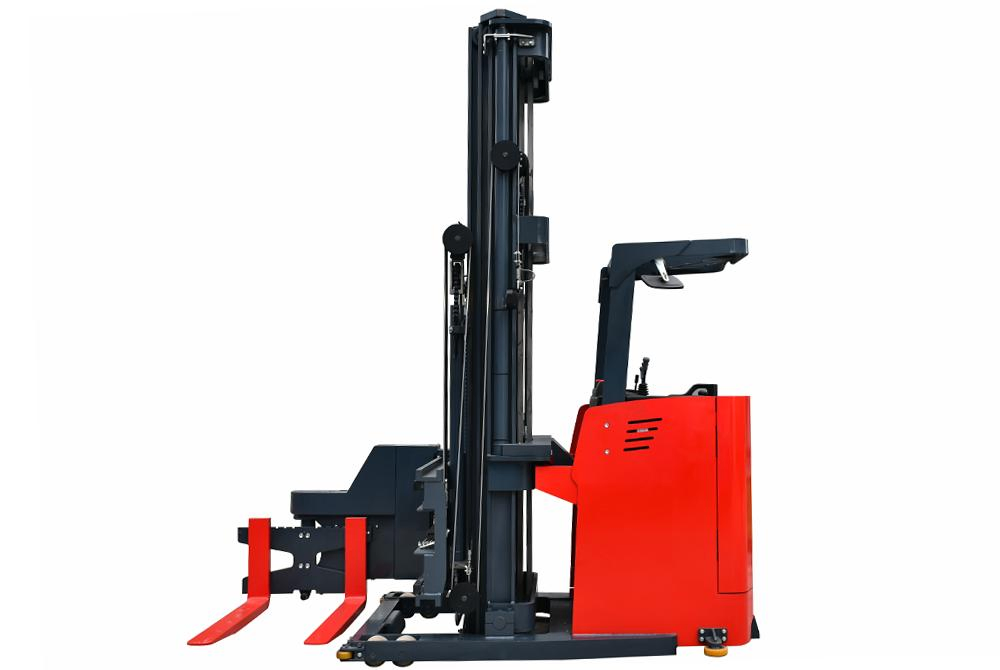

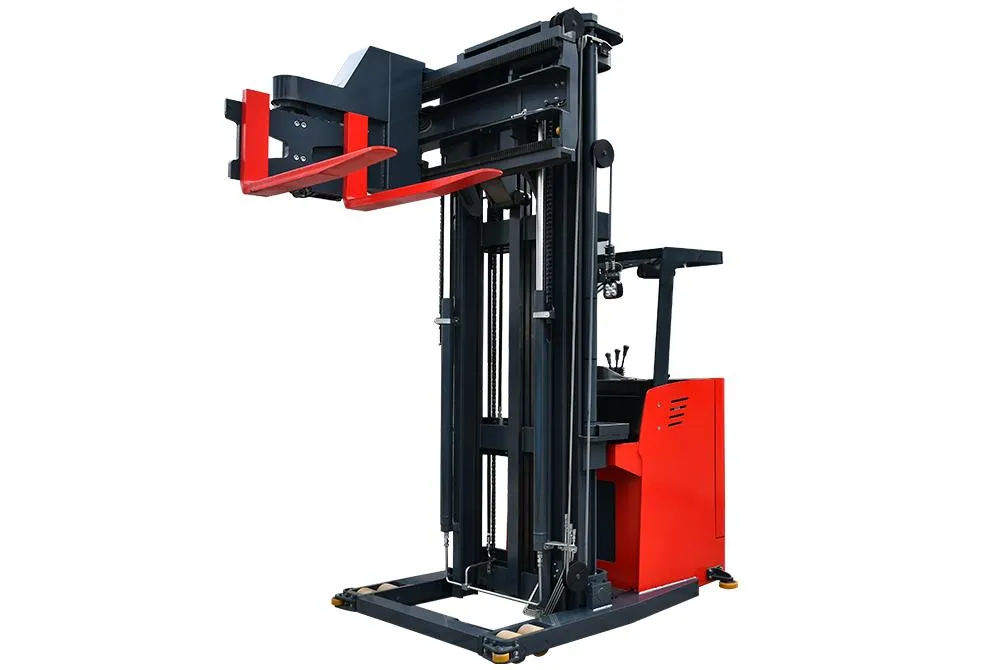

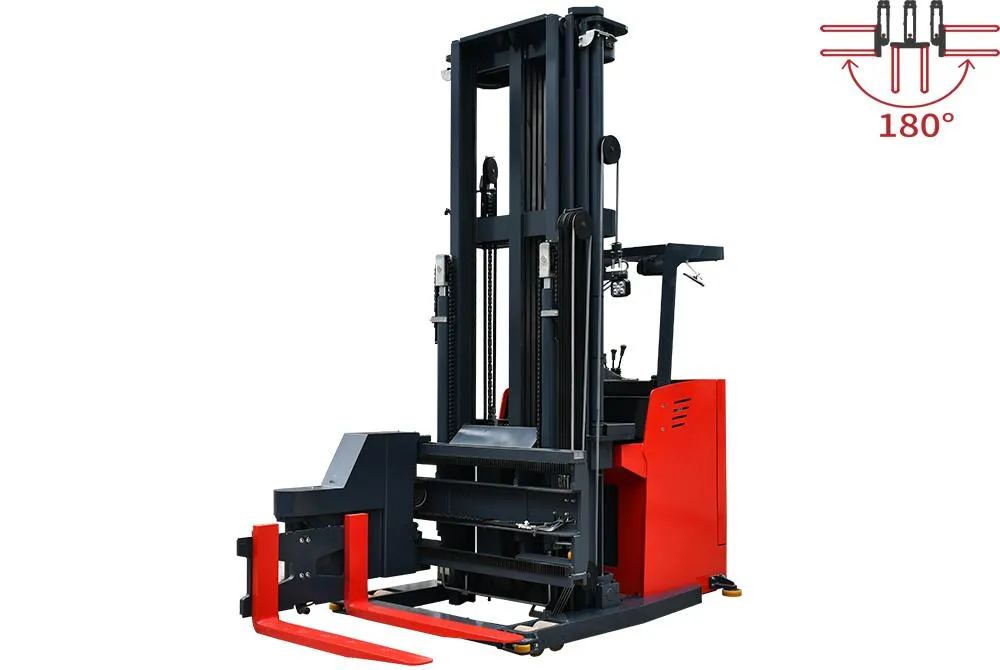

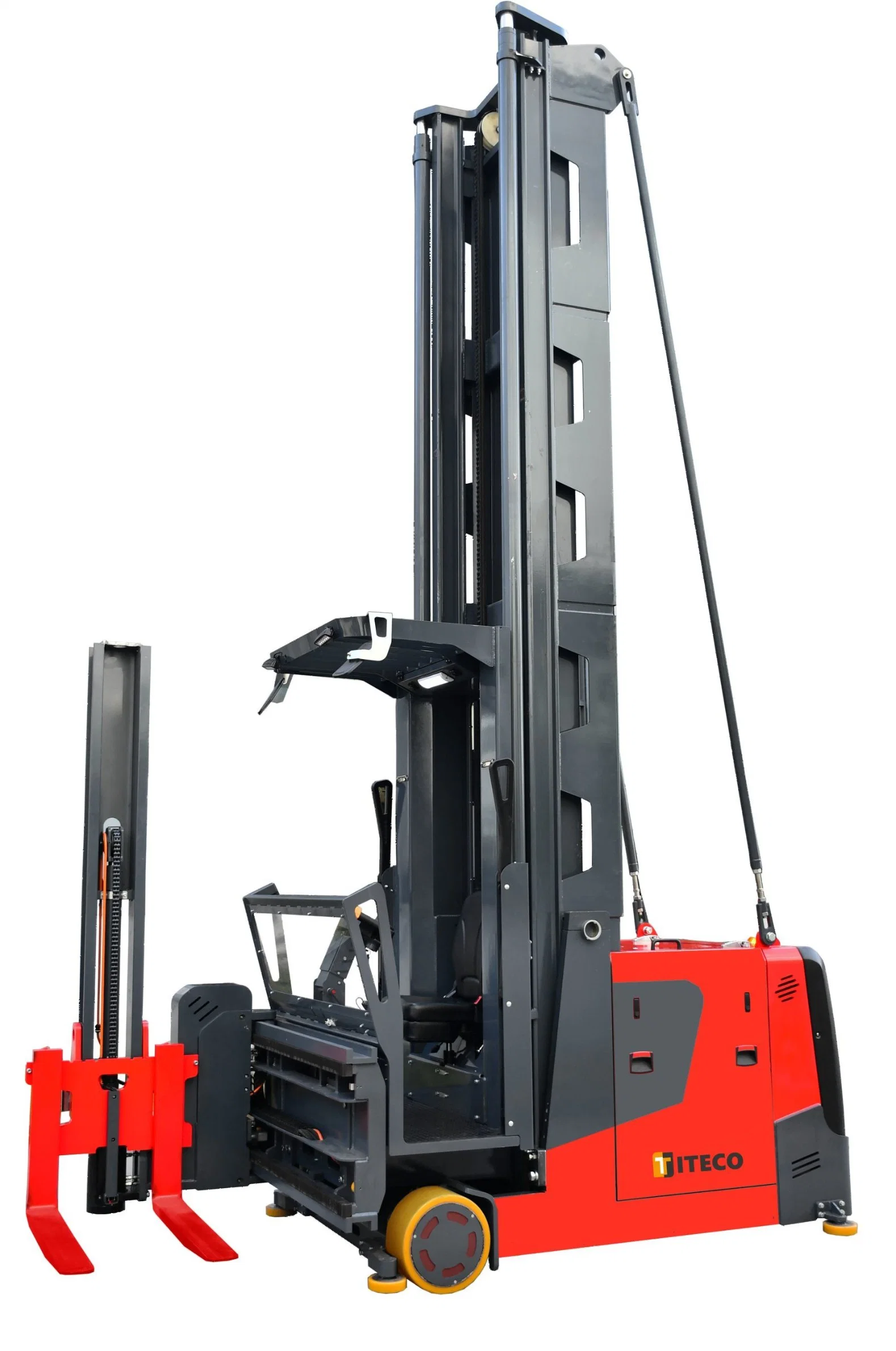

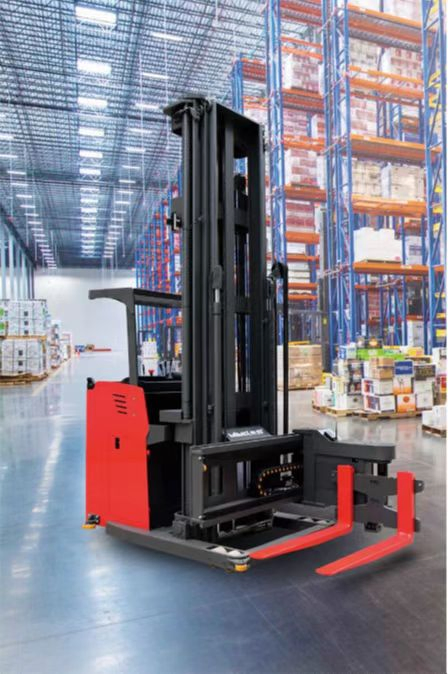

MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type). Features a 3-way stacking function where forks can rotate 180° and perform left-right side shifts without the body turning. This is the premier choice for intensive storage in logistics, medicine, food, and cold storage industries.
| Model Parameter | Unit | MC10 | MC10SQ | MC15 | MC15SQ |
|---|---|---|---|---|---|
| Power type | - | Battery | Battery | Battery | Battery |
| Operation Type | - | Stand-on | Stand-on | Stand-on | Stand-on |
| Service weight | kg | 4260 | 4800 | 4690 | 5520 |
| Rated capacity | kg | 1000 | 1000 | 1500 | 1500 |
| Load center | mm | 500 | 500 | 600 | 600 |
| Lift height | mm | 3000 | 4500 | 3000 | 4500 |
| Travelling speed (l/u) | km/h | 7.5/8 | 7.5/8 | 7.5/8 | 7.5/8 |
| Lifting speed (l/u) | mm/s | 230/300 | 230/300 | 200/300 | 200/300 |
