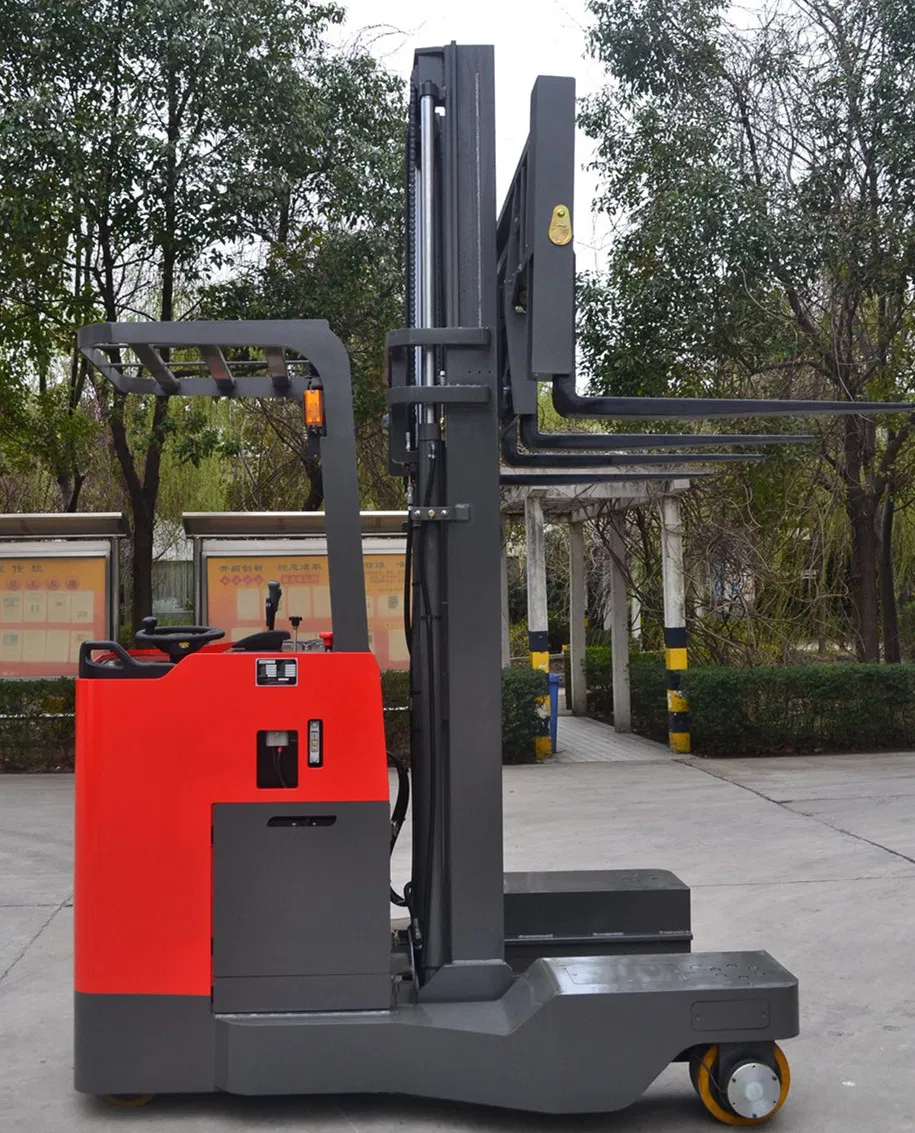

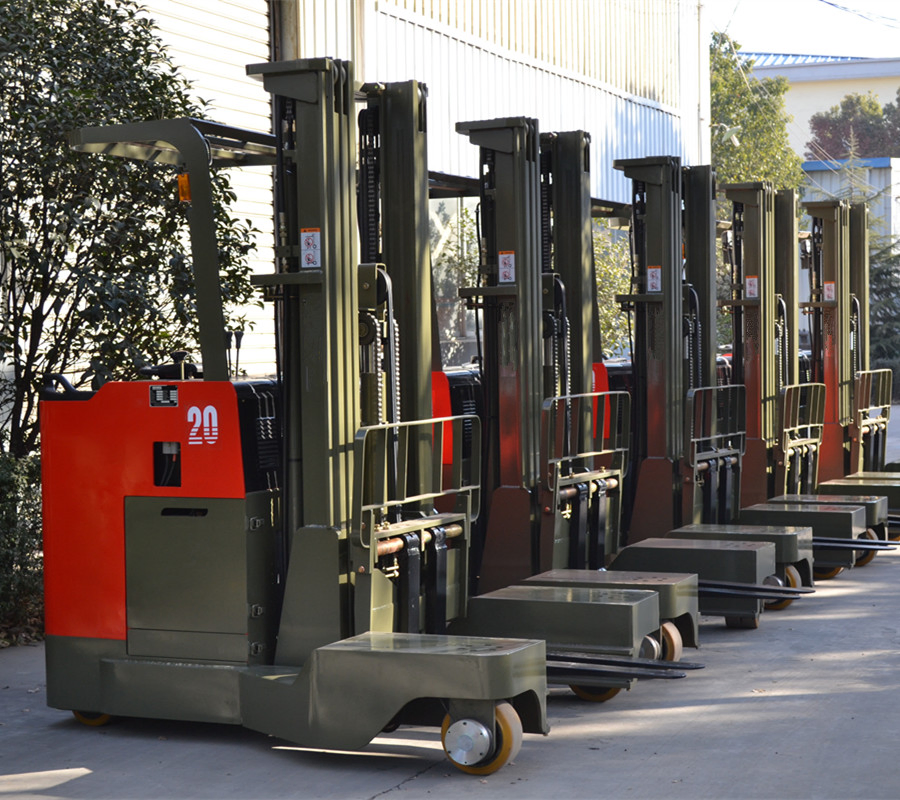

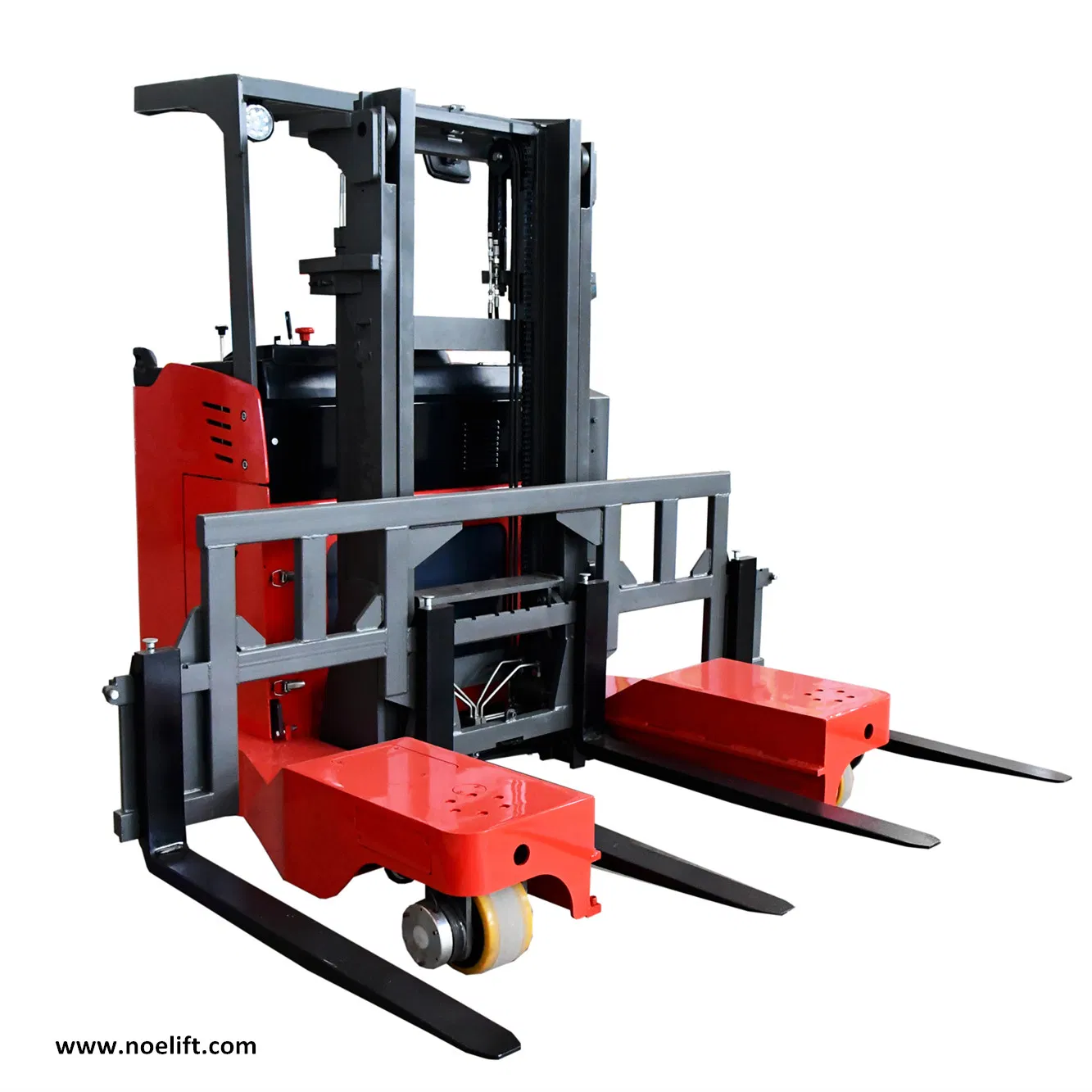

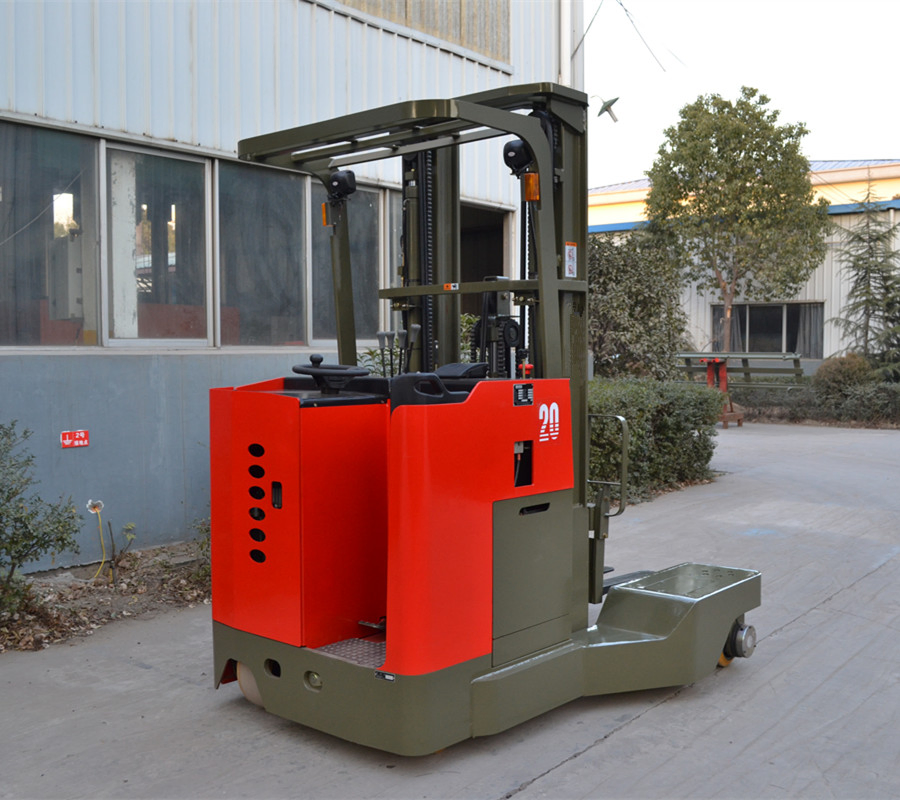

Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
1 / 5
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck
Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck

Vna Very Narrow Aisle Forklift AC Brushless Motor 4 Direction Electric Reach Truck

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model
TQB30
Type
Reach Forklift
Power Source
AC Motor
Fuel Type
Electric
Load Capacity
1T - 5T
Lift Height
>5000mm
Controller
US Curtis
Driving Motor
Brushless AC Motor
Battery
48/400 V/Ah
Tire Type
PU Tire
Package Size
220.00cm * 223.00cm * 311.00cm
Gross Weight
5950.000kg
Product Overview

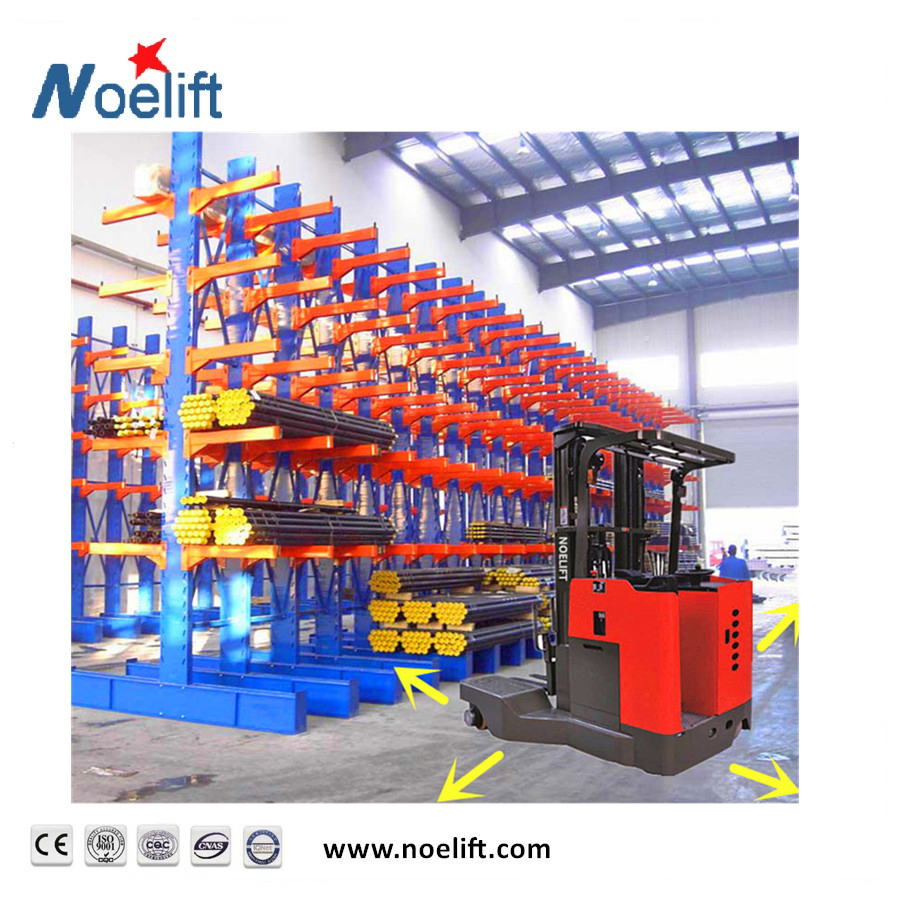

Long Materials Carrier 4-Direction Electric Reach Truck

  • Optional Capacity: 1.5 tons, 2 tons, 2.5 tons. Optional lift height: 3000-7200mm.
  • Environment-Friendly: Low noise and non-pollution electricity energy adopted for eco-friendly operation.
  • Cost-Saving: Brushless AC driving motor and side-pull battery ensure 30% energy saving and lower maintenance. Features American imported CURTIS controller for quick reaction and precise control.
  • Labor-Saving: Strong industrial 48V battery and 5.5V driving motor provide powerful performance.
  • Certified Quality: Manufactured under strict quality inspection systems, ISO9001-2008 and CE approved.

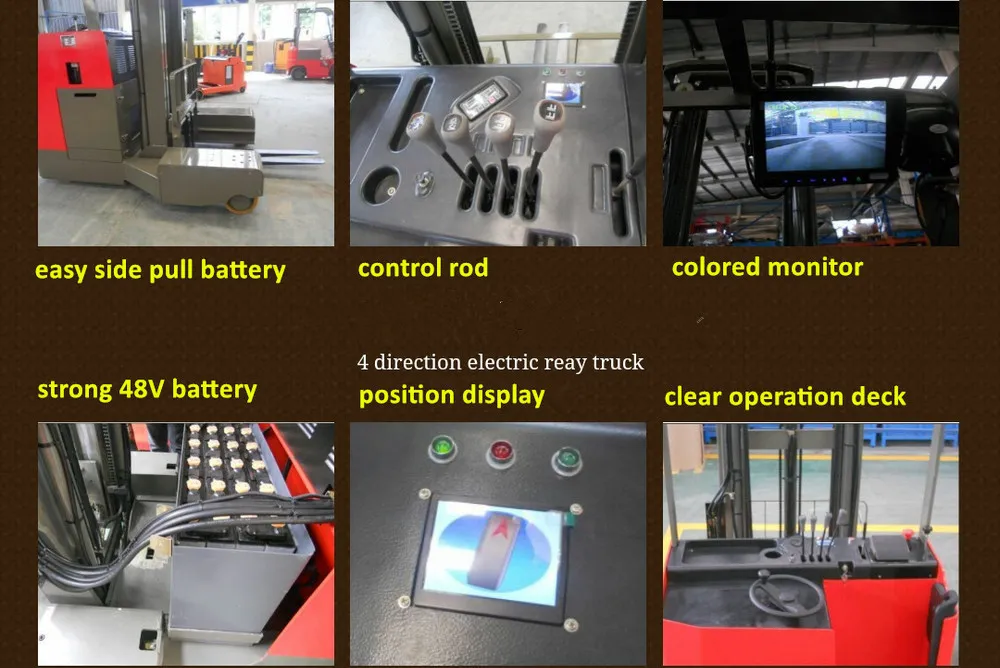

Detailed Gallery

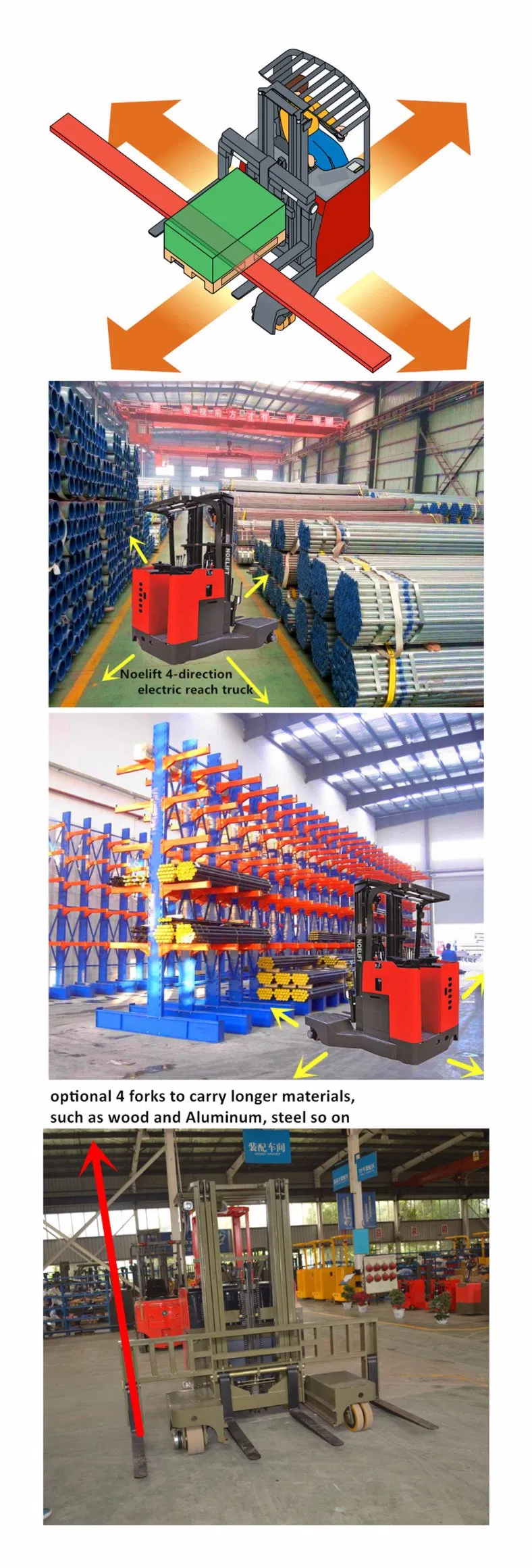

VNA Forklift Details 4 Direction Electric Reach Truck

PS: Color monitor and camera equipped when lift height ≥4.5m.

Technical Specifications
Description 4-direction electric reach truck
Model TFB15 TFB20 TFB25
Loading capacity (Kg) 1500 2000 2500
Loading center (mm) 500 500 500
Lifting height (mm) 3000 3000 3000
Overall width (mm) 1640 1800 1800
Battery (Ah) 48V/300Ah 48V/400Ah 48V/400Ah
Driving motor (Kw) 5.5(AC) 5.5(AC) 5.5(AC)
Mast Type Lifting Height Lowered Height Free Lift Capacity (TFB15) Capacity (TFB20)
Duplex 3000mm 2120mm 0mm 1500kg 2000kg
Duplex 4000mm 2620mm 0mm 1000kg 1200kg
Triplex 5000mm 2340mm 1670mm 900kg 1000kg
Triplex 6000mm 2680mm 2000mm 700kg 800kg
Manufacturing & Packaging
Packaging
Certification Factory View Global Cooperations
Safety Features
Frequently Asked Questions
What are your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded packaging is available with proper authorization for registered patents.
What are your payment terms?
T/T 30% as deposit, and 70% before delivery. We provide photos of the products and packages before final payment.
What are the delivery terms and time?
We offer EXW, FOB, CFR, CIF, and DDU. Typically, delivery takes 30 to 60 days after receiving advance payment, depending on order quantity.
Do you test all goods before delivery?
Yes, we conduct a 100% test on all equipment before delivery to ensure optimal performance and safety.
How do you ensure long-term business relationships?
We maintain high quality and competitive pricing to ensure customer benefits, while treating every customer with respect and professional support regardless of their origin.
What after-sales services are provided?
During the warranty period, we provide free spare parts within one week via international express. We also offer 24-hour online technical support and engineer overseas support when needed.
