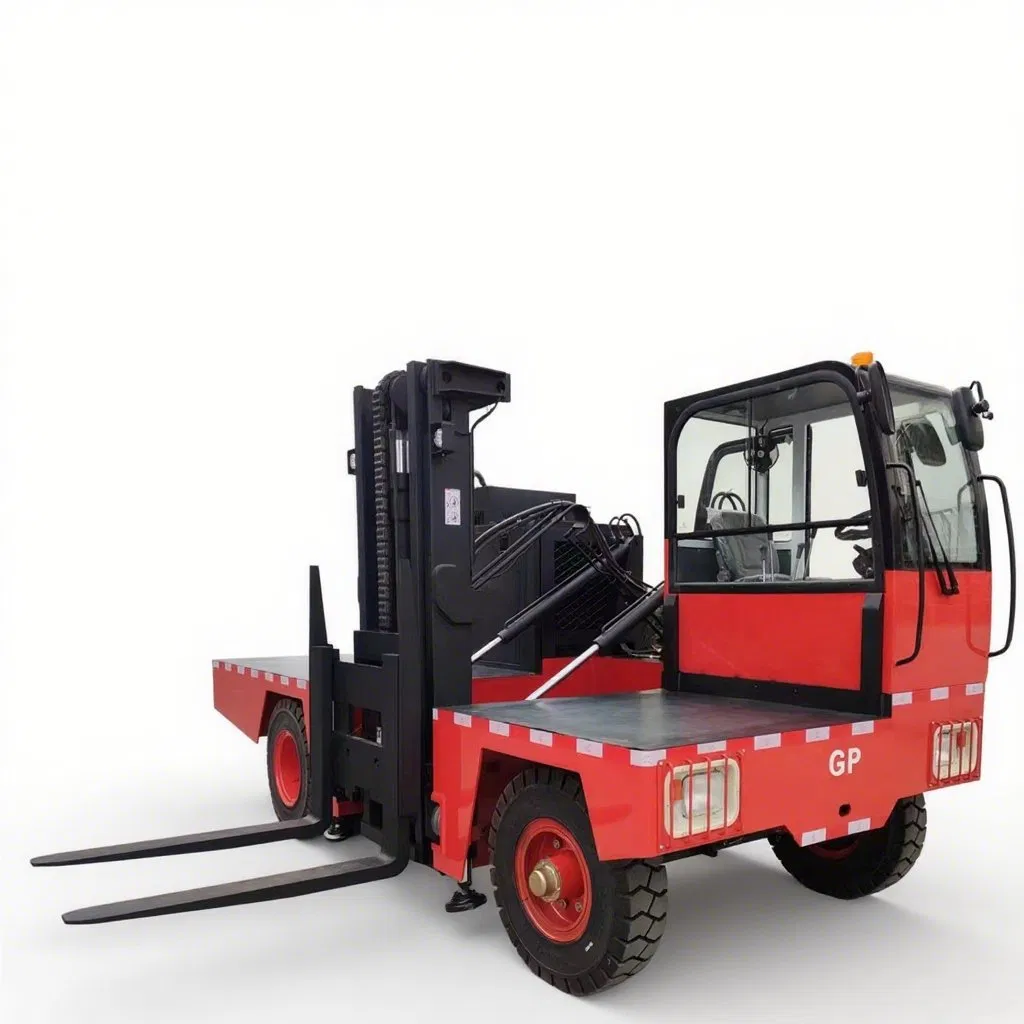

4t High-Capacity Electric Side Loader - 4.5m Extendable Forks & 360° Steering for Narrow Aisle Efficiency

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview

Model NO.
CPD40S
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
3000~5000mm
Condition
New
Tyre Type
Pneumatic
Wheel Base
2250mm
HS Code
842720900

Product Description

Side forklift truck is a new type of carrying scraper. It differs from the counter-balanced one mainly in that the forks are mounted on the side of the body. Besides lifting and tilting, the forks can also traverse to the right side of the truck frame, and retract back alongside the well in the middle section of the truck. Long cargoes can be loaded by the forks on/from the truck deck, as well as transported in limited spaces. As the long cargoes are piled lengthwise along the truck's platform, the width of the passageway required by the forklifter can be reduced remarkably. The side forklift truck is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes and other kind of bulky, over length cargoes. It finds wide applications in forestry departments, railway stations, oilfields, harbours, warehouses, factories, construction sites, etc.

Product Parameters

Specification Index Unit CPD30S CPD40S
Rated load capacityKg30004000
Load centremm600600
Maximum Lifting Heightmm35003500
Maximum Lifting Speed (laden)mm/s280280
Tilting Angle of Fork (up/down)°3°/5°3°/5°
Grade Ability (laden)%15%15%
Minimum Ground Clearancemm200205
Width of Carriermm12001200
Length of Forkmm12201220
Dimension (L*W*H)mm4400×2000×23504400×2000×2550
Self-Weightkg55706200
Controller System-USA Curtis
Battery (Lead-acid/Lithium)AH80/50080/550
📷

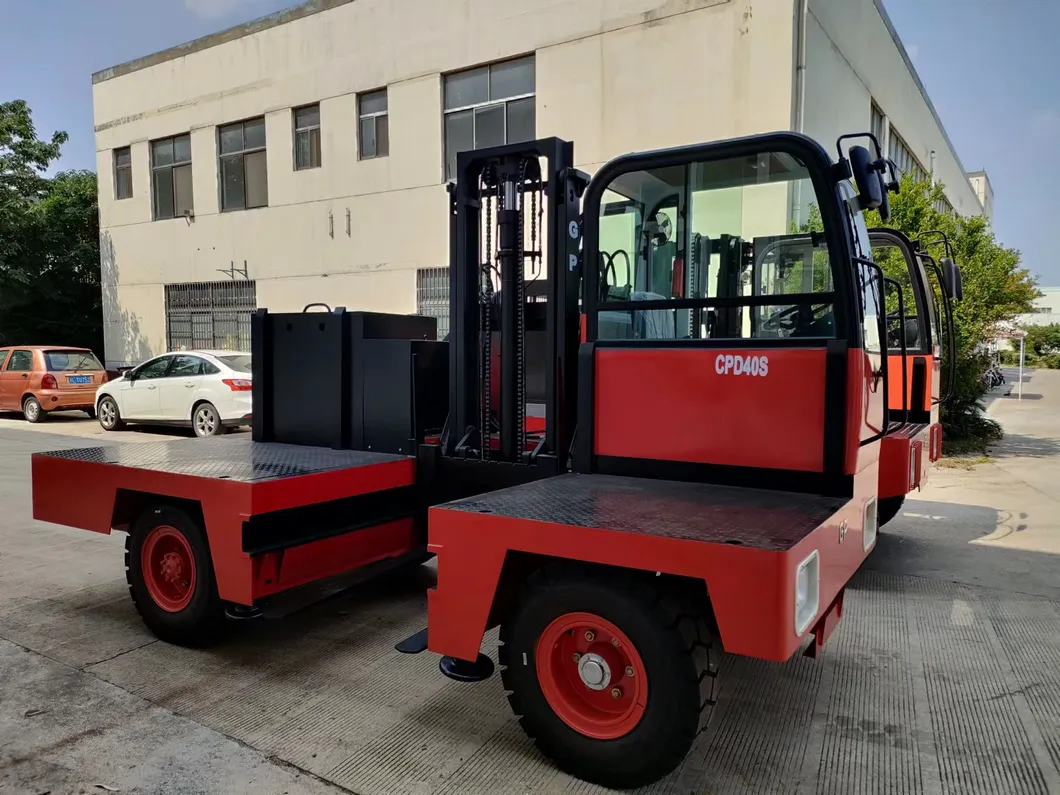

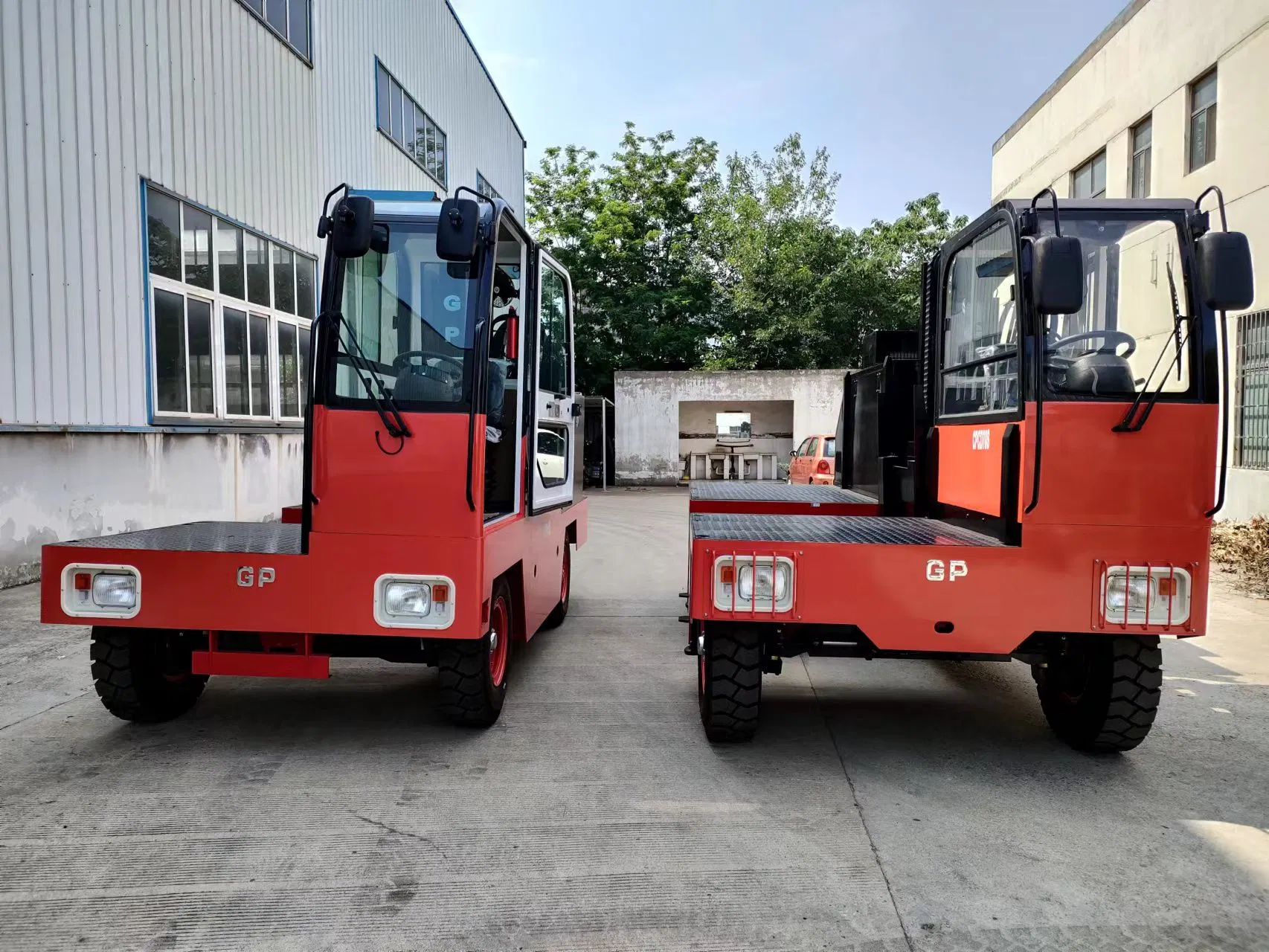

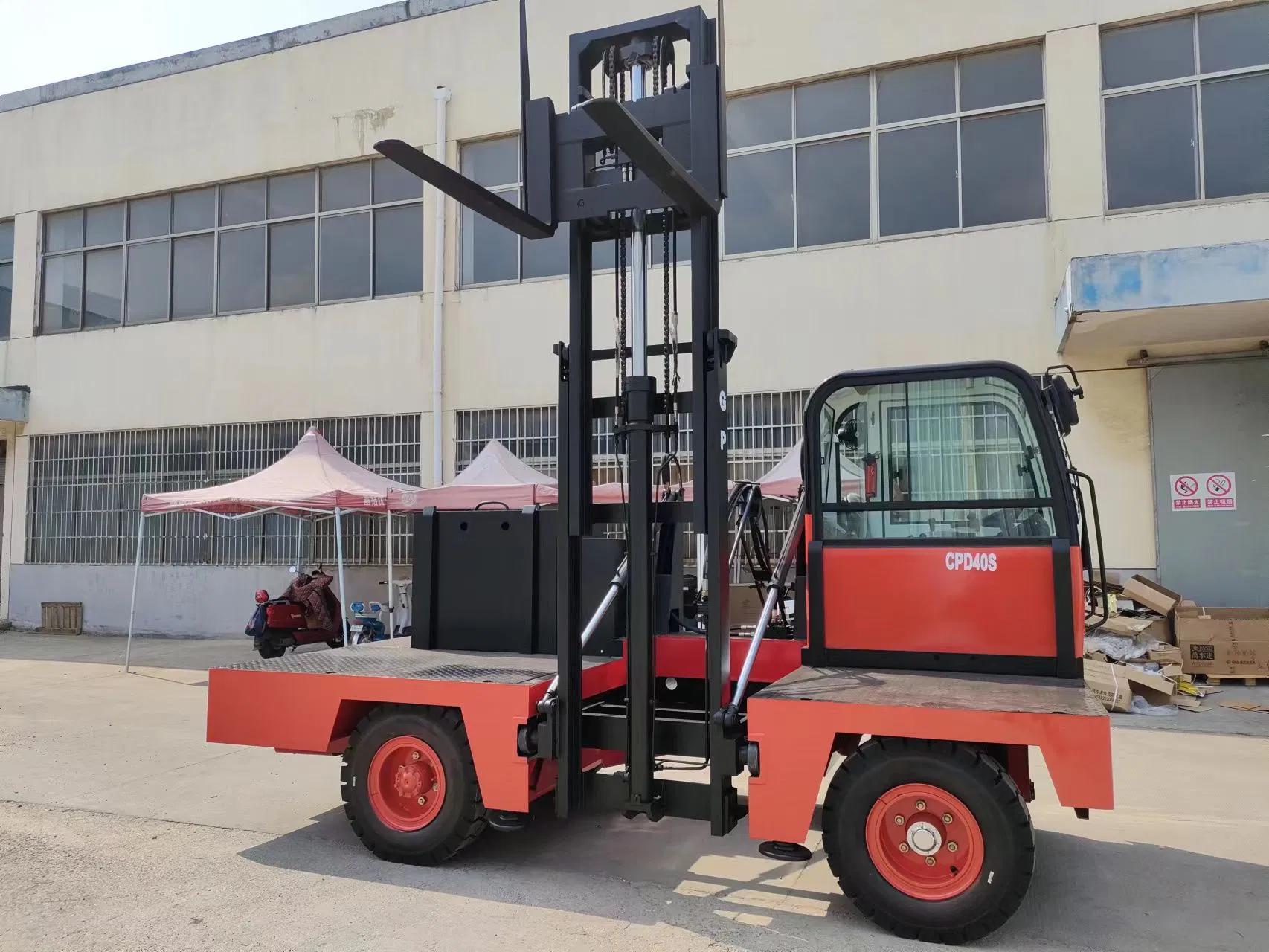

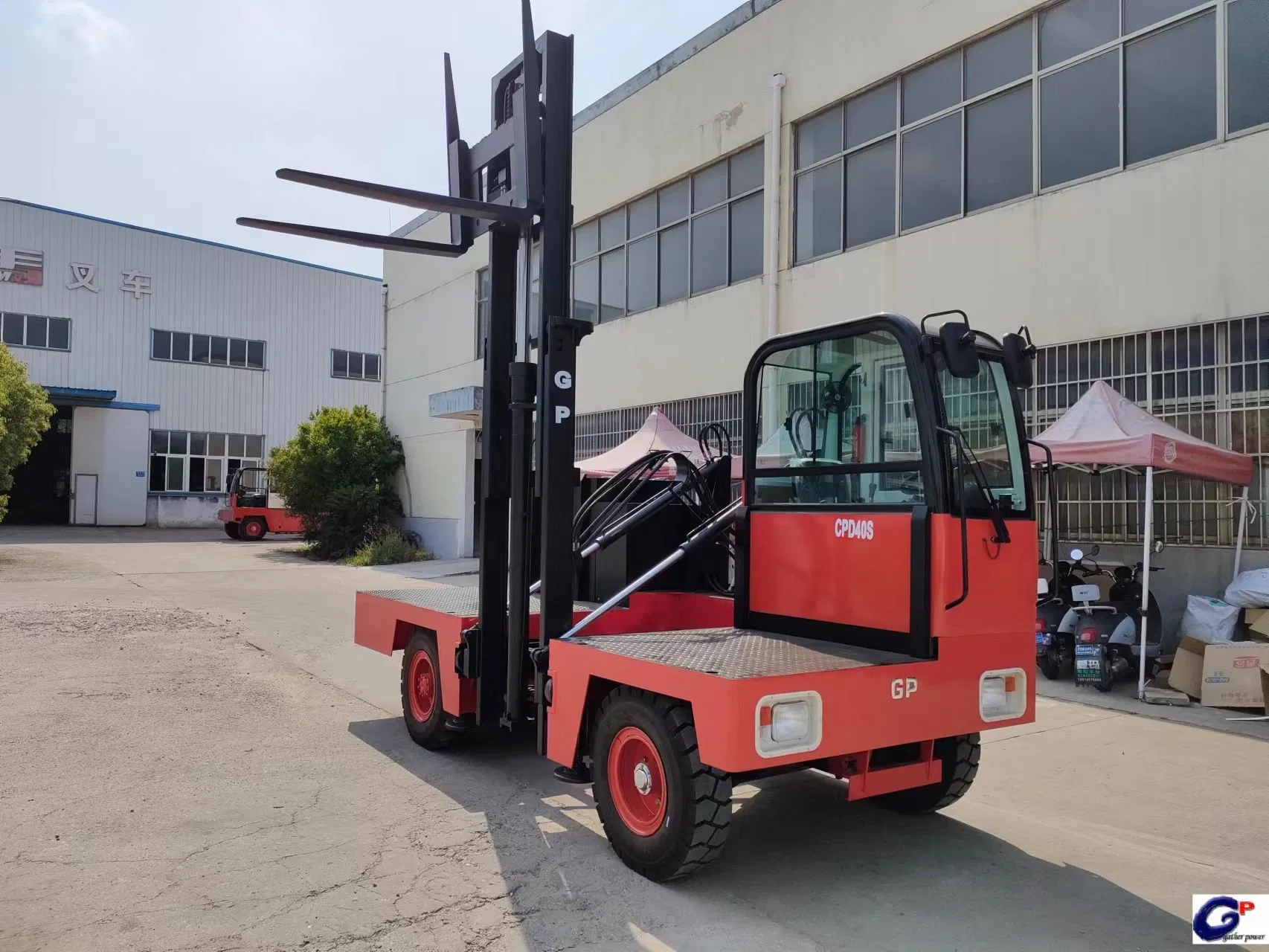

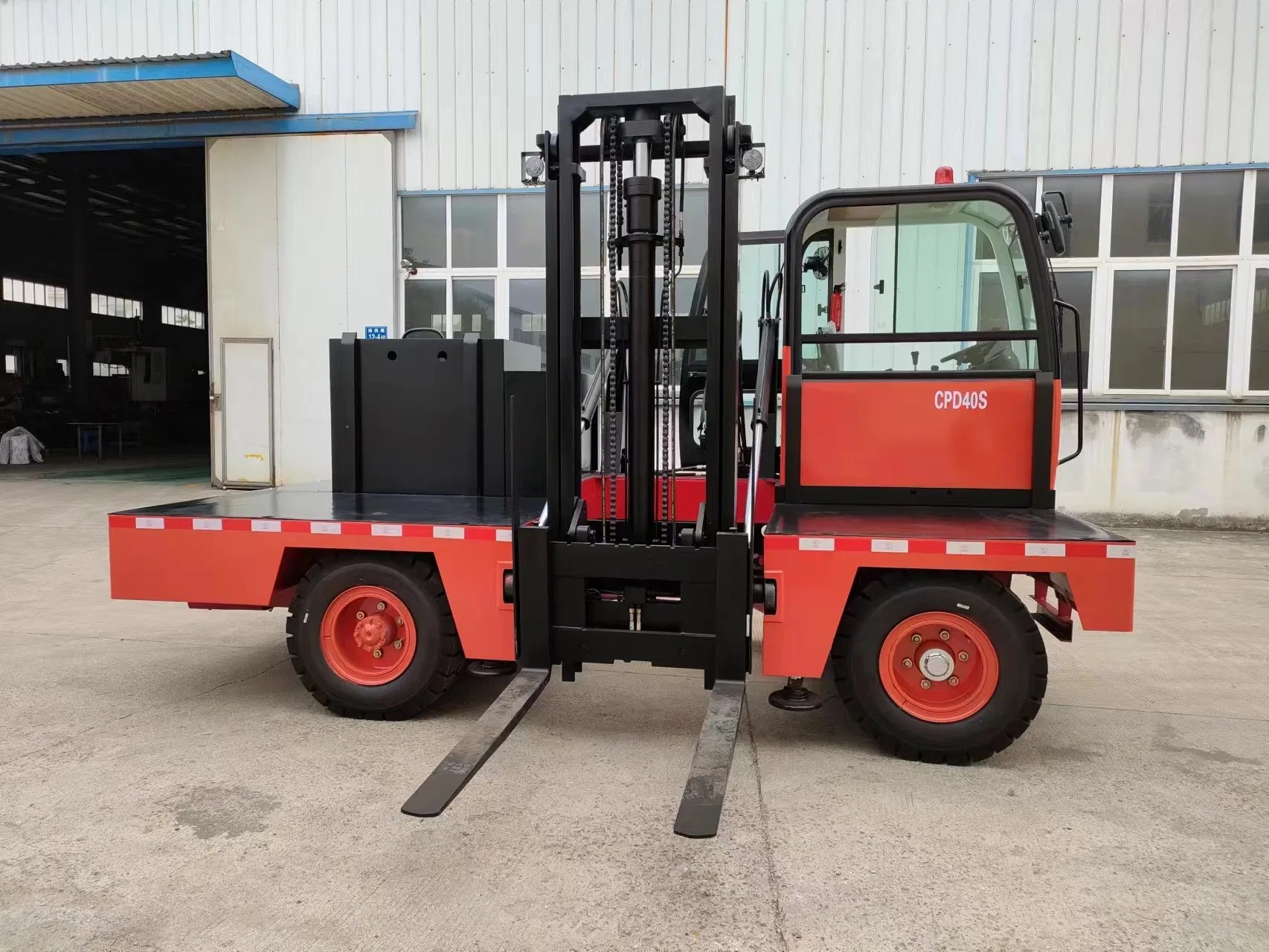

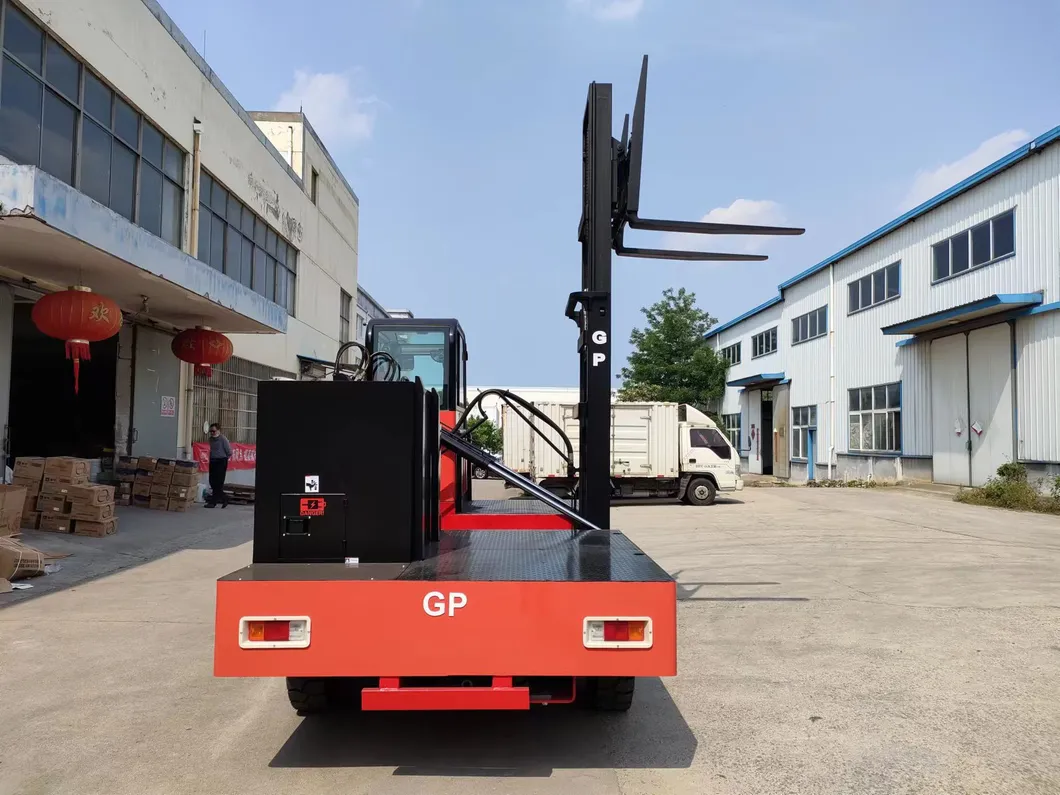

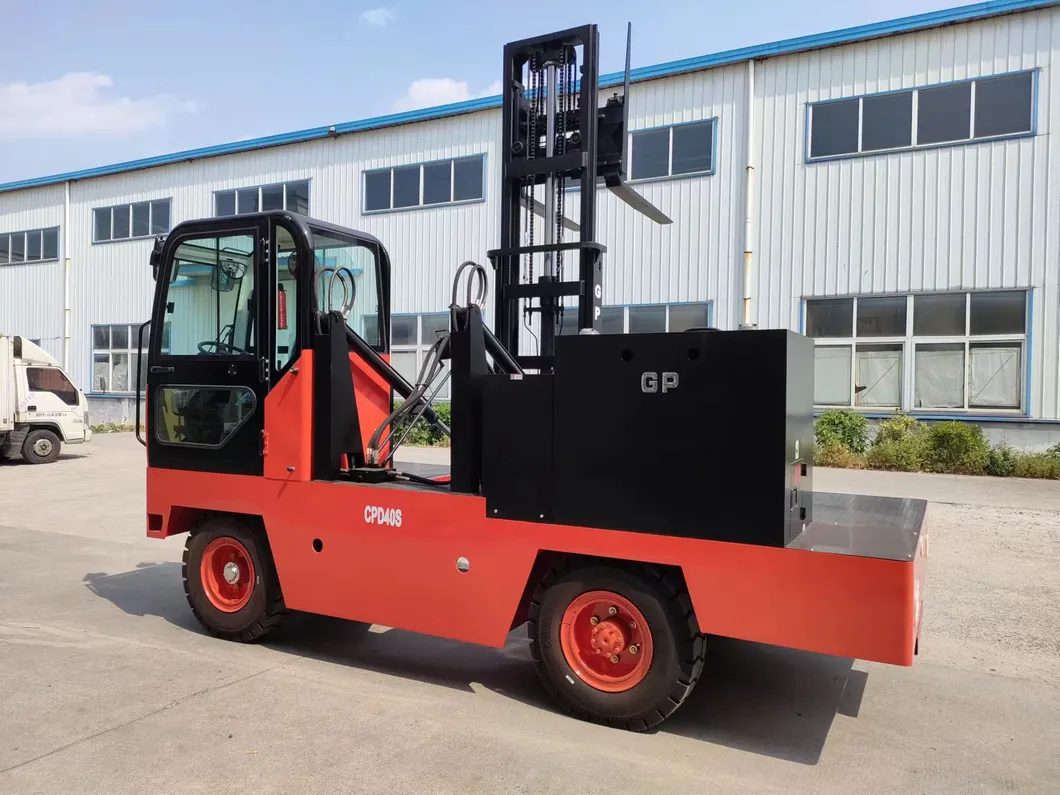

Detailed Photos

Our Advantages

?

Frequently Asked Questions

What are the primary benefits of a side loader forklift?
Side loaders are specifically designed for long cargoes like timber and pipes. They allow for transport through narrow aisles by carrying loads lengthwise on their platform.
What type of control system does this electric side loader use?
This model is equipped with a high-performance USA Curtis controller system for precise and reliable operation.
Can I choose between different battery types?
Yes, we offer both traditional Lead-acid batteries and modern Lithium battery options to suit your operational needs.
What is the maximum lift height for these models?
The standard lifting height is 3500mm, but options are available for lift heights ranging from 3000mm to 5000mm.
Where is this side forklift truck typically used?
It is ideal for forestry departments, ports, warehouses, factories, and construction sites where long materials need to be moved efficiently.
What is the load capacity range?
The CPD series electric side loaders cover a load capacity range from 1 ton to 5 tons, with specific parameters available for 3-ton and 4-ton models.
