Basic Specifications
Load/Unload
Front Discharge
Production Cap.
2500 Units
Key Features & Performance
✓

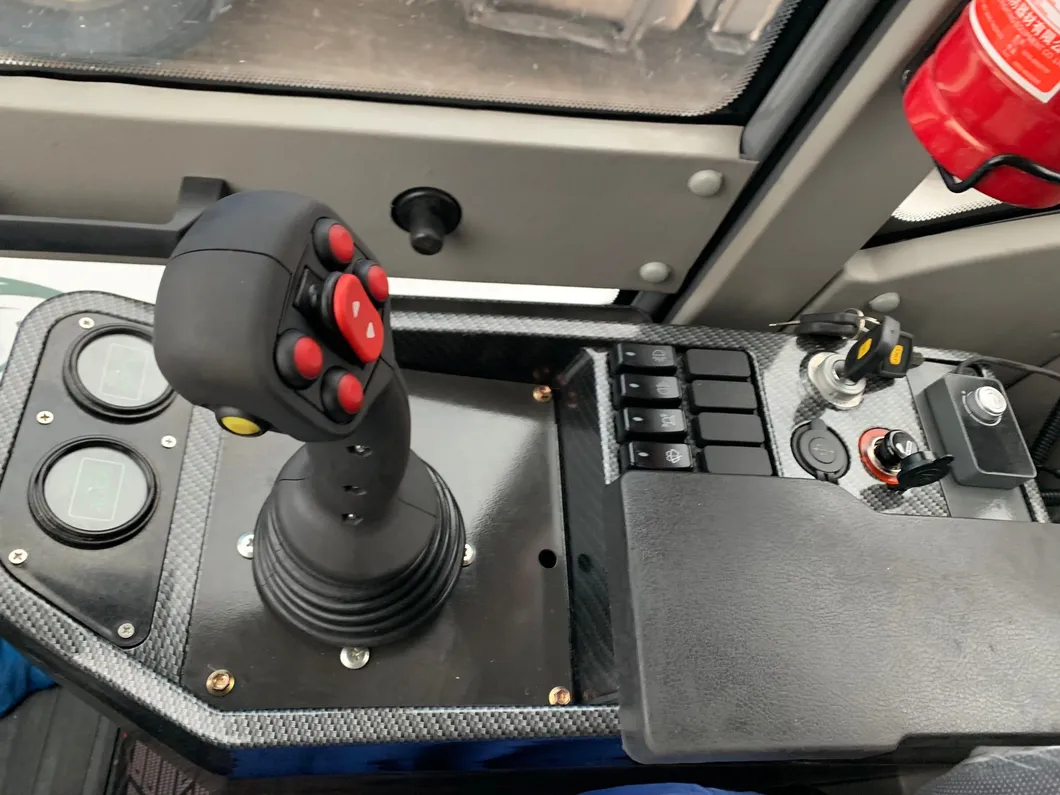

Safe Condition: Loader cab meets ROPS FOPS standards. Starter key is moved to the joystick box to avoid leg touch. Includes safety belt for hard work conditions.
✓
Driver Comfort: Equipped with silicone oil shock absorbers to ensure a more comfortable experience.
✓
Flexible Operation: Flexible turn angle design for narrow roads. Large cab with complete wind screen glass provides an excellent view. Adjustable dashboard and individual battery charge plug included.
✓
Easy Maintenance: Side-tip cab design allows for easy transmission oil and filter changes.

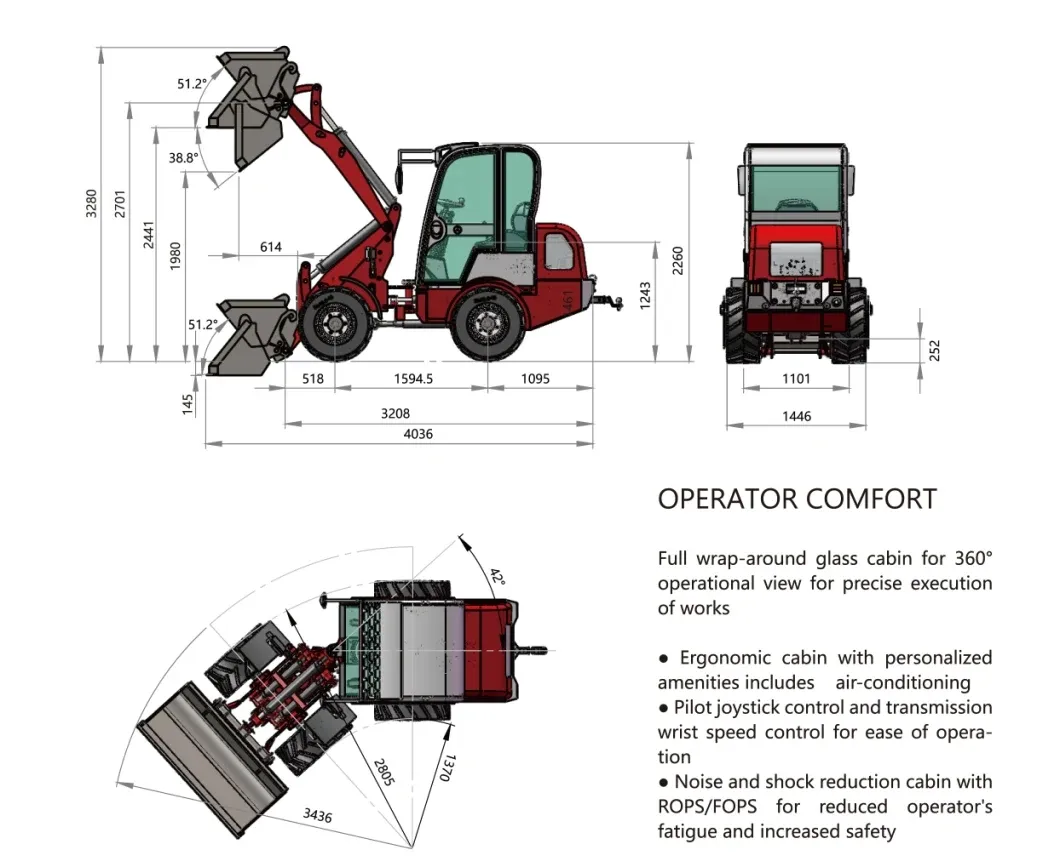

Technical Specification (HZM810)
| Whole drive system |
Hydraulic system (torque converter) / Hydrostatic transmission |
| Specification |
Overall weight (kg) |
3000 |
| L×W×H (mm) |
4500×1550×2400 |
| Rated bucket capacity (m3) |
0.5 |
| Rated load (kg) |
1000 |
| Dump height (mm) |
2000 |
| Dump distance (mm) |
800 |
| Wheel base (mm) |
1260 |
| Thread (mm) |
2150 |
| Total time (s) |
8 |
| Engine |
Model |
Changcha ZN390 |
| Type |
Direct injection, Horizontal, Water-cooled, 3 stroke |
| Rated power (KW) |
25 |
| Rated speed (r/min) |
2400 |
| Steering system |
Max. turning angle |
40° |
| Min turning radius (mm) |
3800-4200MM |
| Tires |
Standard/Optional |
750-16 / 31x15.5-15 |

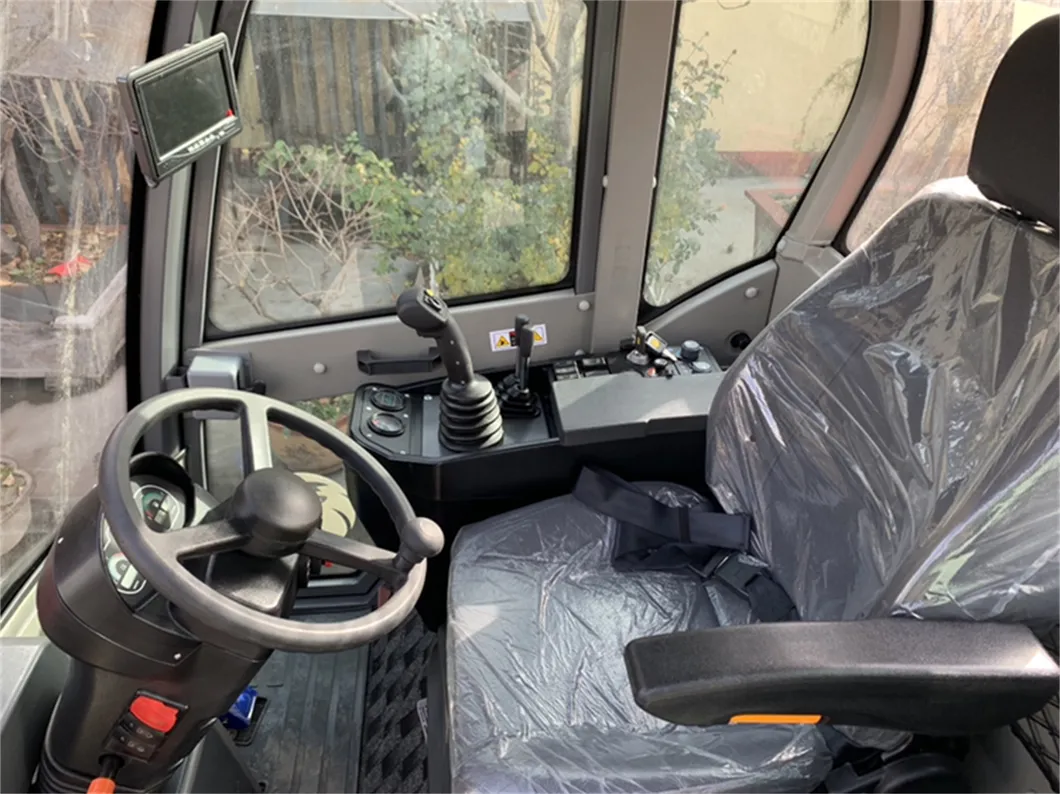

Cabin Detail & Comfort

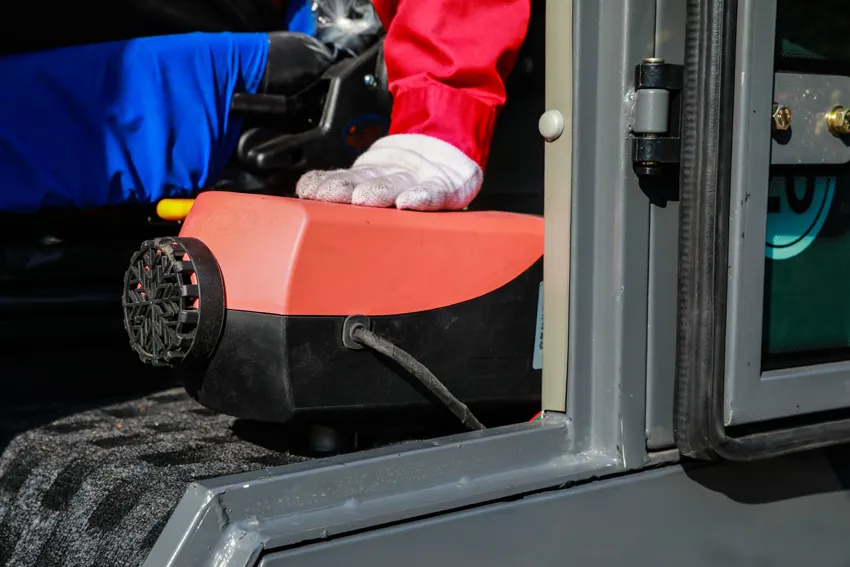

ROPS & FOPS Big room with special cab mounts reduces noise significantly. Special cab heating ensures warmth even in -30°C temperatures. Safety belts keep the user secure at all times.

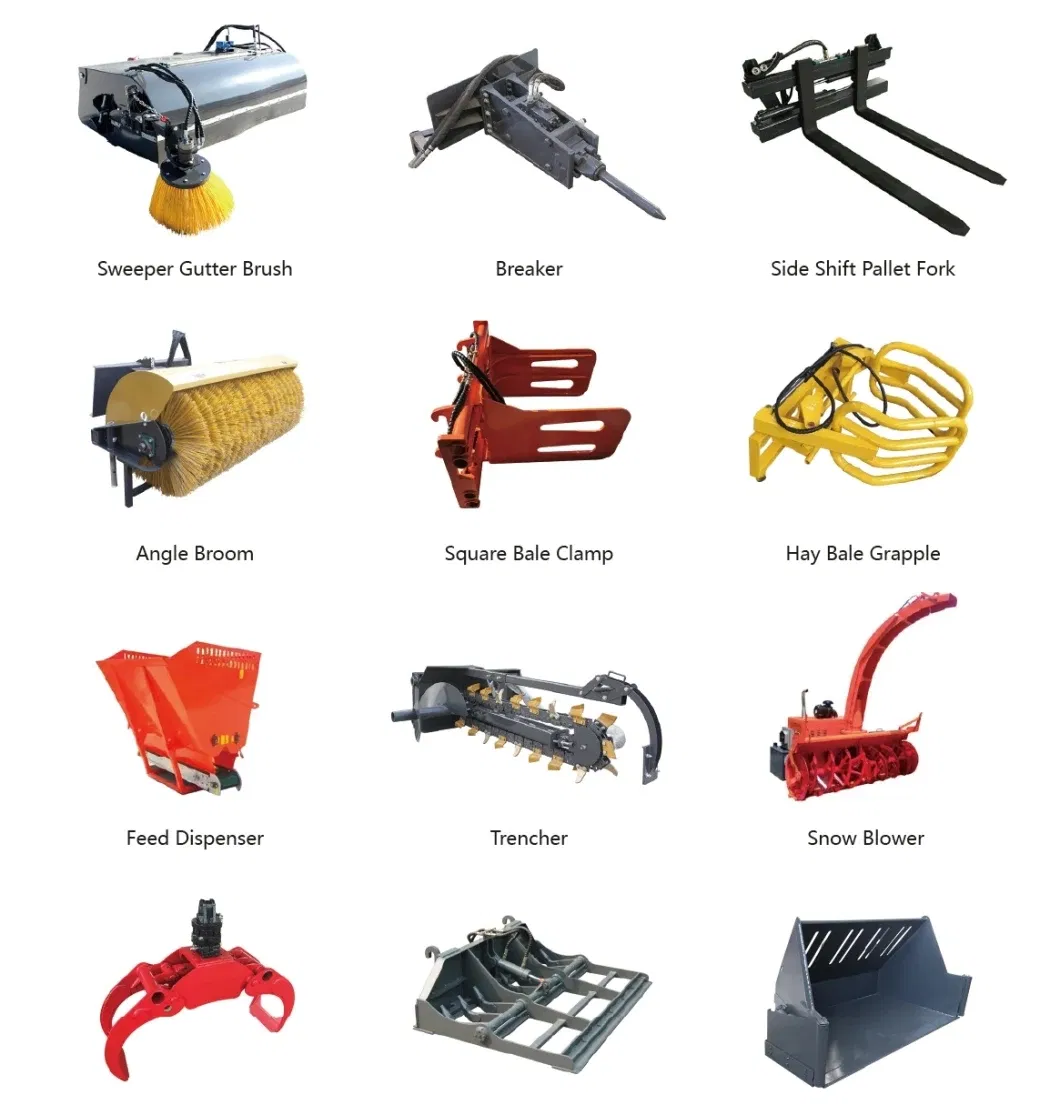

Versatility & Attachments
Over 30 attachments available for different work types. The Quick Hitch system helps users change attachments in just 30 seconds.
Warranty Policy
Our warranty period is 1 year. During this period, if any part of the loader is damaged, simply send us a photo of the part, and we will dispatch a new replacement via express within 3 days!
Frequently Asked Questions
What is the rated load capacity of the HZM809/810?
The loader has a rated load capacity of 900kg to 1000kg, making it ideal for small to medium construction and agricultural tasks.
What safety standards does the cabin meet?
The cabin is built to ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) standards to ensure maximum operator safety.
How long does it take to switch attachments?
Thanks to the Quick Hitch system, users can switch between over 30 different attachments in approximately 30 seconds.
Can the loader operate in extremely cold climates?
Yes, the loader features a special cab heating system designed to maintain a warm interior even in temperatures as low as -30°C.
What is the engine specification for this model?
The loader is equipped with a Euro 5 compliant engine (Changcha ZN390), featuring direct injection and water cooling with a rated power of 25KW.
What is the turning radius and angle?
The machine features a maximum turning angle of 40 degrees and a minimum turning radius of 3800-4200mm for high maneuverability in tight spaces.
