Basic Information & Specifications
| Parameter Item |
Details |
| Model NO. | ZCY |
| Material | Stainless Steel |
| Material Feature | Fire Resistant |
| Certification | ISO9001:2008, ISO9001:2000 |
| Energy Saving | Energy Saving |
| Warranty | 1 Year |
| Color | Yellow |
| Bucket Width | 1480~1770 mm |
| Maximum Dump Height | 1550~1650 mm |
| Maximum Dump Angle | 55° |
| Maximum Travel Speed | 34~36 M/Min |
| Gradability | ±16° |
| Machine weight | 5200 kg |
⚙️
Product Description

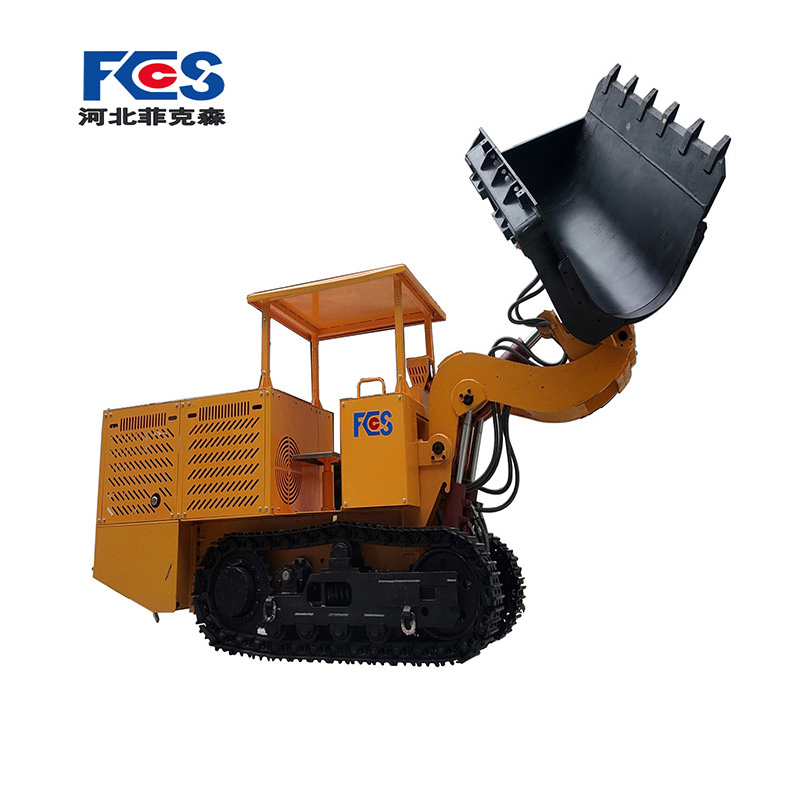

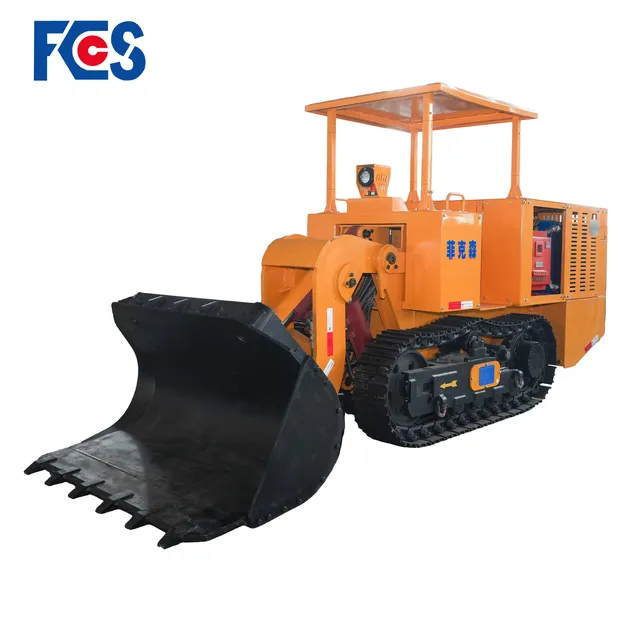

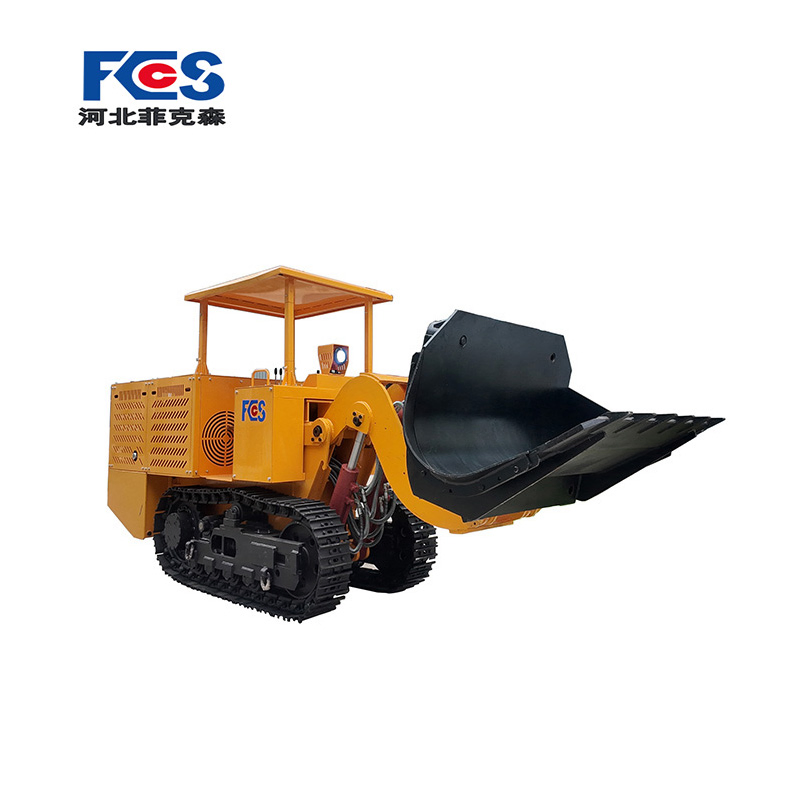

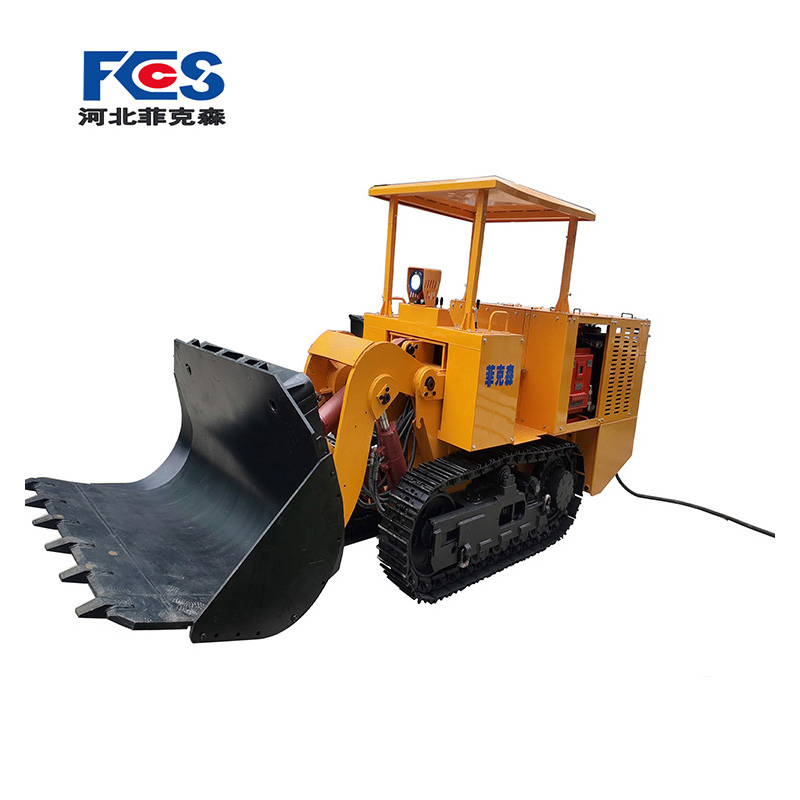

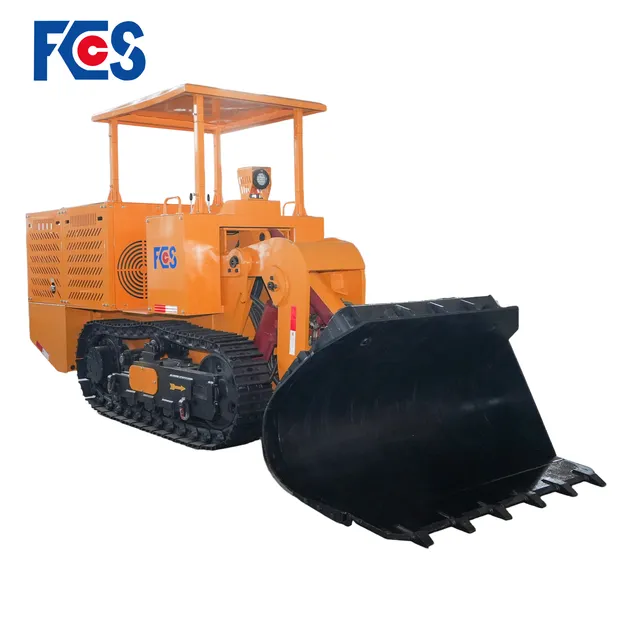

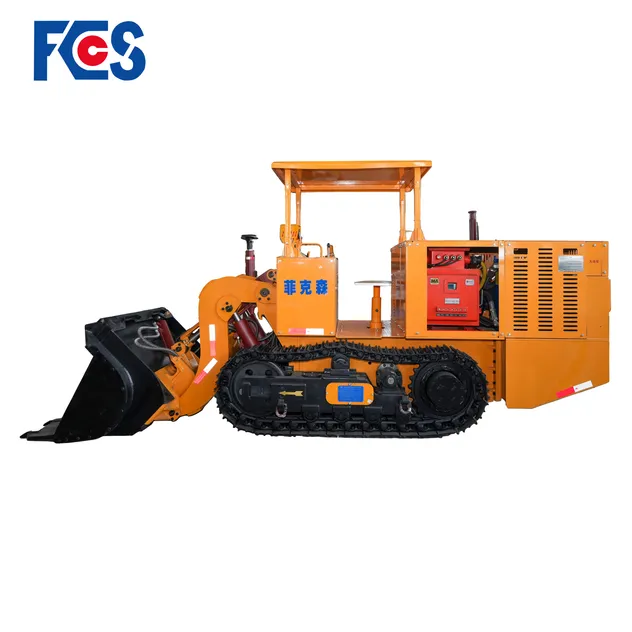

ZCY45R Side Dump Rock Loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways. It can also be utilized in small-section full-rock roadways for loading coal, rock, and other materials. This product features high insertion force, excellent maneuverability, full-section operation, and high safety standards.
Beyond standard loading operations, it serves as a versatile working platform during support work, facilitating short-distance transport, bottom-level work, and sidewall cleaning.
Detailed Technical Specifications (ZCY45R)
| SN |
Parameter Name |
ZCY45R Value |
| 1 | Overall Dimensions (L×W×H) mm | 4500×1200×1560 |
| 2 | Technical Bucket Volume (m³) | 0.45 |
| 3 | Bucket Width (mm) | 1480 |
| 4 | Maximum Unloading Height (mm) | 1550 |
| 5 | Maximum Unloading Angle (°) | 55 |
| 6 | Maximum Travel Speed(m/min) | 34 |
| 7 | Track Shoe Width (mm) | 260 |
| 8 | Hydraulic Pump Motor Power (kW) | 30 |
| 9 | Voltage (V) | 1140/660 |
| 10 | System working pressure (MPa) | 15 |
📐

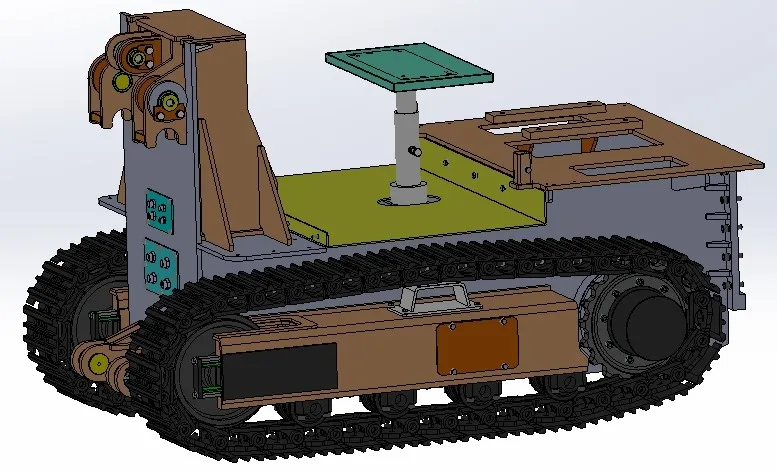

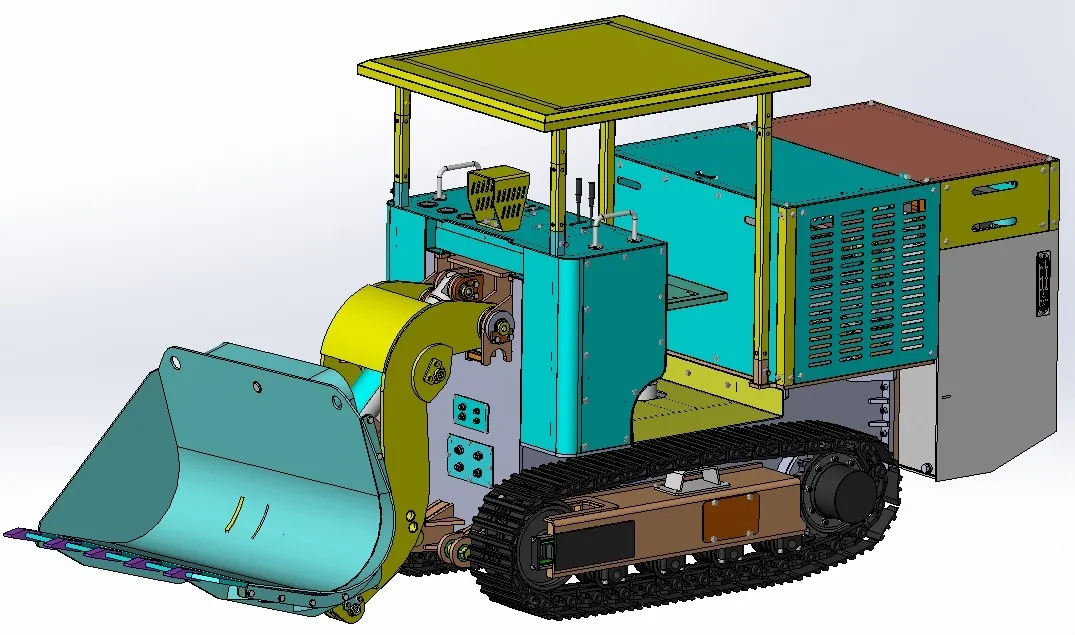

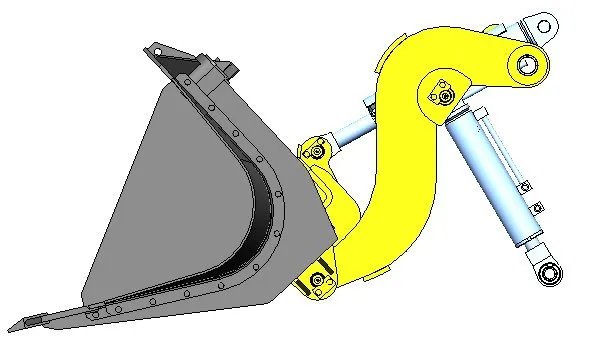

Drawings & Main Components

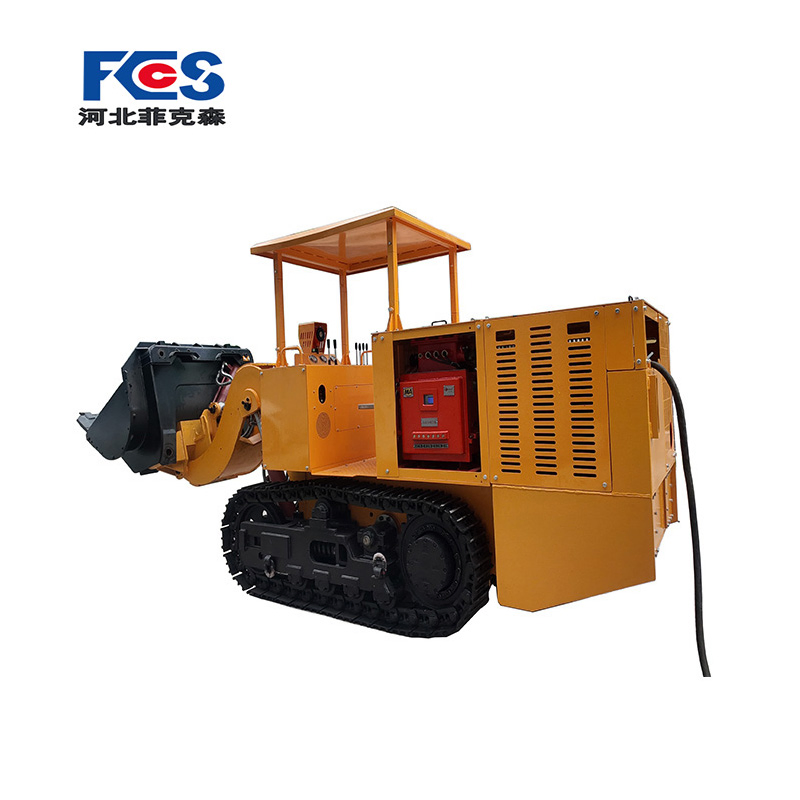

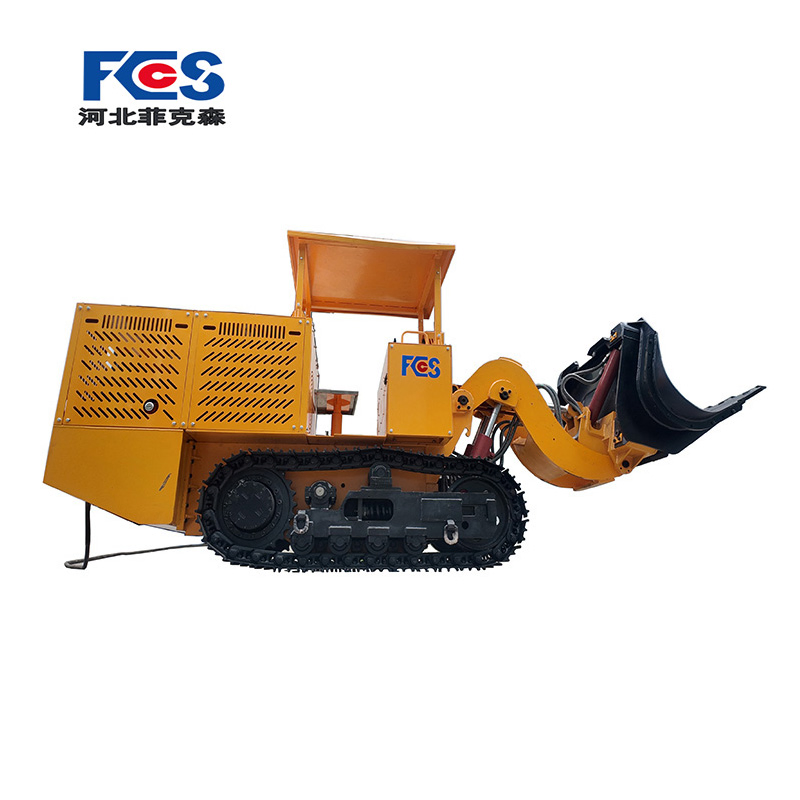

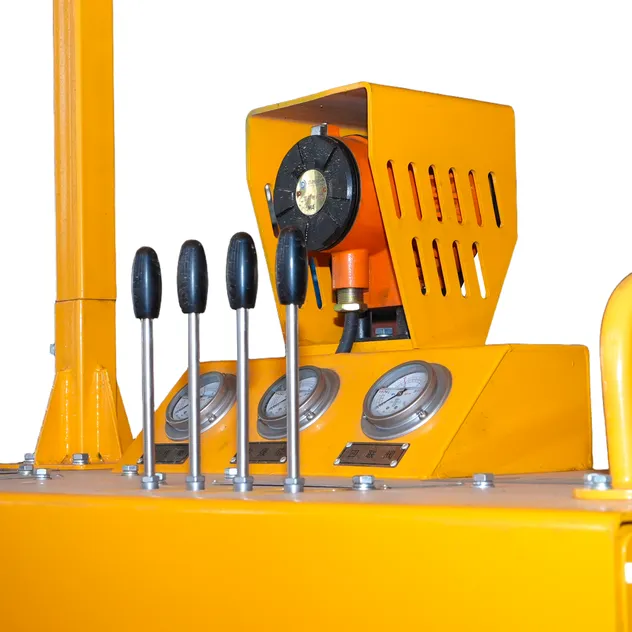

The equipment is a fully hydraulic side-dumping loader powered by an electric motor. It integrates a sophisticated hydraulic system for track movement and bucket operation.
Internal Mechanism & Braking

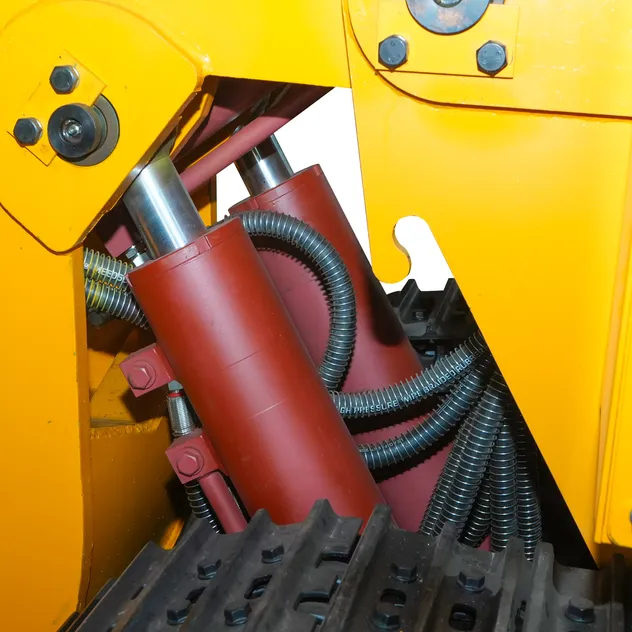

The working mechanism consists of the bucket, bucket base, bucket tilting cylinder, and lifting cylinder. By utilizing a parallel mechanism, lifting is achieved without unwanted tilting. The bucket features wear-resistant steel for handling hard sandstone.
Braking Principle: The machine employs a spring-engaged, hydraulic-released parking brake. It automatically returns to braking mode when the travel handle is released, ensuring maximum safety in underground environments.
🛠️
Service & Support
Standard Warranty
12 months or 2,000 operating hours (whichever comes first).
Global Support
24/7 technical assistance and consistent spare parts supply.
Training
On-site or remote operation and maintenance training for your team.
🏢
Professional Manufacturing
We are a dedicated manufacturer of coal mining machinery, delivering advanced equipment and integrated solutions for underground operations. Our products combine safety, efficiency, and reliability to serve demanding mining environments globally.
Our Core Product Series
❓
Frequently Asked Questions
What roadways is the ZCY45R loader best suited for?
It is primarily designed for coal and semi-coal-rock roadways, but its high insertion force also allows it to operate effectively in small-section full-rock roadways.
Can the side-dumping direction be changed?
Yes, by changing the positions of the bucket and the side-dumping cylinder pins, as well as the relative positions of the bucket baffle, you can switch between left and right side-dumping.
What is the typical lead time for an order?
Standard models generally ship within 15–30 days. For customized units with specific bucket sizes or configurations, the lead time is usually 30–45 days.
Is the bucket durable enough for hard rock?
The front shovel plate of the bucket is manufactured from specialized wear-resistant steel, making it highly suitable for loading abrasive materials like hard sandstone.
How is the machine powered?

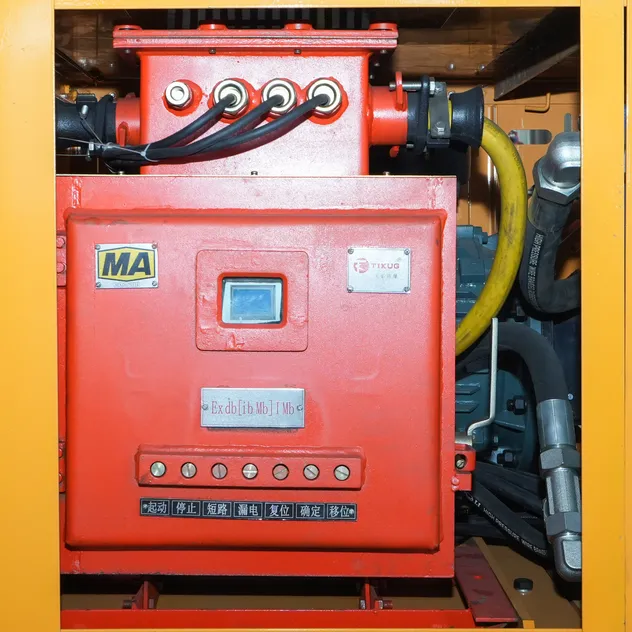

The machine is powered by an explosion-proof electric motor (1140/660V) which drives the hydraulic pumps for all movement and operational functions.
Do you offer customization for specific mine conditions?
Absolutely. Our engineering team can provide tailored designs and attachments to meet the unique dimensions and geological requirements of your project.
