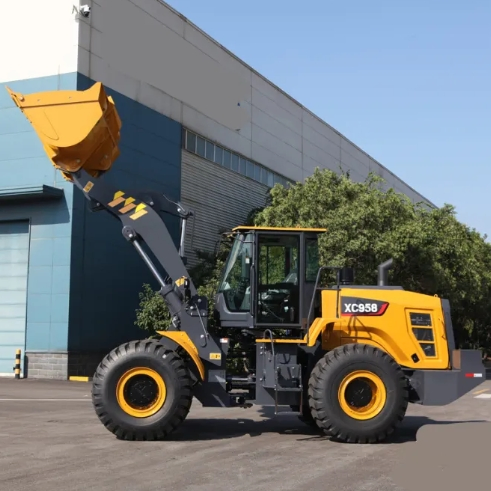

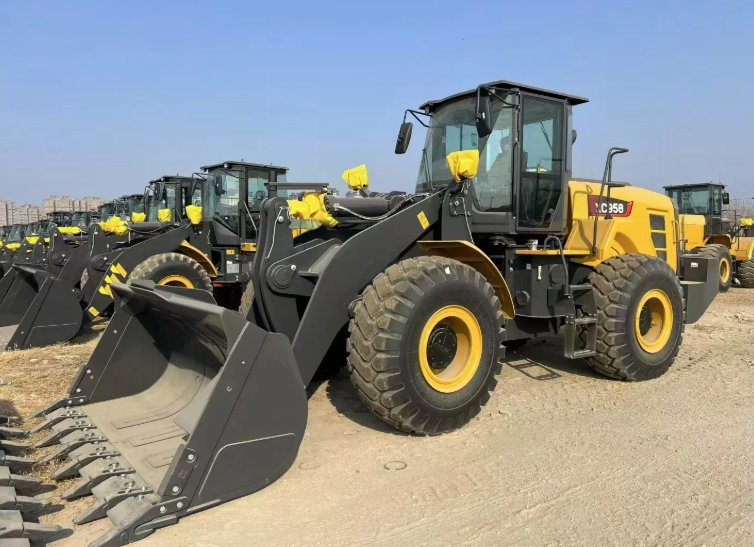

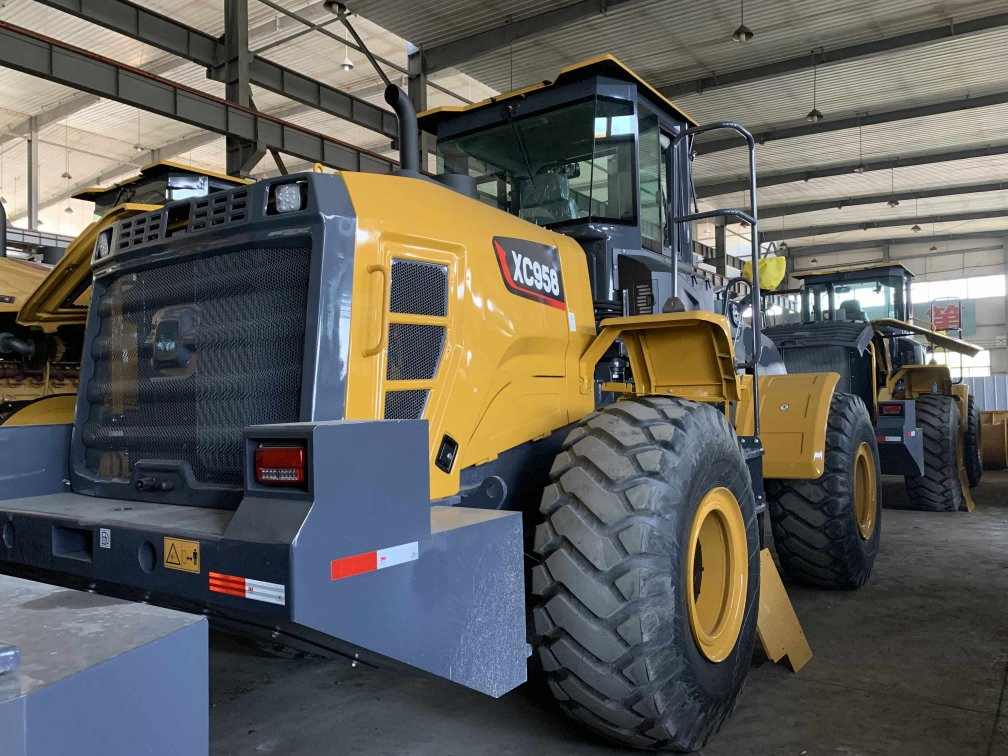

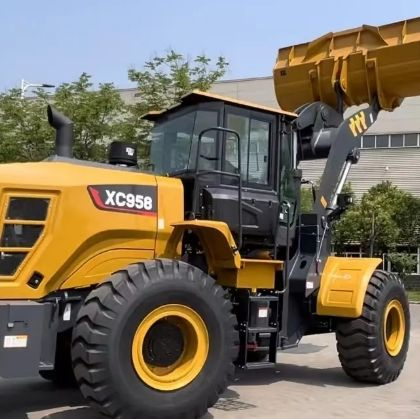

5ton Xc958 Wheel Loader with 3.1m³ Side Dump Bucket

Customization: Available
After-sales Service: Provided
Warranty: 1 Year

Product Description

📋
Basic Info.
Model NO.
XC958
Certification
TUV, ISO, RoHS, CE
Condition
New
Rated Load
3-6t
Transmission
Hydraulic
Load and Unload Mode
Front Discharge
Walking Mode
Wheeled
Type
Medium-sized Loader
Max Breakout Force
170 kN
Max Traction
160 kN
Turning Radius
5990 mm
Lift Time of Boom
5.5 Seconds
Total Hyd Cycle Time
10 Seconds
Machine Weight
16900kg
Power
164kw / 219HP
Origin
China
📦
Packaging & Delivery
Package Size
1450.00cm * 2500.00cm * 2500.00cm
Package Gross Weight
10000.000kg
🏢
Company Profile
Overview
🚜
Product Description

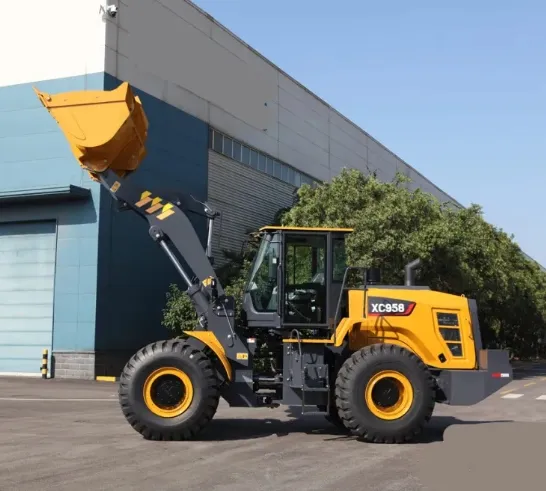

XC958 Loader

XC958

The XC958 5 ton wheel loader is designed for heavy-duty operations in construction, mining, agriculture, and material handling. Equipped with a powerful engine, reinforced structural components, and an advanced hydraulic system, it delivers outstanding productivity, low fuel consumption, and long-lasting performance. With a large bucket capacity and strong breakout force, it can efficiently load and transport sand, gravel, coal, minerals, or agricultural materials. The operator-friendly cab design and responsive control system ensure high comfort and work efficiency, even in challenging environments.

Main Features:

  • High Power & Strong Lifting Capacity – Handles heavy-duty tasks with ease.
  • Heavy-Duty Frame – Built to withstand demanding working conditions.
  • Fuel Efficiency – Optimized engine and hydraulic system reduce operating costs.
  • Comfortable Operation – Spacious cab with ergonomic controls and wide visibility.
  • Easy Maintenance – Accessible service points for quick and simple upkeep.
  • Wide Application Range – Suitable for construction, mining, agriculture, ports, and more.
📊
Product Parameters
Description Unit XC958
Rated operating loadkg5000
Bucket capacity2.5~5
Machine weightkg16900
Dump clearance at maximum liftmm3150~3560
Reach at maximum liftmm1100~1190
Wheel basemm2960
Treadmm2250
Height of hinge at maximum lift heightmm4112
Working height(fully lifted)mm5510
Max. breakout forcekN170
Hydraulic cycle time-raises≤6
Total hydraulic cycle times≤10.5
Min. turning radius over tyresmm5950
Articulation angle°35
Gradeability°28
Tyre size-23.5-25-16PR
Overall machine dimension L×W×Hmm7910×3016×3515
Rated PowerkW162
📸
Detailed Photos

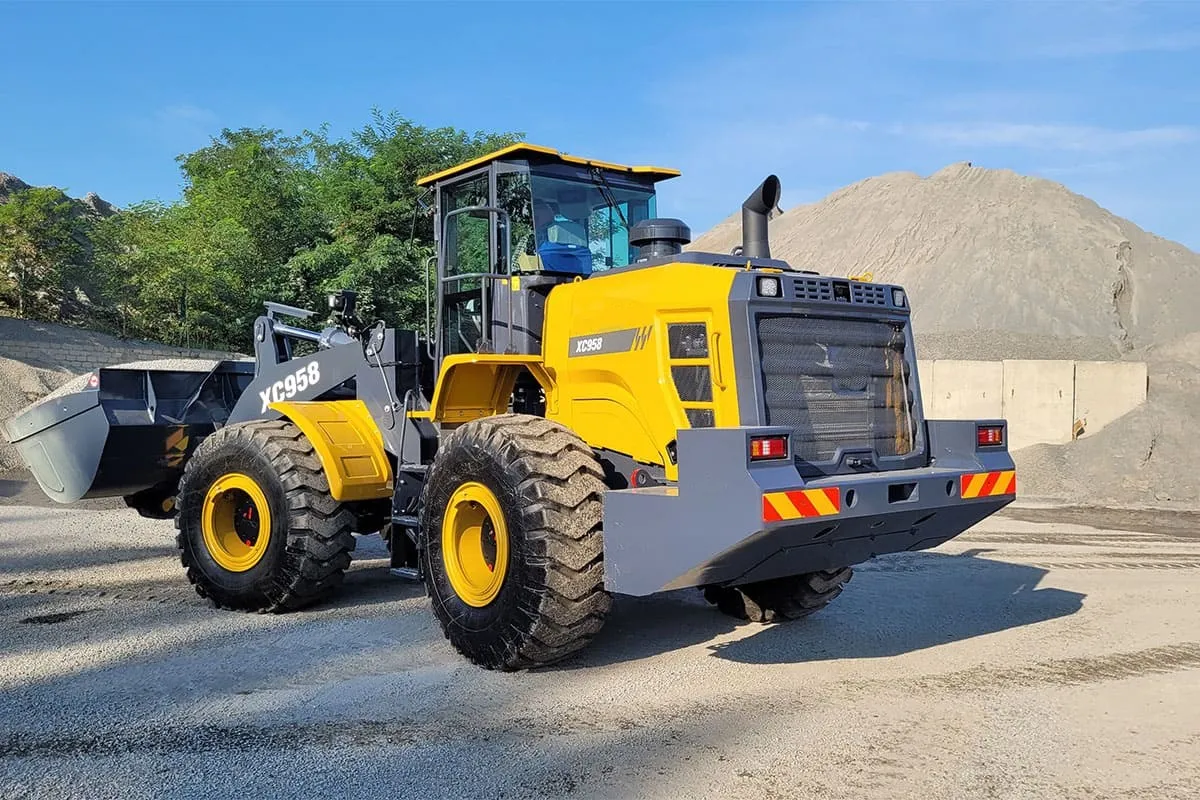

Detail 1

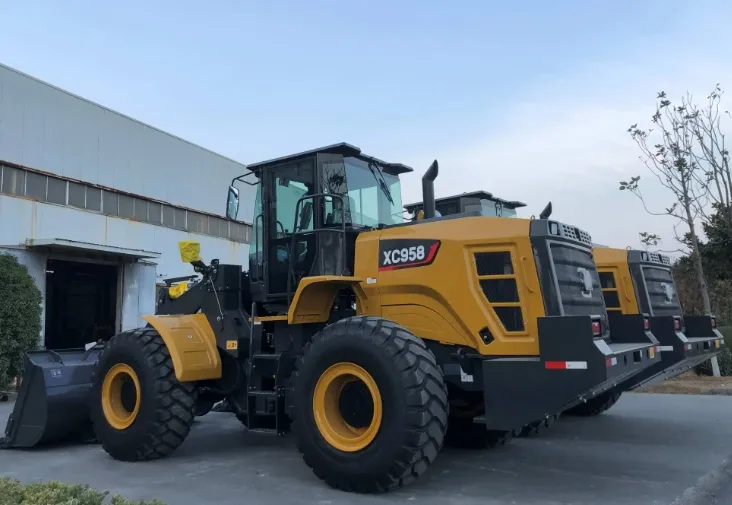

Detail 2

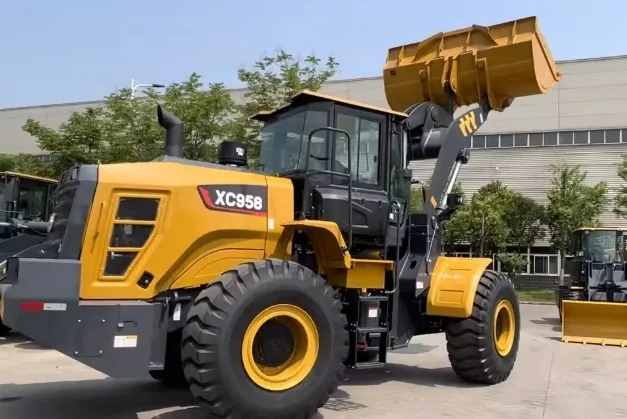

Detail 3
Detail 4

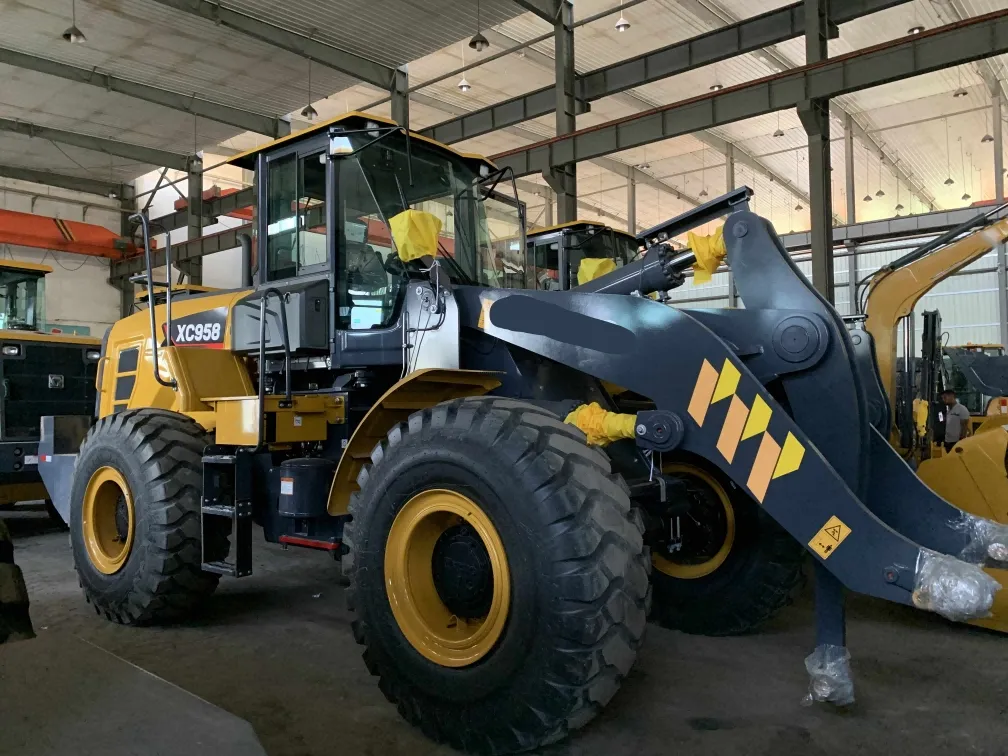

Detail 5
Detail 6
🏭
Company Information
Factory 1
Factory 2

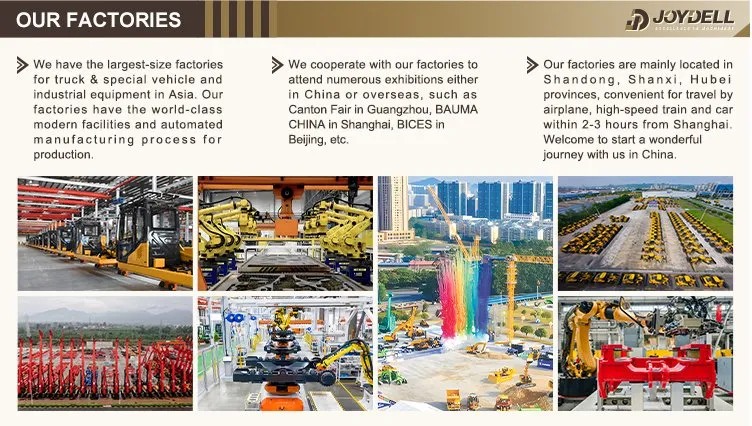

Factory 3
Factory 4
Factory 5
Factory 6
Factory 7
Factory 8
Factory 9
Factory 10
Frequently Asked Questions
What is the rated load capacity of the XC958?
The XC958 wheel loader has a rated operating load capacity of 5,000 kg (5 tons), making it ideal for heavy-duty material handling.
What kind of engine power does this loader provide?
It is equipped with a powerful engine providing 164kW (219HP), ensuring strong traction and breakout force for demanding environments.
Is the XC958 certified for international markets?
Yes, the XC958 meets various international standards and holds certifications including TUV, ISO, RoHS, and CE.
What are the main applications for this wheel loader?
This loader is highly versatile and suitable for construction sites, mining operations, agricultural work, and port material handling.
How efficient is the hydraulic system?
The XC958 features an advanced hydraulic system with a total cycle time of approximately 10.5 seconds and a boom raise time of less than 6 seconds.
What is the maximum breakout force?
The machine delivers a maximum breakout force of 170 kN, providing the power needed for tough digging and lifting tasks.
