Basic Specifications
Transmission
Hydraulic - Mechanical

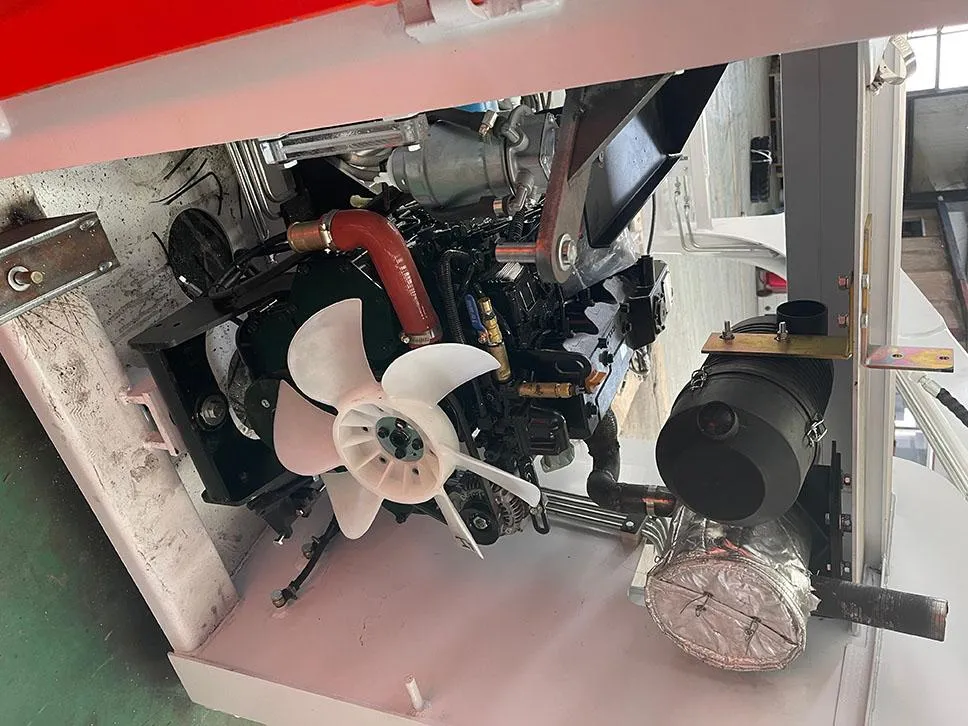

Engine Type
3-Cylinder / 4-Cylinder
Specification
2950mm*1402mm*2050mm
Production Capacity
10000sets/Year
🏗️
Product Description

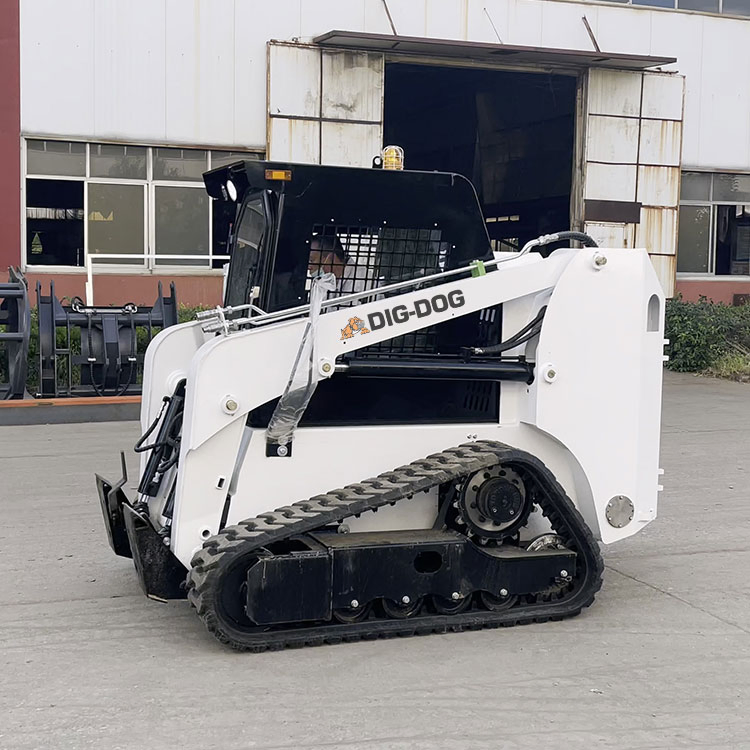

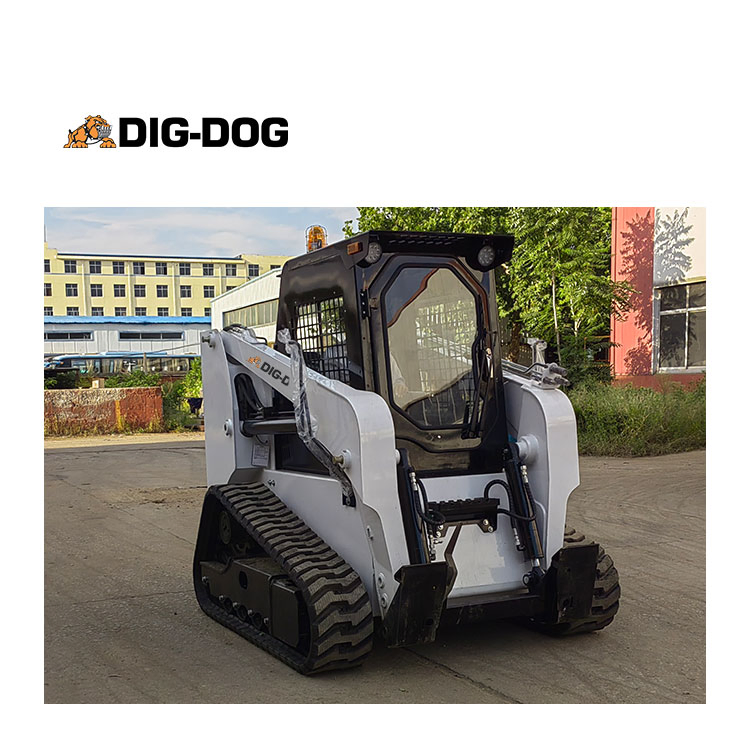

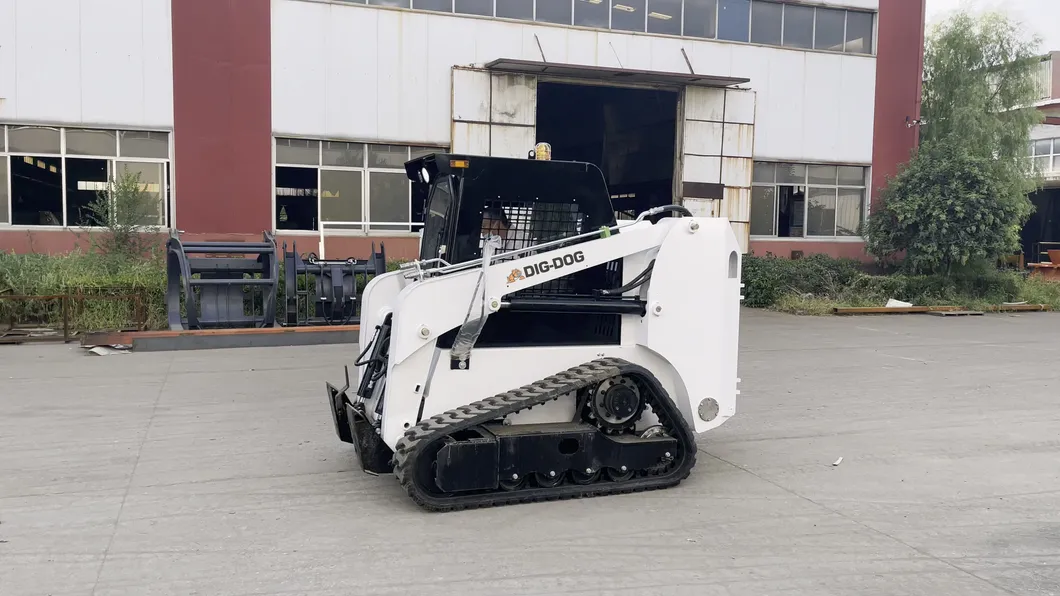

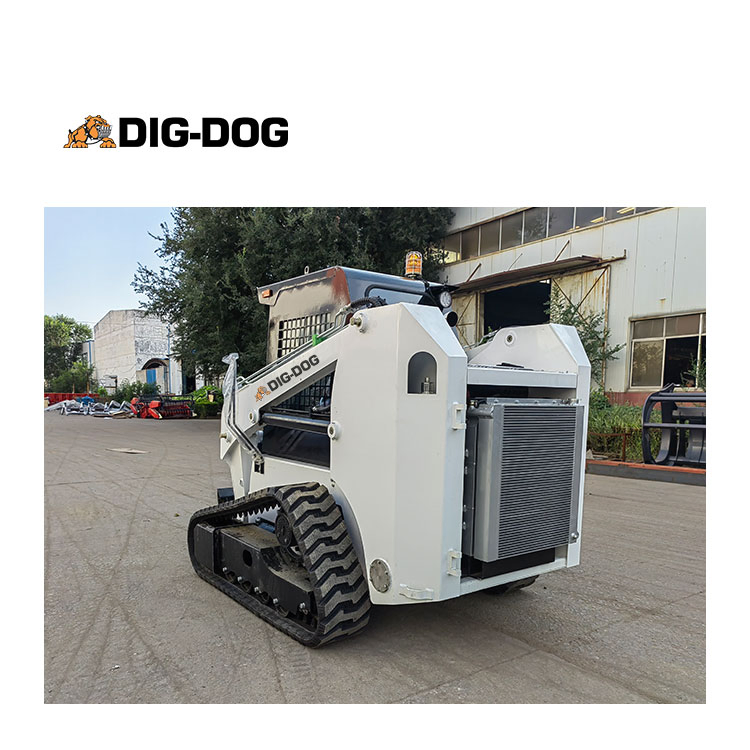

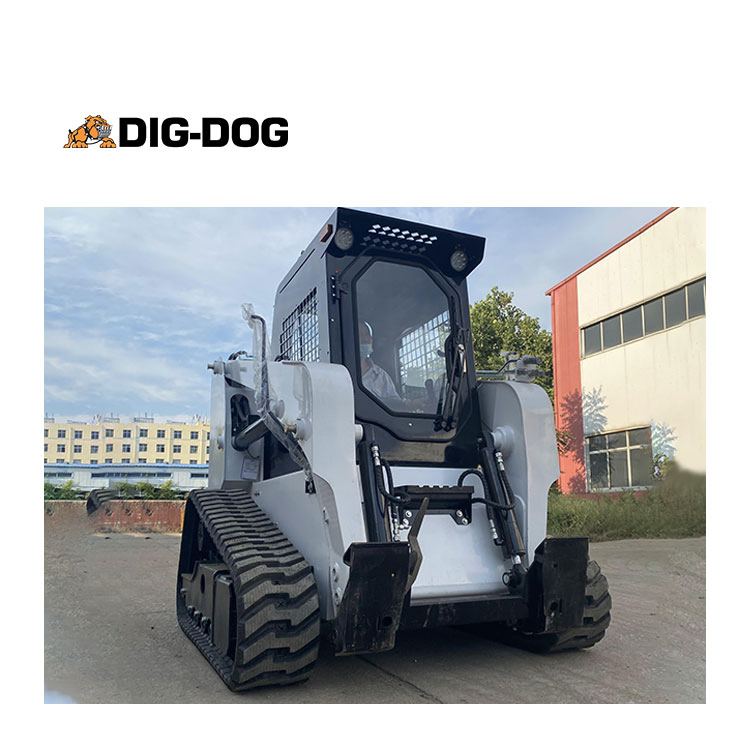

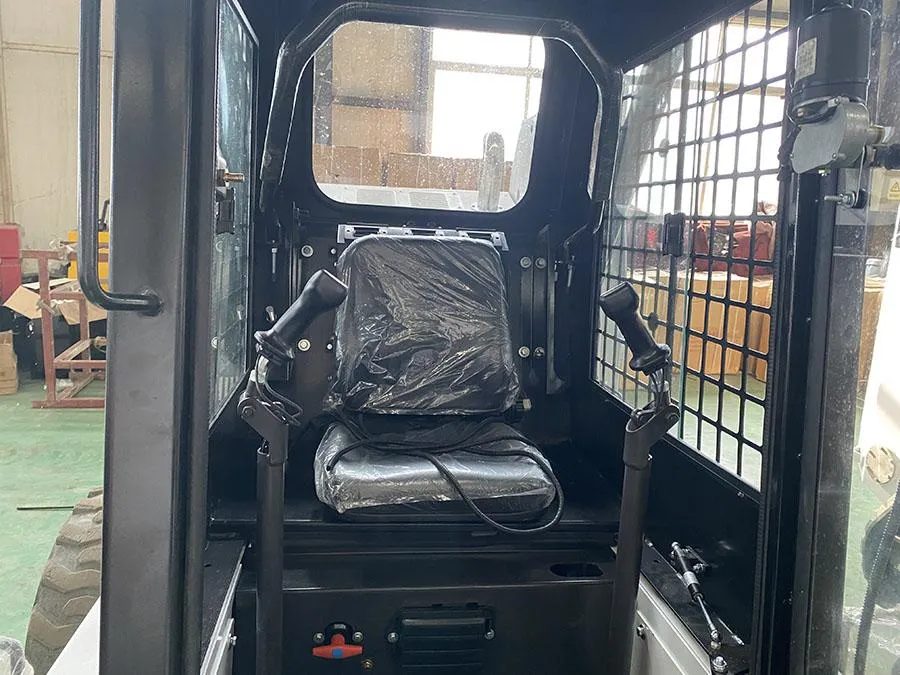

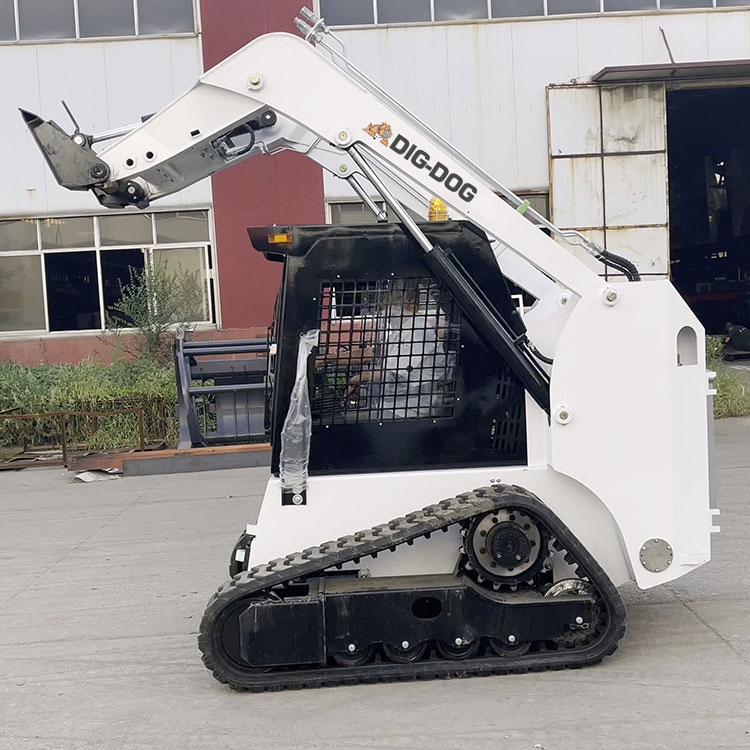

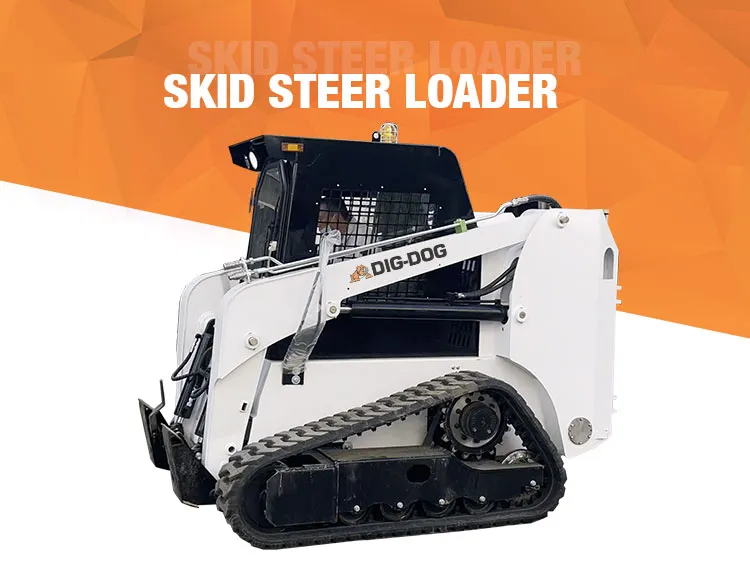

This crawler skid steer boasts a compact structure, making it ideal for maneuvering in narrow spaces. The cabin joystick control system is enclosed, with dual throttle control and an automatic leveling system. This versatile machine supports a wide range of attachments and features hydraulic brakes for safety and efficiency.

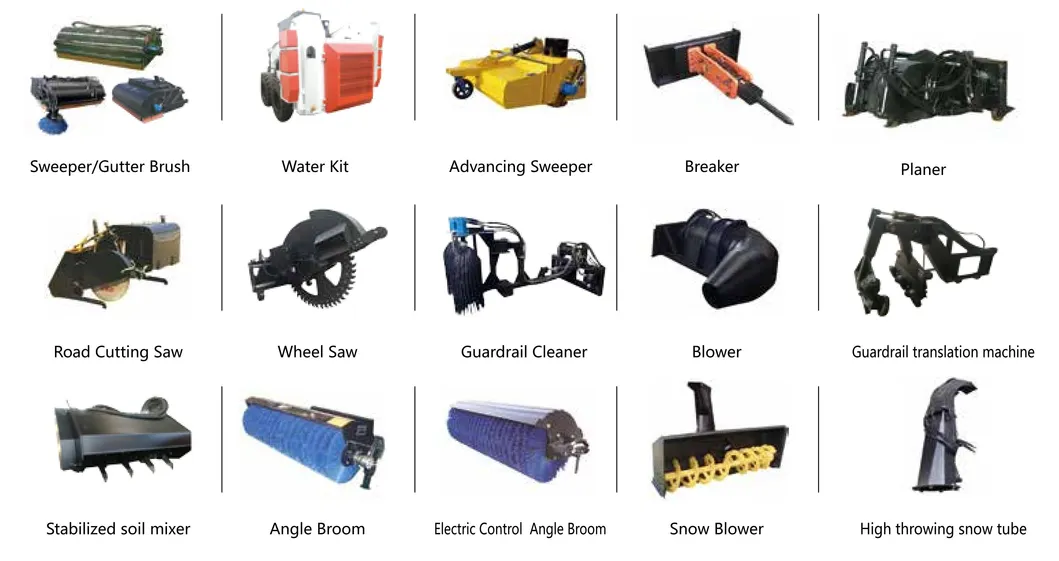

🛠️ Attachment Function Introduction
- Material Loading and Unloading: Fork shovel, standard bucket, combination shovel, sieve shovel.

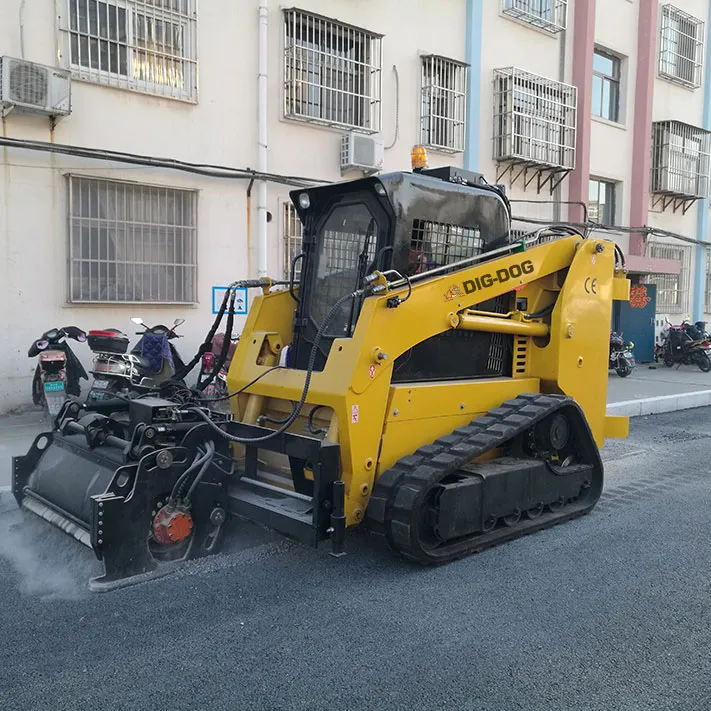

- Municipal Maintenance: Angled sweepers, closed sweepers, crushing hammers, vibratory compactors, milling machines, trenchers, snow pushers, throwers.
- Construction: Excavators, mixers, disk trenchers, digging arms, bulldozers.
- Logistics & Handling: Holding forks, tandem bars, soft pack clamps, crane hooks, side shifting forklifts.

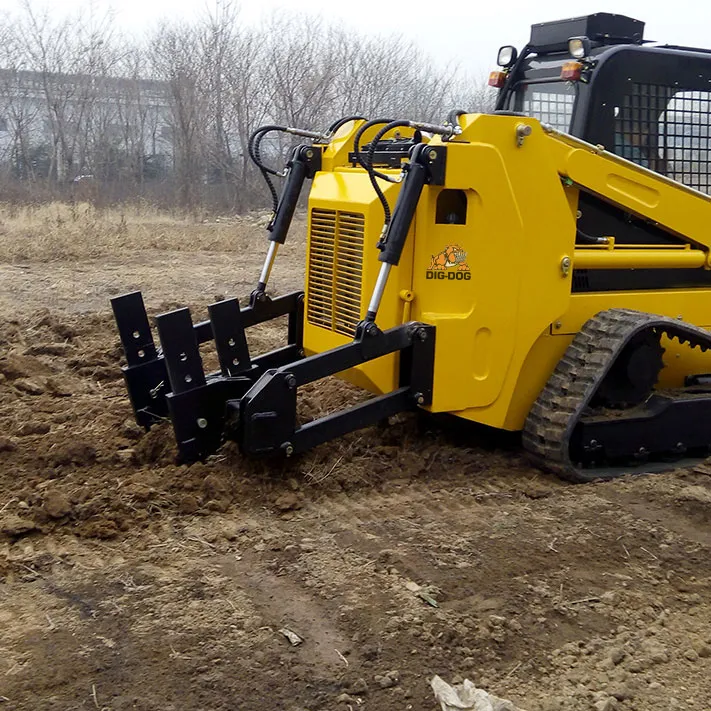

- Gardening & Agriculture: Grass forks, tree removers, graders, lawn mowers, rototillers, augers.
| Specifications |
CSL50 |
CSL65 |
CSL100 |
CSL120 |
| Operating load (kg) | 700 | 1000 | 1200 | 1500 |
| Max Speed(km/h) | 10 | 12 | 12\18 | 12\18 |
| Rated flux (L/min) | 60 | 80 | 88 | 88 |
| High Flow Flux (L/min) | * | 120 | 140 | 140 |
| Rated power (Kw) | 36 | 55 | 74 | 103 |
| Fuel tank capacity (L) | 50 | 90 | 90 | 90 |
| Self weight bucket (kg) | 2800 | 3800 | 4500 | 4800 |
| Bucket capacity (m³) | 0.3 | 0.5 | 0.55 | 0.6 |
🌐
Wide Applications
These skid steer loaders are extensively used in engineering construction, port handling, municipal construction, gardening, sanitation, water conservancy, agriculture, and various other fields. In addition to offering a comprehensive range of skid steer mainframes, we independently develop and manufacture related accessories such as excavators, drills, trenchers, and specialized work tools based on user needs.
❓
Frequently Asked Questions
What are the advantages of your brand?
We proudly manufacture our products locally, using high-quality materials and parts sourced from the best suppliers. Our design team collaborates closely with customers to accommodate any customized orders.
How do I choose the right Skid Steer Loader?
Consider the size needed for efficiency, your specific job surface, lift capabilities, the control system, additional functional features, and required attachments.
Can you supply backhoe loader attachments?
Absolutely, we can provide you with fully functional excavation attachments tailored for your specific backhoe loader needs.
Which payment terms do you accept?
We accept T/T bank transfers and 100% irrevocable L/C.
What about the warranty time?
Our warranty covers 12 months after shipment or 2000 working hours, whichever comes first.
What about the delivery time?
Delivery time typically ranges from 7-30 days after receiving the deposit, depending on the order configuration.
