Titan Forklift
1 / 5
| Model | TWS45 |
| Transmission | Hydraulic - Mechanical |
| Load and Unload Mode | Front Discharge |
| Walking Mode | Wheeled |
| Type | Small Loader |
| Overall Length | 3420 mm |
| Overall Width | 1740 mm |
| Hinge Pin Height | 3100 mm |
| Rated Operating Capacity | 850 Kg |
| Tipping Load | 1700 Kg |
| Production Capacity | 5000 units/year |
| Origin | China |

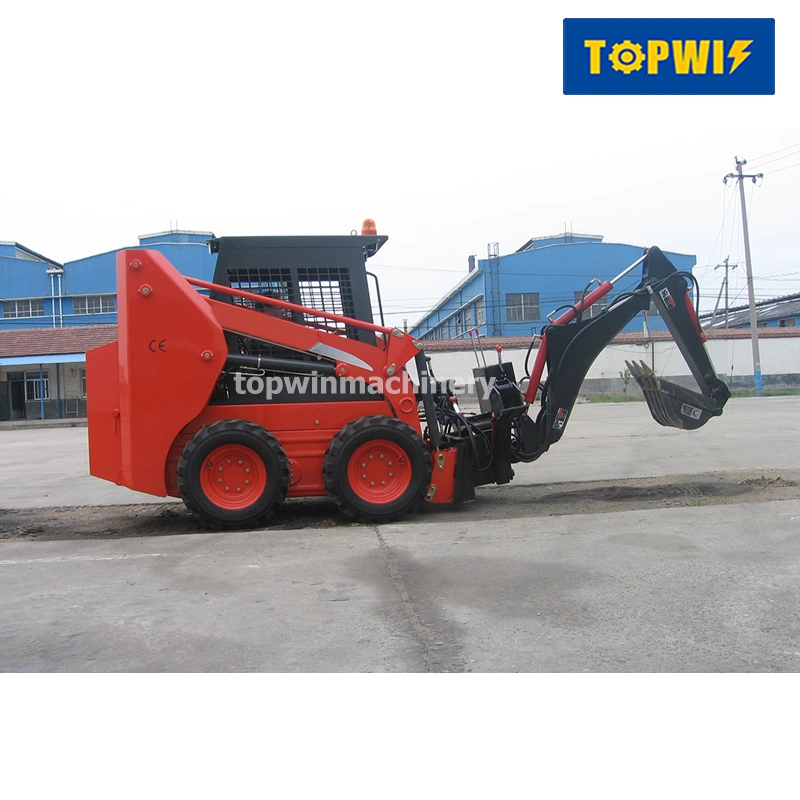

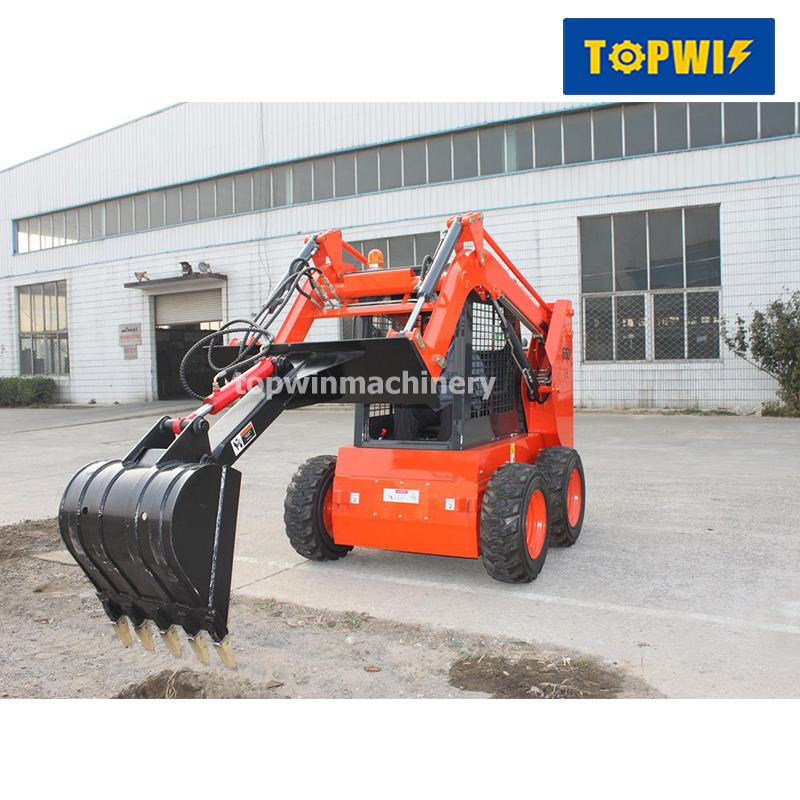

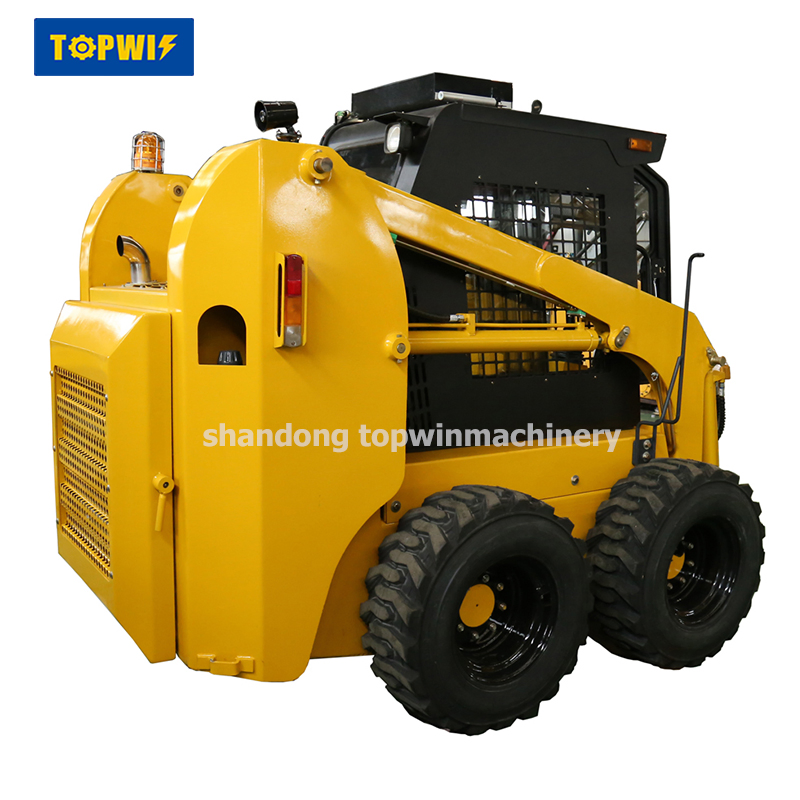

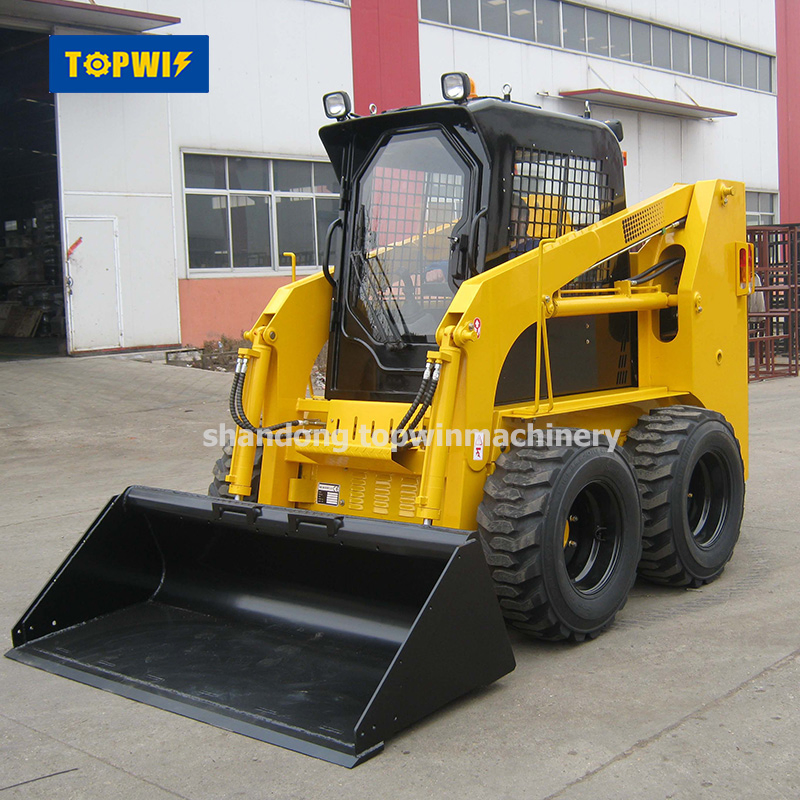

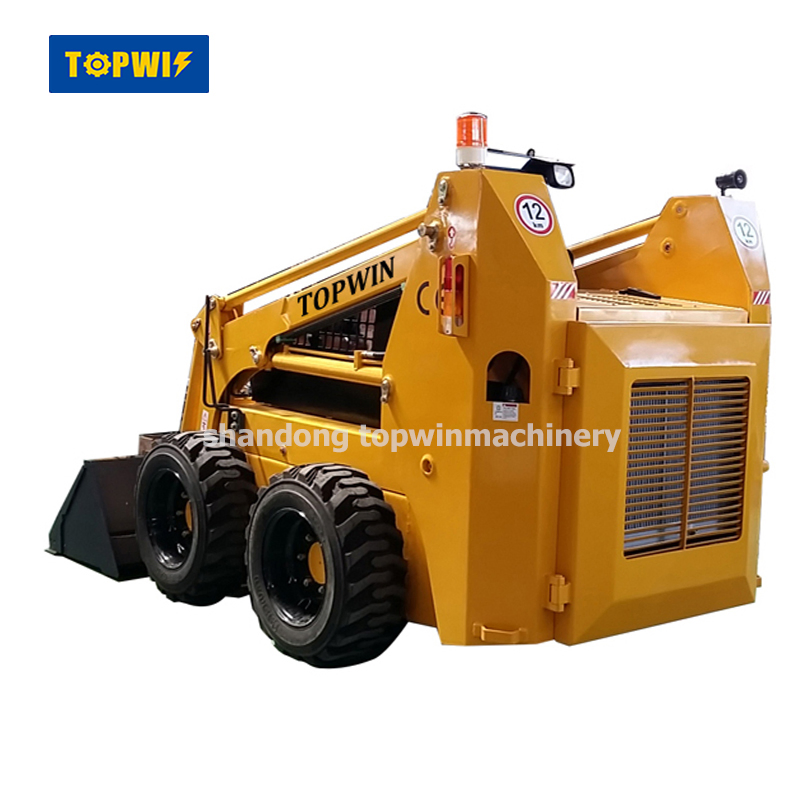

Powerful Micro Side Skid Steer Loader Shovel

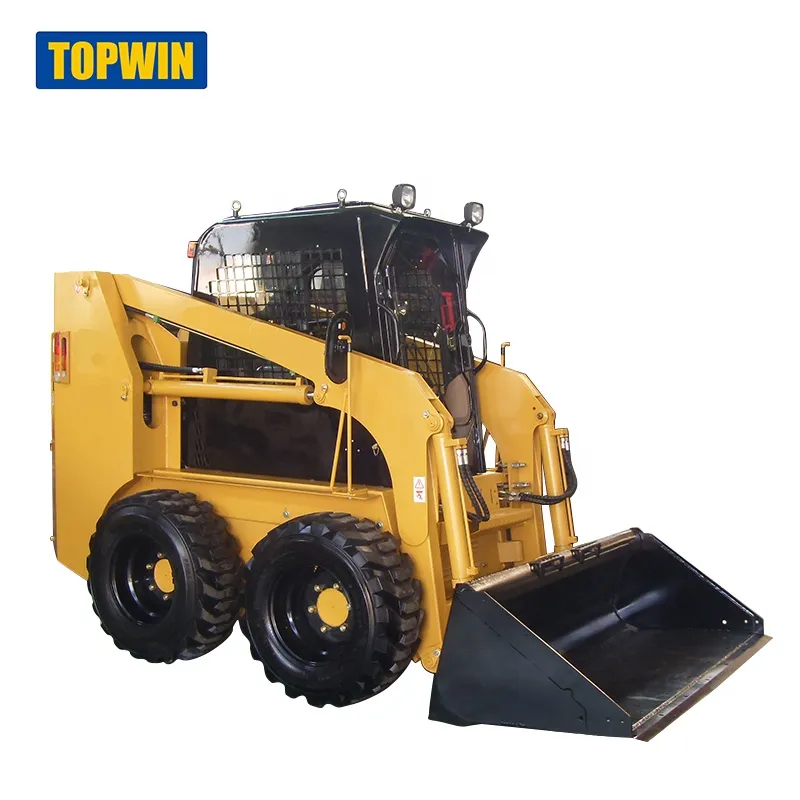

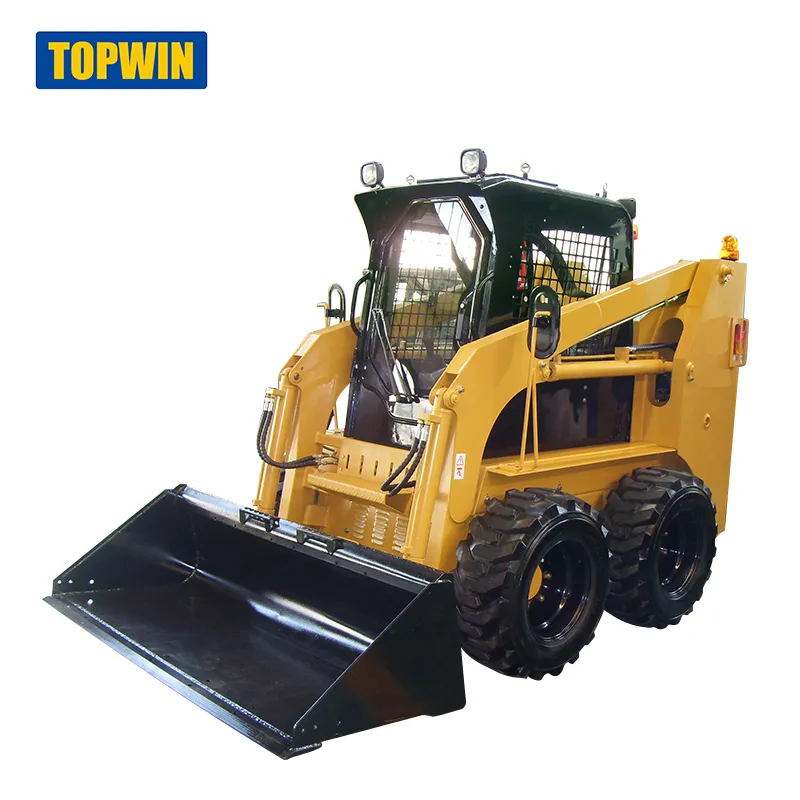

This skid steer loader is engineered to be compact yet powerful, designed specifically for navigating tight spots where traditional machinery cannot reach. It is an ideal solution for modern construction and maintenance needs.
📍 Applications:
| Item | Specification | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
|---|---|---|---|---|---|---|---|---|
| 1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
| 2 | Max Speed (km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
| 4 | Rated power (kW) | 29.5 | 37 | 45 | 55 | 74 | 55 | 74 |
| 5 | Self weight (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
| 6 | Bucket capacity (m³) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
| 7 | Dumping height (mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
| 8 | Wheelbase (mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |

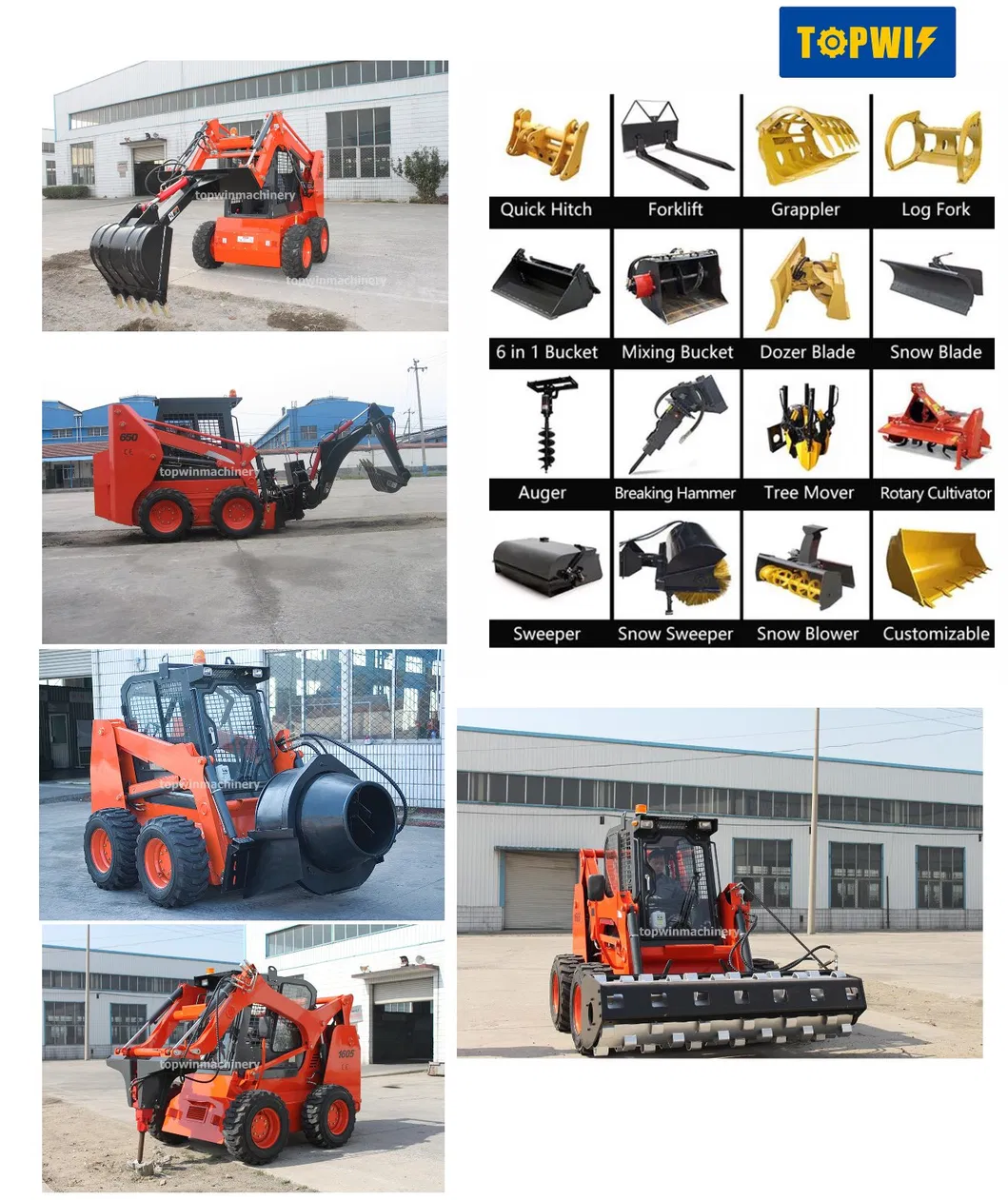

This loader is a versatile tool carrier fully equipped to run numerous job-matched attachments:
Available Tools: Backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger, mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, pavement miller, ripper, tillers, grapple, tilt, roller, snow blade, wheel saw, cement mixer, wood chipper machine, etc.
20ft Container: Loads 3 units of standard machines.
40ft HQ Container: Loads 7 units of standard machines.
As a one-stop solution provider for construction, mining, agricultural, and logistic machinery, we bring over 10 years of industry experience. We have served a global clientele across multiple continents, helping clients succeed in every project by offering high cost-effective and reliable machines.
