Basic Specifications
Certification
TUV, ISO, RoHS, CE
Engine
Weichai/Yuchai/Cummins
Product Description & Features
🚀
High Reliability: Designed for high productivity with a powerful CUMMINS, WEICHAL Deutz or YUCHAI engine.
⚙️
Advanced Transmission: Torque converter and counter-shaft transmission gearbox assembled separately for easier maintenance.
🕹️
Easy Operation: Fully hydraulic steering system and power shift transmission ensure smooth handling.
🏢

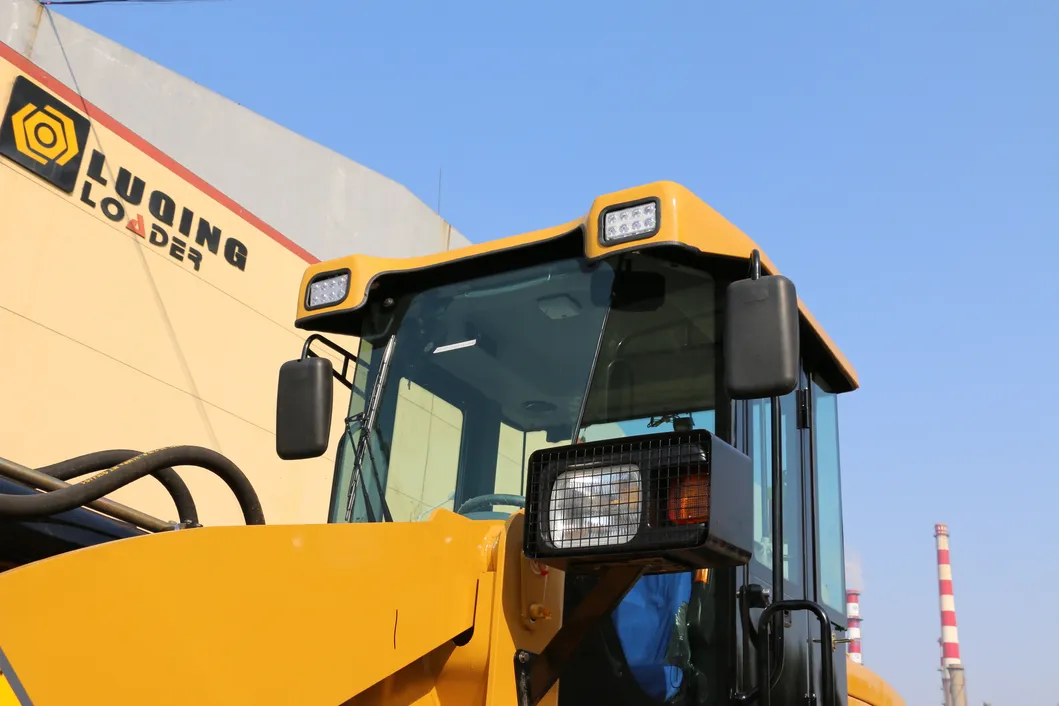

Cabin Comfort: New design cabin with optional air-conditioner and backup camera for a superior working environment.
🛠️
Versatility: Various attachments available including log clamp, pipe clamp, grass fork, plow, and ore bucket.
Technical Parameters
| Parameter |
Value |
| Rated weight | 3000Kg |
| Rated capacity | 1.7m3 |
| Operating weight | 9500kg |
| Dump distance | 1200mm |
| Wheel base | 2760mm |
| Max. breakout force | 138KN |
| Max. dumping height | 3200mm |
| Dimensions | 7050×2430×3120mm |
Engine & Drive System
| Component |
Specification |
| Engine Model | WEICHAI WP6G125E22 / CUMMINS 6BT5.9-C125 / YUCHAI YC6B125-T10 |
| Rated Power/Speed | 92kw/2200rpm |
| Max. Torque | 515N.m |
| Torque Converter | YJ320B-1 (3-element single stage) |
| Transmission Type | Full-power shift, countershaft type |
| Gears | 4 Forward, 2 Reverse |
| Max. Travel Speed | 40km/h |

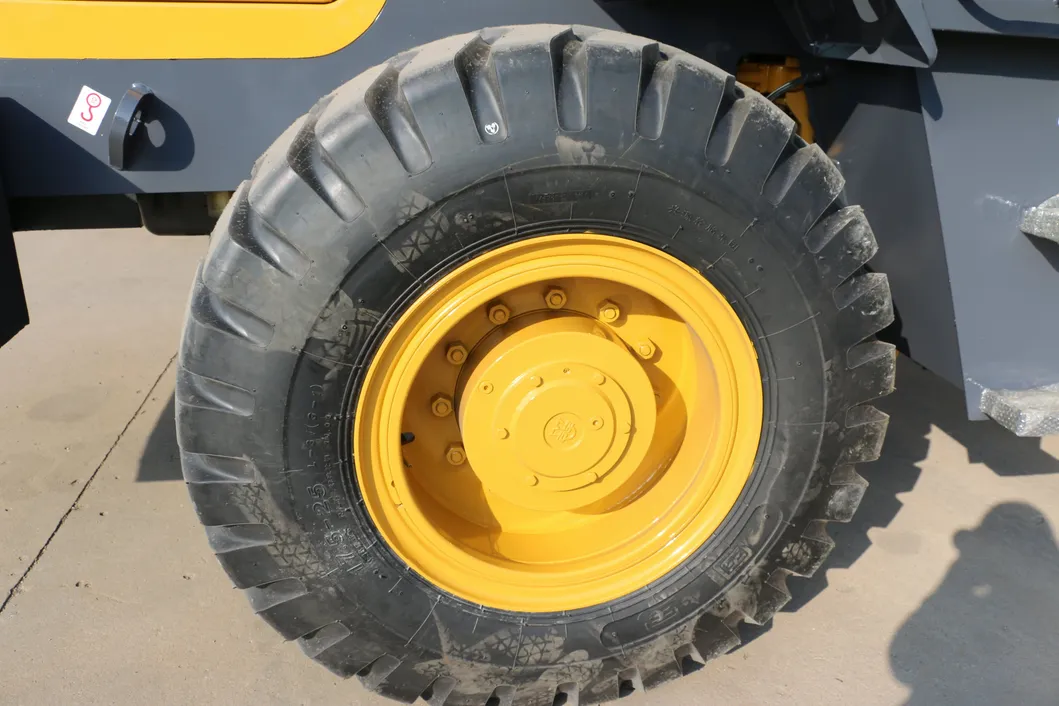

| Tire Size | 17.5-25 |
Product Gallery
Frequently Asked Questions

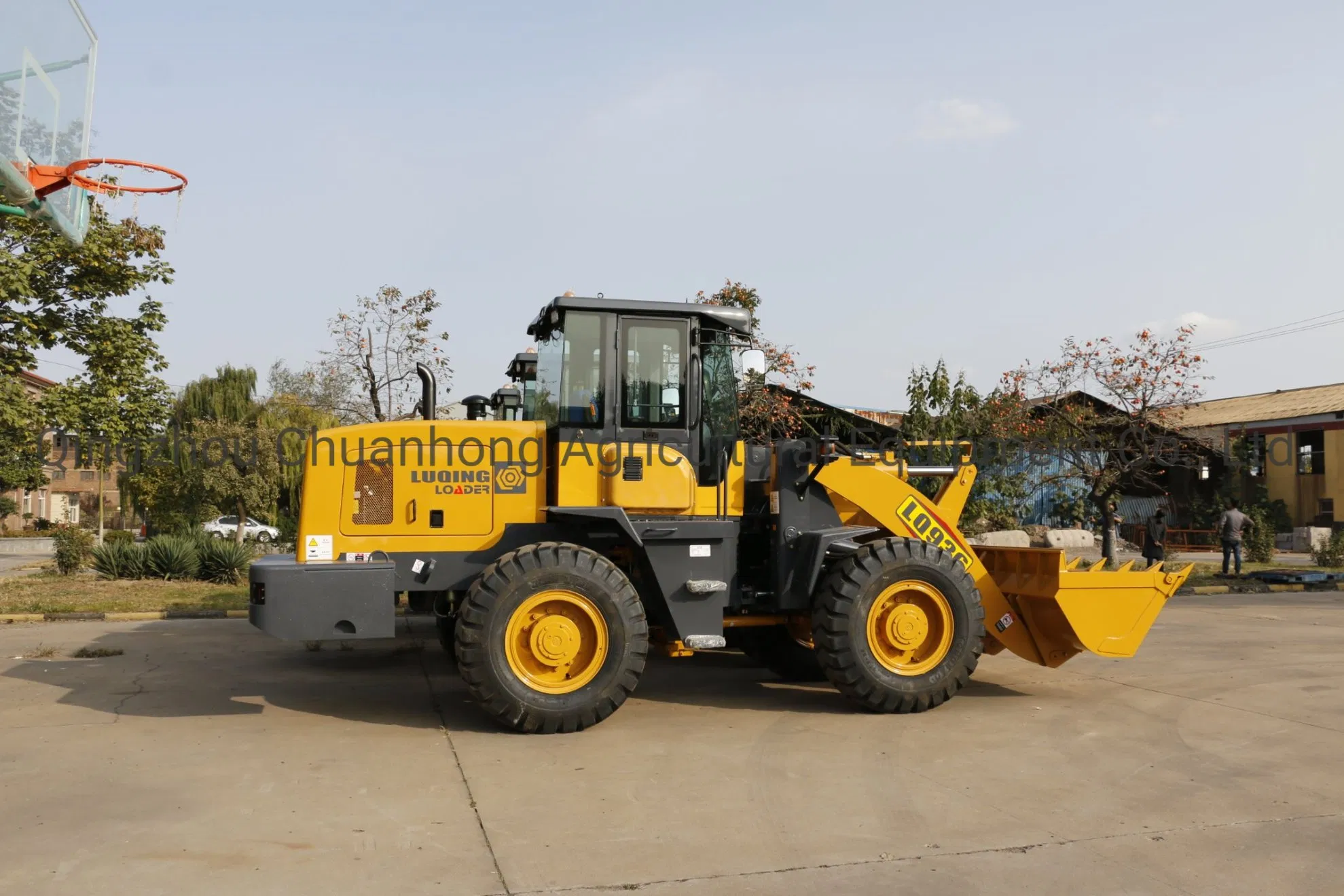

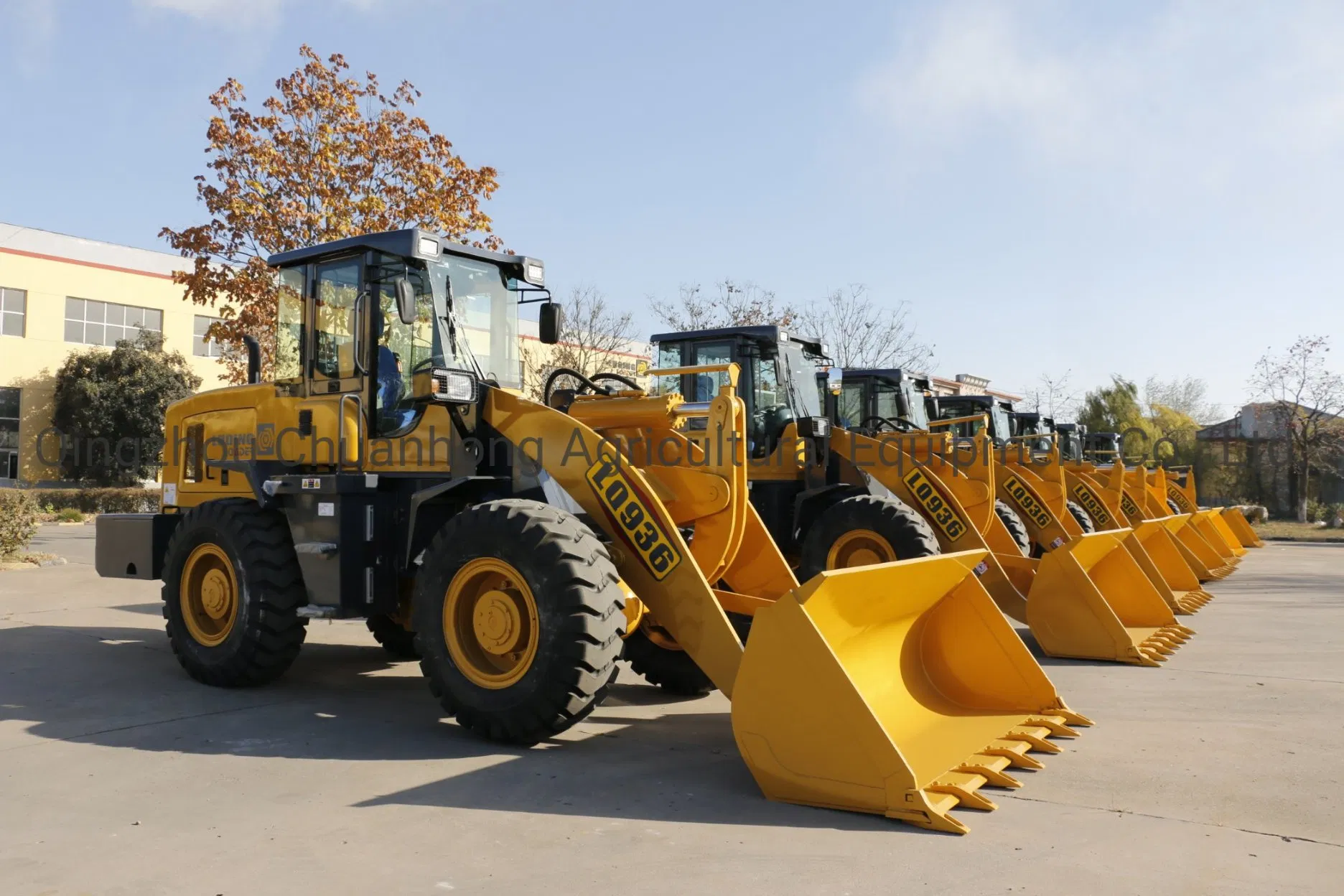

What engine options are available for the LQ936 model?
The LQ936 wheel loader can be equipped with WEICHAI, YUCHAI, or CUMMINS engines, providing powerful and reliable performance tailored to your requirements.
What is the maximum rated load capacity?
This model is designed for a rated load capacity of 3000kg (3 tons), making it suitable for medium to large-scale operations.

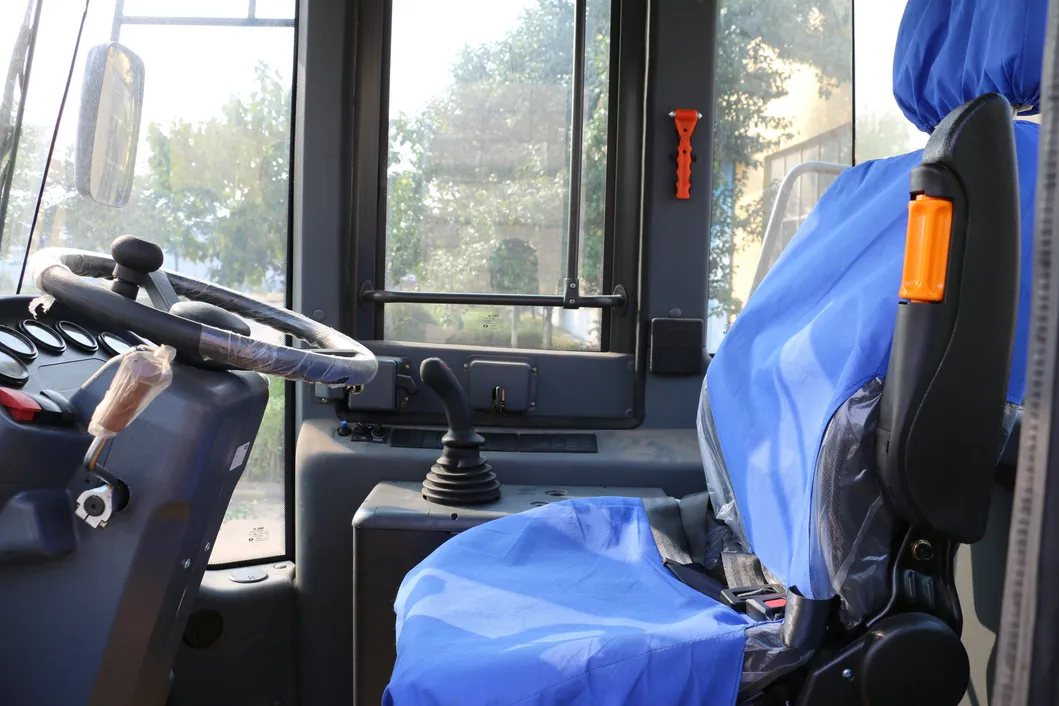

Is the operator cabin designed for comfort?
Yes, it features a new design cabin equipped with a backup camera and optional air conditioning for a comfortable and safe operating environment.
Can this loader handle different types of attachments?
Absolutely. Various working devices are available, such as log clamps, pipe clamps, grass forks, snow plows, ore buckets, and pallet forks.
What are the hydraulic system specifications?
It utilizes a fully hydraulic steering system with a system working pressure of 27.5mpa and a displacement of 100ml/r for efficient implement control.
What is the dumping height for this loader?
The standard dumping height is 3200mm, with an extended option up to 4500mm to meet different site needs.
